Thunderbolt 5 Dock with NVMe Slot for Mac and Windows, Up to Dual 8K
StarTech.com

Thunderbolt 5 Dock with NVMe Slot for Mac and Windows, Up to Dual 8K

60Hz or Triple 4K 144Hz, 140W Laptop Charging, 5GbE, 120Gbps Bandwidth Boost

Model 183UE-TB5USB4DOCKEAN 065030912938

57 specifications
  • ConnectivityWired
  • Weight636 g
  • ColourGrey
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
636 g
Colour
Grey
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 40 °C
Brand
StarTech.com
Model
183UE-TB5USB4DOCK
Part number
183UE-TB5USB4DOCK
EAN / UPC
065030912938
Also known as
StarTech.com Thunderbolt 5 Dock with NVMe Slot for Mac and Windows, Up to Dual 8K 60Hz or Triple 4K 144Hz, 140W Laptop Charging, 5GbE, 120Gbps Bandwidth Boost

Specifications

57 specifications in 12 groups

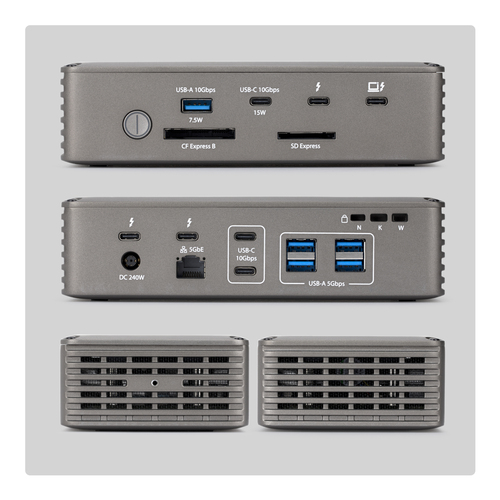

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 5
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity3
HDMI ports quantity0
Thunderbolt 5 ports quantity3
Microphone inNo
Headphone outputs0
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500,5000 Mbit/s
Wake-on-LAN readyYes
Full duplexYes

Performance

Product colourGrey
Card reader integratedYes
Compatible memory cardsCFexpress Type B, SD
Data transfer rate120 Gbit/s
HD type8K Ultra HD
Maximum digital resolution7680 x 4320 pixels
Maximum refresh rate240 Hz
Number of displays supported3
Cable lock slotYes
Cable lock slot typeKensington, Nano, Noble, Wedge
Housing materialAluminium
UASP supportYes

Power

AC input voltage100 - 240 V
Input current3 A
Output current12 A
Output voltage20 V
Power consumption (max)240 W
Compatible power plug typesEU
USB cable length1 m

Software

Windows operating systems supportedWindows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supportedMac OS X 15.0 Sequoia, Mac OS 26 Tahoe

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width45 mm
Depth168 mm
Height90 mm
Weight636 g

Packaging data

Quantity per pack1 pc(s)
Package width147 mm
Package depth296 mm
Package height113 mm
Package weight1.5 kg

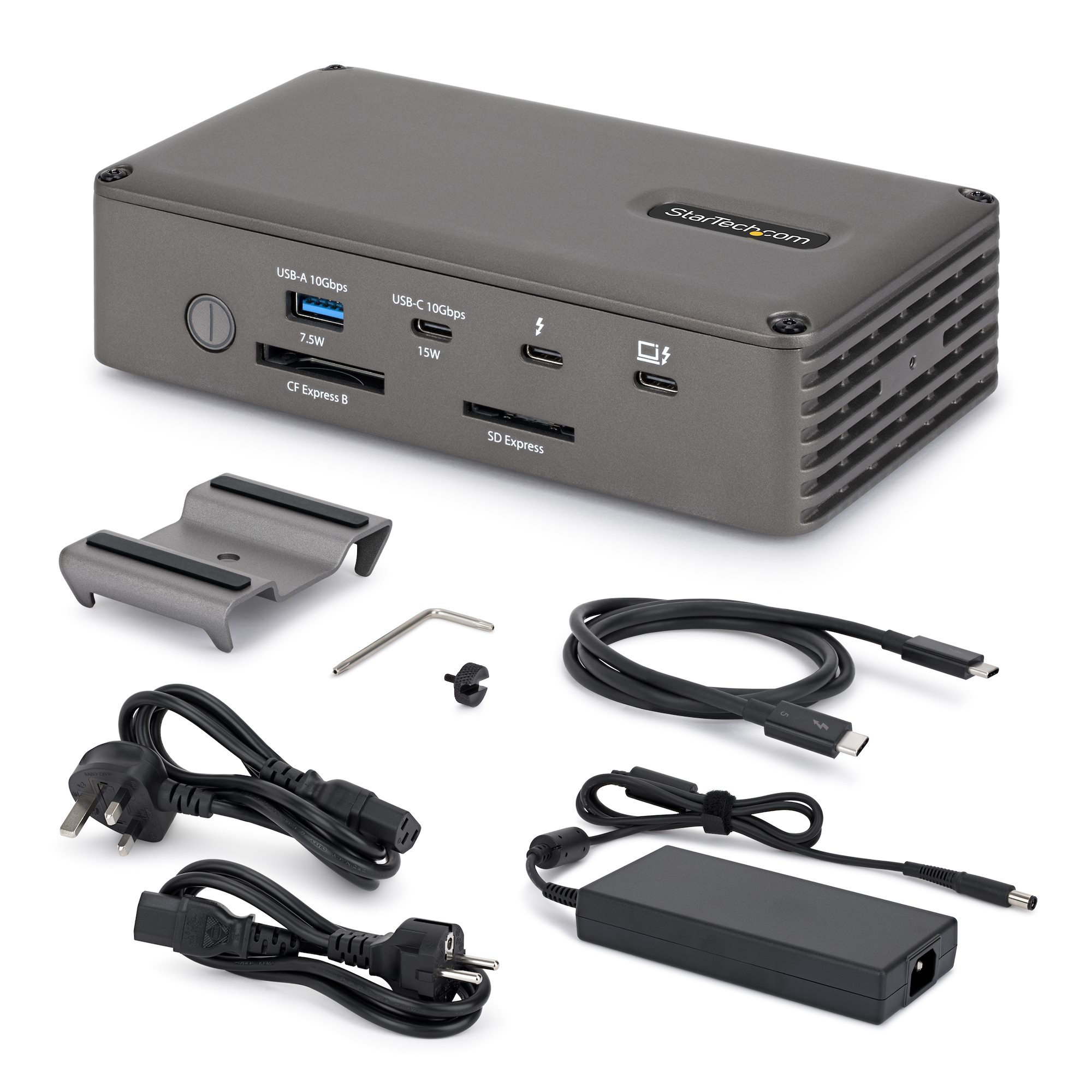

Packaging content

Cables includedThunderbolt
Quick start guideYes

Technical details

Compliance certificatesFederal Communications Commission (FCC), CE

Logistics data

Master (outer) case height314 mm
Master (outer) case length480 mm
Master (outer) case width310 mm
Products per master (outer) case10 pc(s)

Other features

ChipsetIntel - JHL9480, Infineon - PMG1, Infineon - CCG8, Realtek - RTL8157CG, JMicron - JMS581LT, Texas Instruments - TPS2546, VIA Labs - VL822Q8, VIA Labs - VL822Q7, VIA Labs - VL817, Parade - FL5801, Terminus - FE1.1, STMicro - STM32C071F8
