StarTech.com USB4 Multiport Adapter, Driverless Dual-4K for macOS and Windows
StarTech.com

USB4 Multiport Adapter, Driverless Dual-4K for macOS and Windows

140W Power Delivery Charging, 3-Port 10Gbps Hub, 2.5GbE, Mini Dock

Model 174B-USB4-MULTIPORTEAN 065030903080

57 specifications
  • ConnectivityWired
  • Weight200 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeUSB
  • Linux operating systems supportedUbuntu 24.04 LTS
See all specifications

Overview

Connectivity
Wired
Weight
200 g
Colour
Grey
Ethernet LAN
Yes
Power source type
USB
Linux operating systems supported
Ubuntu 24.04 LTS
Brand
StarTech.com
Model
174B-USB4-MULTIPORT
Part number
174B-USB4-MULTIPORT
EAN / UPC
065030903080
Also known as
StarTech.com USB4 Multiport Adapter, Driverless Dual-4K for macOS and Windows, 140W Power Delivery Charging, 3-Port 10Gbps Hub, 2.5GbE, Mini Dock

Specifications

57 specifications in 12 groups

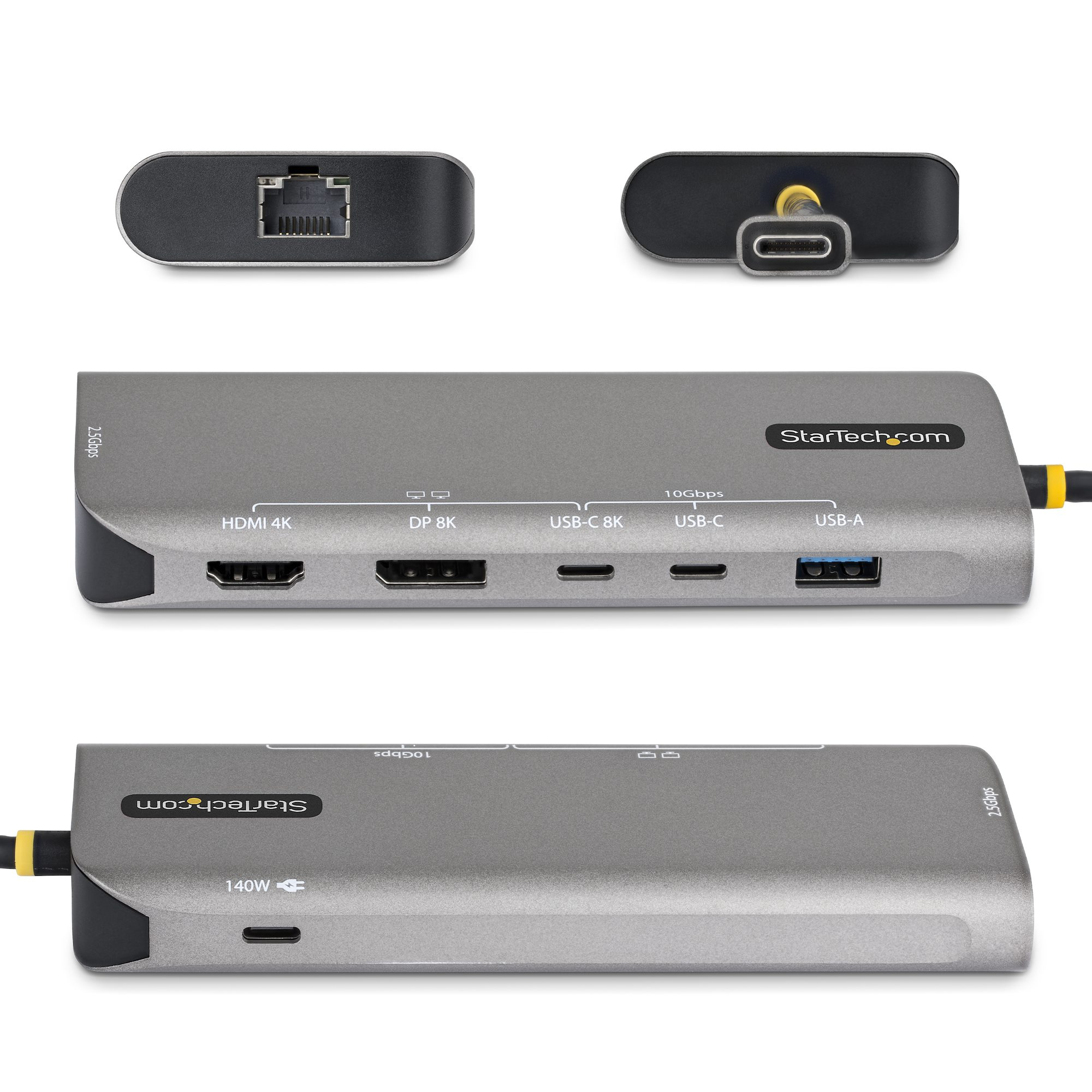

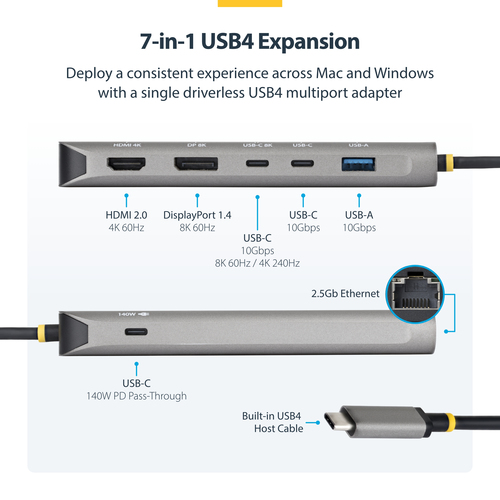

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB4
USB 2.0 ports quantity0
USB 2.0 Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.2
USB Power Delivery up to140 W
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity1
DisplayPort version1.4
Microphone inNo
Headphone outputs0
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Wake-on-LAN readyYes
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate40 Gbit/s
HD type8K Ultra HD

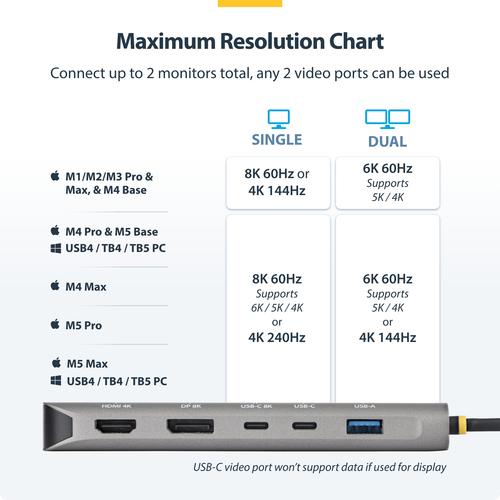

Maximum digital resolution7680 x 4320 pixels
Maximum refresh rate240 Hz
Housing materialAluminium
Mean time between failures (MTBF)40669 h
UASP supportYes

Power

Power source typeUSB
Output voltage5 V
Power consumption (max)30 W
USB cable length0.2 m

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Mac operating systems supportedMac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe
Linux operating systems supportedUbuntu 24.04 LTS
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 85%

Weight & dimensions

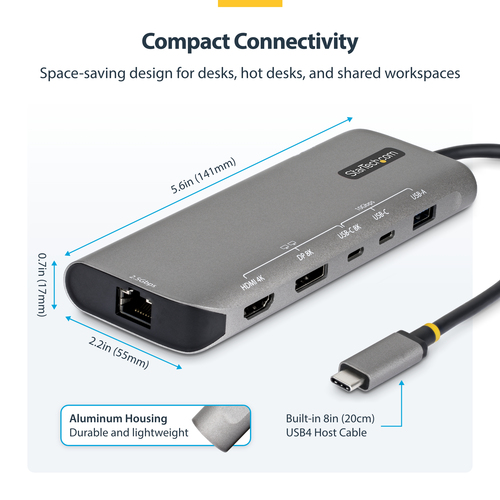

Width55 mm
Depth141 mm
Height17 mm
Weight200 g

Packaging data

Package width200 mm
Package depth120 mm
Package height30 mm
Package weight175 g

Packaging content

User guideYes

Technical details

Compliance certificatesRoHS, Federal Communications Commission (FCC)

Logistics data

Master (outer) case height440 mm
Master (outer) case length331 mm
Master (outer) case width473 mm
Products per master (outer) case70 pc(s)

Other features

ChipsetRealtek - RTS5453H, Realtek - RTS5452H, Realtek - RTS5252E, Realtek - RTL8156BG, Monolithic - MP4247, VIA - VL600, VIA - VL822, VIA - VL162, Terminus - FE8.1, Intel - JHL8140
