Dual-Monitor USB4 Docking Station, Dual 4K
120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless
Model 155NA-USB4-DOCKEAN 065030899673
61 specifications
- ConnectivityWired
- Weight138.6 g
- ColourSilver
- Ethernet LANYes
- Power source typeDC
- Other operating systems supportedChromeOS
Overview
- Connectivity
- Wired
- Weight
- 138.6 g
- Colour
- Silver
- Ethernet LAN
- Yes
- Power source type
- DC
- Other operating systems supported
- ChromeOS
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 155NA-USB4-DOCK
- Part number
- 155NA-USB4-DOCK
- EAN / UPC
- 065030899673
- Also known as
- StarTech.com Dual-Monitor USB4 Docking Station, Dual 4K 120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless
Specifications
61 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 120 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| Housing material | Plastic |
| LED indicators | Power |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 9 A |
| Output voltage | 20 V |
| Power consumption (typical) | 165 W |
| Power plug type | Type M |
| Compatible power plug types | US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 95 mm |
| Height | 34 mm |
| Weight | 138.6 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 233 mm |
| Package depth | 146 mm |
| Package height | 91 mm |
| Package weight | 1.2 kg |

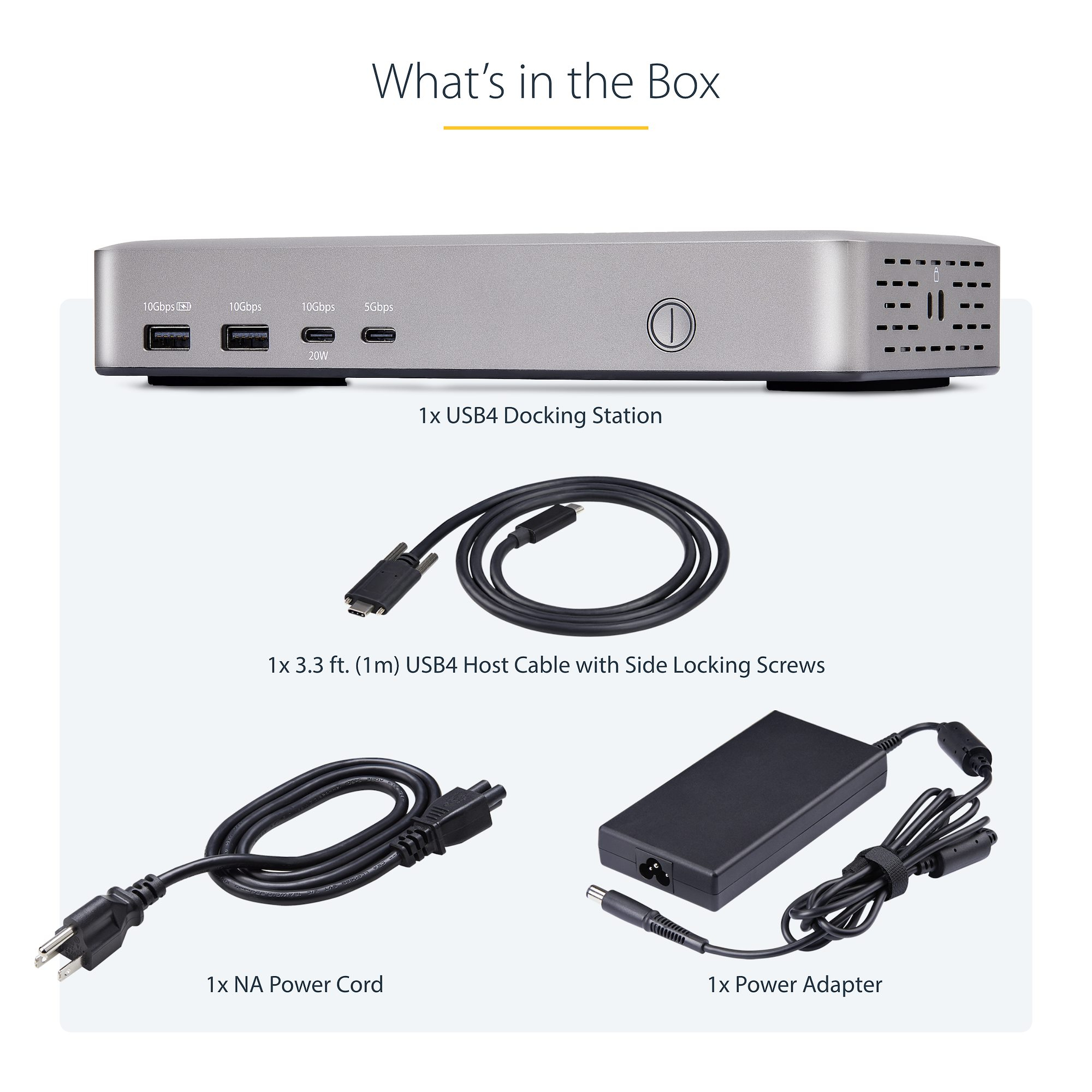

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 275 mm |
| Master (outer) case length | 311 mm |
| Master (outer) case width | 383 mm |
| Products per master (outer) case | 8 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE |
