StarTech.com USB-C Triple-Monitor Multiport Adapter, Dual 4K
StarTech.com

USB-C Triple-Monitor Multiport Adapter, Dual 4K

60Hz + 4K 30Hz HDMI & DisplayPort, 4-Port USB Hub, 100W PD Pass-Through, GbE, SD/MicroSD Card Reade

Model 154B-USBC-MULTIPORTEAN 065030899499

54 specifications
  • ConnectivityWired
  • Weight106 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeUSB
  • Other operating systems supportedChromeOS
See all specifications

Overview

Connectivity
Wired
Weight
106 g
Colour
Grey
Ethernet LAN
Yes
Power source type
USB
Other operating systems supported
ChromeOS
Brand
StarTech.com
Model
154B-USBC-MULTIPORT
Part number
154B-USBC-MULTIPORT
EAN / UPC
065030899499
Also known as
StarTech.com USB-C Triple-Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 4-Port USB Hub, 100W PD Pass-Through, GbE, SD/MicroSD Card Reade

Specifications

54 specifications in 11 groups

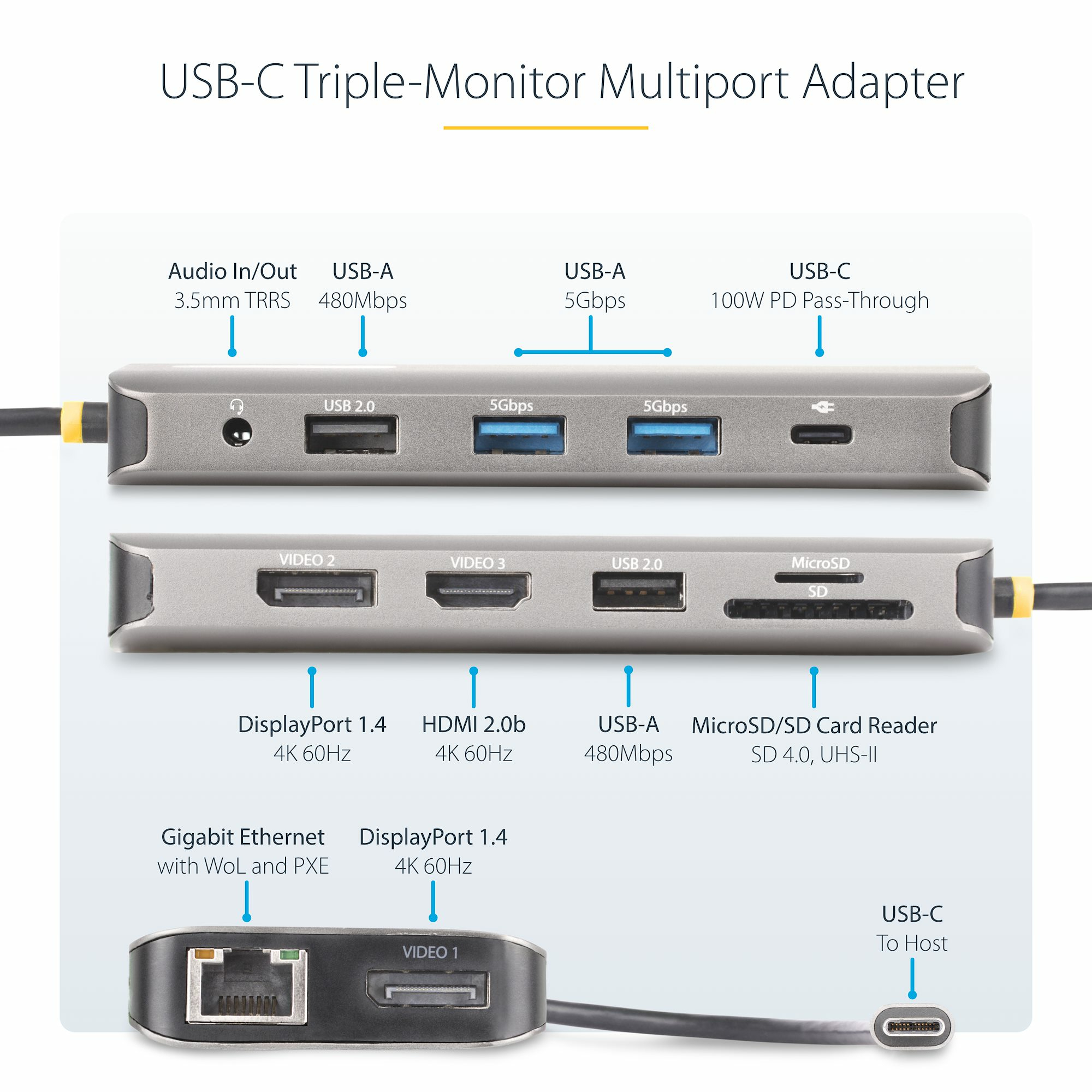

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1

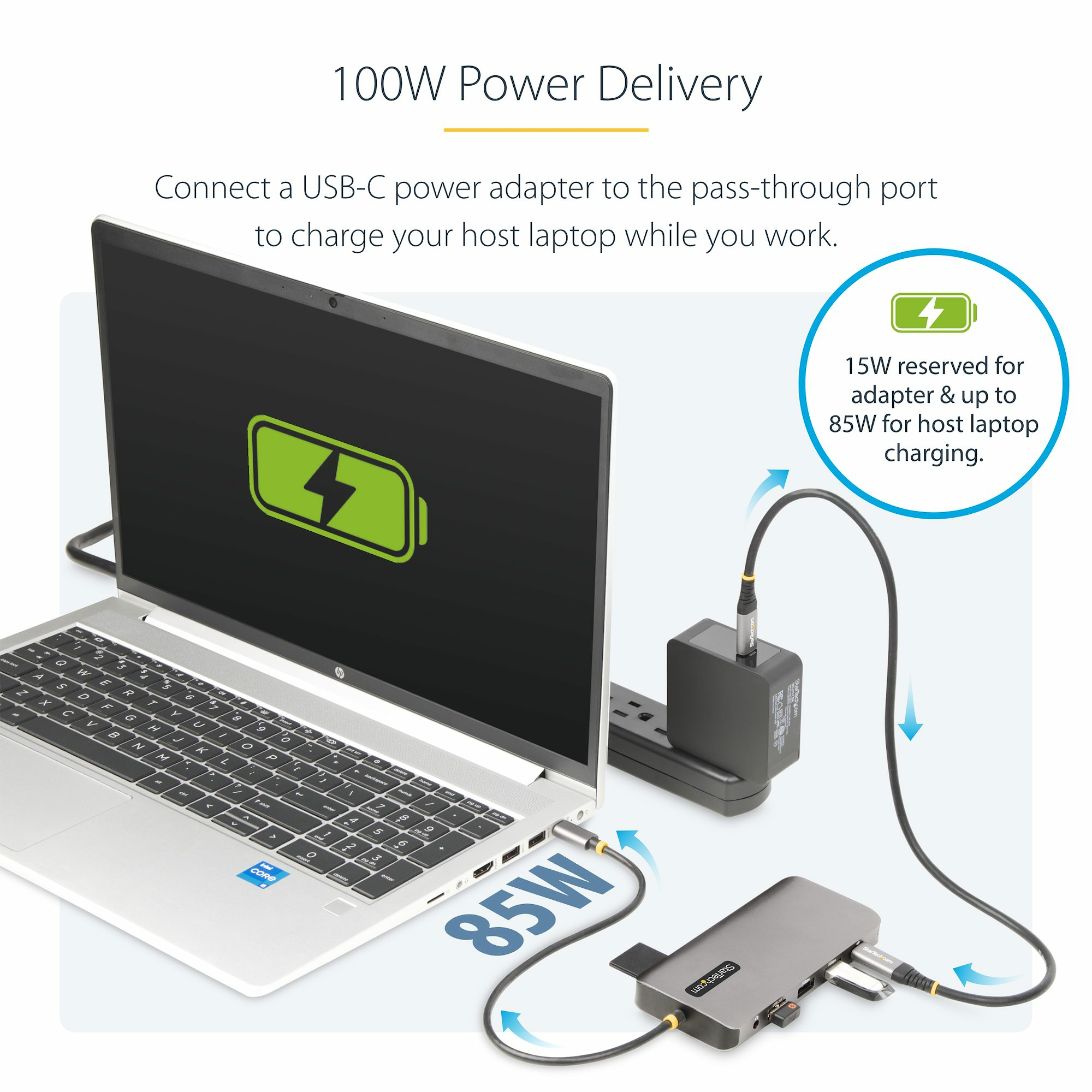

USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity1
HDMI version2.0b
DisplayPorts quantity2
DisplayPort version1.4
Combo headphone/mic portYes
Headphone outputs1
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexYes

Performance

Product colourGrey
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
Data transfer rate5 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz

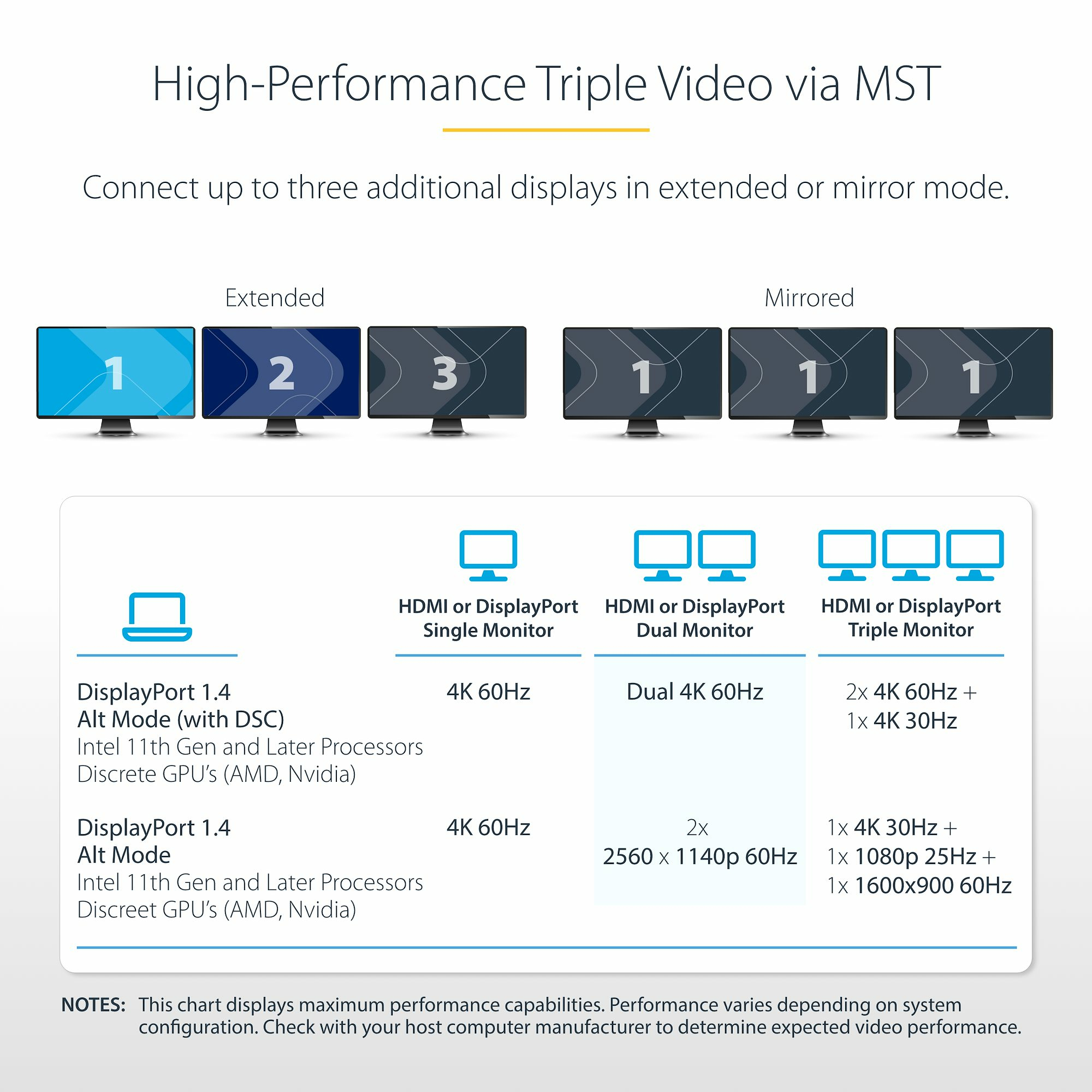

Number of displays supported3
Housing materialAluminium, Plastic
LED indicatorsActivity
UASP supportYes

Power

Power source typeUSB
Power consumption (typical)15 W
USB cable length0.3 m

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 90%

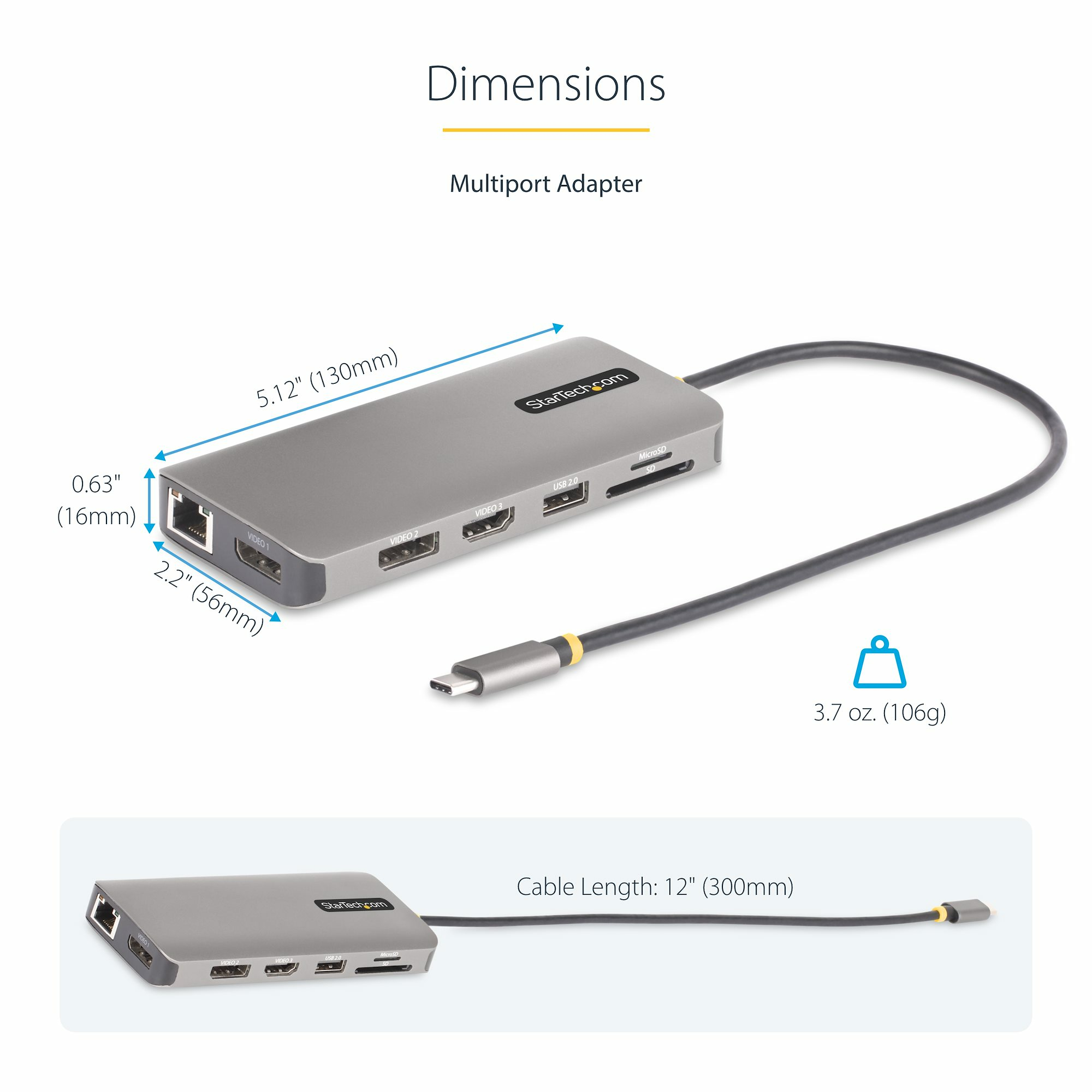

Weight & dimensions

Width56 mm
Depth130 mm
Height16 mm
Weight106 g

Packaging data

Package width245 mm
Package depth129 mm
Package height33 mm
Package weight120 g

Packaging content

Quick start guideYes

Logistics data

Master (outer) case height252 mm
Master (outer) case length303 mm
Master (outer) case width537 mm
Products per master (outer) case24 pc(s)

Other features

ChipsetVIA - VL102, VIA - VL817, Synaptics - VMM5320, Realtek - RTL8153, Solid State System - SSS1700, Genesys Logic - GL823K
