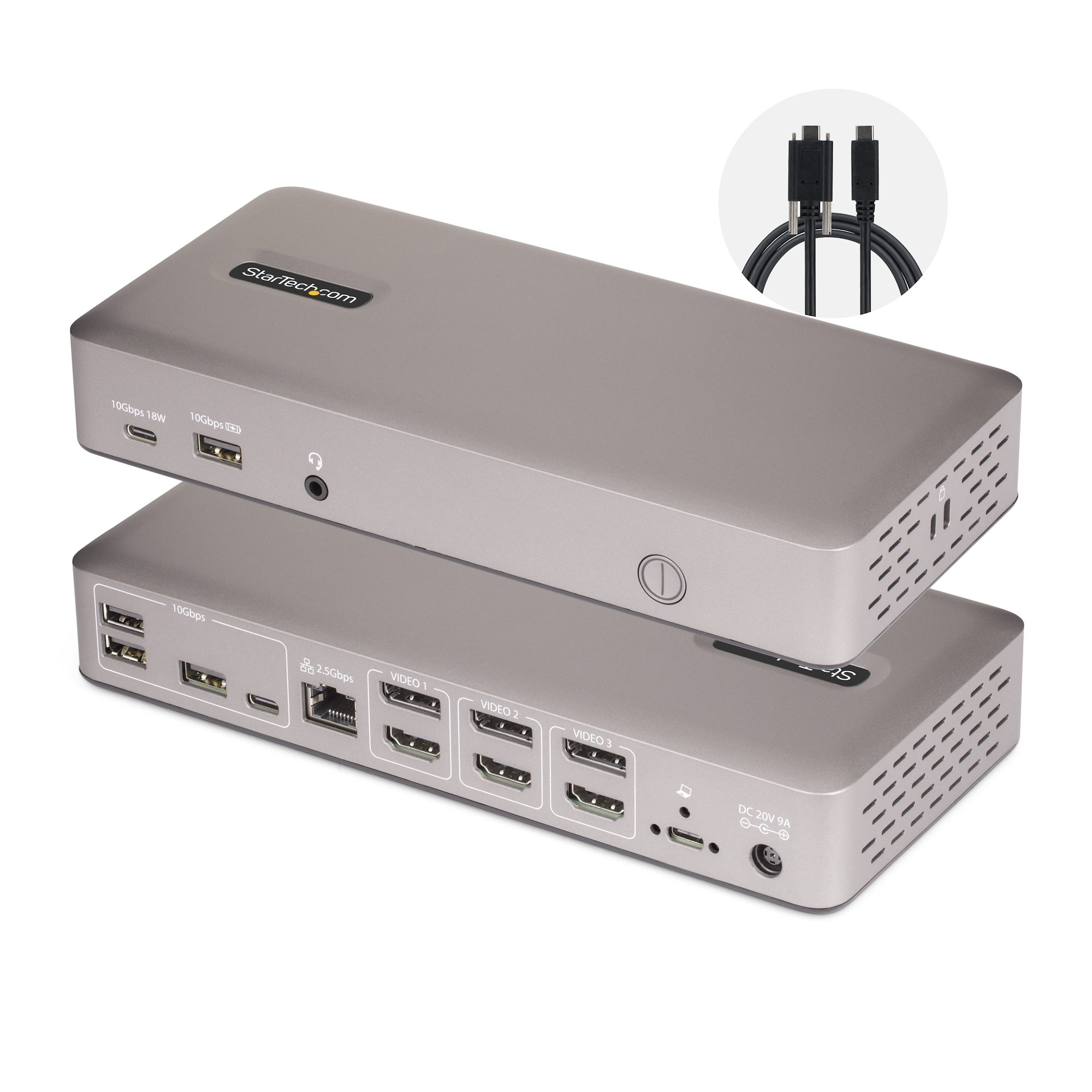

Triple-Monitor USB4 Docking Station, 4K
60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless
Model 150N-USB4DOCK-TRIPLEEAN 065030899024
59 specifications
- ConnectivityWired
- Weight440 g
- ColourGrey
- Ethernet LANYes
- Power source typeDC
- Other operating systems supportedChromeOS
Overview
- Connectivity
- Wired
- Weight
- 440 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Other operating systems supported
- ChromeOS
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 150N-USB4DOCK-TRIPLE
- Part number
- 150N-USB4DOCK-TRIPLE
- EAN / UPC
- 065030899024
- Also known as
- StarTech.com Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless
Specifications
59 specifications in 11 groups

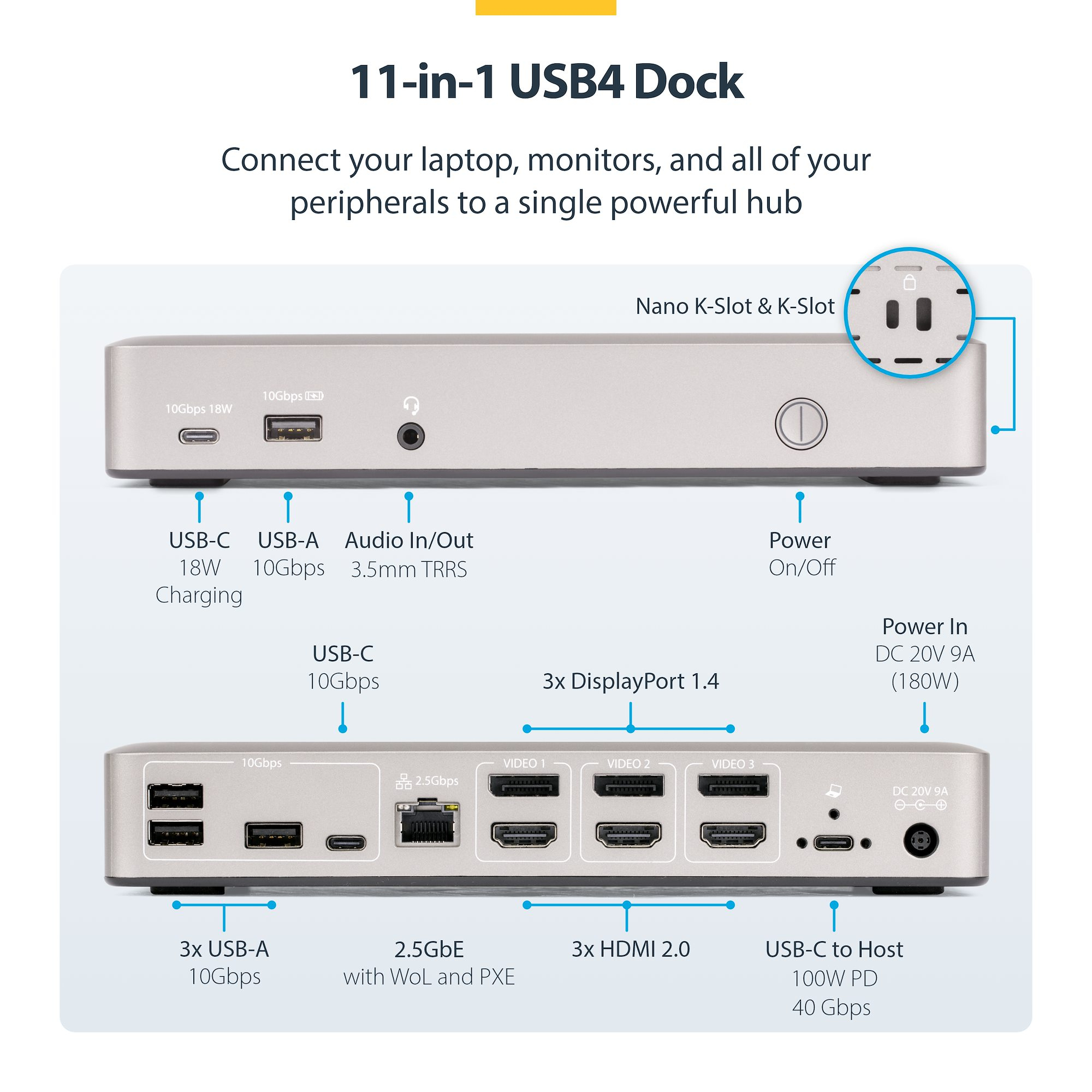

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |

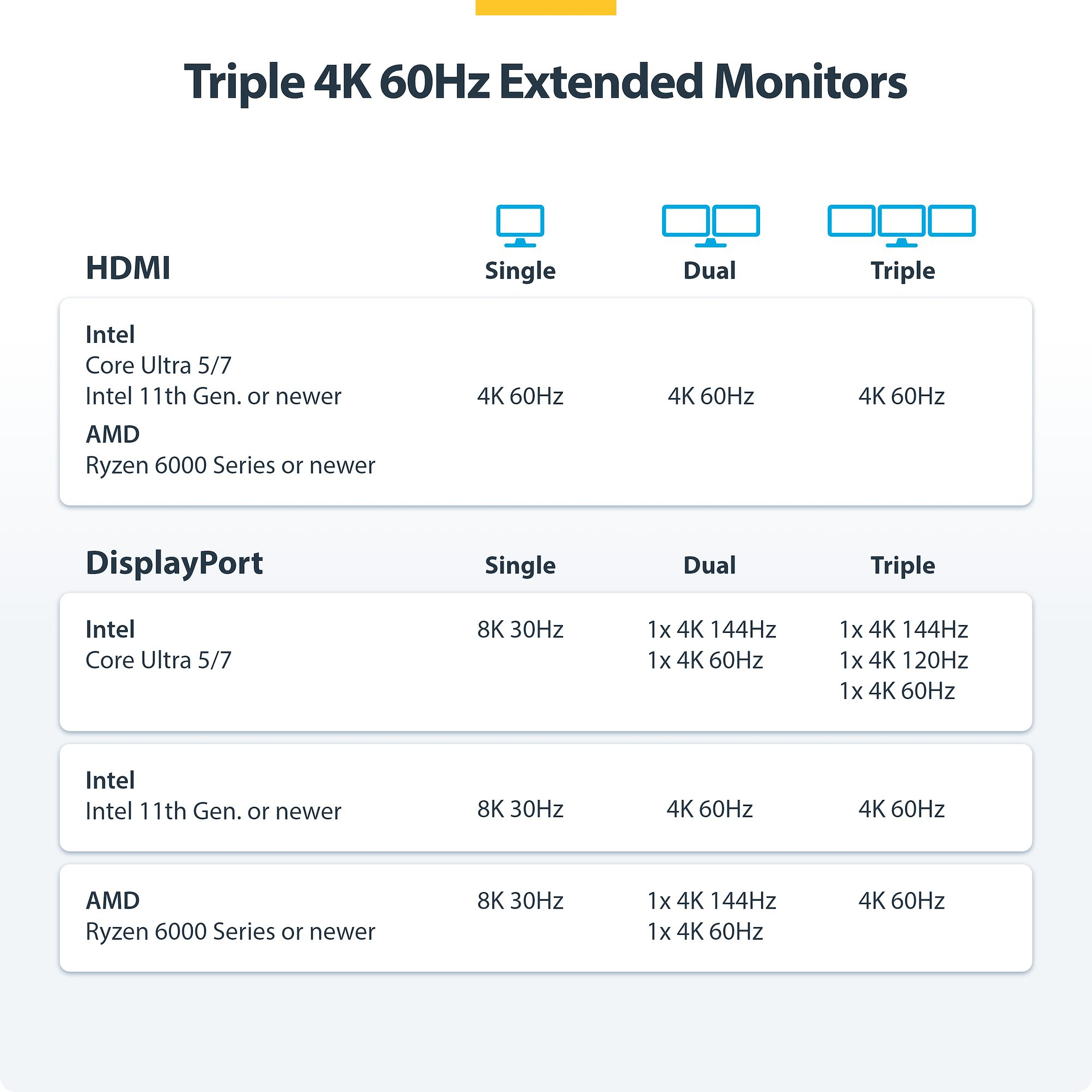

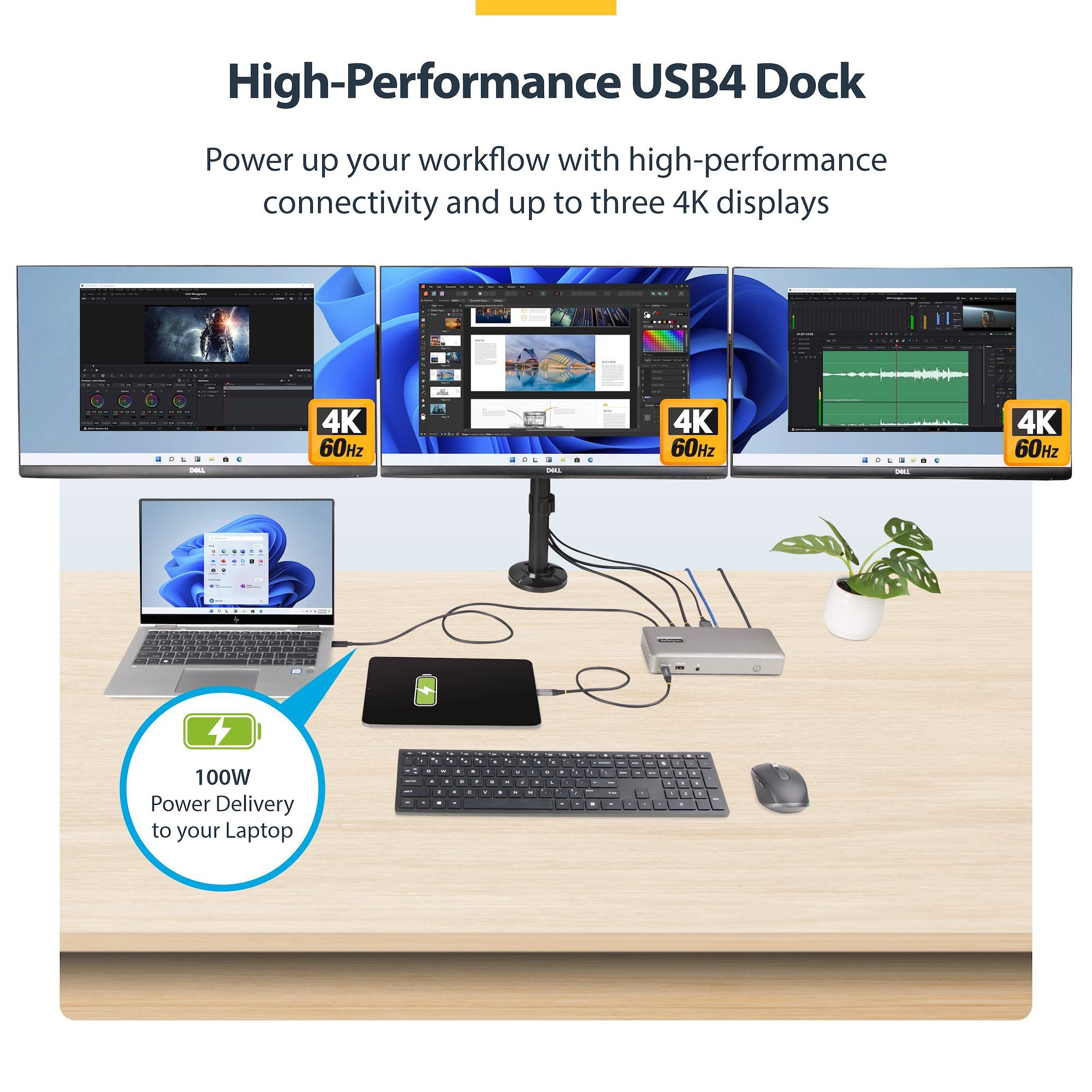

| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| Housing material | Plastic |
| Mean time between failures (MTBF) | 10000 h |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 110 - 240 V |
| Input current | 2.5 A |
| Output current | 9 A |
| Output voltage | 20 V |
| Power consumption (max) | 180 W |
| Compatible power plug types | US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 210 mm |
| Height | 34 mm |
| Weight | 440 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 235 mm |
| Package height | 99 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 285 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case width | 310 mm |
| Products per master (outer) case | 8 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | VIA - VL830, VIA - VL163, VIA - VL162 VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469, Realtek - RTD2188 |
