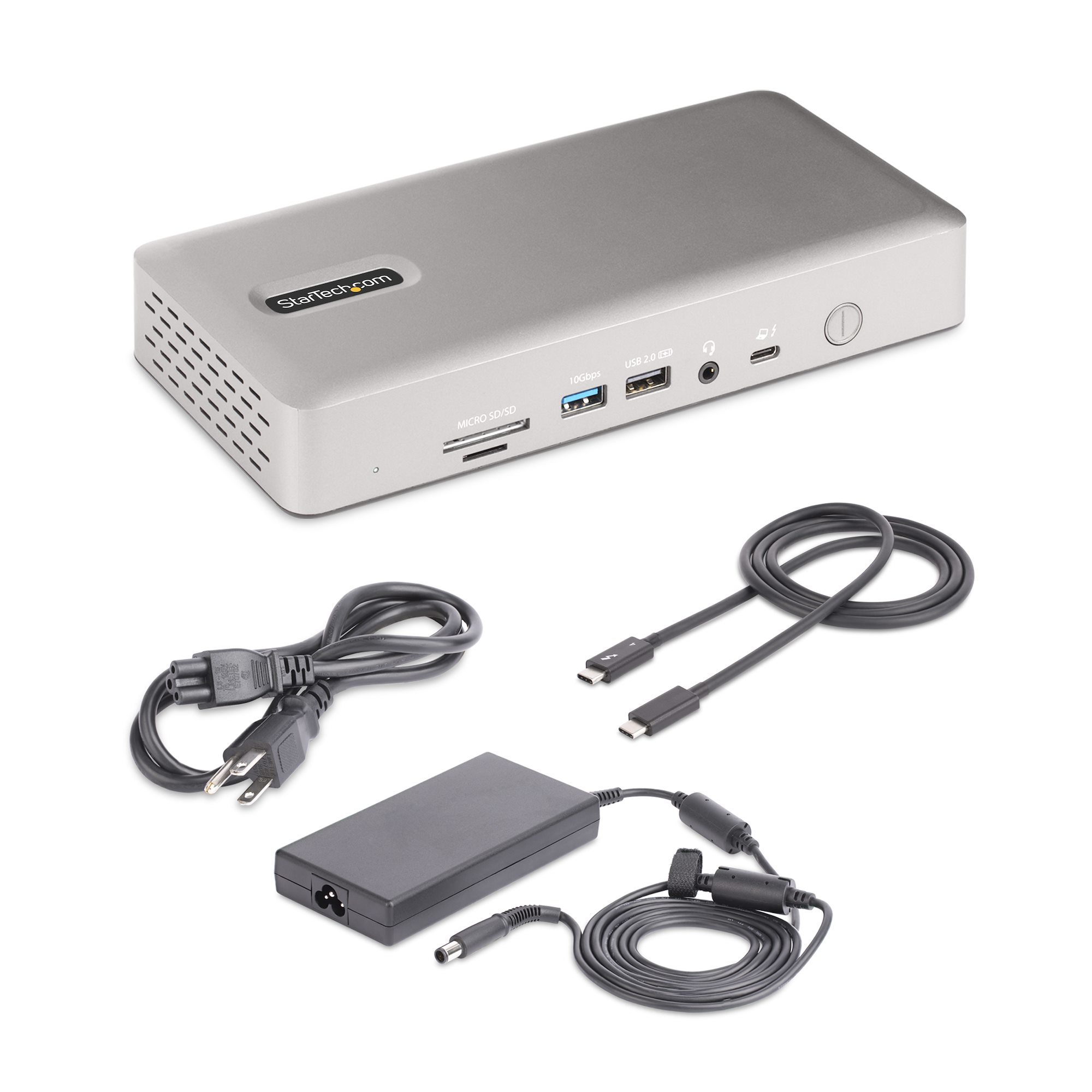

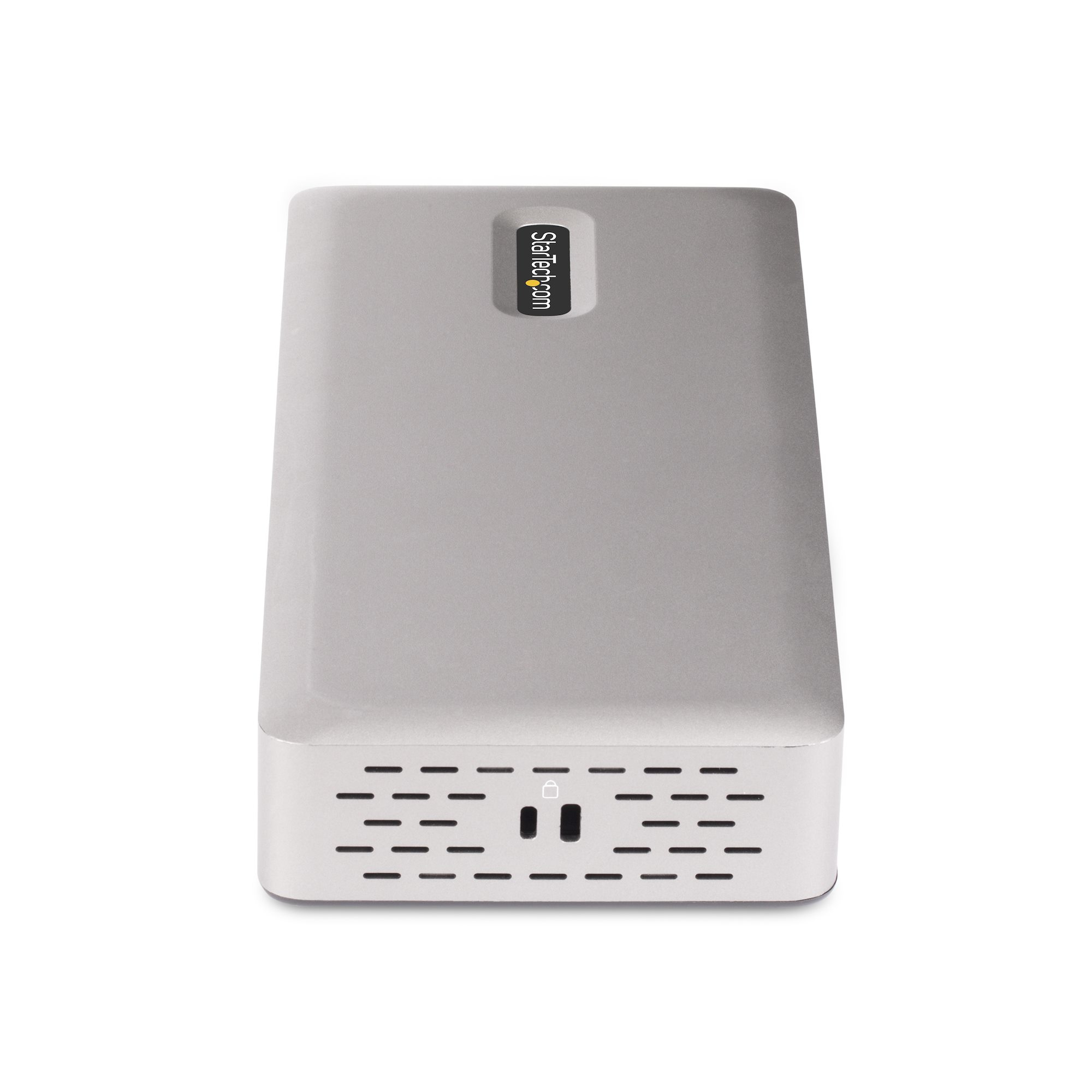

Thunderbolt 4 Dock - Dual 4K Macbook Pro and M4 Air, Quad Monitor 4K Windows, 16 Port 40Gbps Laptop Docking Station with
100W Charging, 2 x HDMI, 2
Model 132N-TB4USB4DOCKEAN 065030899277
64 specifications
- ConnectivityWired
- Weight200 g
- ColourGrey
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 132N-TB4USB4DOCK
- Part number
- 132N-TB4USB4DOCK
- EAN / UPC
- 065030899277
- Also known as
- StarTech.com Thunderbolt 4 Dock - Dual 4K Macbook Pro and M4 Air, Quad Monitor 4K Windows, 16 Port 40Gbps Laptop Docking Station with 100W Charging, 2 x HDMI, 2
Specifications
64 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| Housing material | Aluminium |
| LED indicators | LAN, Power |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 110 - 240 V |
| Input current | 2.5 A |
| Output current | 9 A |
| Output voltage | 20 V |
| Power consumption (max) | 180 W |
| Compatible power plug types | US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 96 mm |
| Height | 34 mm |
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 146 mm |
| Package depth | 232 mm |
| Package height | 91 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 272 mm |
| Master (outer) case length | 309 mm |
| Master (outer) case width | 382 mm |
| Products per master (outer) case | 8 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546 |
