Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K
60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/M
Model 129N-USBC-KVM-DOCKEAN 065030897242
62 specifications
- ConnectivityWired
- Weight402 g
- ColourSilver
- Ethernet LANYes
- Power source typeDC
- Other operating systems supportedChromeOS
Overview
- Connectivity
- Wired
- Weight
- 402 g
- Colour
- Silver
- Ethernet LAN
- Yes
- Power source type
- DC
- Other operating systems supported
- ChromeOS
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 129N-USBC-KVM-DOCK
- Part number
- 129N-USBC-KVM-DOCK
- EAN / UPC
- 065030897242
- Also known as
- StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/M
Specifications
62 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 9 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Housing material | Plastic |
| LED indicators | LAN, Power |
| UASP support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.4 A |
| Output current | 9 A |
| Output voltage | 20 V |
| Power consumption (typical) | 180 W |
| Compatible power plug types | AU, JP, US |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 224 mm |
| Height | 40 mm |
| Weight | 402 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 283 mm |
| Package depth | 163 mm |
| Package height | 102 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |

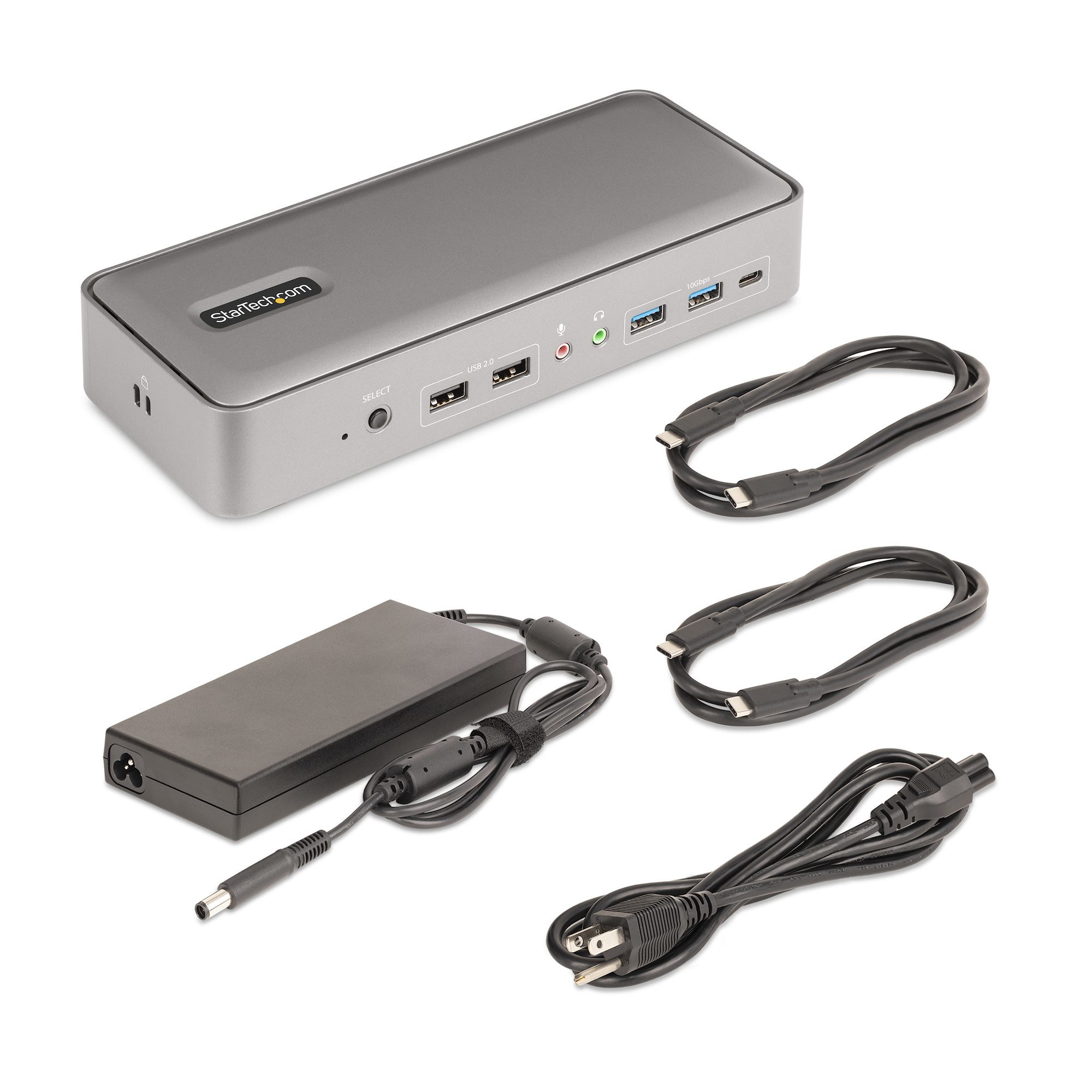

| Cables included | USB Type-C |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 347 mm |
| Master (outer) case length | 351 mm |
| Master (outer) case width | 396 mm |
| Products per master (outer) case | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F |
