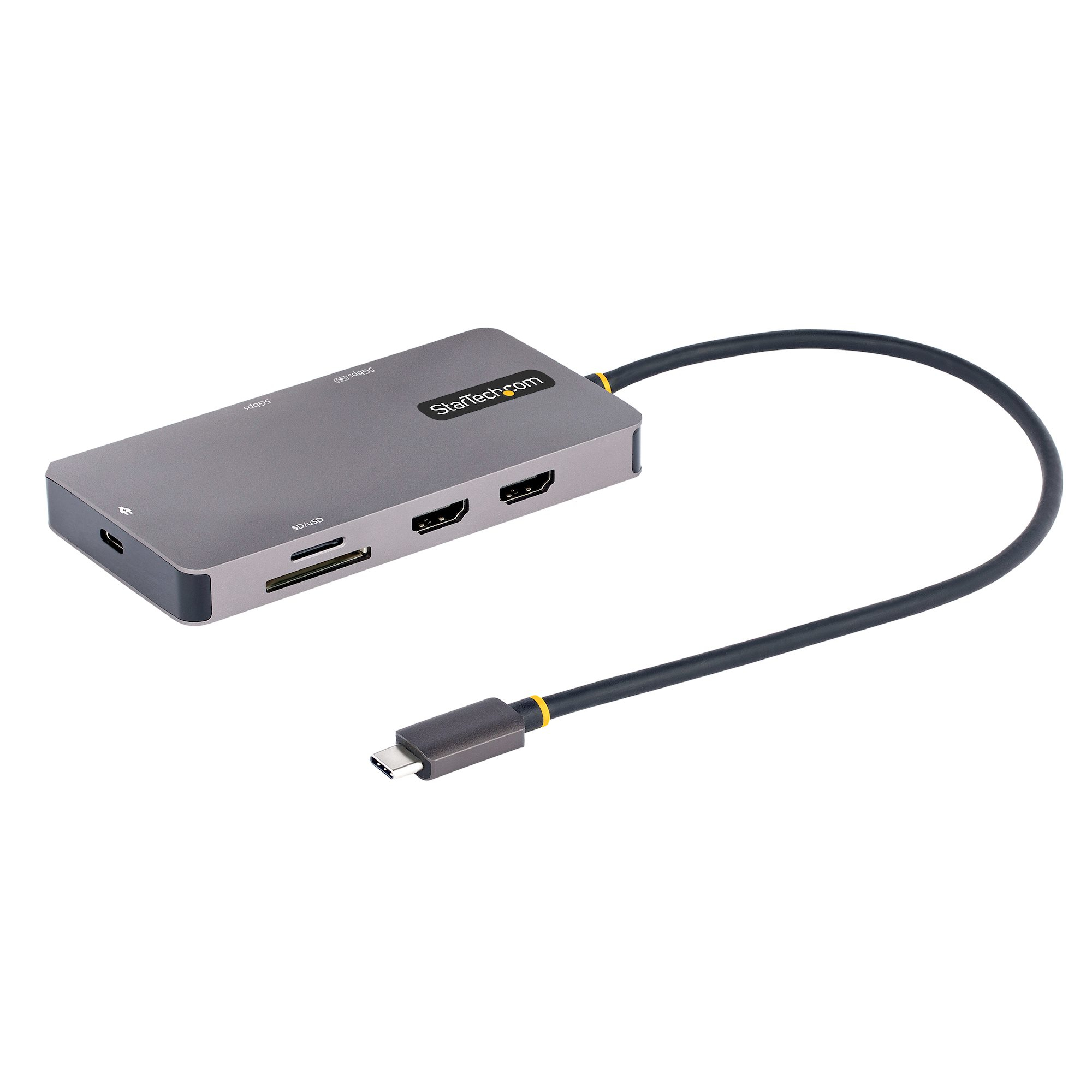

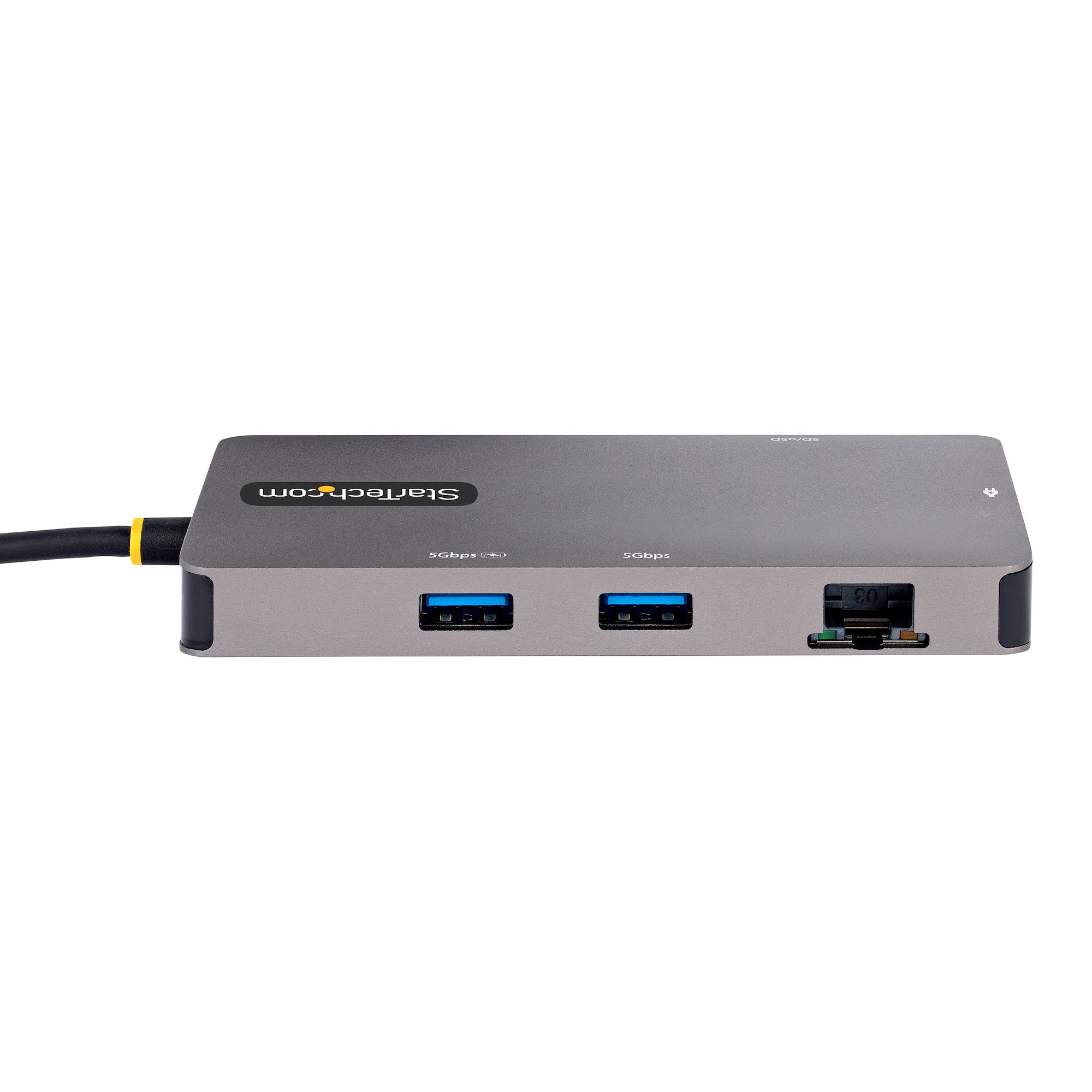

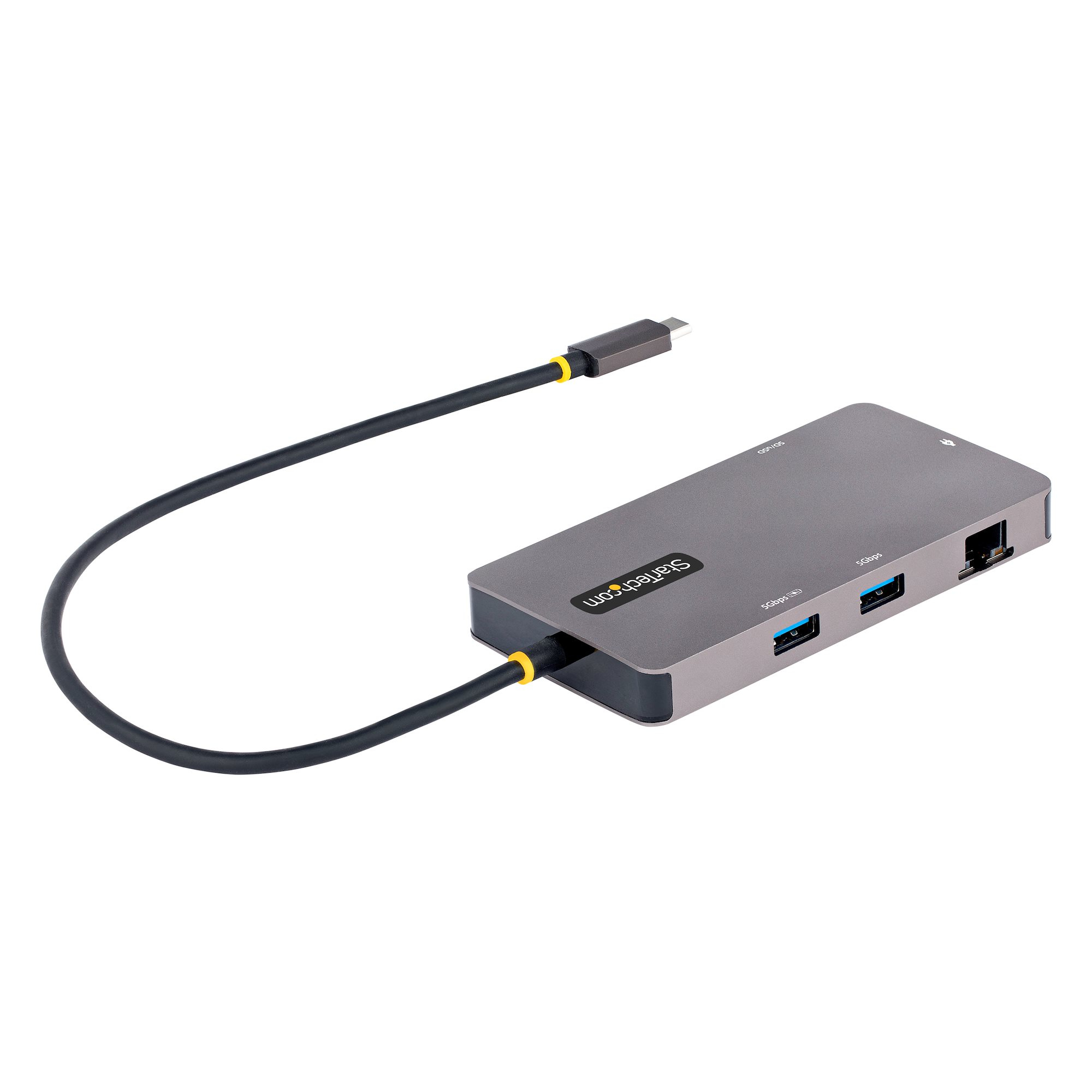

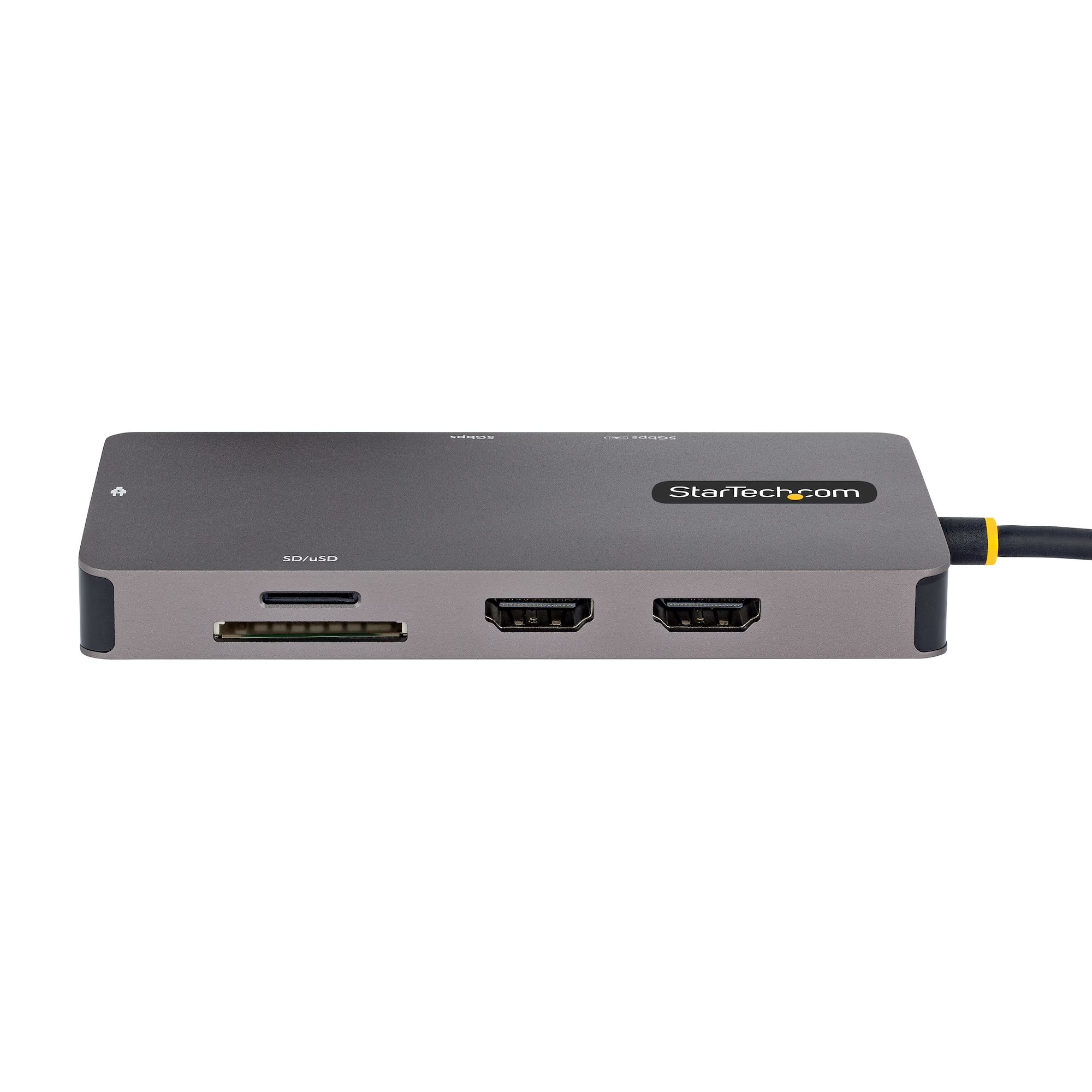

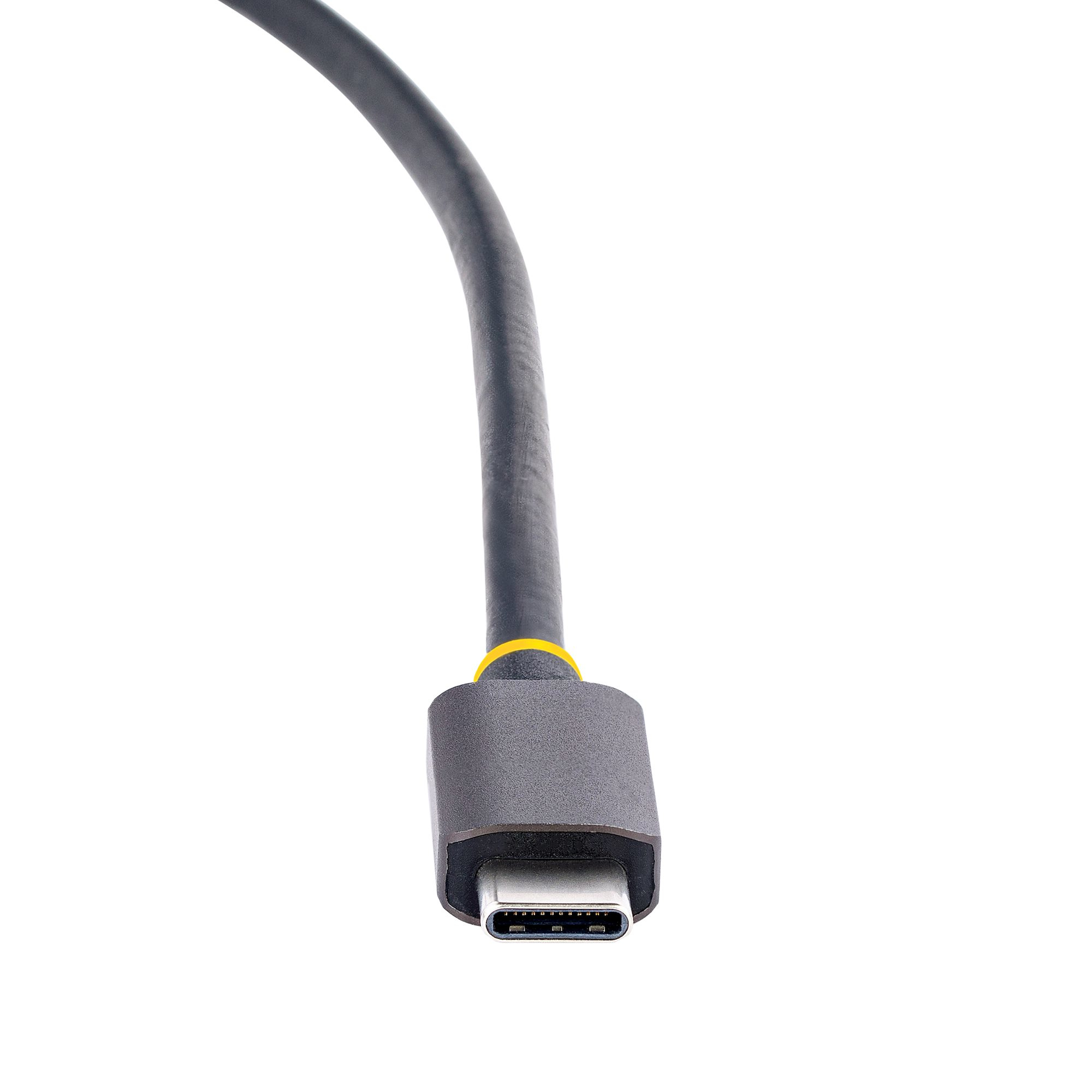

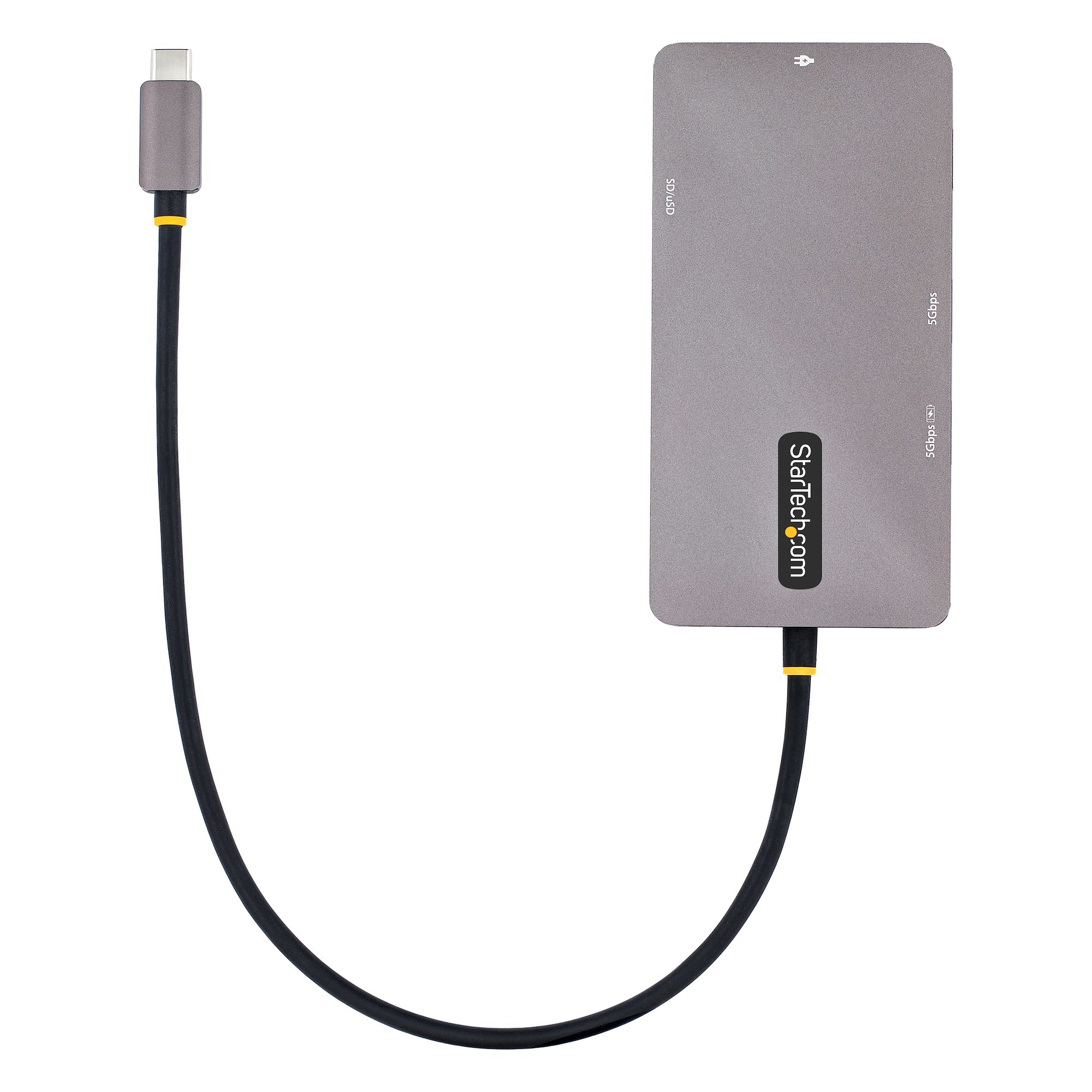

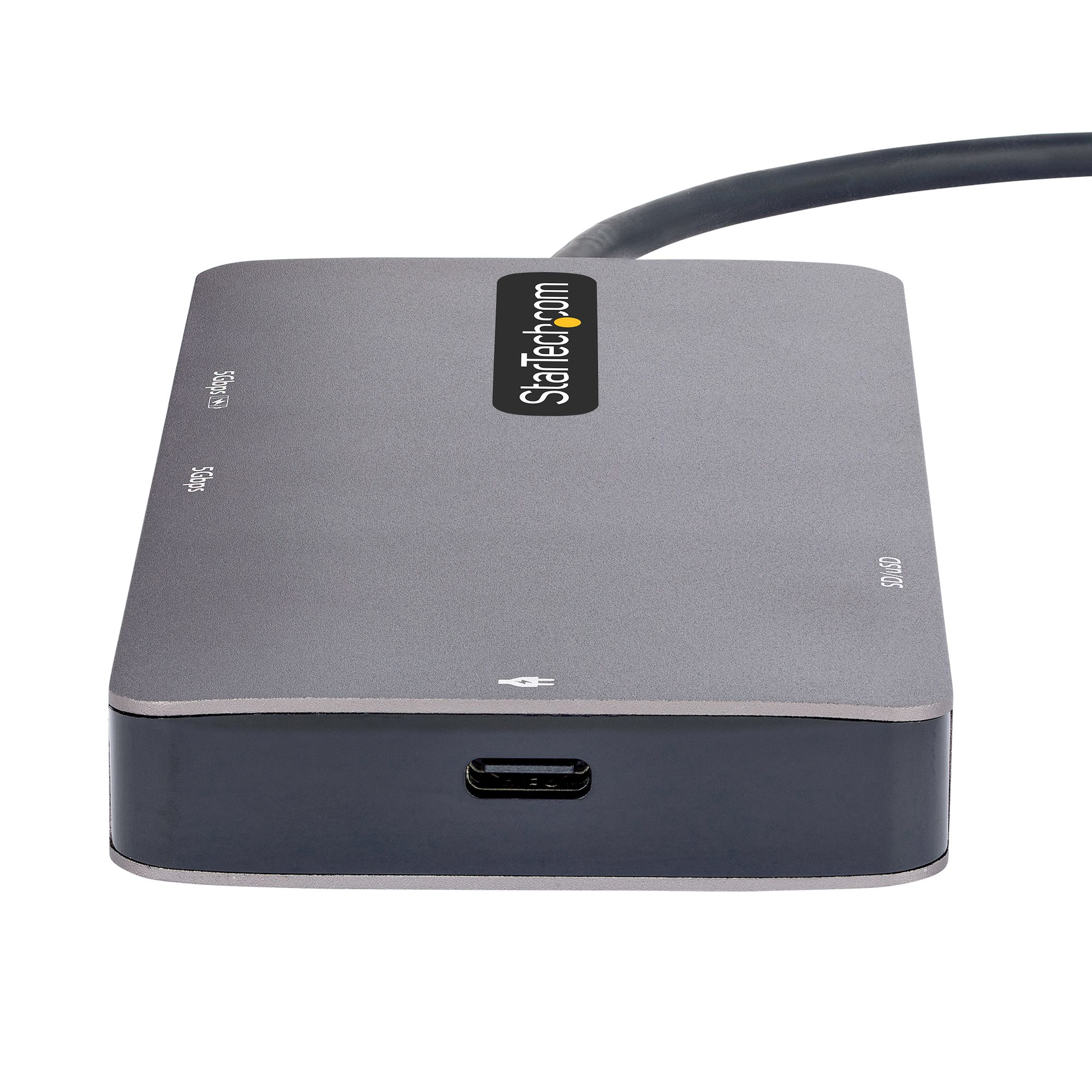

USB C Multiport Adapter, Dual HDMI Video, 4K
60Hz, 2Pt 5Gbps USB-A Hub, 100W Power Delivery Pass-Through/GbE/SD/MicroSD, 12"/30cm Cable, Travel Doc
Model 120B-USBC-MULTIPORTEAN 065030895576
52 specifications
- ConnectivityWired
- Weight165 g
- ColourGrey
- Ethernet LANYes
- Power source typeUSB
- Other operating systems supportedChromeOS
Overview
- Connectivity
- Wired
- Weight
- 165 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Other operating systems supported
- ChromeOS
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 120B-USBC-MULTIPORT
- Part number
- 120B-USBC-MULTIPORT
- EAN / UPC
- 065030895576
- Also known as
- StarTech.com USB C Multiport Adapter, Dual HDMI Video, 4K 60Hz, 2Pt 5Gbps USB-A Hub, 100W Power Delivery Pass-Through/GbE/SD/MicroSD, 12"/30cm Cable, Travel Doc
Specifications
52 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD, SDHC, SDXC |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| High Dynamic Range (HDR) supported | Yes |
| Housing material | Aluminium |
| LED indicators | Activity, Status |
| UASP support | Yes |
| High Dynamic Range 10 (HDR10) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 15 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 59 mm |
| Height | 140 mm |
| Weight | 165 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 173 mm |
| Package depth | 142 mm |
| Package height | 32 mm |
| Package weight | 165 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 323 mm |
| Master (outer) case length | 341 mm |
| Master (outer) case width | 557 mm |
| Products per master (outer) case | 60 pc(s) |
| Products per shipping (inner) case | 60 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.3 m |
| Chipset | VIA - VL102, VIA - VL817, NOREL Systems - NS1081, ASIX - AX88179A, Synaptics - VMM6210 |
