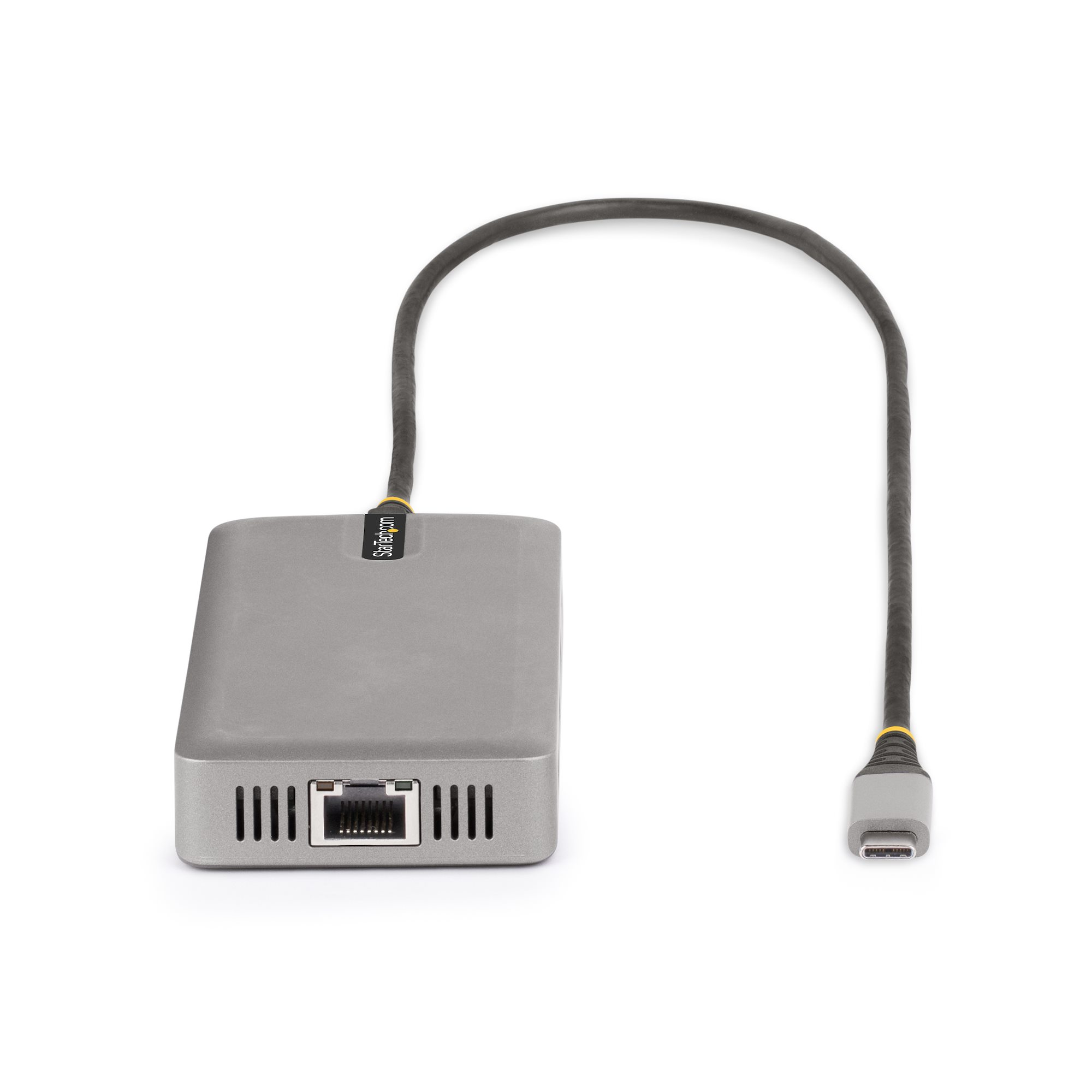

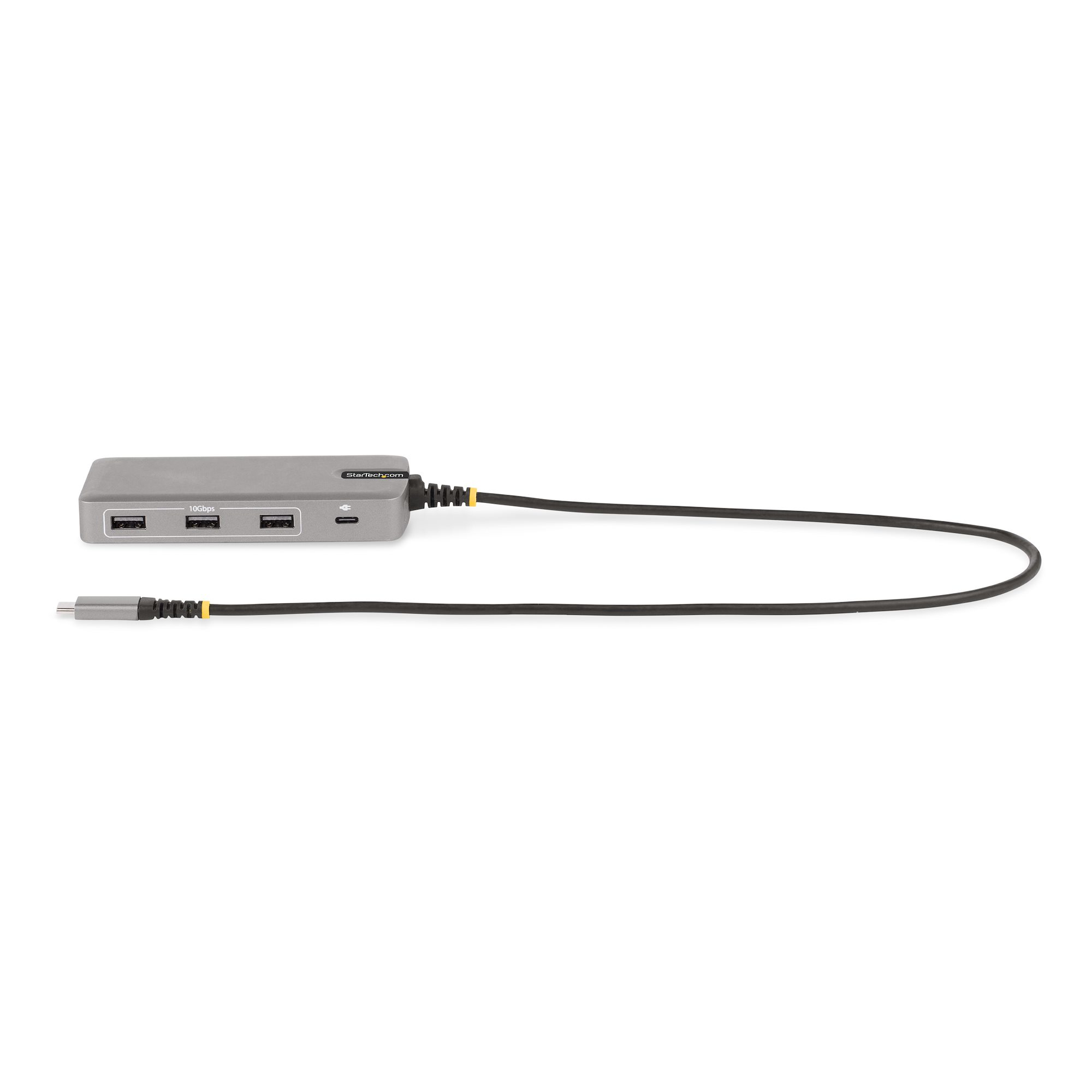

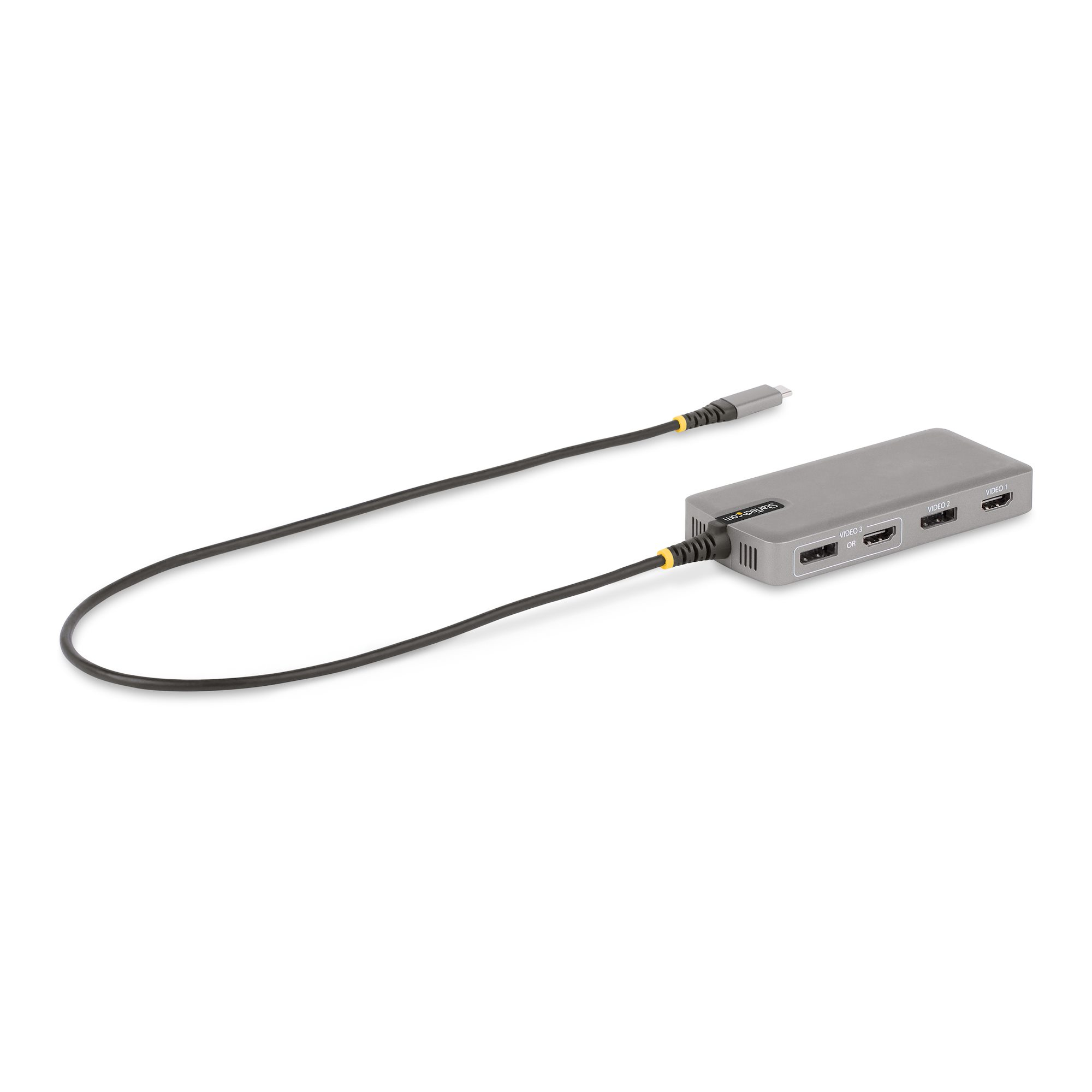

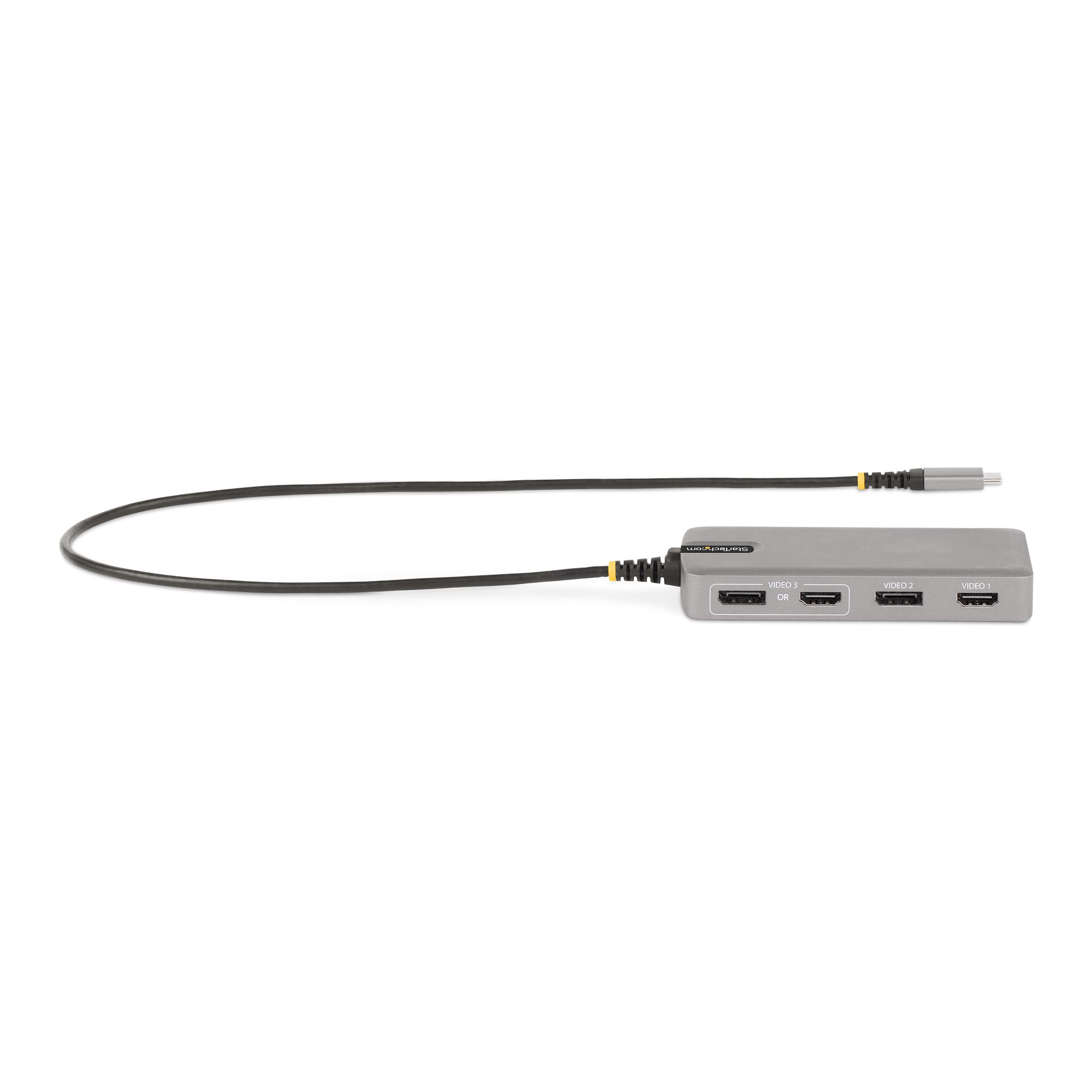

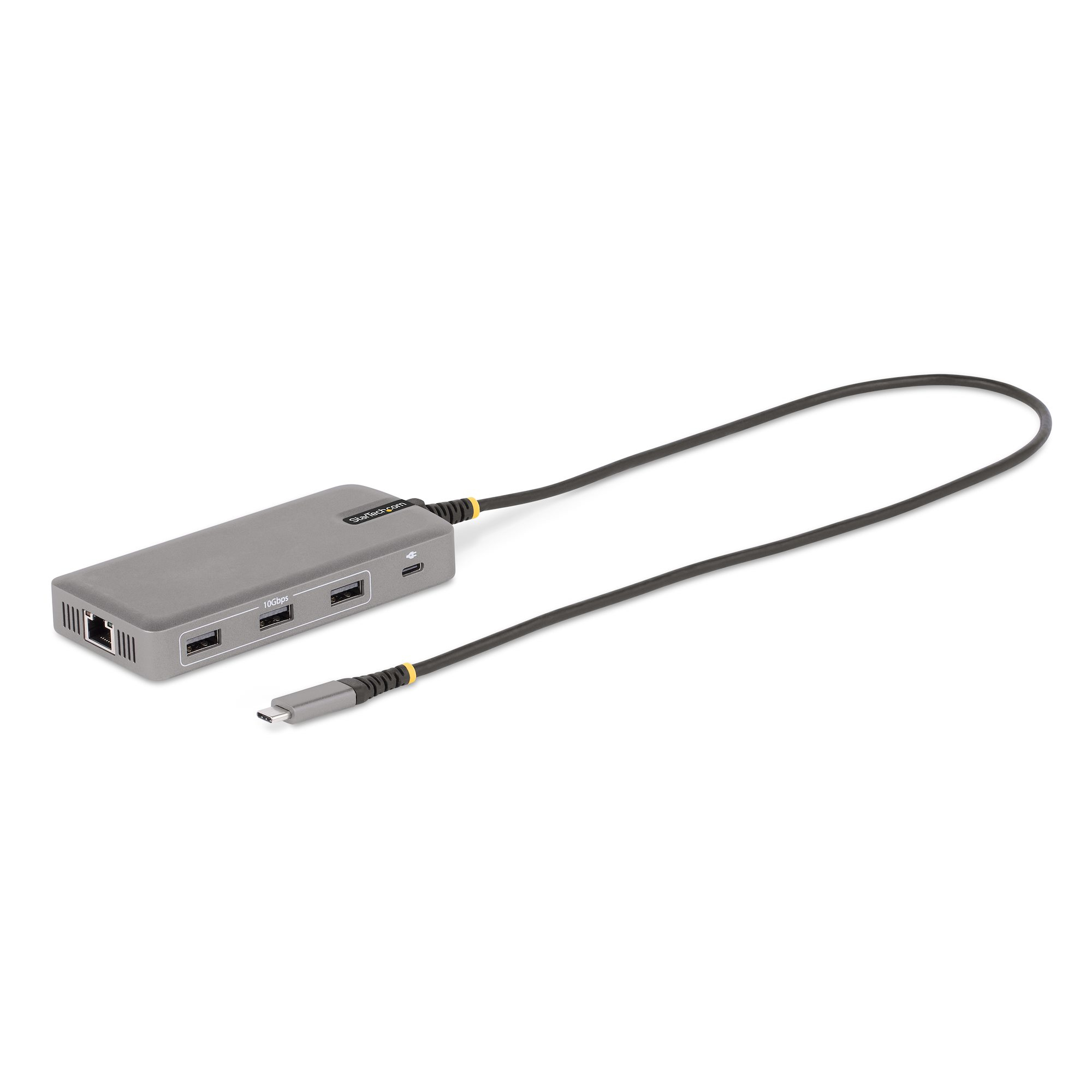

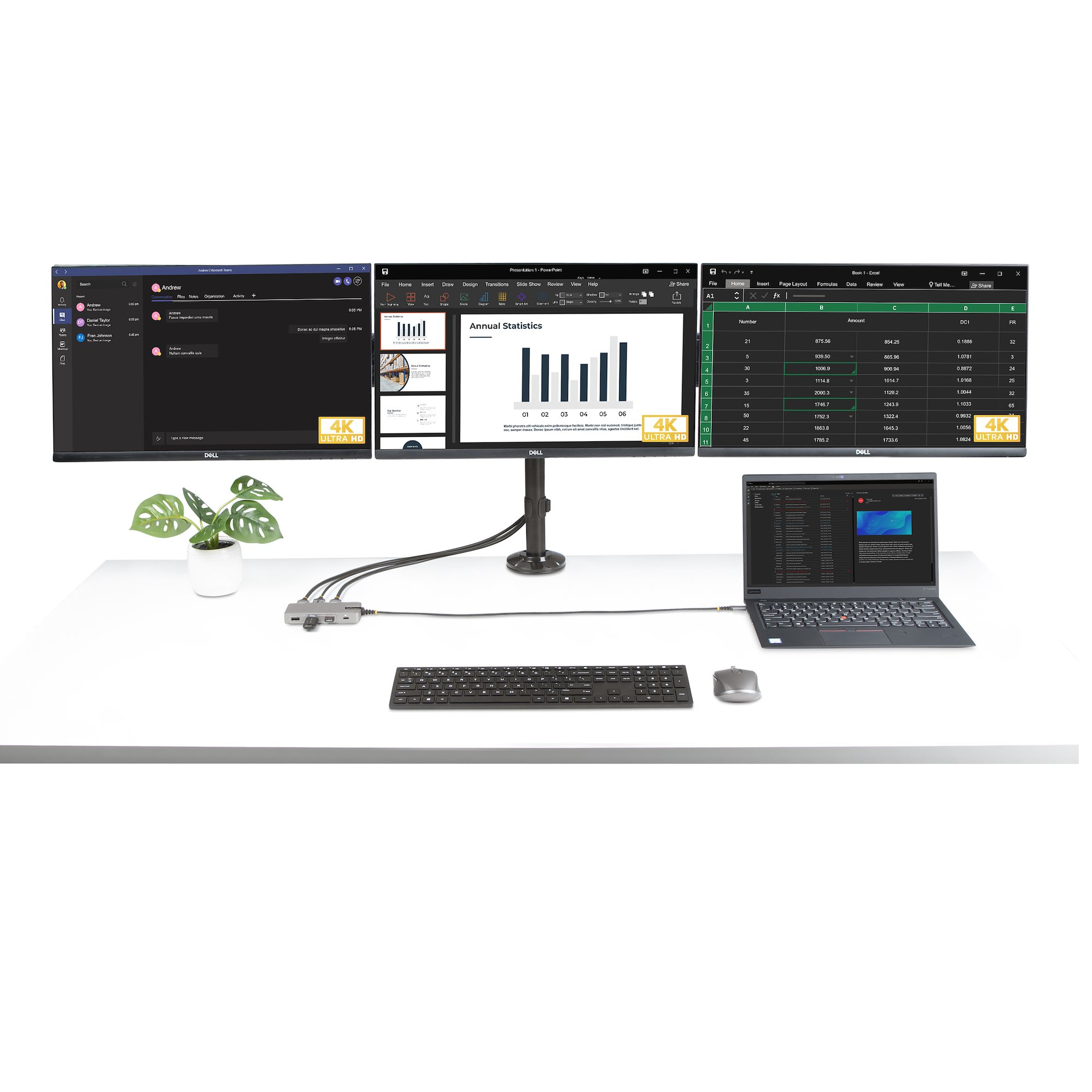

StarTech.com USB-C Triple Monitor Multiport Adapter, Dual 4K
StarTech.com

USB-C Triple Monitor Multiport Adapter, Dual 4K

60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, W

Model 117B-USBC-MULTIPORTEAN 065030896078

57 specifications
  • ConnectivityWired
  • Weight113 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeUSB
  • Other operating systems supportedChromeOS
See all specifications

Overview

Connectivity
Wired
Weight
113 g
Colour
Grey
Ethernet LAN
Yes
Power source type
USB
Other operating systems supported
ChromeOS
Brand
StarTech.com
Model
117B-USBC-MULTIPORT
Part number
117B-USBC-MULTIPORT
EAN / UPC
065030896078
Also known as
StarTech.com USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, W

Specifications

57 specifications in 13 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity2
HDMI version2.0b
DisplayPorts quantity2
DisplayPort version1.4
Microphone inNo
Headphone outputs0
DC-in jackNo

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Number of displays supported3
Housing materialPlastic
LED indicatorsYes
UASP supportYes

Power

Power source typeUSB
Power consumption (typical)15 W
USB cable length0.6 m
Wireless chargingNo

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 90%

Sustainability

Sustainability complianceYes

Weight & dimensions

Width56 mm
Depth122 mm
Height18 mm
Weight113 g

Packaging data

Package width245 mm
Package depth132 mm
Package height34 mm
Package weight210 g

Packaging content

Quick start guideYes

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Logistics data

Master (outer) case height247 mm
Master (outer) case length302 mm
Master (outer) case width536 mm
Products per master (outer) case24 pc(s)

Other features

ChipsetParade - PS8469, Synaptics - VMM5322, VIA - VL822, VIA - VL103, Realtek - RTL8153
