USB-C Triple Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal 4K HDMI DP Dock, Thunderbolt Compatible
100W Laptop
Model 116E-USBC-DOCKEAN 065030900089
65 specifications
- ConnectivityWired
- Weight350 g
- ColourGrey, Silver
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Connectivity
- Wired
- Weight
- 350 g
- Colour
- Grey, Silver
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- 116E-USBC-DOCK
- Part number
- 116E-USBC-DOCK
- EAN / UPC
- 065030900089
- Also known as
- StarTech.com USB-C Triple Monitor Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal 4K HDMI DP Dock, Thunderbolt Compatible, 100W Laptop
Specifications
65 specifications in 11 groups

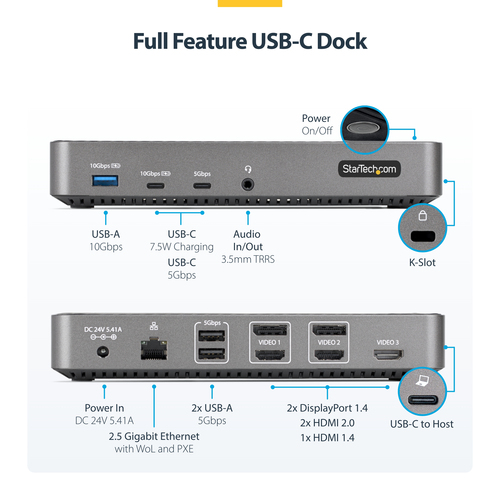

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3ab |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey, Silver |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Housing material | Plastic |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 5.41 A |
| Output voltage | 24 V |
| Power consumption (typical) | 15 W |
| Power plug type | Type M |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 190 mm |
| Height | 30 mm |
| Weight | 350 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 250 mm |
| Package height | 50 mm |
| Package weight | 1.1 kg |

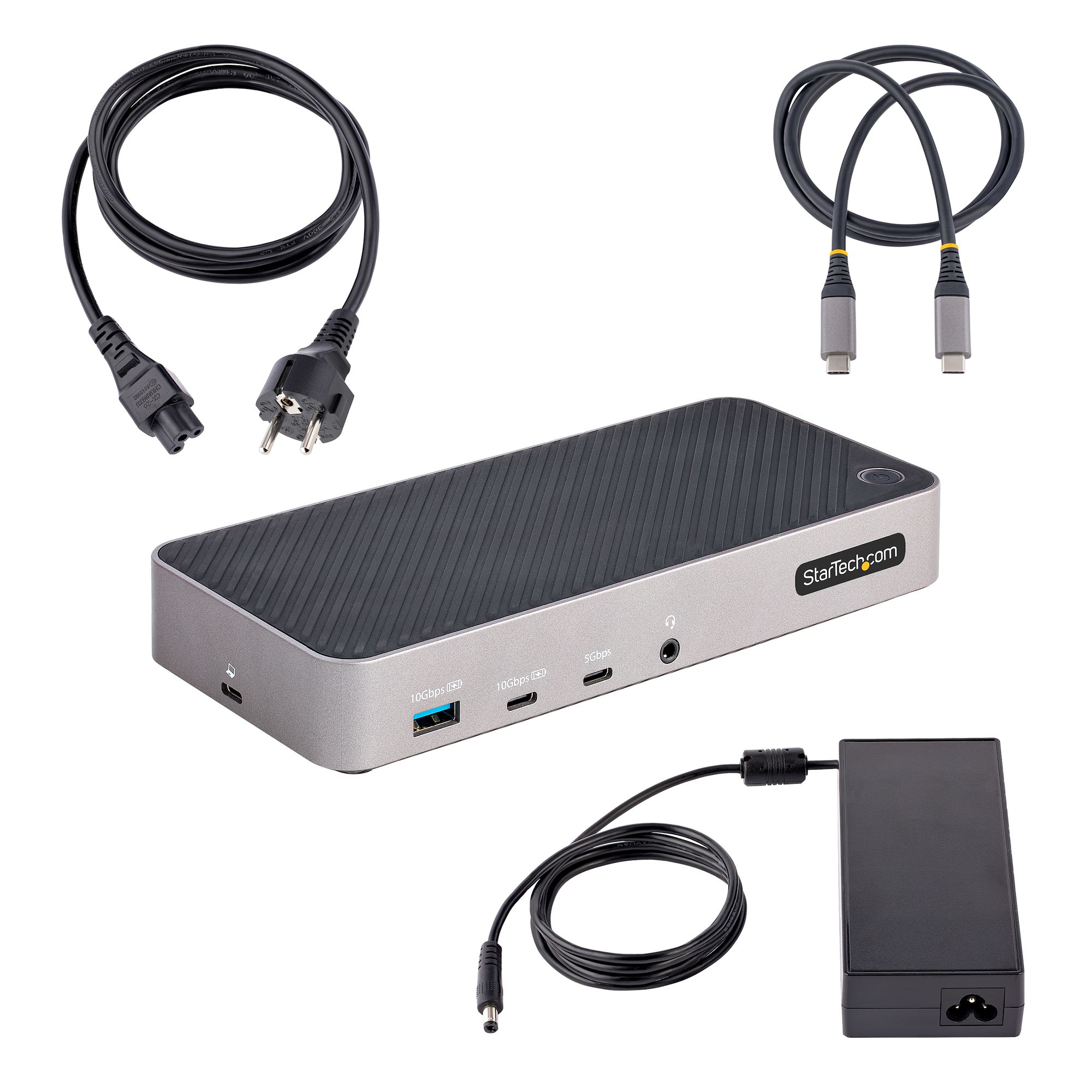

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB Type-C to USB Type-C |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 290 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case width | 280 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0 |
