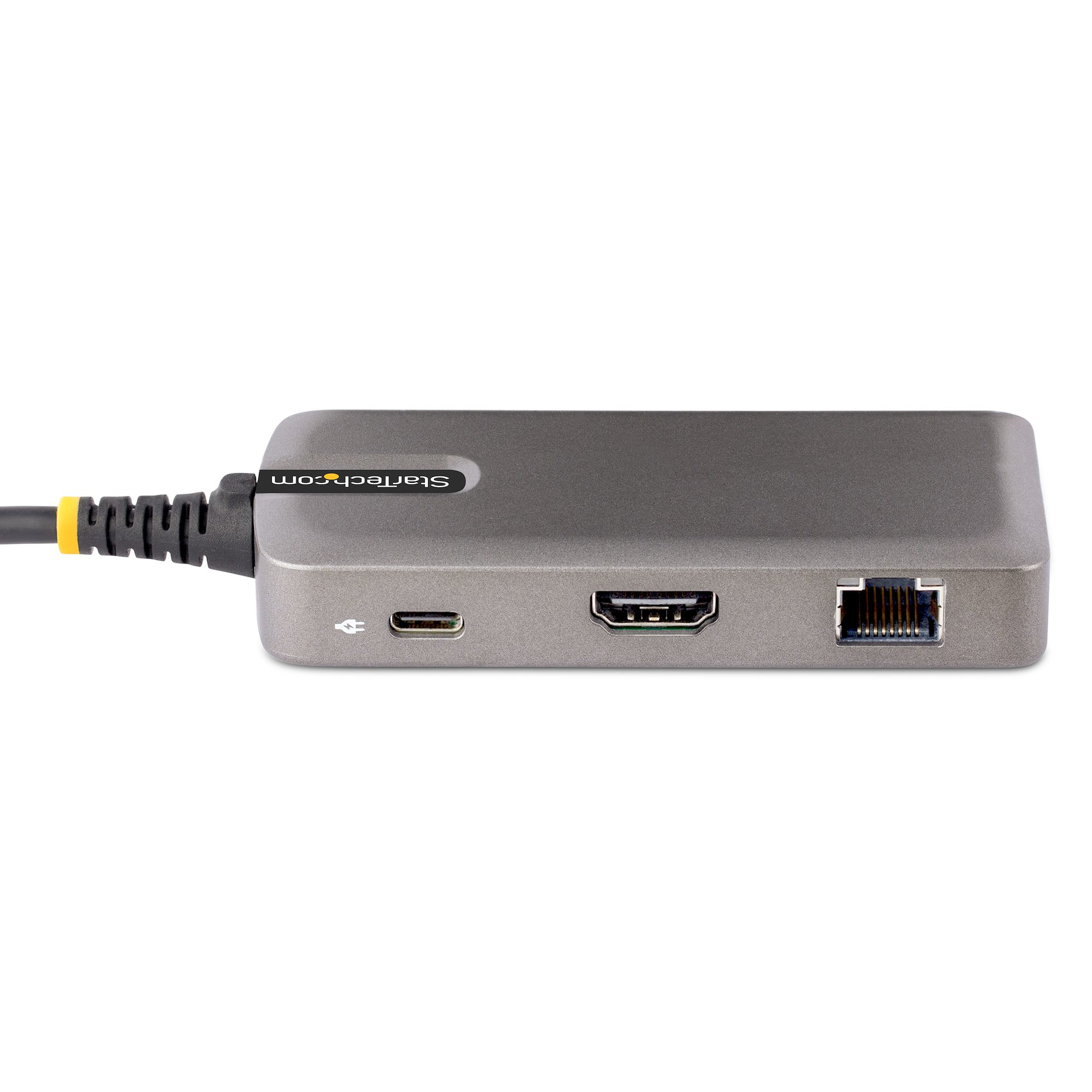

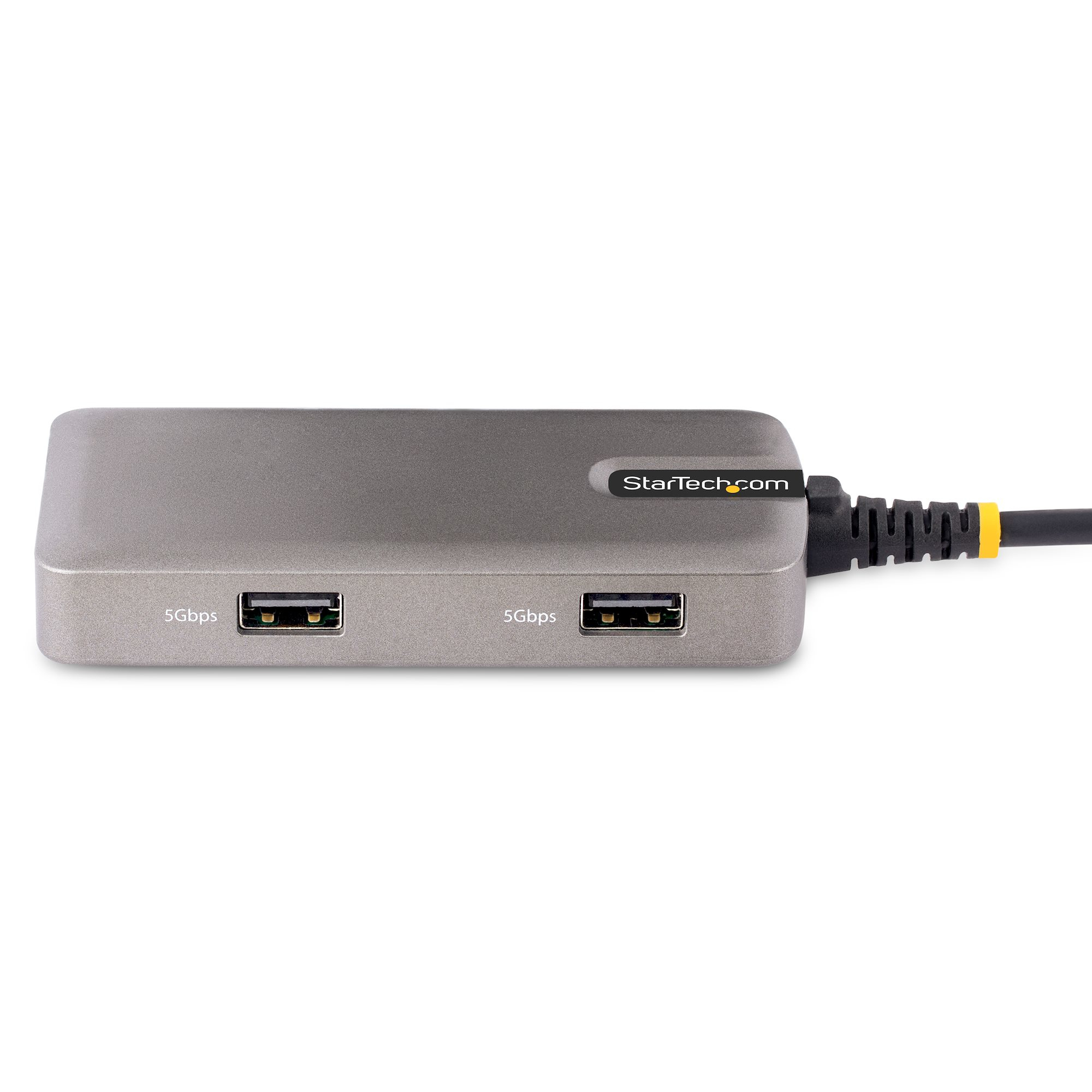

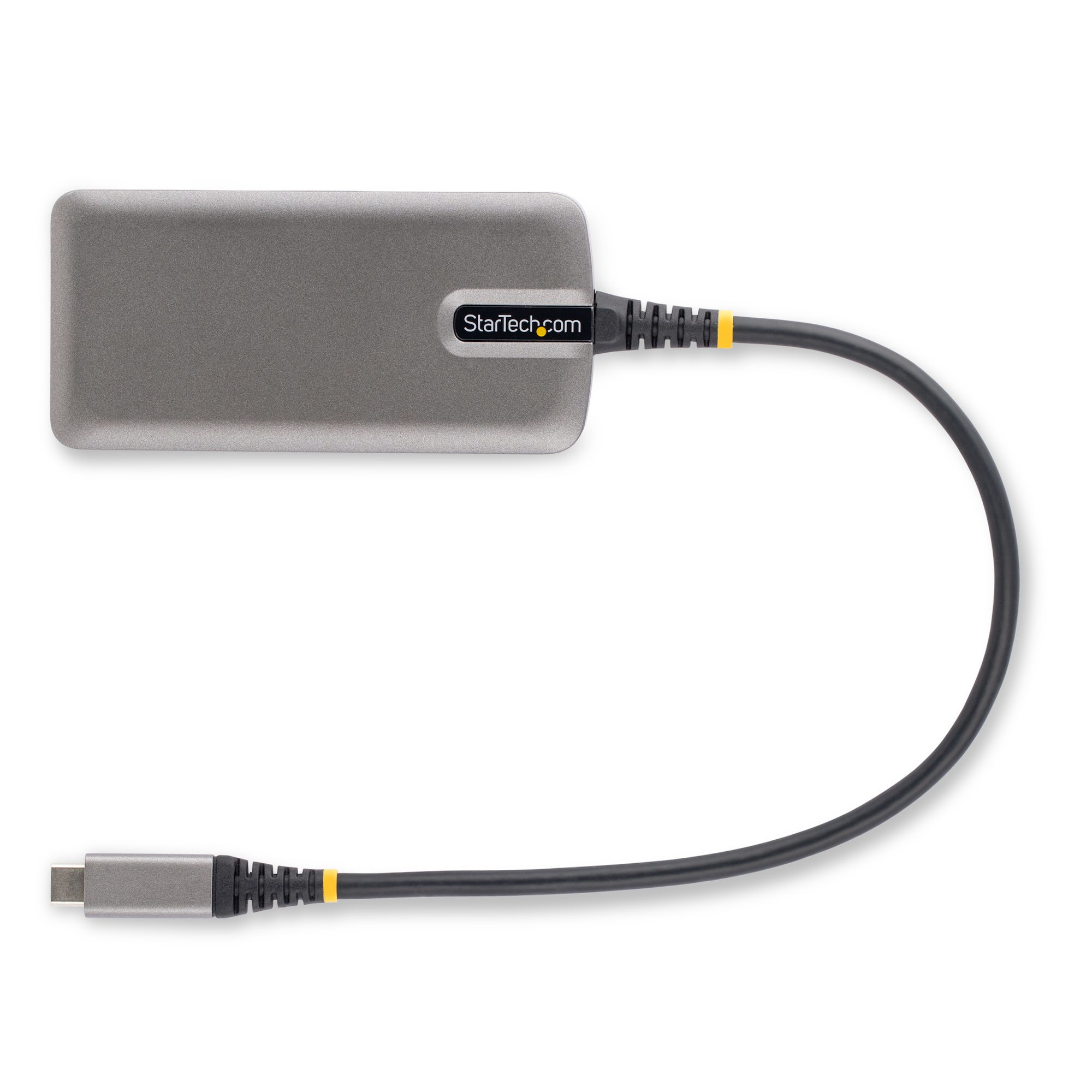

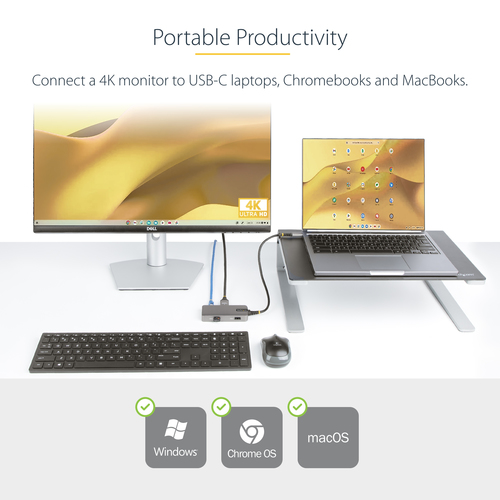

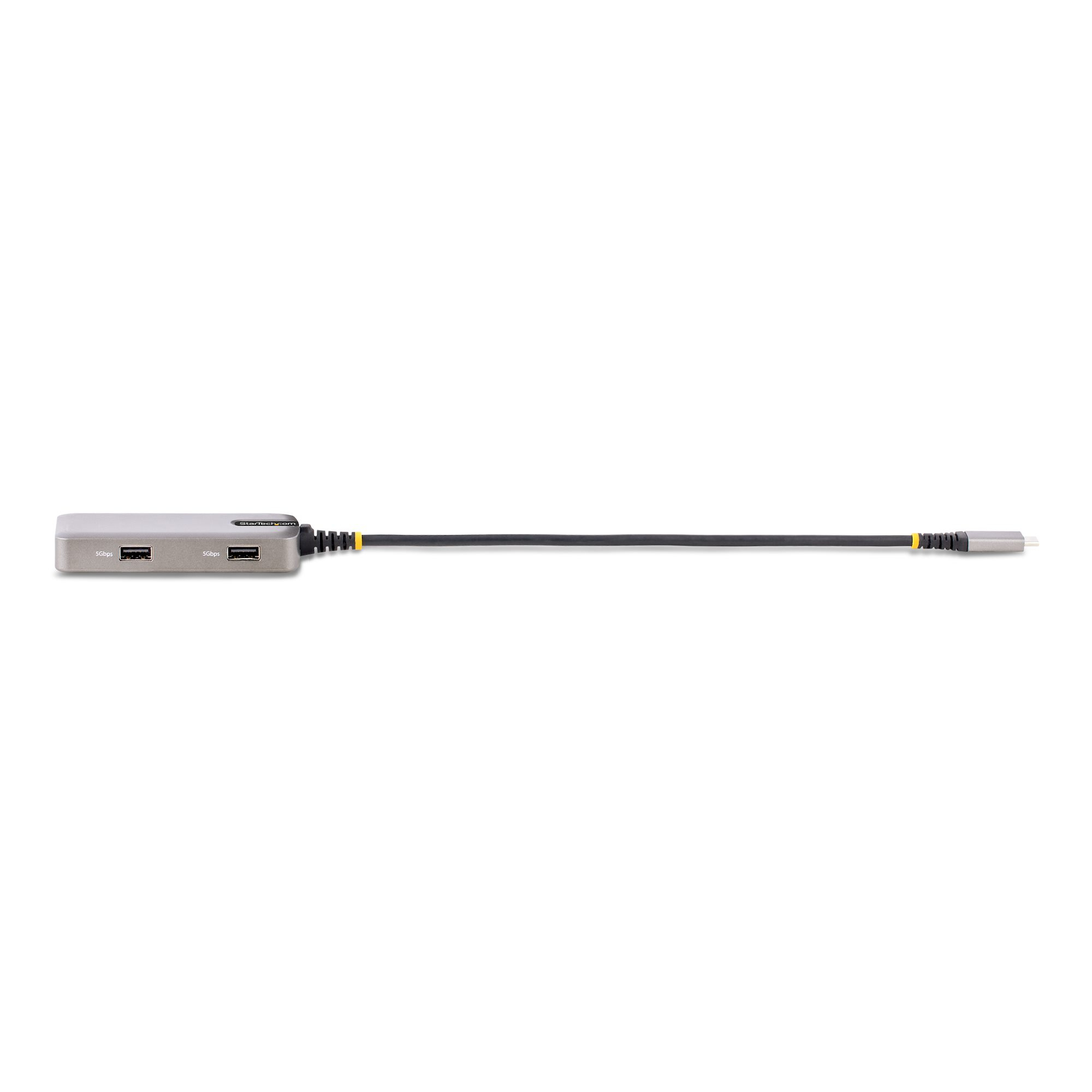

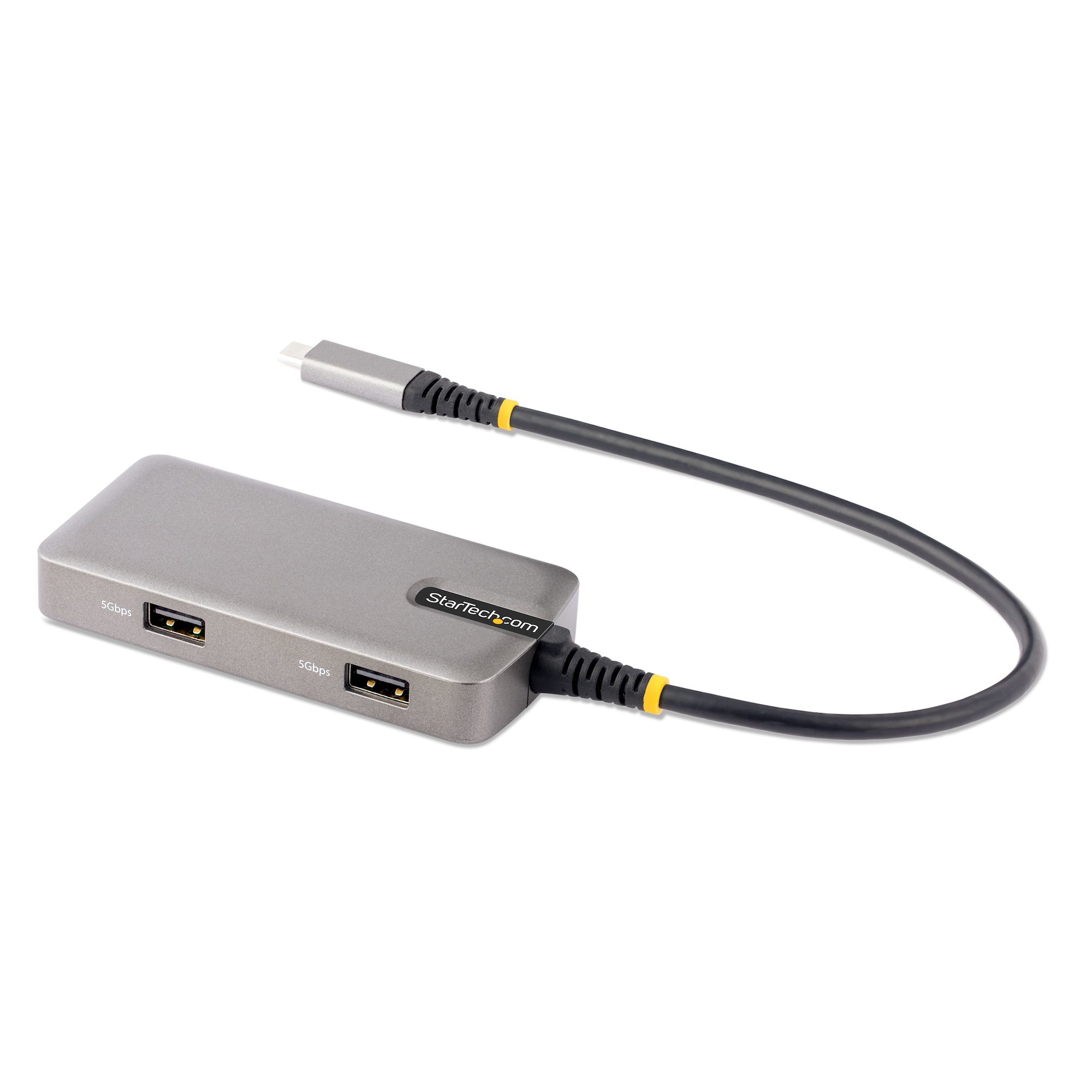

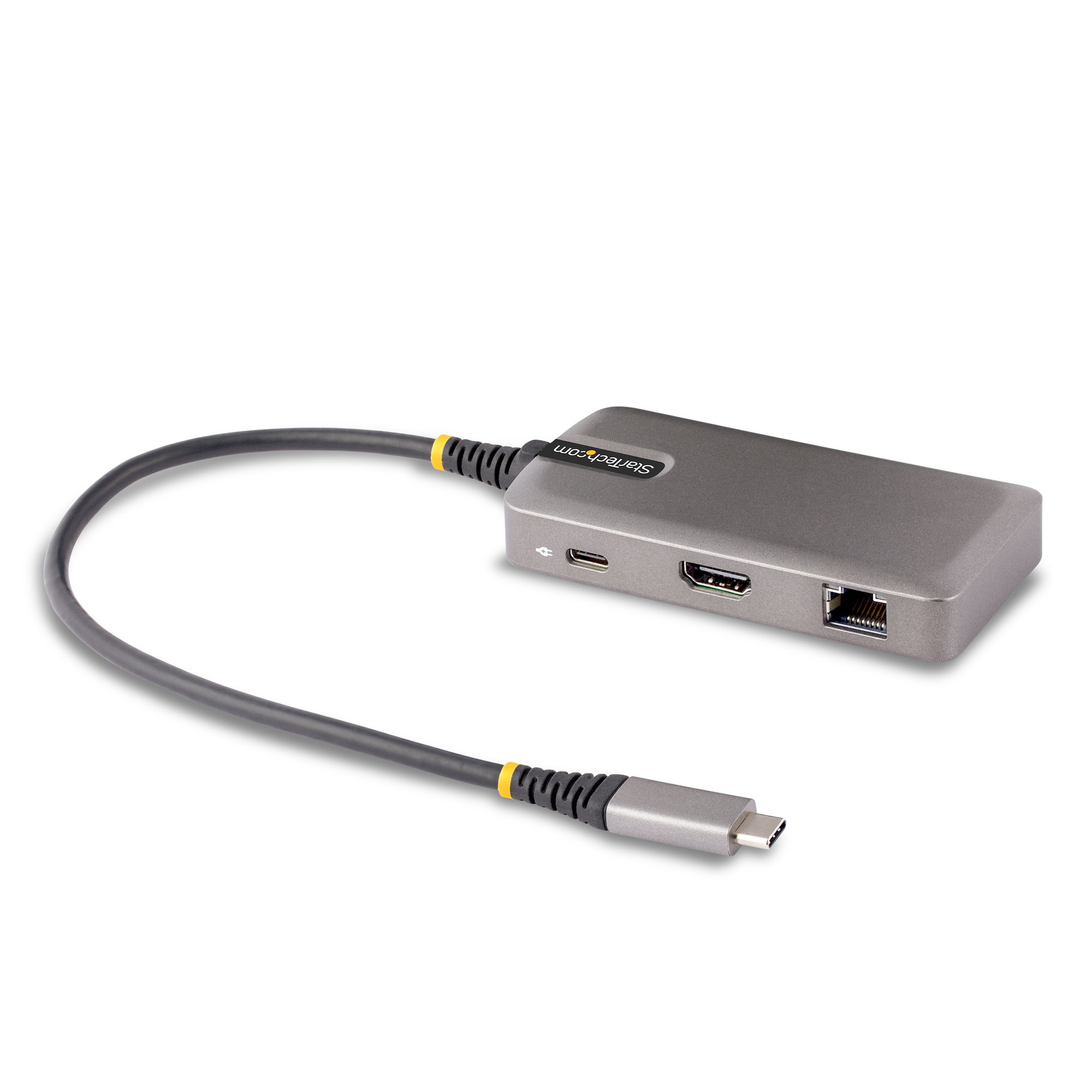

StarTech.com USB-C Multiport Adapter, 4K
StarTech.com

USB-C Multiport Adapter, 4K

60Hz HDMI, HDR - 2-Port 5Gbps USB 3.0 Hub, 100W Power Delivery Pass-Through, GbE, USB Type C Mini Docking Station, Wind

Model 103B-USBC-MULTIPORTEAN 065030894005

51 specifications
  • ConnectivityWired
  • Weight105 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeUSB
  • Mobile operating systems supportedAndroid
See all specifications

Overview

Connectivity
Wired
Weight
105 g
Colour
Grey
Ethernet LAN
Yes
Power source type
USB
Mobile operating systems supported
Android
Brand
StarTech.com
Model
103B-USBC-MULTIPORT
Part number
103B-USBC-MULTIPORT
EAN / UPC
065030894005
Also known as
StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI, HDR - 2-Port 5Gbps USB 3.0 Hub, 100W Power Delivery Pass-Through, GbE, USB Type C Mini Docking Station, Wind

Specifications

51 specifications in 13 groups

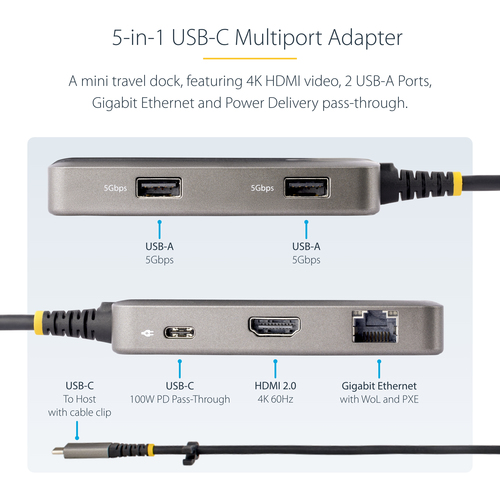

Ports & interfaces

Connectivity technologyWired

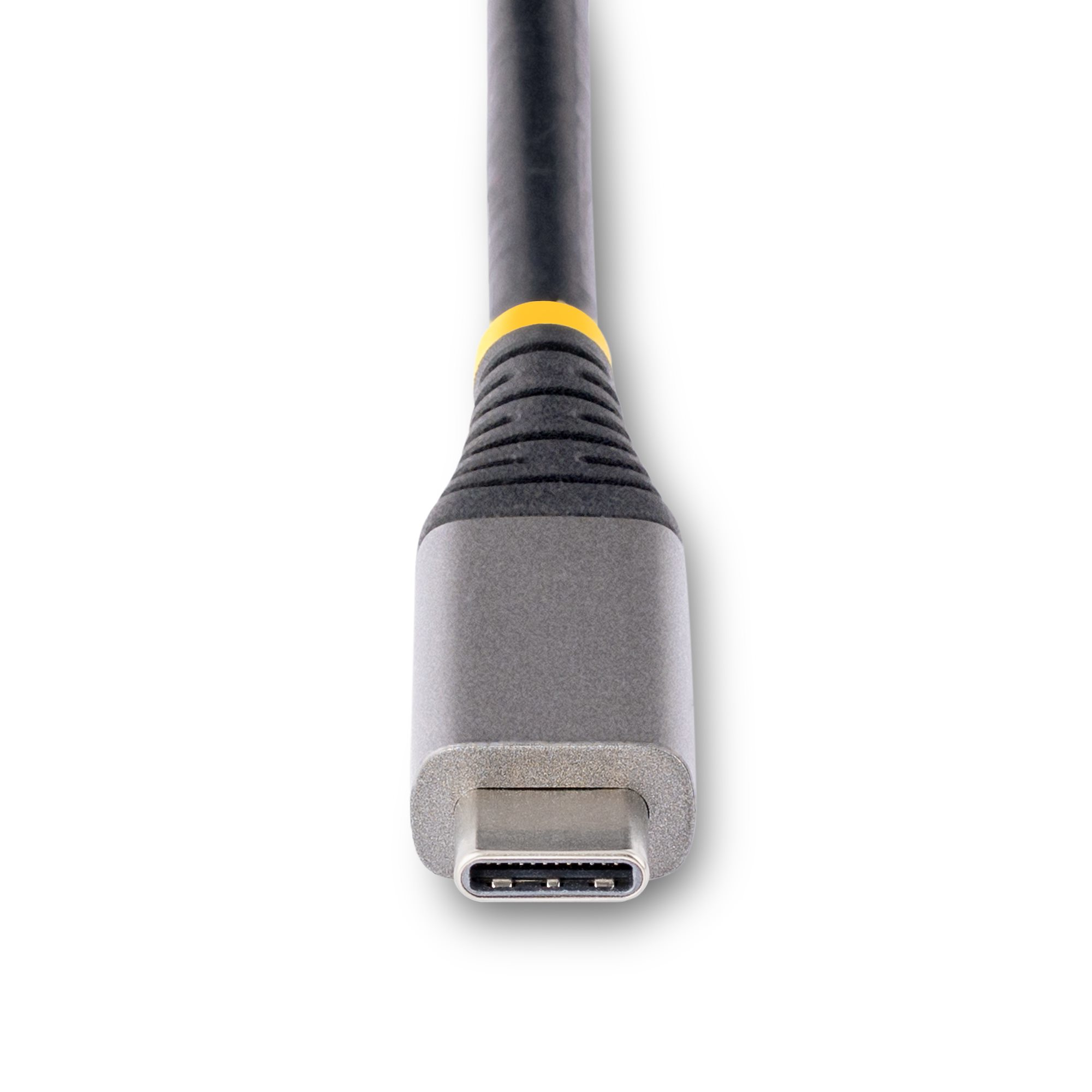

Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity1
HDMI version2.0b
Microphone inNo
Headphone outputs0
DC-in jackNo

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexYes

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate5 Gbit/s
HD type4K Ultra HD
Maximum digital resolution4096 x 2160 pixels
UASP supportYes

Power

Power source typeUSB
Power consumption (typical)14 W
USB cable length0.3 m
Wireless chargingNo

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
Mac operating systems supportedMac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supportedUbuntu 18.04 LTS, Ubuntu 20.04 LTS
Mobile operating systems supportedAndroid
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-26 - 65 °C
Operating relative humidity (H-H)0 - 95%

Sustainability

Sustainability complianceYes

Weight & dimensions

Width48 mm
Depth100 mm
Height16 mm
Weight105 g

Packaging data

Package width178 mm
Package depth110 mm
Package height40 mm
Package weight120 g

Packaging content

Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case height228 mm
Master (outer) case length232 mm
Master (outer) case width367 mm
Products per master (outer) case20 pc(s)

Other features

ChipsetRealtek - RTL8153B, Analogix - ANX7327, Analogix - ANX7518, VIA - VL817-Q7
