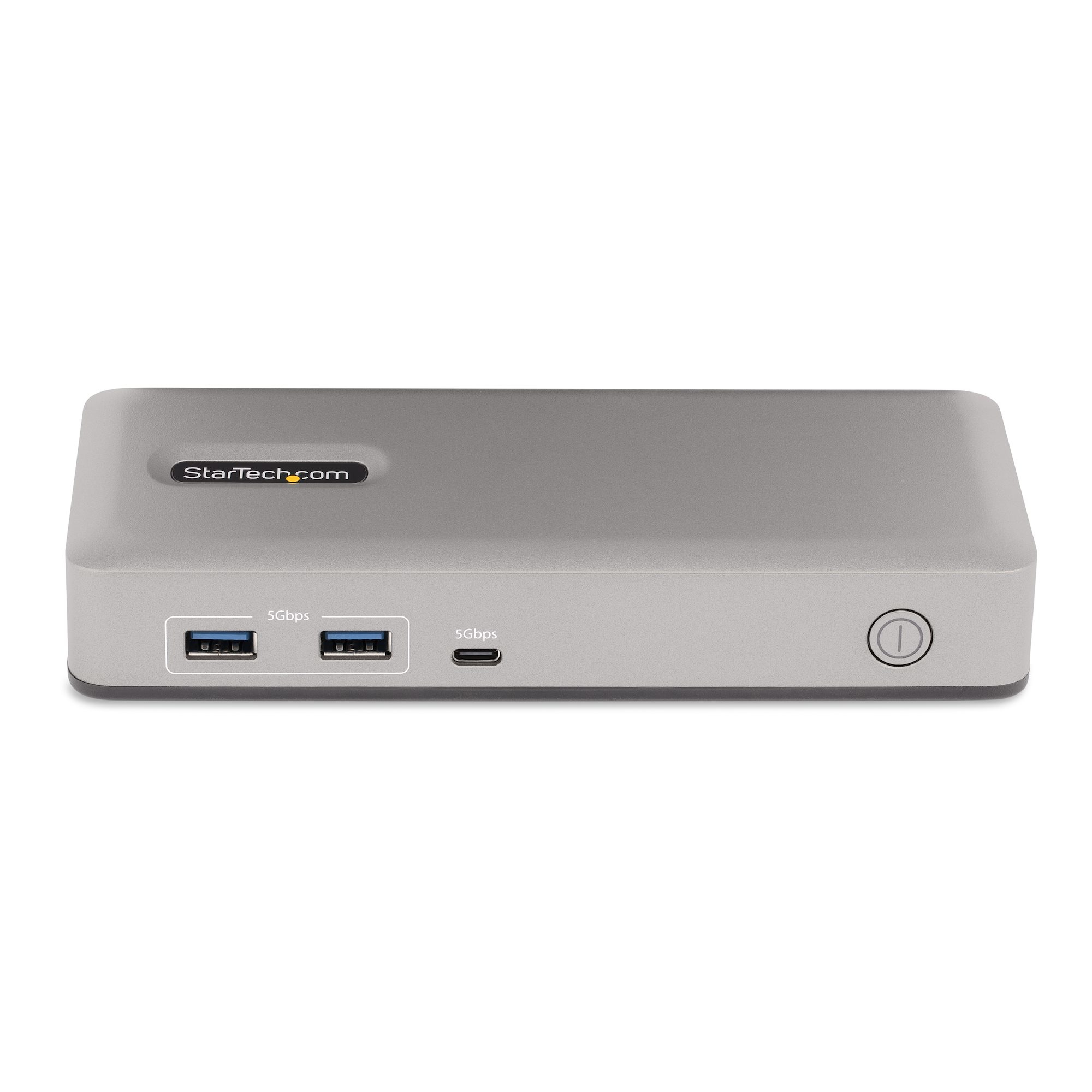

StarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K
StarTech.com

Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K

60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7x USB Hub, 85W

Model 101N-USBC-DOCKEAN 065030893985

57 specifications
  • ConnectivityWired
  • Weight275 g
  • ColourGrey
  • Ethernet LANNo
  • Power source typeDC
  • Other operating systems supportedChromeOS
See all specifications

Overview

Connectivity
Wired
Weight
275 g
Colour
Grey
Ethernet LAN
No
Power source type
DC
Other operating systems supported
ChromeOS
Brand
StarTech.com
Model
101N-USBC-DOCK
Part number
101N-USBC-DOCK
EAN / UPC
065030893985
Also known as
StarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7x USB Hub, 85W

Specifications

57 specifications in 13 groups

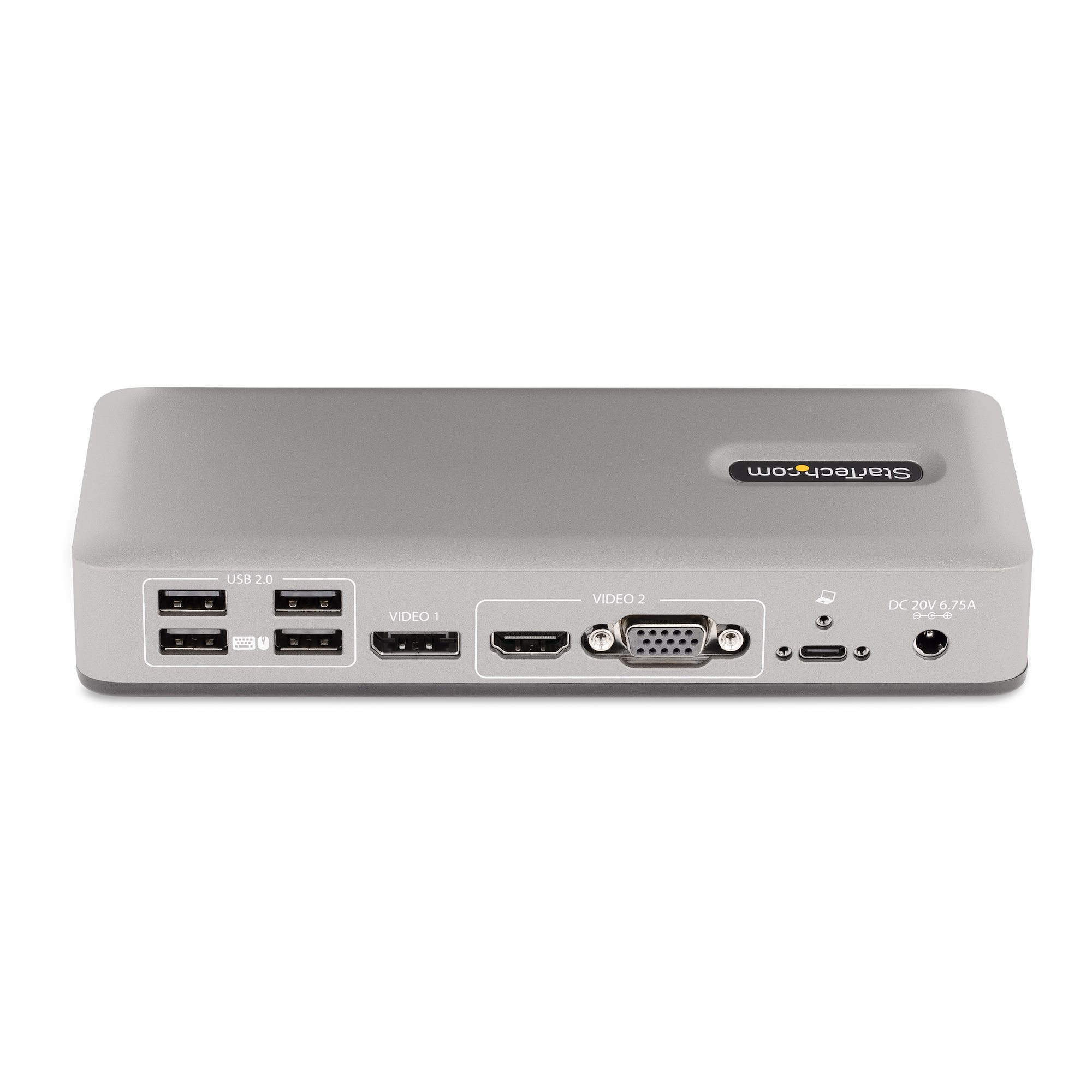

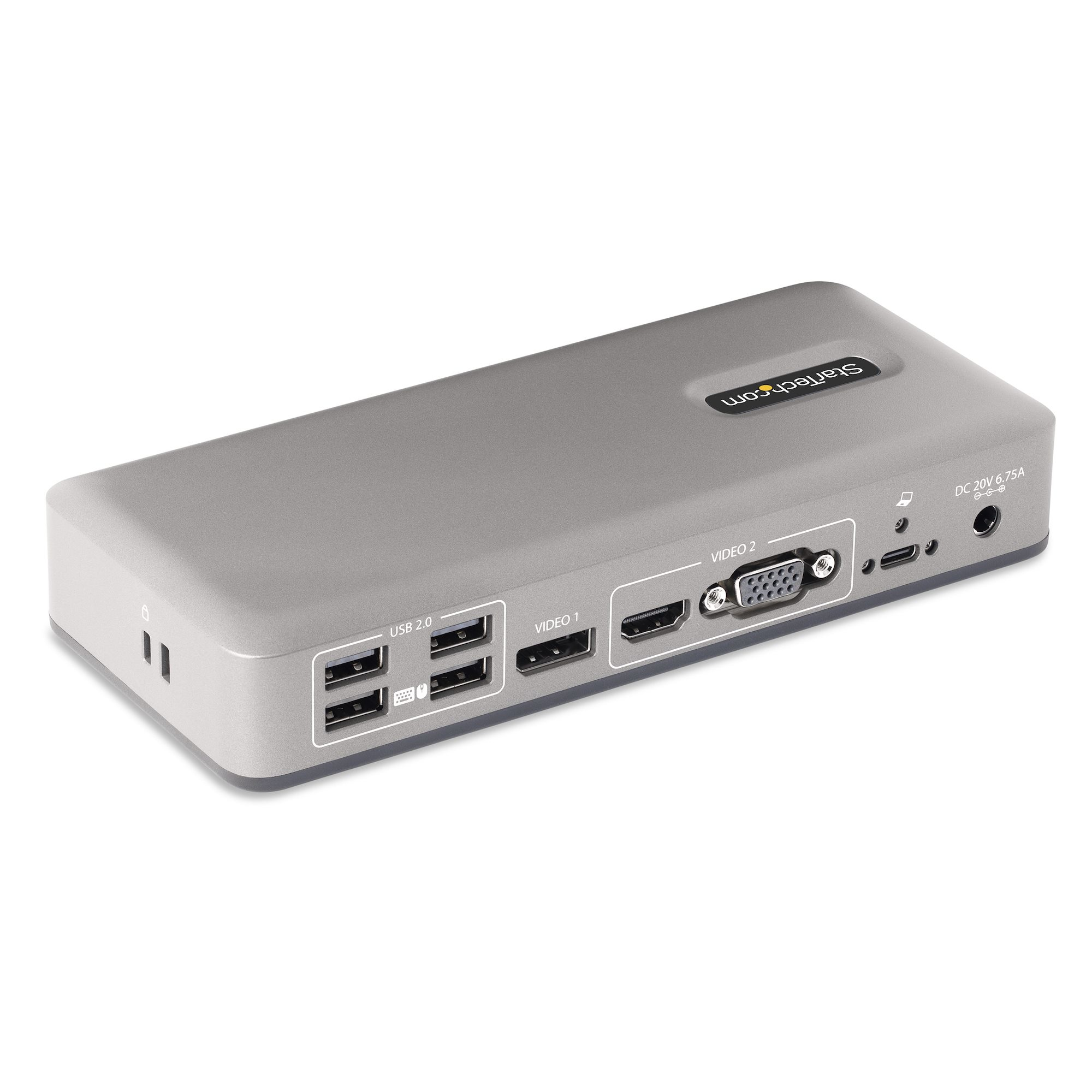

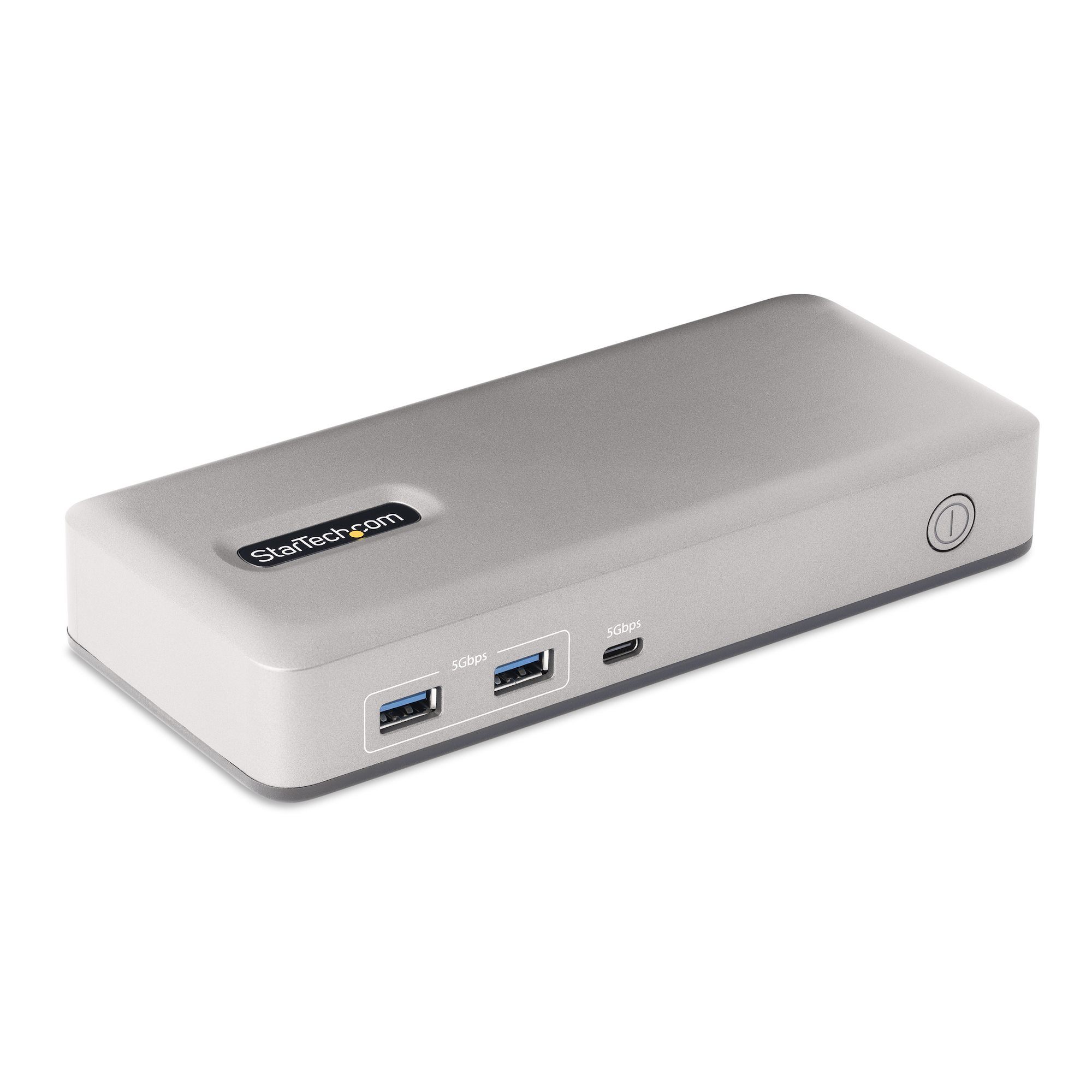

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to85 W
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
DisplayPort version1.4
DC-in jackYes
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANNo

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate5 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz

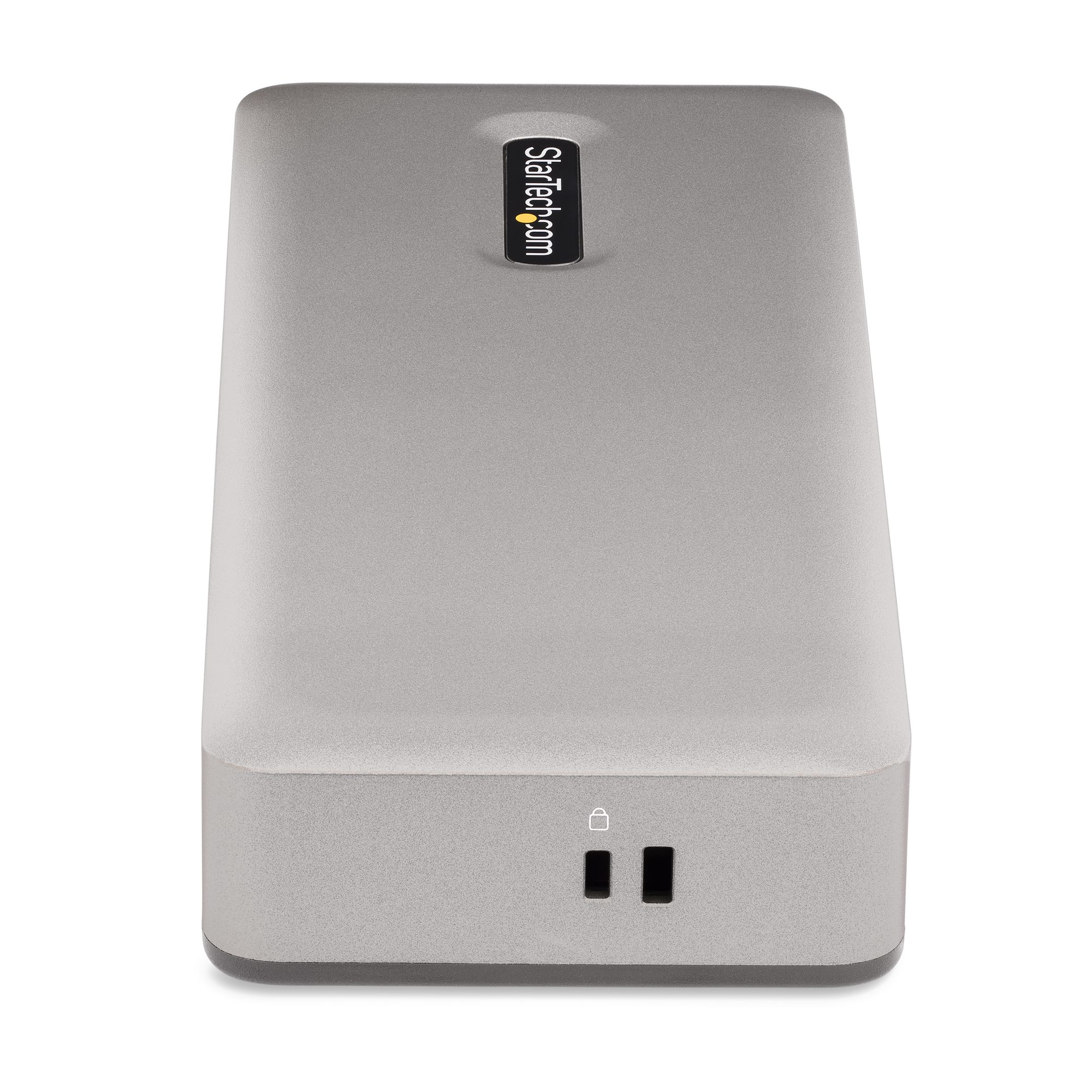

Cable lock slotYes
Cable lock slot typeKensington
Housing materialPlastic
LED indicatorsPower
UASP supportYes

Power

Power source typeDC
AC input voltage100 - 240 V
Input current2.37 A
Output current6.75 A
Output voltage20 V
Power consumption (max)135 W
Compatible power plug typesUS

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%

Sustainability

Sustainability complianceYes

Weight & dimensions

Width185 mm
Depth80 mm
Height31 mm
Weight275 g

Packaging data

Package width219 mm
Package depth109 mm
Package height131 mm
Package weight1 kg

Packaging content

AC adapter includedYes
Cables includedUSB Type-C
Quick start guideYes

Technical details

Compliance certificatesCE, RoHS, Trade Agreements Act (TAA)

Logistics data

Master (outer) case height293 mm
Master (outer) case length357 mm
Master (outer) case width460 mm
Products per master (outer) case12 pc(s)

Other features

ChipsetRealtek - RTD2142, Realtek - RTS5450M, Realtek - RTS5451, Realtek - RTS5411S, Terminus - FE1.1s
