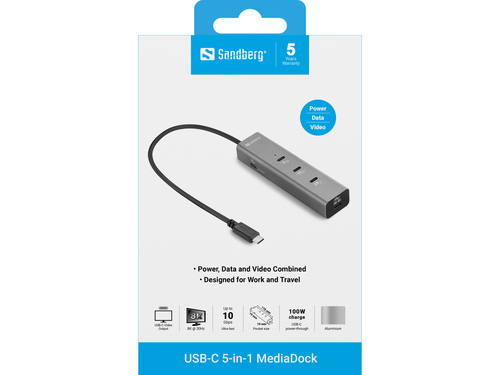

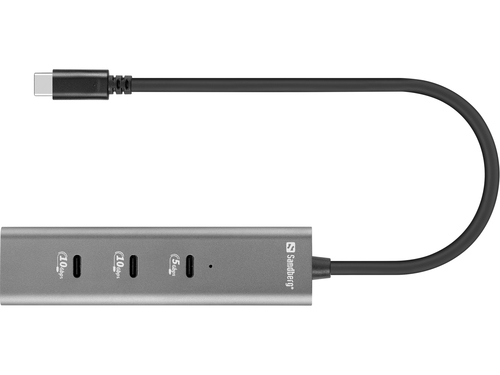

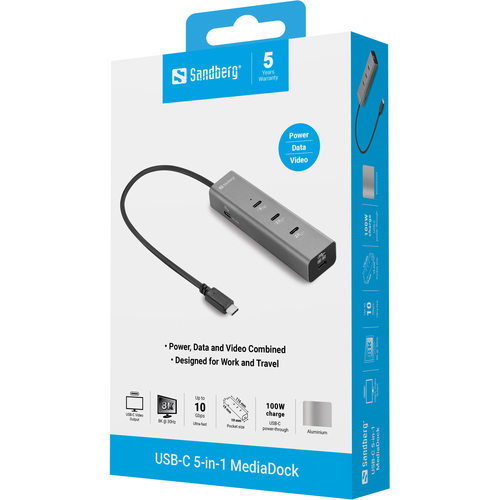

USB-C 5-in-1 MediaDock
Model 136-78EAN 5705730136788
35 specifications
- ConnectivityWired
- Weight56 g
- ColourGrey
- Ethernet LANNo
- Power source typeUSB
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Connectivity
- Wired
- Weight
- 56 g
- Colour
- Grey
- Ethernet LAN
- No
- Power source type
- USB
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- Sandberg
- Category
- Laptop Docks & Port Replicators
- Model
- 136-78
- Part number
- 136-78
- EAN / UPC
- 5705730136788
- Also known as
- Sandberg USB-C 5-in-1 MediaDock
Specifications
35 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB Power Delivery (USB PD) | No |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 0 |
| Microphone in | No |
| Headphone outputs | 0 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116 mm |
| Depth | 19 mm |
| Height | 19 mm |
| Weight | 56 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 27 mm |
| Package height | 152 mm |
| Package weight | 98 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Warranty period | 5 year(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0 m |
