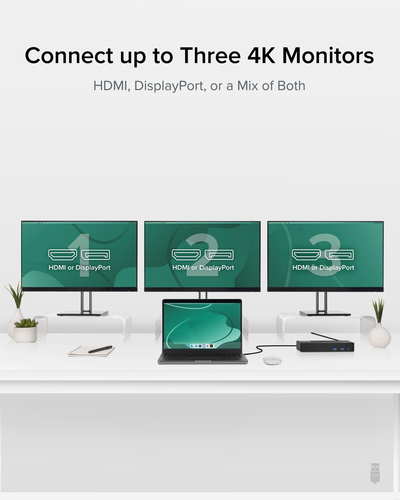

12-in-1 USB C Triple Monitor Docking Station, Triple 4K Displays with 3x HDMI or 3x DisplayPort, Compatible with Mac, Windows, Thunderbolt
Model UD-6950PDZ-UKEAN 819927013068
34 specifications
- ConnectivityWired
- Weight295.4 g
- ColourBlack
- Ethernet LANYes
- Compatible power plug typesUK
- Width200 mm
Overview
- Connectivity
- Wired
- Weight
- 295.4 g
- Colour
- Black
- Ethernet LAN
- Yes
- Compatible power plug types
- UK
- Width
- 200 mm
- Brand
- Plugable Technologies
- Category
- Laptop Docks & Port Replicators
- Model
- UD-6950PDZ-UK
- Part number
- UD-6950PDZ-UK
- EAN / UPC
- 819927013068
- Also known as
- Plugable Technologies 12-in-1 USB C Triple Monitor Docking Station, Triple 4K Displays with 3x HDMI or 3x DisplayPort, Compatible with Mac, Windows, Thunderbolt
Specifications
34 specifications in 7 groups

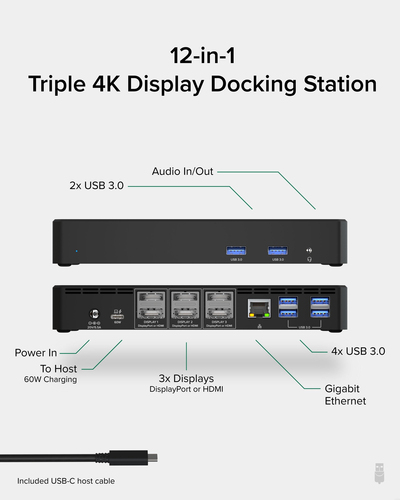

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |

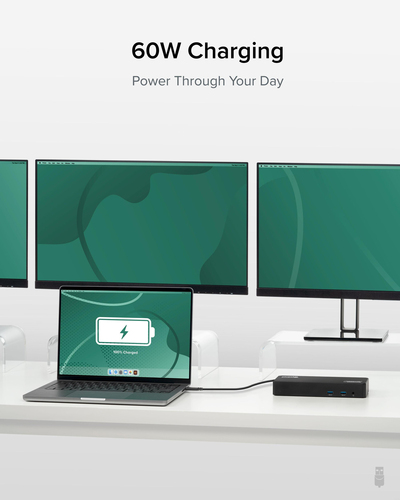

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Compatible power plug types | UK |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 85 mm |
| Height | 31 mm |
| Weight | 295.4 g |

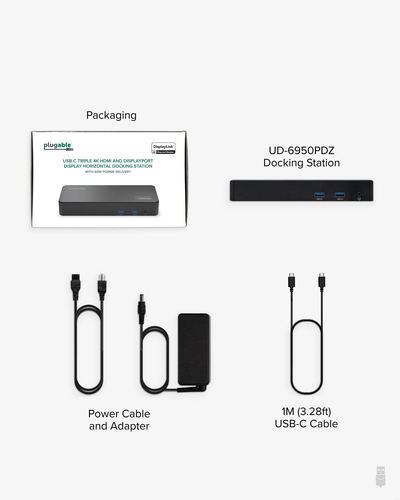

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-C to USB Type-C |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Chipset | DisplayLink - DL-6950 |
