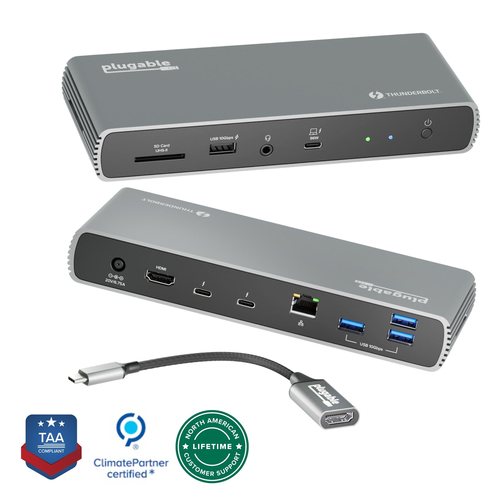

Thunderbolt 4 & USB4 HDMI Docking Station with
96W Charging
Model TBT4-UDX1EAN 819927012740
47 specifications
- ConnectivityWired
- Weight445 g
- ColourAluminium, Grey
- Ethernet LANYes
- Power source typeDC
- Width200 mm
Overview
- Connectivity
- Wired
- Weight
- 445 g
- Colour
- Aluminium, Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 200 mm
- Brand
- Plugable Technologies
- Category
- Laptop Docks & Port Replicators
- Model
- TBT4-UDX1
- Part numbers
- TBT4-UDX1, TBT4-UDX1-UK
- EAN / UPC
- 819927012740, 819927013310
- Also known as
- Plugable Technologies Thunderbolt 4 & USB4 HDMI Docking Station with 96W Charging
Specifications
47 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0a |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Copper ethernet cabling technology | 2500BASE-T |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Aluminium, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC, MMC |
| Data transfer rate | 40 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| High Dynamic Range (HDR) supported | Yes |
| On/off switch | Yes |
| Display modes | Double, Single |
| Charging function | Yes |
| LED indicators | Power, Activity |
| Plug and Play | Yes |
| Brand compatibility | Apple |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output current | 6.75 A |
| Output voltage | 20 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 75 mm |
| Height | 30 mm |
| Weight | 445 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt, Power |
| Interface adapters included | USB Type-C male - HDMI female |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA) |
