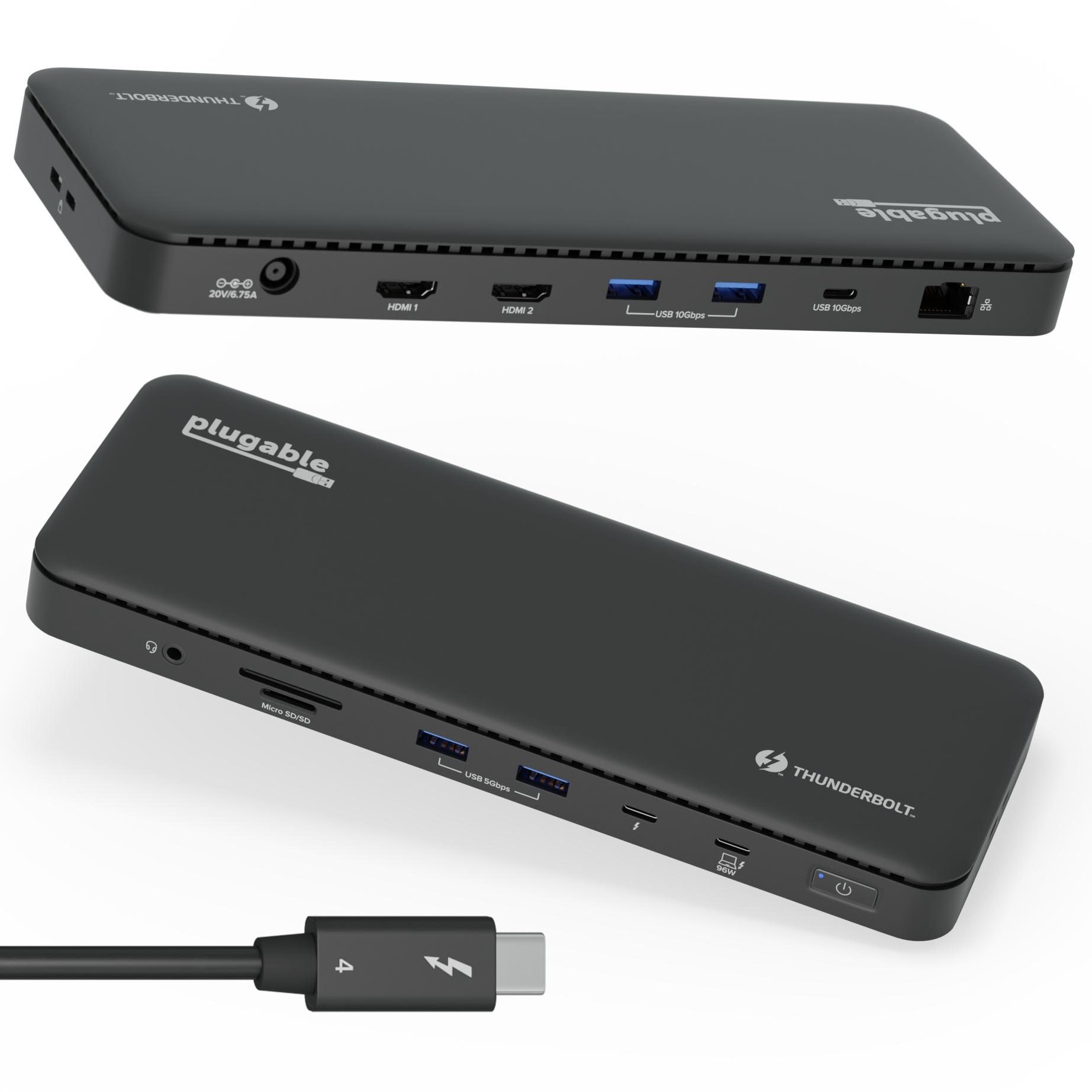

Thunderbolt 4 Dock with
100W Charging, Thunderbolt Certified, Laptop Docking Station Dual Monitor Single 8K or Dual 4K HDMI for Windows an
Model TBT4-UD5-UKEAN 819927013297
33 specifications
- ConnectivityWired
- Weight445 g
- ColourBlack
- Ethernet LANYes
- Windows operating systems supportedWindows 10, Windows 11
- Width200 mm
Overview
- Connectivity
- Wired
- Weight
- 445 g
- Colour
- Black
- Ethernet LAN
- Yes
- Windows operating systems supported
- Windows 10, Windows 11
- Width
- 200 mm
- Brand
- Plugable Technologies
- Category
- Laptop Docks & Port Replicators
- Model
- TBT4-UD5-UK
- Part number
- TBT4-UD5-UK
- EAN / UPC
- 819927013297
- Also known as
- Plugable Technologies Thunderbolt 4 Dock with 100W Charging, Thunderbolt Certified, Laptop Docking Station Dual Monitor Single 8K or Dual 4K HDMI for Windows an
Specifications
33 specifications in 6 groups

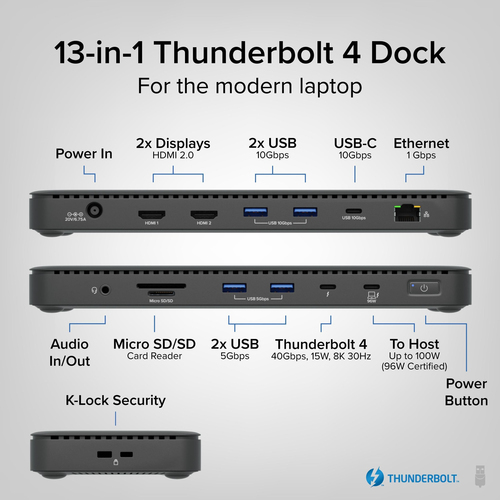

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Thunderbolt 4 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| HDCP | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD, SDHC, SDXC |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 75 mm |
| Height | 30 mm |
| Weight | 445 g |

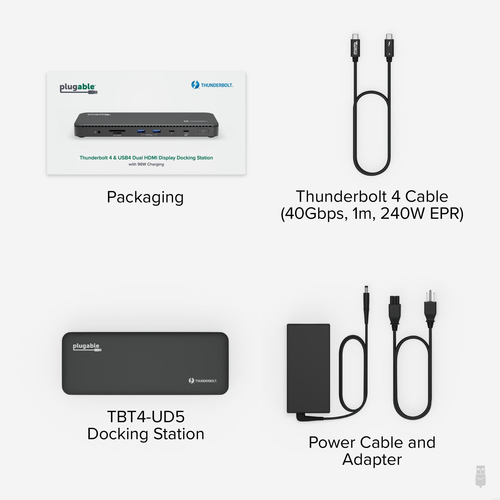

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
