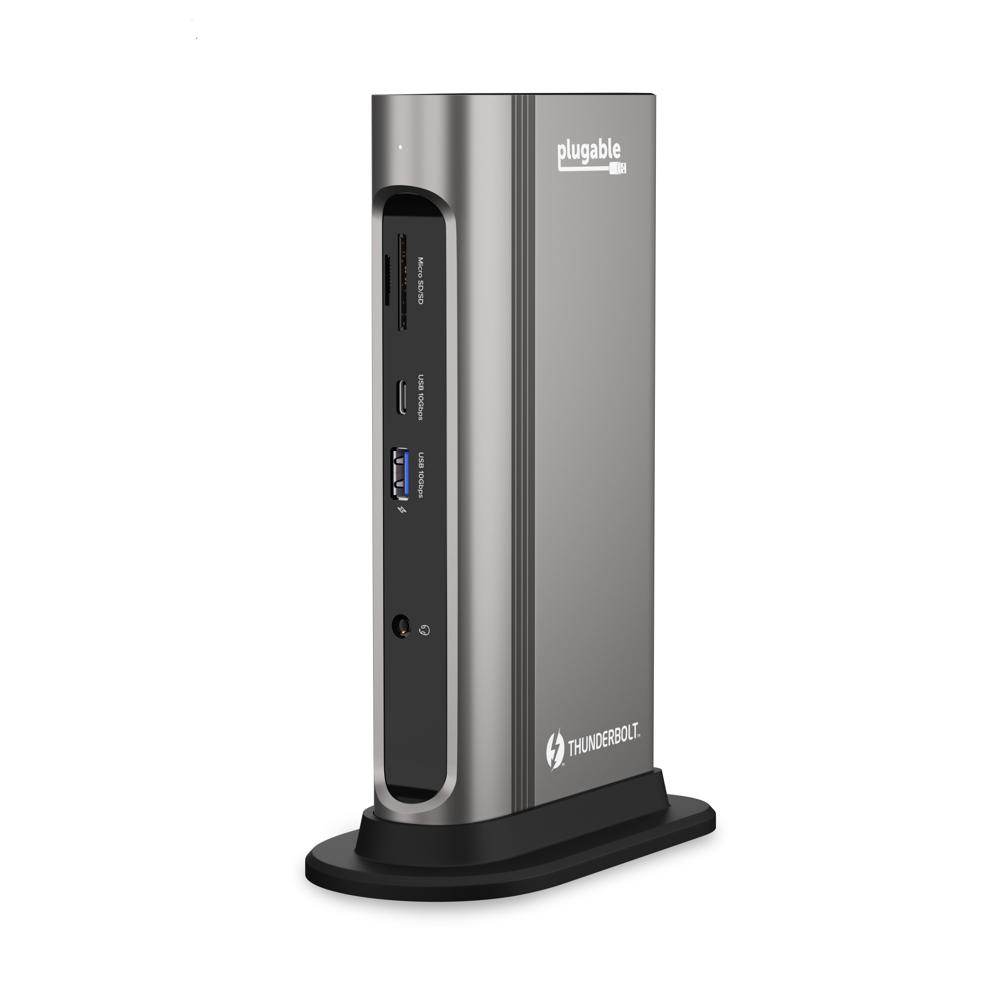

TBT3-UDZ laptop dock/port replicator Docking Thunderbolt 3 Black, Grey
Model TBT3-UDZEAN 819927012283
38 specifications
- ConnectivityDocking
- ColourBlack, Grey
- Ethernet LANYes
- AC input voltage20 V
Overview
- Connectivity
- Docking
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- AC input voltage
- 20 V
- Brand
- Plugable Technologies
- Category
- Laptop Docks & Port Replicators
- Model
- TBT3-UDZ
- Part numbers
- TBT3-UDZ, TBT3-UDZ-EUA
- EAN / UPC
- 819927012283, 819927012399
- Also known as
- Plugable Technologies TBT3-UDZ laptop dock/port replicator Docking Thunderbolt 3 Black, Grey
Specifications
38 specifications in 5 groups

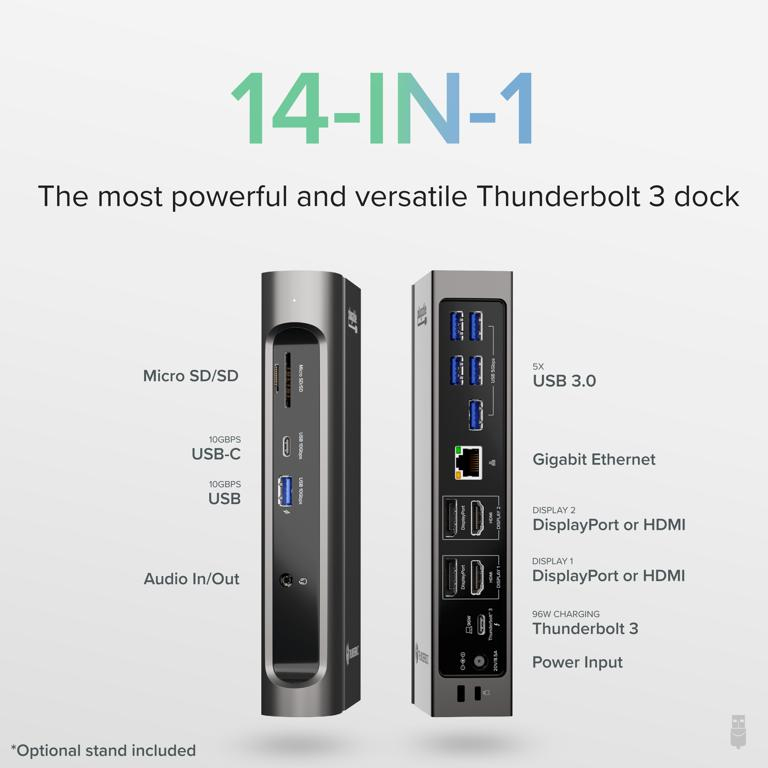

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Thunderbolt 3 ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T |
| Wake-on-LAN ready | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSD (TransFlash), SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Charging function | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 20 V |
| Input current | 8.5 A |
| Power supply | 170 W |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
