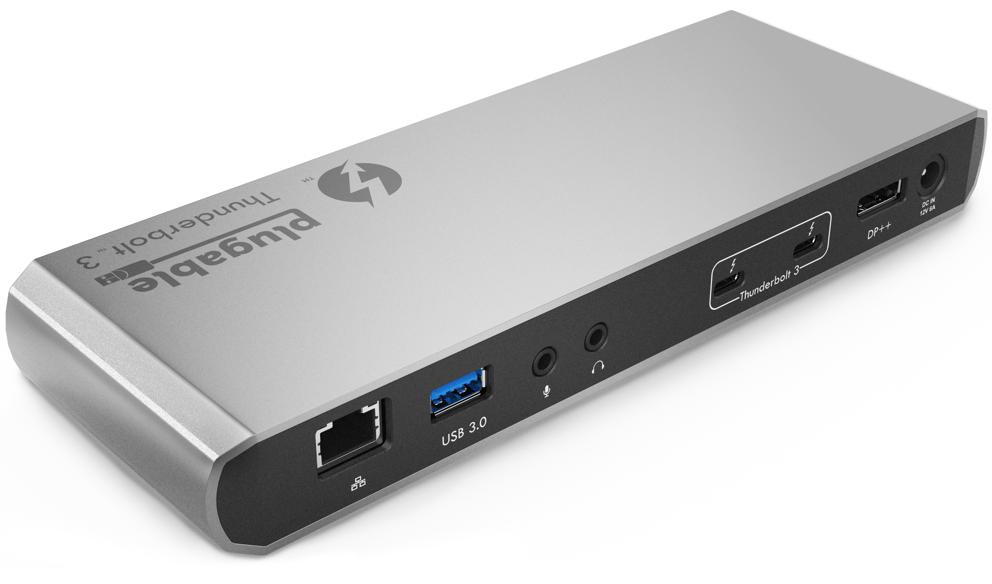

TBT3-UD1-83 laptop dock/port replicator Docking Thunderbolt 3 Black, Grey
Model TBT3-UD1-83EAN 819927011385
34 specifications
- ConnectivityDocking
- ColourBlack, Grey
- Ethernet LANYes
- AC input voltage12 V
- Width222.3 mm
Overview
- Connectivity
- Docking
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- AC input voltage
- 12 V
- Width
- 222.3 mm
- Brand
- Plugable Technologies
- Category
- Laptop Docks & Port Replicators
- Model
- TBT3-UD1-83
- Part number
- TBT3-UD1-83
- EAN / UPC
- 819927011385
- Also known as
- Plugable Technologies TBT3-UD1-83 laptop dock/port replicator Docking Thunderbolt 3 Black, Grey
Specifications
34 specifications in 7 groups

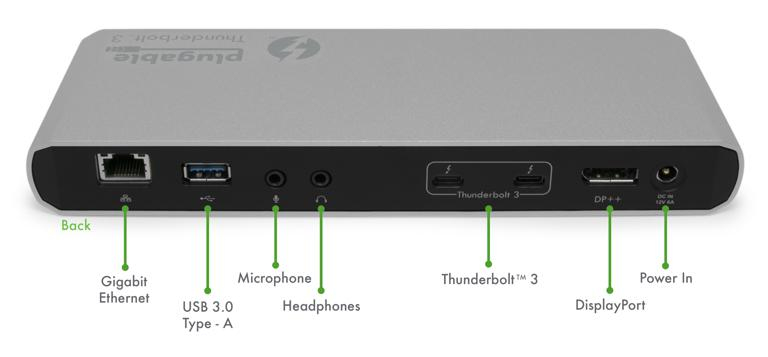

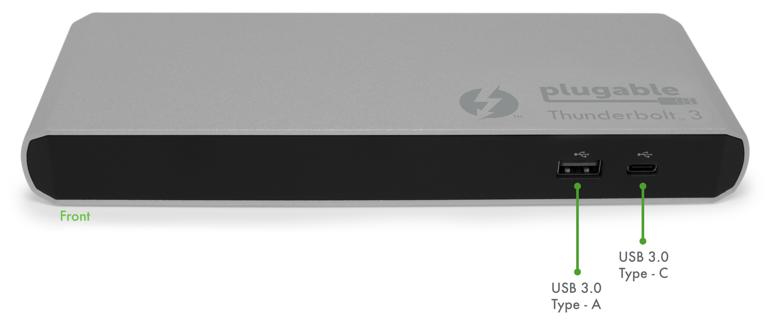

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Thunderbolt ports quantity | 2 |
| Thunderbolt 3 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Charging function | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 12 V |
| Input current | 6 A |
| Power supply | 72 W |
| Wireless charging | No |

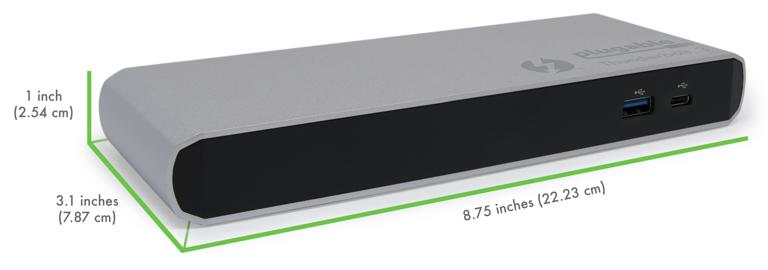

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 222.3 mm |
| Depth | 78.7 mm |
| Height | 25.4 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

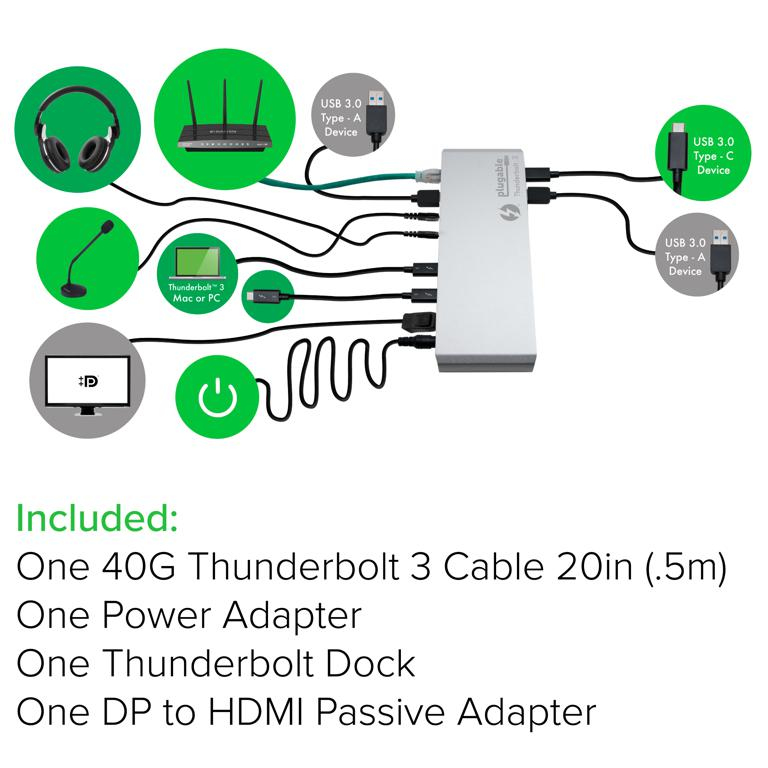

Packaging content
| Specification | Value |
|---|---|
| Cables included | Thunderbolt |
| Quick start guide | Yes |
