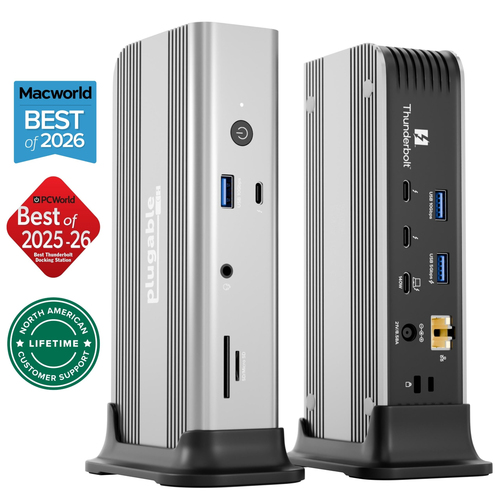

Thunderbolt 5 Dock with 3x Thunderbolt 5 Ports
140W Laptop Charging
Model TBT-UDT3EAN 819927013556
40 specifications
- ConnectivityWired
- Weight692 g
- ColourAluminium
- Ethernet LANYes
- Power source typeDC
- Width41.5 mm
Overview
- Connectivity
- Wired
- Weight
- 692 g
- Colour
- Aluminium
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 41.5 mm
- Brand
- Plugable Technologies
- Category
- Laptop Docks & Port Replicators
- Model
- TBT-UDT3
- Part number
- TBT-UDT3
- EAN / UPC
- 819927013556
- Also known as
- Plugable Technologies Thunderbolt 5 Dock with 3x Thunderbolt 5 Ports, 140W Laptop Charging
Specifications
40 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 0 |
| DisplayPort version | 1.4 |
| Thunderbolt 5 ports quantity | 3 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Copper ethernet cabling technology | 2.5GBASE-T |
Performance
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD, SDHC, SDXC, MMC |
| Data transfer rate | 80 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Number of displays supported | 3 |
| On/off switch | Yes |
| Charging function | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power supply | 180 W |
| Output current | 8.58 A |
| Output voltage | 21 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 41.5 mm |
| Depth | 77.5 mm |
| Height | 176 mm |
| Weight | 692 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power, Thunderbolt |
| Quick start guide | Yes |
| Stand included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | UL |
