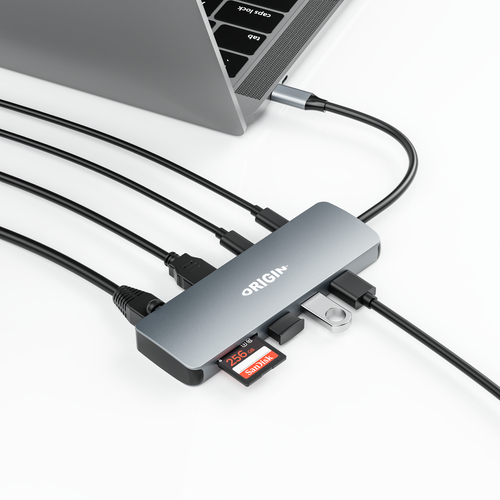

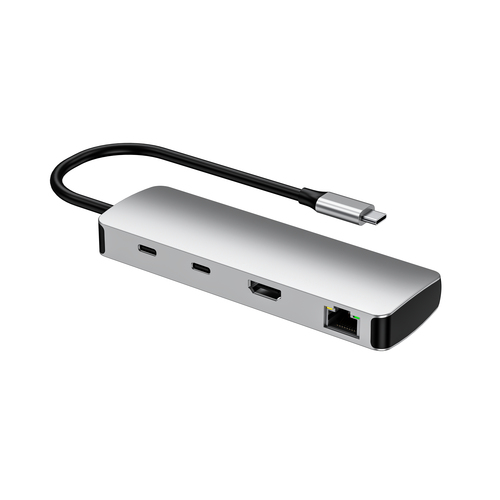

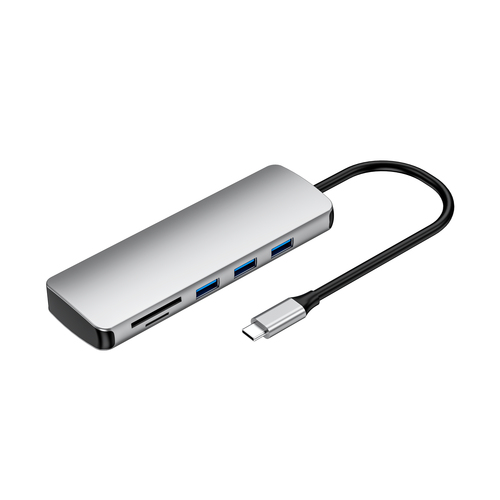

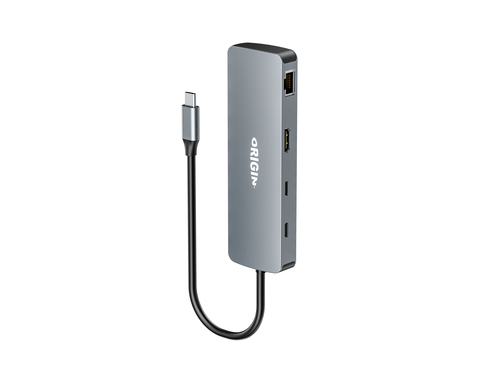

Travel Dock USB-C 4K 9in1 with PD
100W 4K@60Hz
Model OSDOCK-TD9-1EAN 5059902185556
31 specifications
- ConnectivityWired
- Weight74.8 g
- ColourSilver
- Ethernet LANYes
- USB cable length0.15 m
- Operating temperature (T-T)0 - 50 °C
Overview
- Connectivity
- Wired
- Weight
- 74.8 g
- Colour
- Silver
- Ethernet LAN
- Yes
- USB cable length
- 0.15 m
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Origin Storage
- Category
- Laptop Docks & Port Replicators
- Model
- OSDOCK-TD9-1
- Part number
- OSDOCK-TD9-1
- EAN / UPC
- 5059902185556, 7052802185556
- Also known as
- Origin Storage Travel Dock USB-C 4K 9in1 with PD 100W 4K@60Hz
Specifications
31 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000,10,100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MMC, RS-MMC |
| Maximum memory card size | 2 TB |
Power
| Specification | Value |
|---|---|
| USB cable length | 0.15 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 42.7 mm |
| Depth | 132 mm |
| Height | 16.4 mm |
| Weight | 74.8 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
