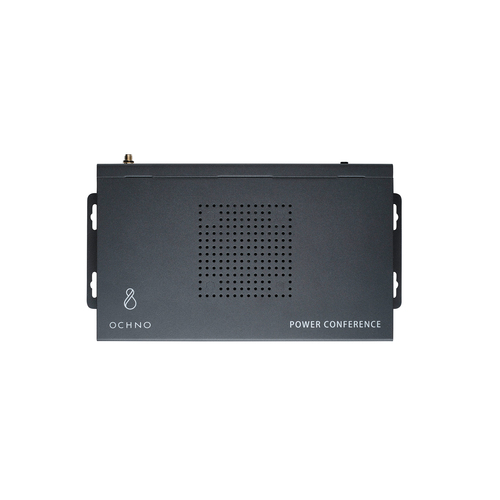

Power Conference 3
Model O-PC-3EAN 7350113051431
57 specifications
- ConnectivityWired
- Weight796 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 796 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Ochno
- Category
- Laptop Docks & Port Replicators
- Model
- O-PC-3
- Part number
- O-PC-3
- EAN / UPC
- 7350113051431
- Also known as
- Ochno Power Conference 3
Specifications
57 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 1 |
| Number of antenna connectors | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 85 - 264 V |
| Input current | 2.4 A |
| Power supply | 220 W |
| Output current | 10 A |
| Output voltage | 20 V |
| Power cable length | 1 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 130 mm |
| Height | 30 mm |
| Weight | 796 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 315 mm |
| Package height | 85 mm |
| Package weight | 1.97 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RCM, REACH, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 13.2 kg |
| Master (outer) case height | 372 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case width | 260 mm |
| Products per master (outer) case | 6 pc(s) |
