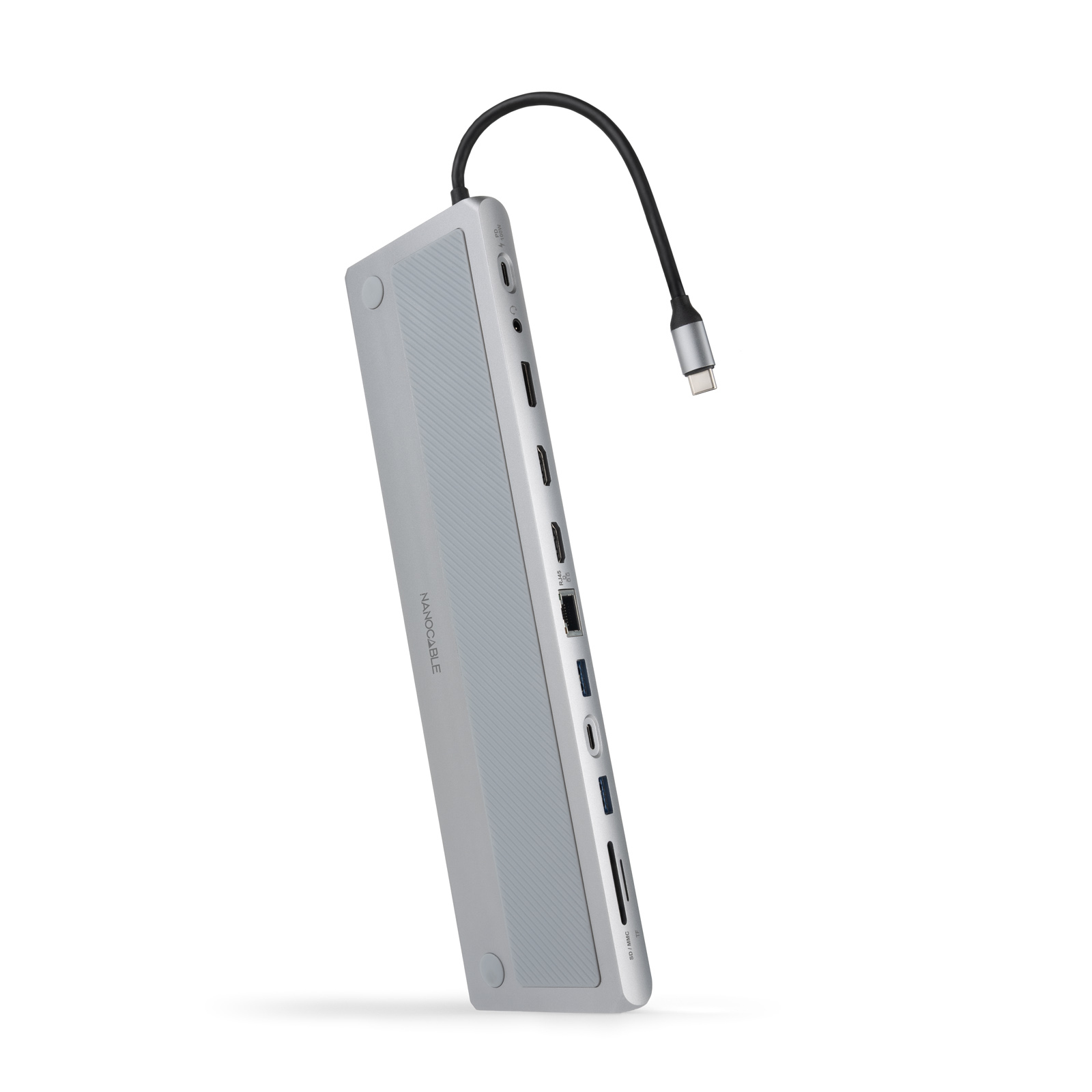

10.16.1012 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Model 10.16.1012EAN 8433281017474
39 specifications
- ConnectivityWired
- Weight266 g
- ColourGrey
- Ethernet LANYes
- Power source typeUSB
- Width280 mm
Overview
- Connectivity
- Wired
- Weight
- 266 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 280 mm
- Brand
- Nanocable
- Category
- Laptop Docks & Port Replicators
- Model
- 10.16.1012
- Part number
- 10.16.1012
- EAN / UPC
- 8433281017474
- Also known as
- Nanocable 10.16.1012 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
39 specifications in 8 groups

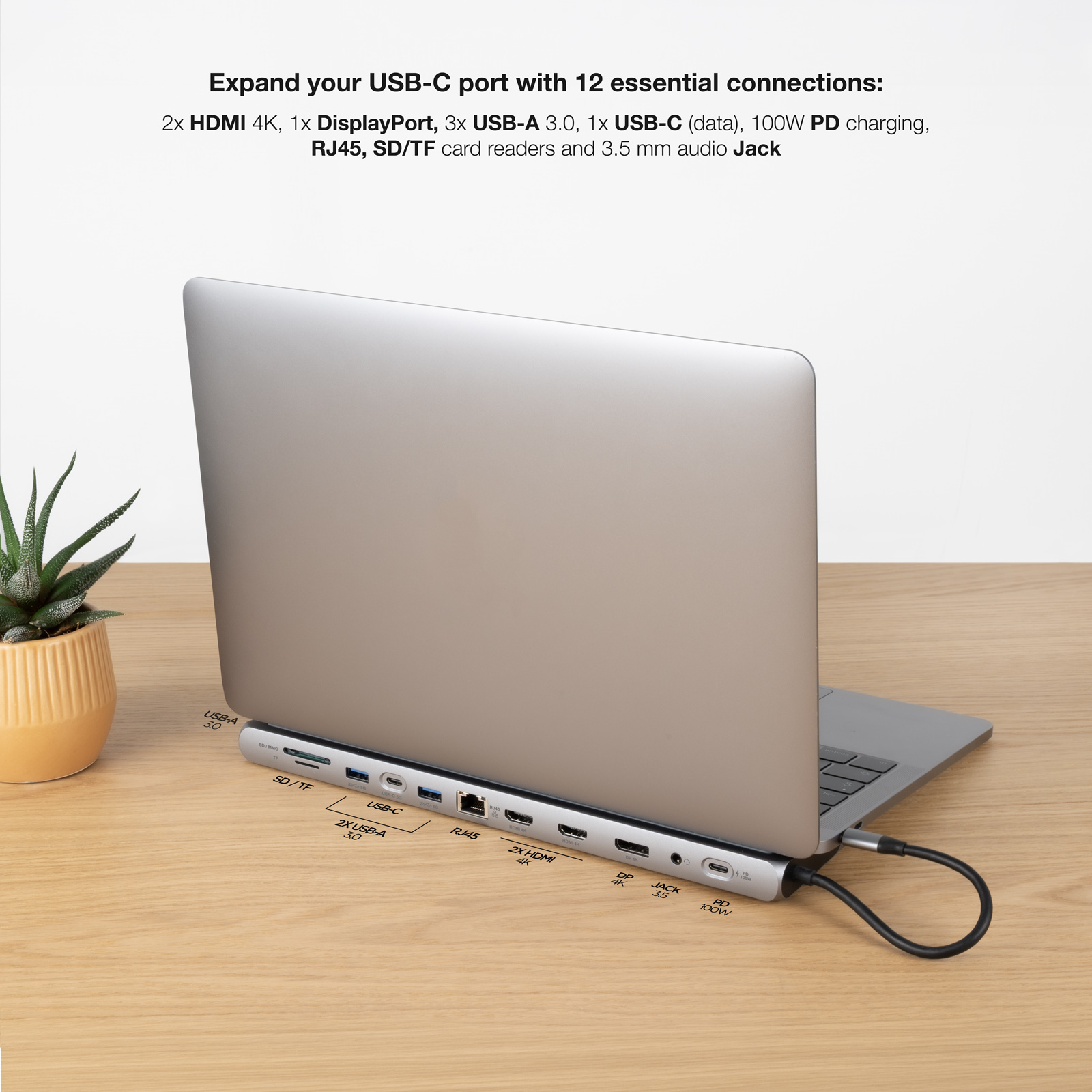

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| USB cable length | 0.18 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |

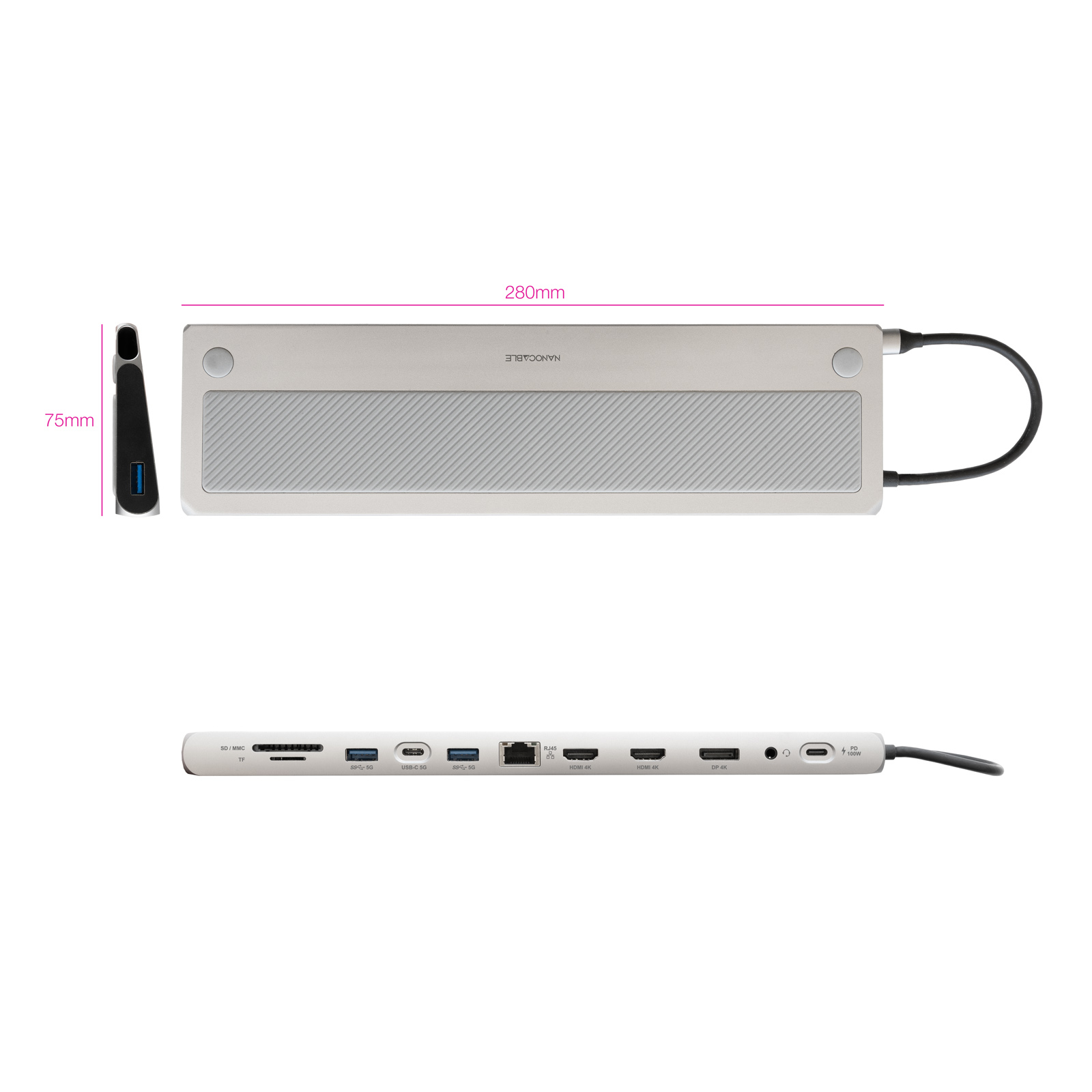

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 75 mm |
| Height | 20 mm |
| Weight | 266 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 117 mm |
| Package depth | 26 mm |
| Package height | 336 mm |
| Package weight | 266 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
