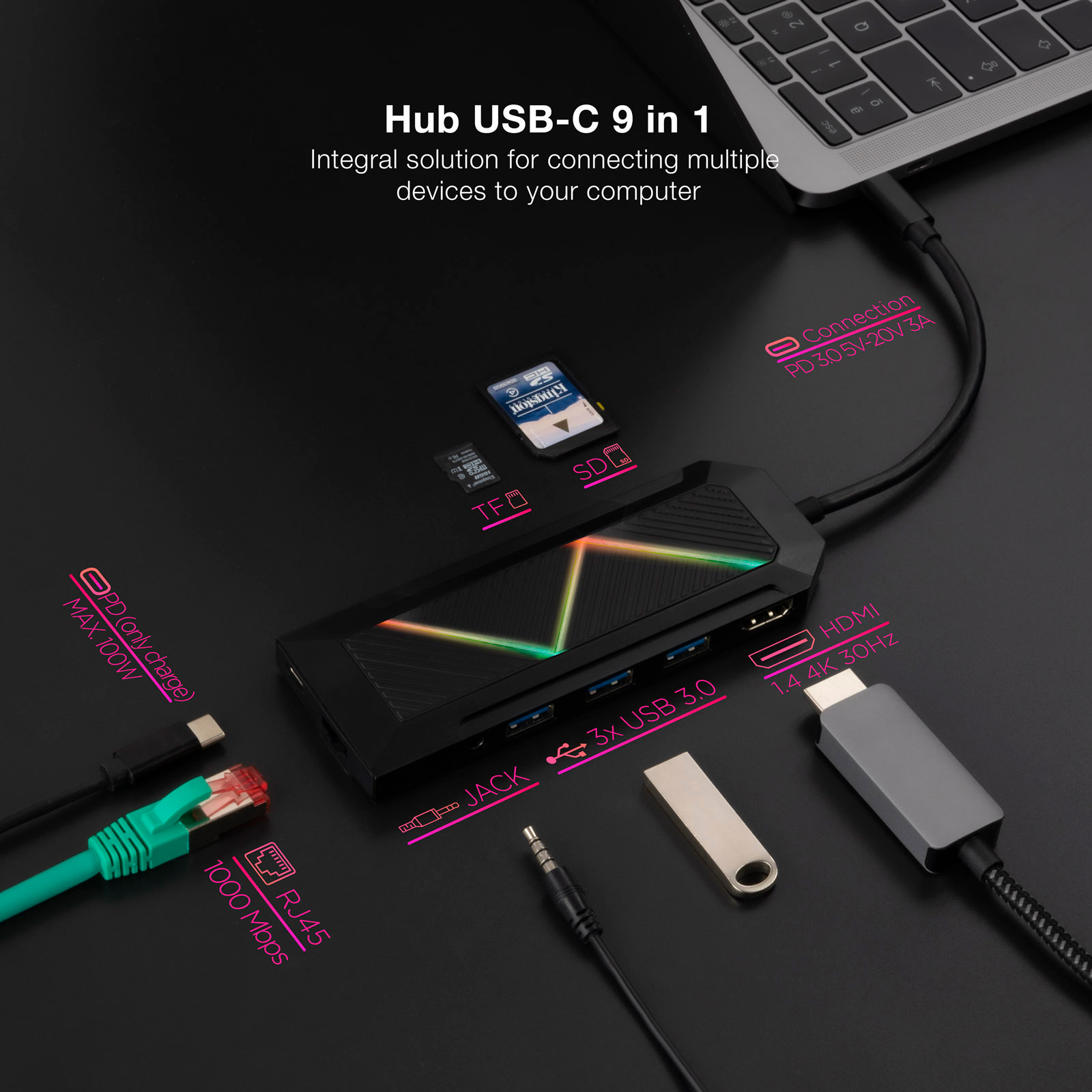

10.16.0901 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Model 10.16.0901EAN 8433281011878
34 specifications
- ConnectivityWired
- Weight142 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Width48 mm
Overview
- Connectivity
- Wired
- Weight
- 142 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 48 mm
- Brand
- Nanocable
- Category
- Laptop Docks & Port Replicators
- Model
- 10.16.0901
- Part number
- 10.16.0901
- EAN / UPC
- 8433281011878
- Also known as
- Nanocable 10.16.0901 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Specifications
34 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

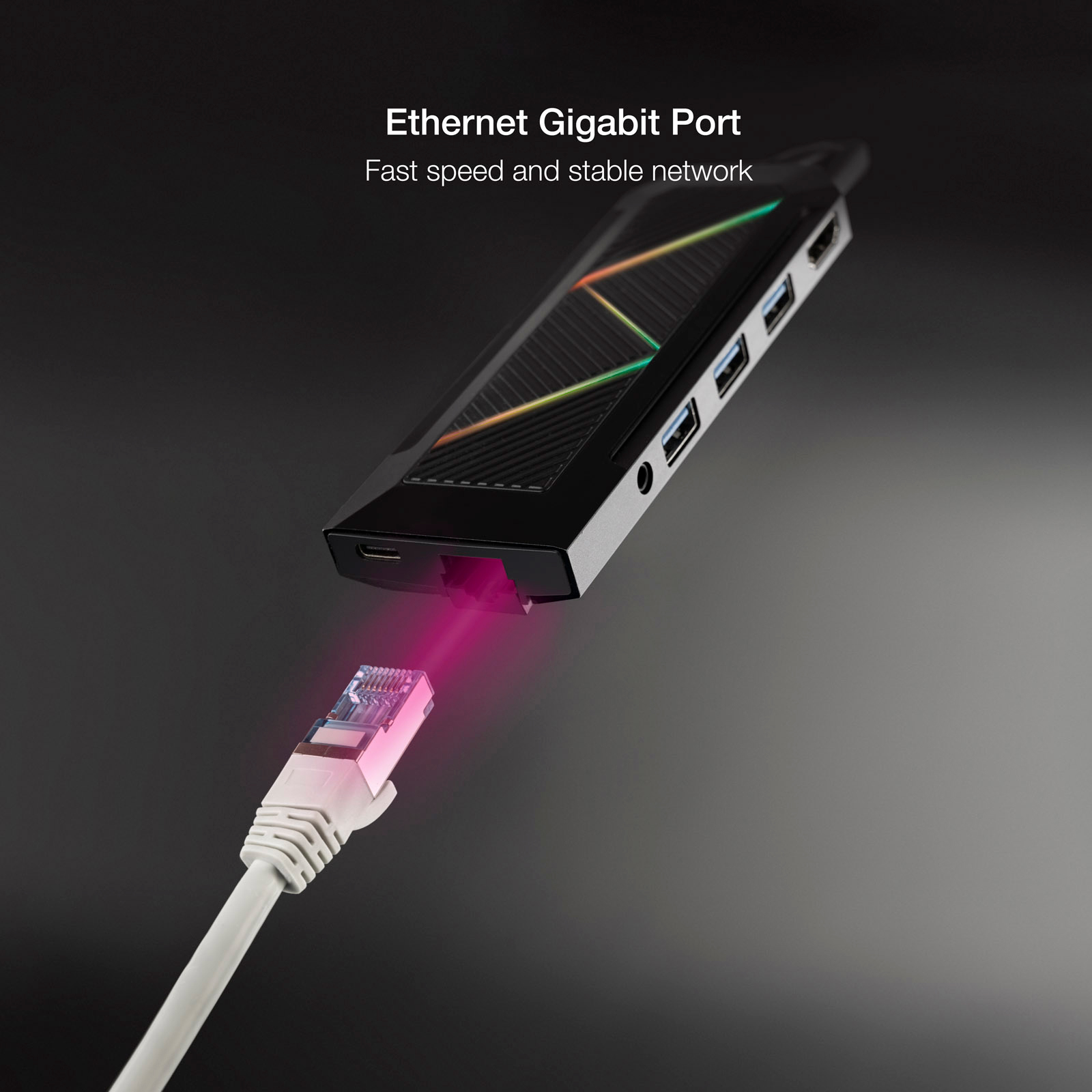

| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 30 Hz |
| Housing material | Aluminium |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| Power cable length | 0.15 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 48 mm |
| Depth | 131 mm |
| Height | 19 mm |
| Weight | 142 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 103 mm |
| Package depth | 20 mm |
| Package height | 198 mm |
