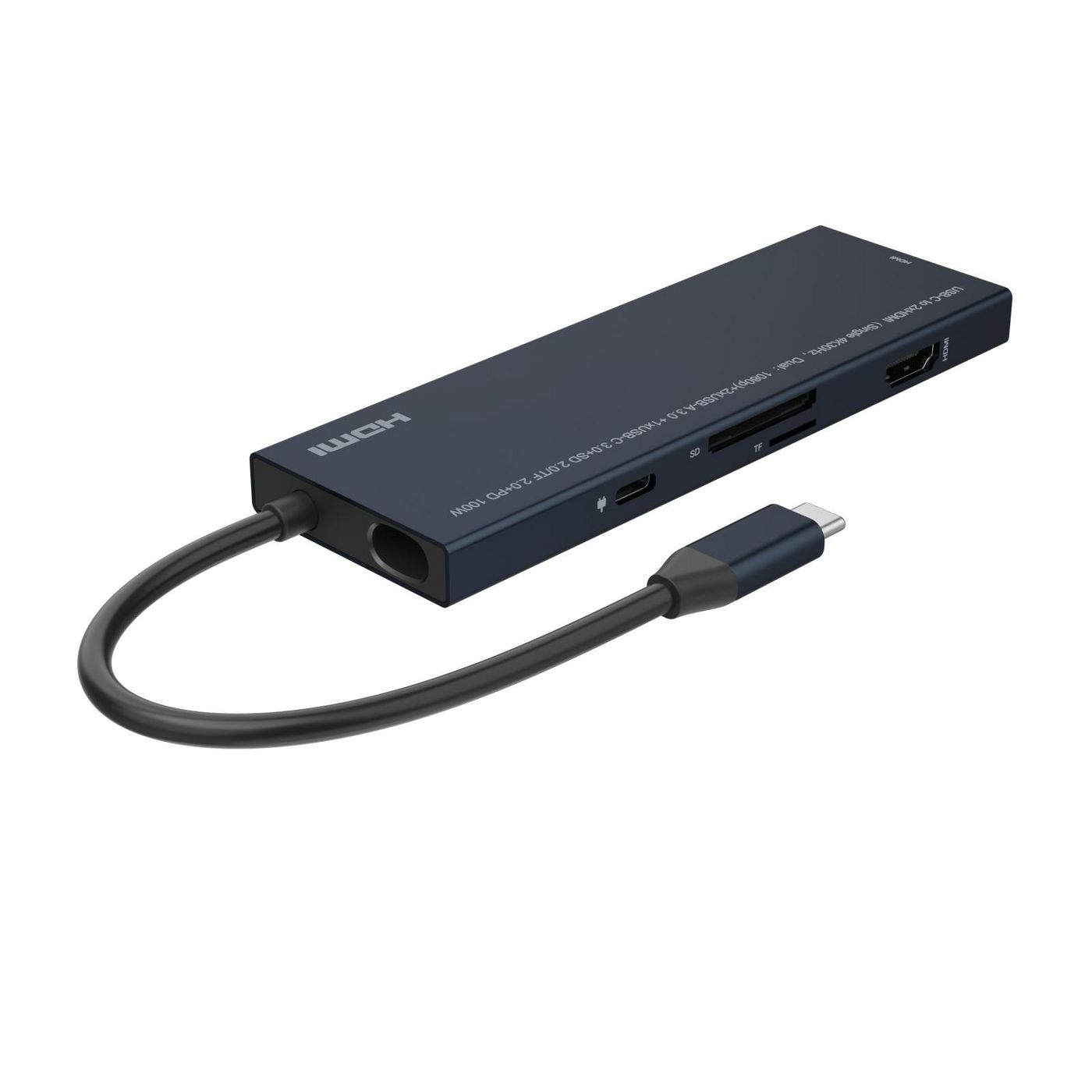

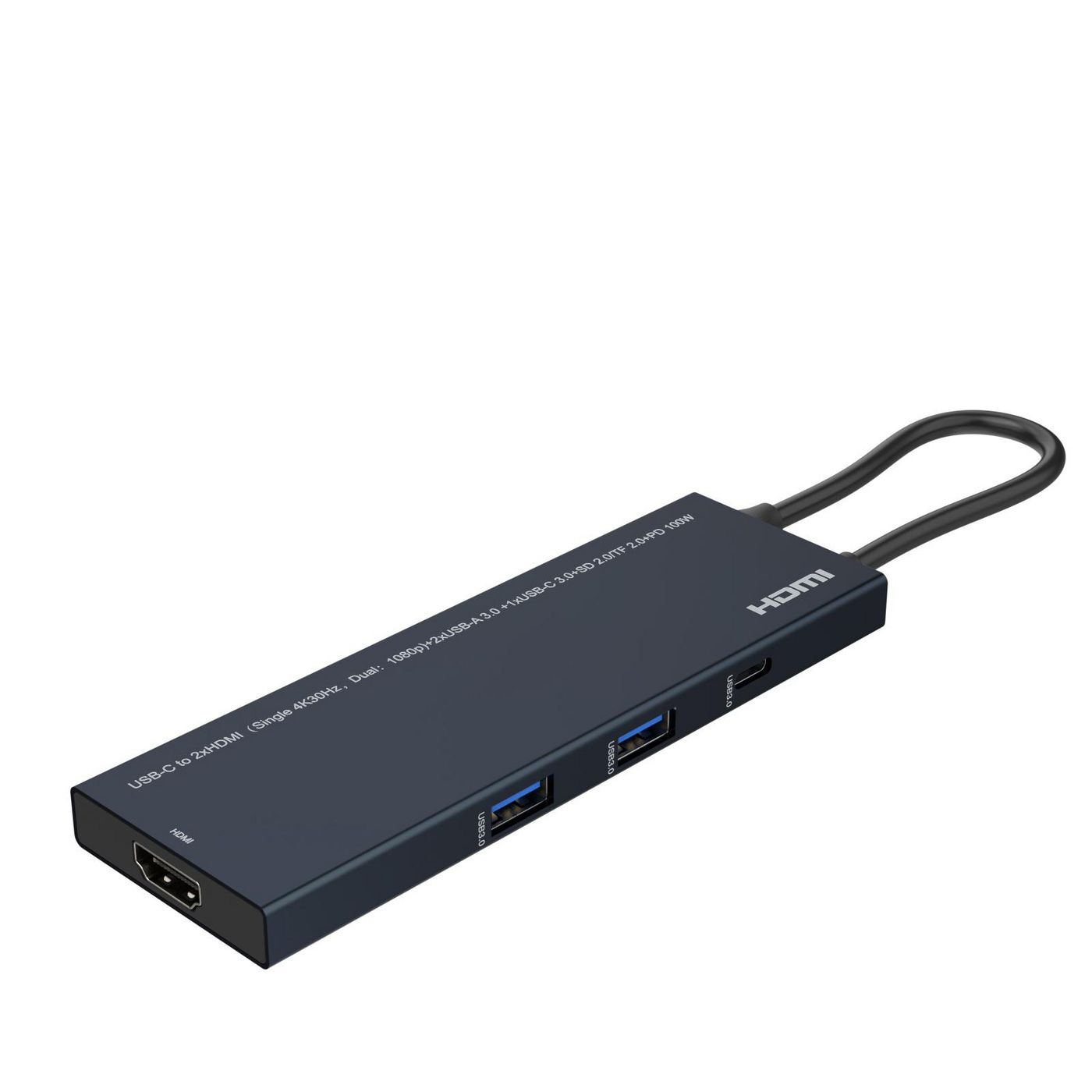

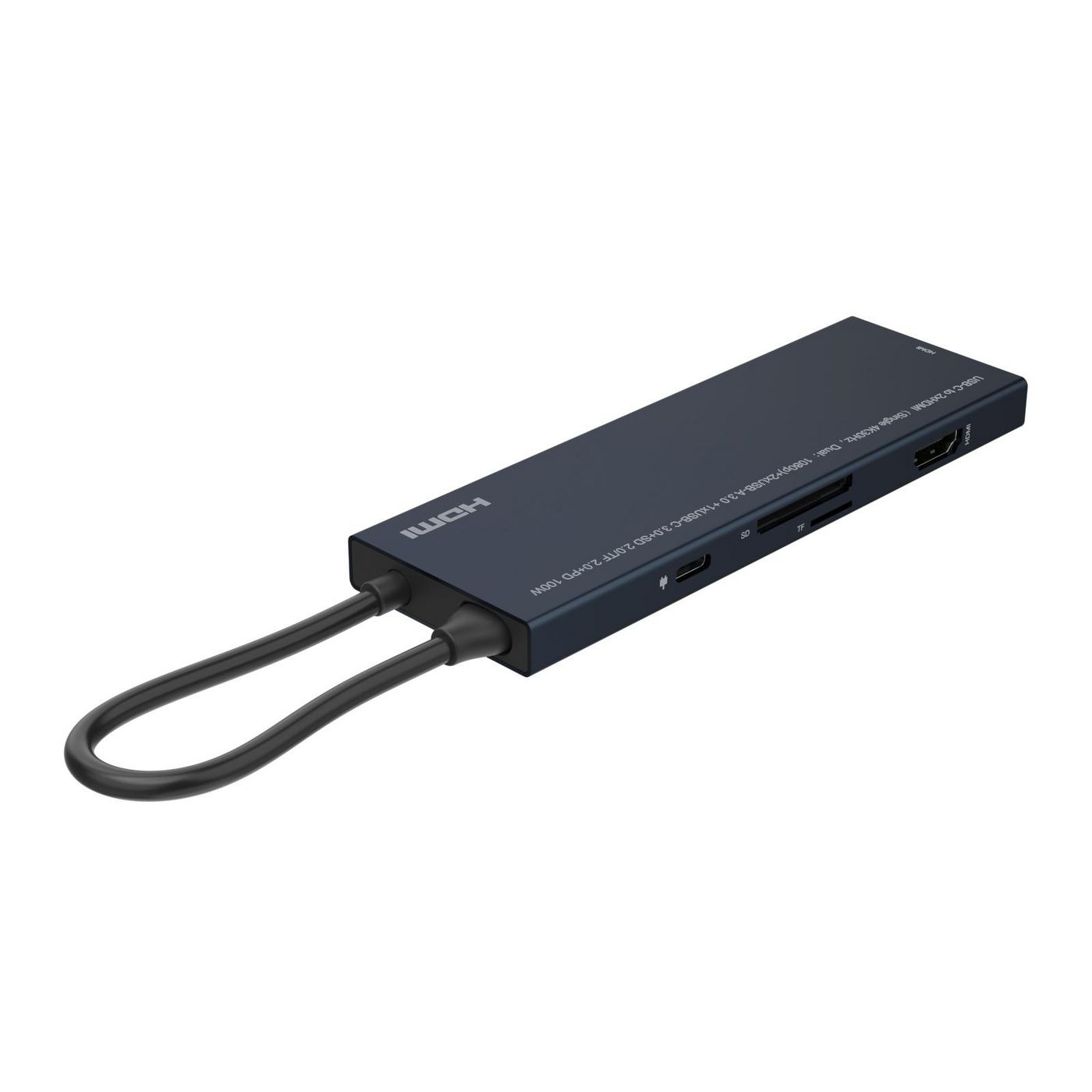

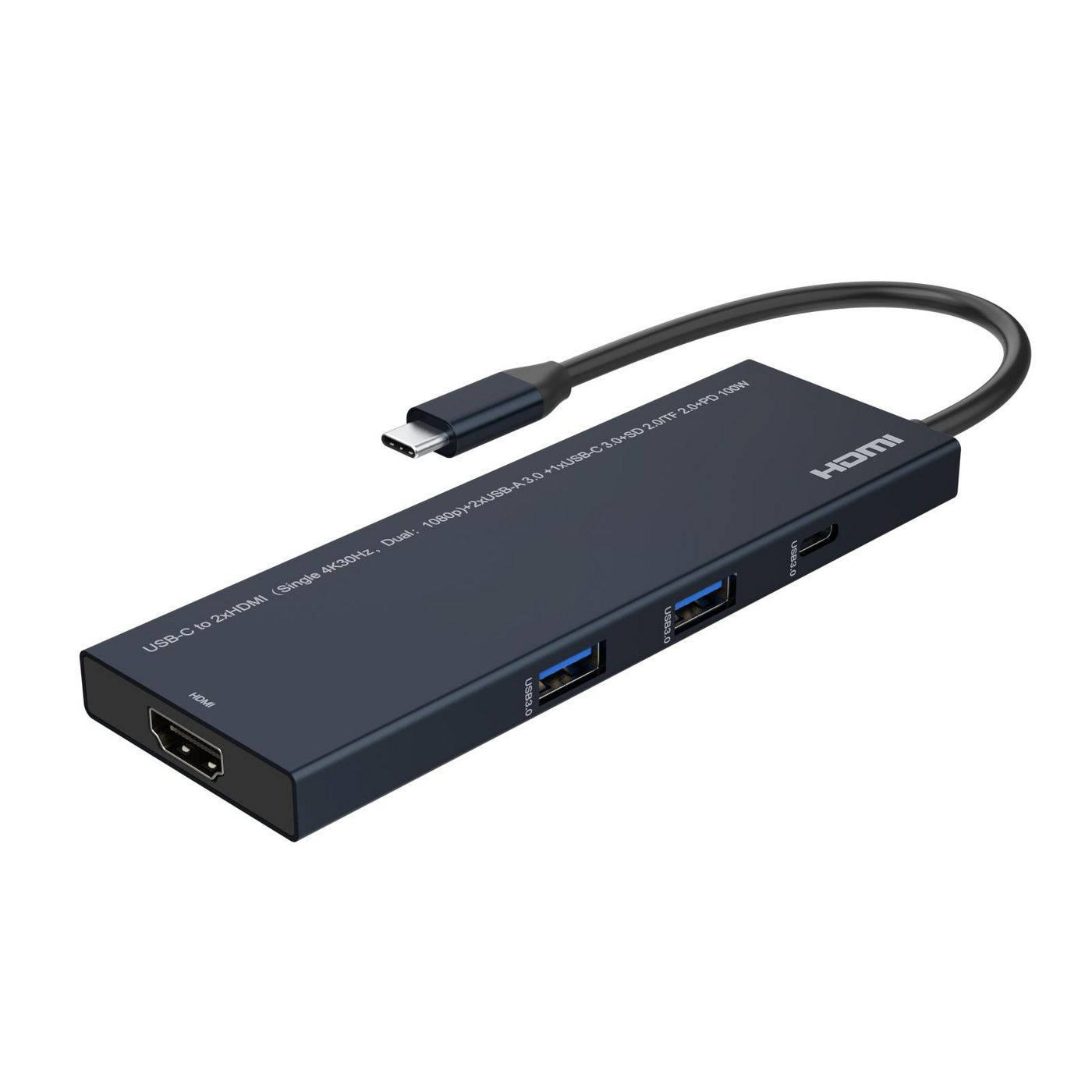

USB3.1CCOM18 laptop dock/port replicator Wired Black
Model USB3.1CCOM18EAN 5715063740224
34 specifications
- ConnectivityWired
- Weight76 g
- ColourBlack
- Ethernet LANNo
- Maximum resolution3840 x 2160 pixels
- Operating temperature (T-T)0 - 60 °C
Overview
- Connectivity
- Wired
- Weight
- 76 g
- Colour
- Black
- Ethernet LAN
- No
- Maximum resolution
- 3840 x 2160 pixels
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Microconnect
- Category
- Laptop Docks & Port Replicators
- Model
- USB3.1CCOM18
- Part number
- USB3.1CCOM18
- EAN / UPC
- 5715063740224
- Also known as
- Microconnect USB3.1CCOM18 laptop dock/port replicator Wired Black
Specifications
34 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| USB connector type | USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 30 Hz |
| Number of displays supported | 2 |

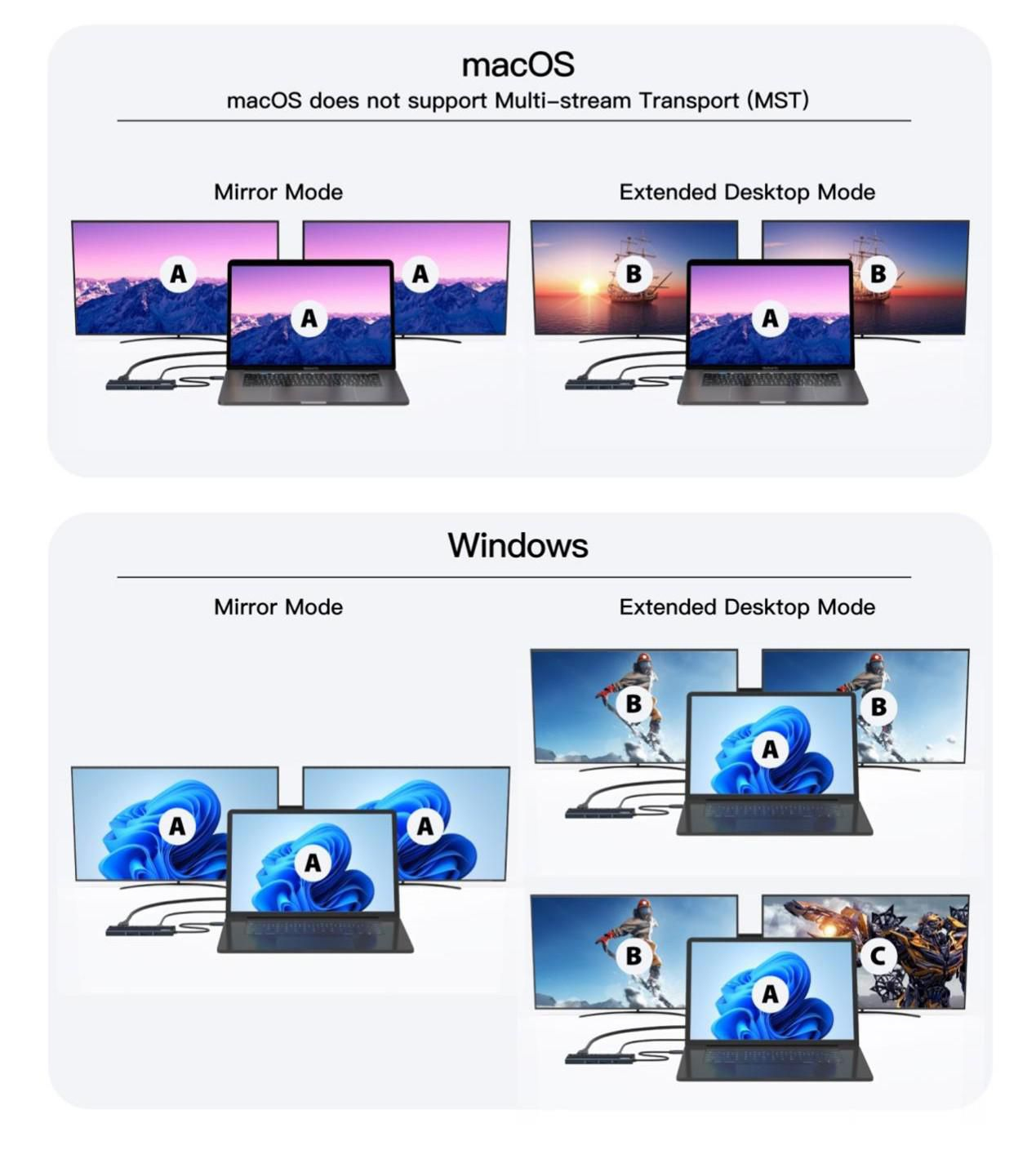

| Display modes | Extended |
| Plug and Play | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 191 mm |
| Depth | 119 mm |
| Height | 21 mm |
| Weight | 76 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 191 mm |
| Package depth | 119 mm |
| Package height | 21 mm |
| Package weight | 147 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Features
| Specification | Value |
|---|---|
| Packaging languages | English |
Other features
| Specification | Value |
|---|---|
| USB data transfer rates | 5000 Mbit/s |
| USB port | Yes |
| USB ports quantity | 4 |
