Manhattan USB-C Dock/Hub with Card Reader, Ports (x10): Audio
Manhattan

USB-C Dock/Hub with Card Reader, Ports (x10): Audio

3.5mm, DisplayPort, Ethernet, HDMI (x2),USB-A (x3) and USB-C (x2),with PD 100W- requires external

Model 190305EAN 766623190305

58 specifications
  • ConnectivityWired
  • Weight300 g
  • ColourSilver
  • Ethernet LANYes
  • Power source typeUSB
  • Operating temperature (T-T)0 - 60 °C
See all specifications

Overview

Connectivity
Wired
Weight
300 g
Colour
Silver
Ethernet LAN
Yes
Power source type
USB
Operating temperature (T-T)
0 - 60 °C
Brand
Manhattan
Model
190305
Part number
190305
EAN / UPC
766623190305
Also known as
Manhattan USB-C Dock/Hub with Card Reader, Ports (x10): Audio 3.5mm, DisplayPort, Ethernet, HDMI (x2),USB-A (x3) and USB-C (x2),with PD 100W- requires external

Specifications

58 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power Delivery (USB PD)Yes

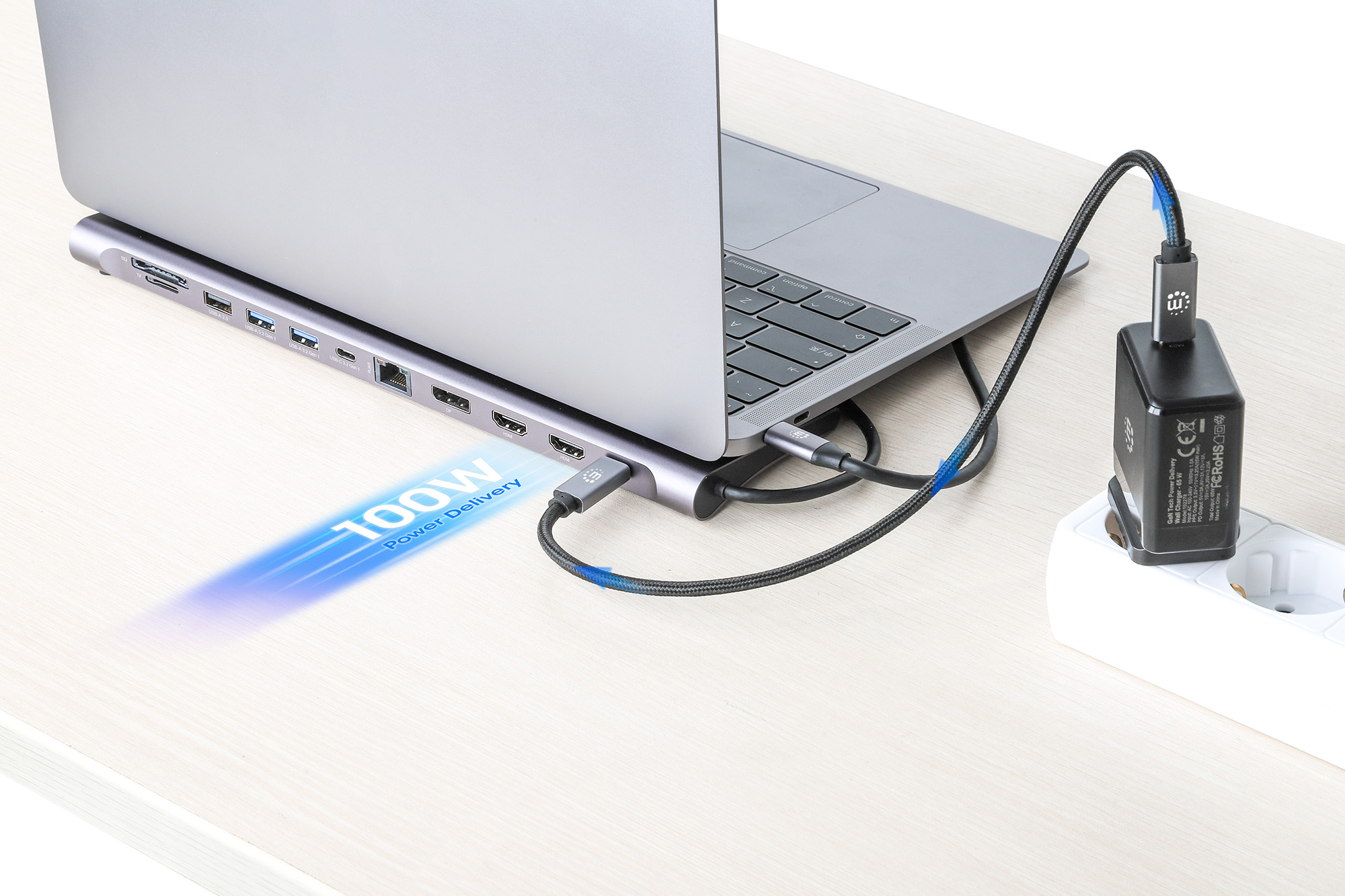

USB Power Delivery up to100 W
HDMI ports quantity2
HDMI version2.0
DisplayPorts quantity1
DisplayPort version1.4
Microphone inNo
Combo headphone/mic portYes
Headphone outputs1
HDCPYes
HDCP version2.3
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourSilver
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
Maximum memory card size2 GB
Data transfer rate5 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Number of displays supported3
Housing materialAluminium
Plug and PlayYes

Power

Power source typeUSB
Power connectorUSB Type-C
Output current5 A
Output voltage5 - 20 V
USB cable length0.5 m

Software

Windows operating systems supportedWindows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supportedYes
Mobile operating systems supportedAndroid
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width80 mm
Depth284 mm
Height17 mm
Weight300 g

Packaging data

Quantity per pack1 pc(s)
Package weight400 g

Packaging content

ManualYes
Packaging contentUSB-C PD 12-in-1 4K Docking Station / Multiport Hub Instructions

Technical details

Compliance certificatesCE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Warranty period3 year(s)

Logistics data

Master (outer) case gross weight8.9 kg
Master (outer) case height212 mm
Master (outer) case length620 mm
Master (outer) case width456 mm
Products per master (outer) case20 pc(s)
