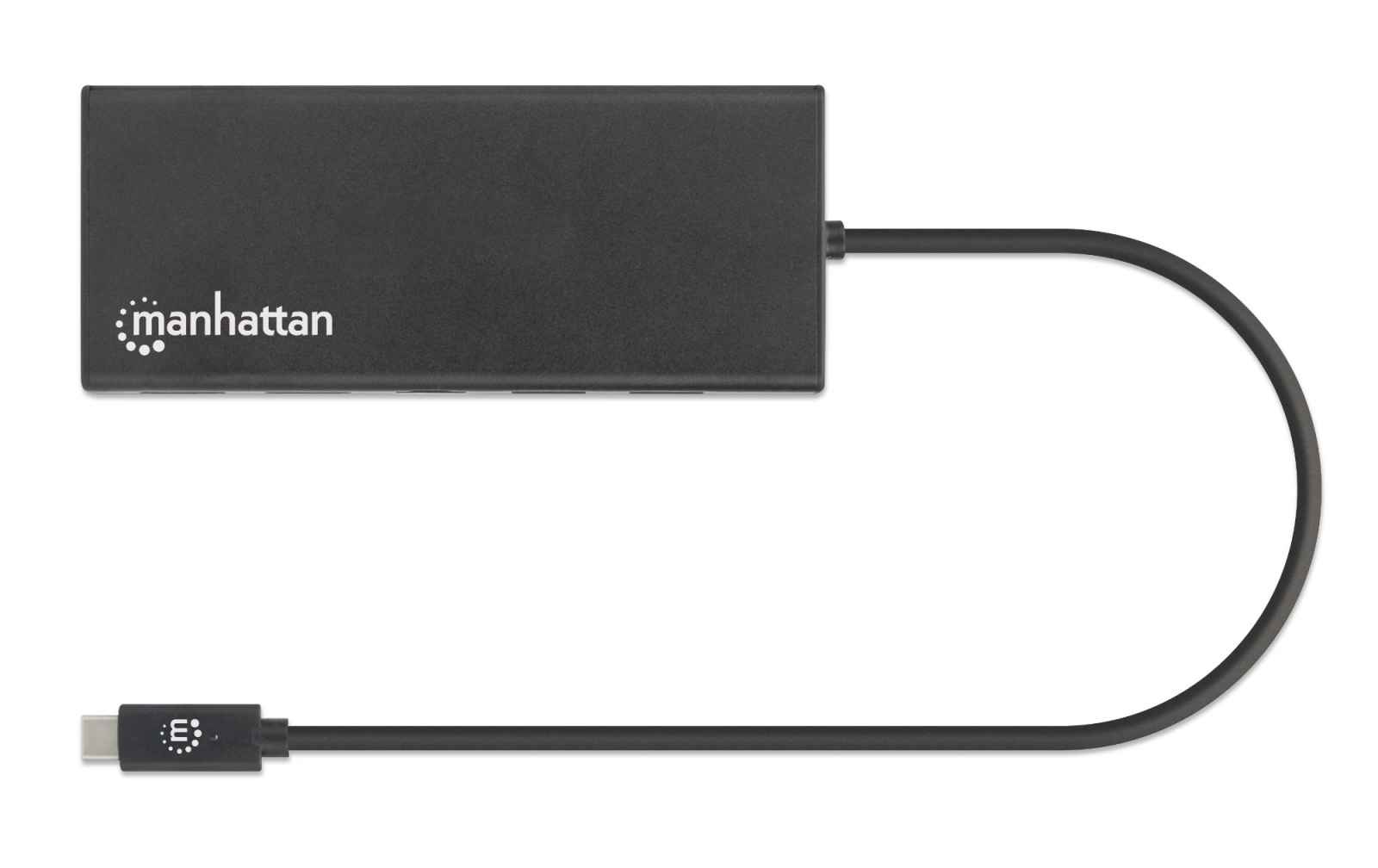

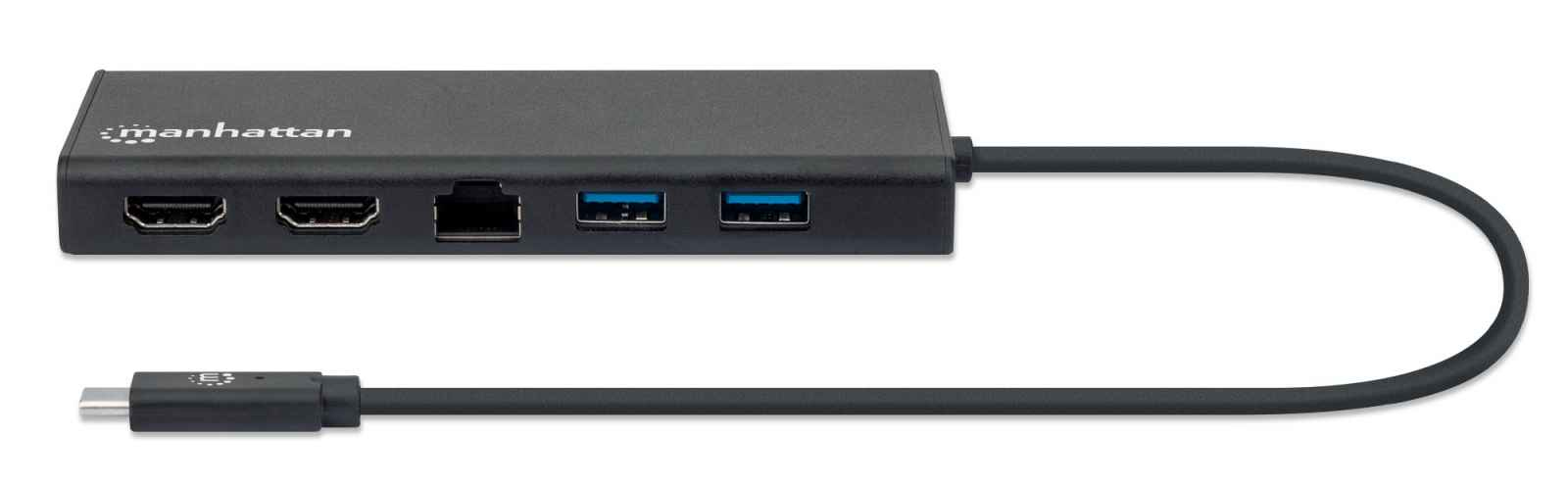

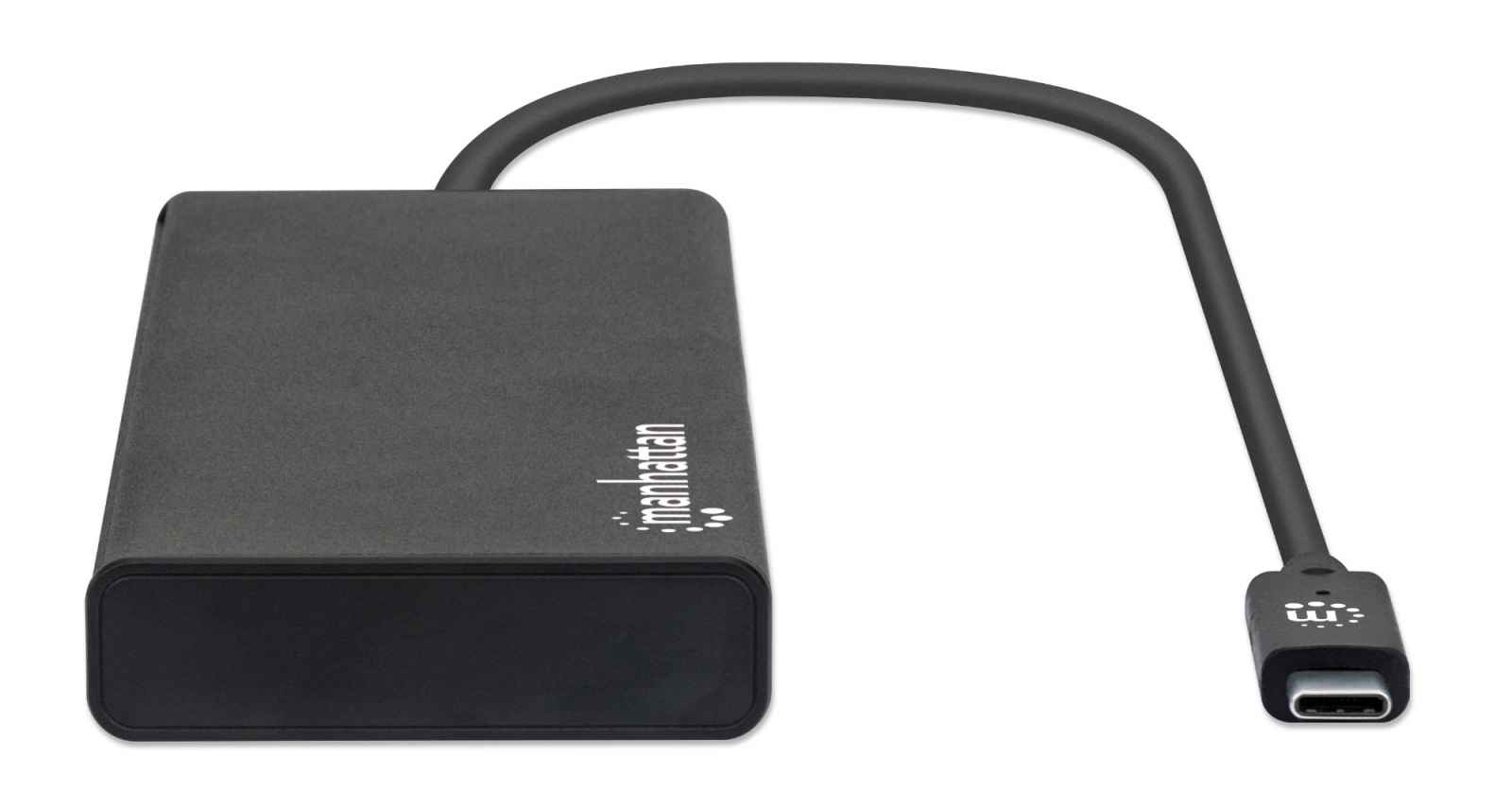

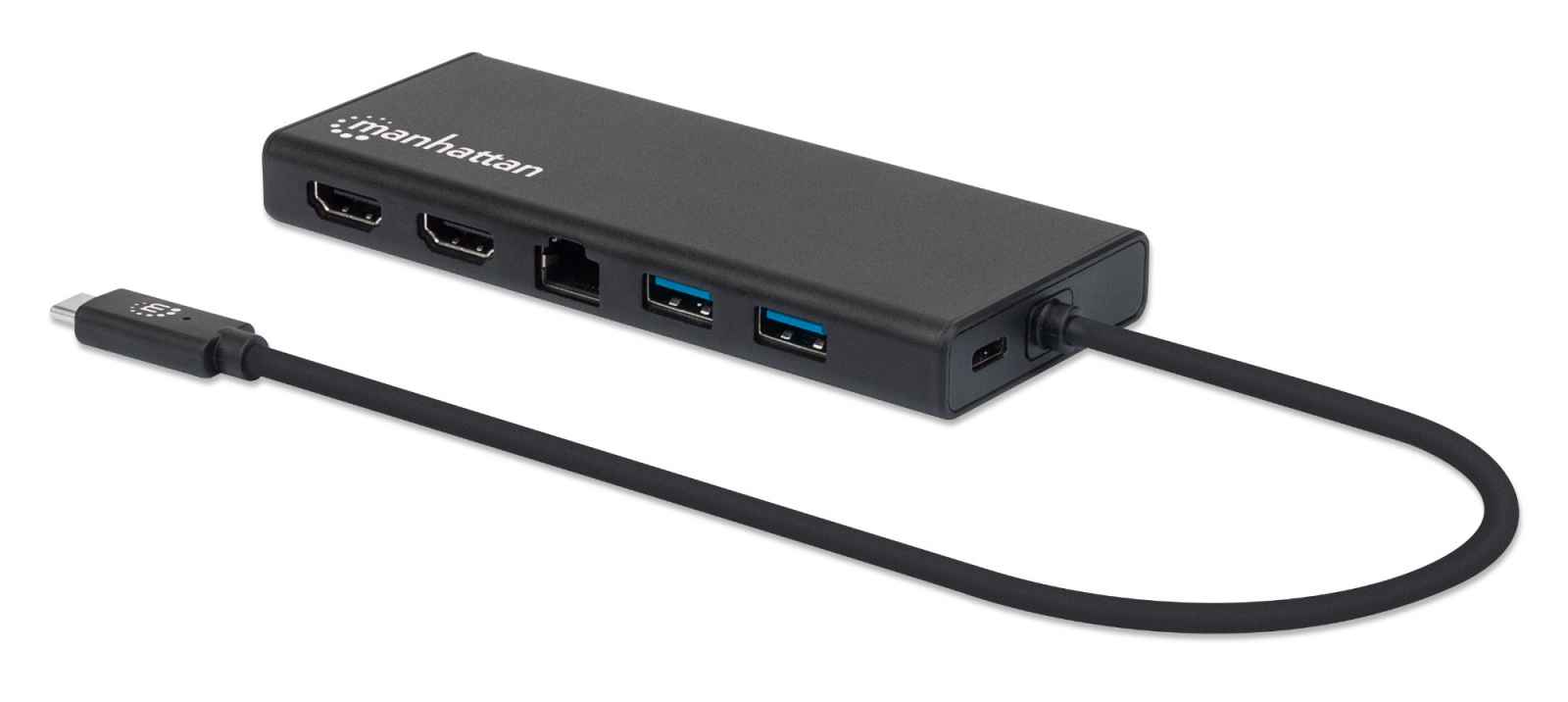

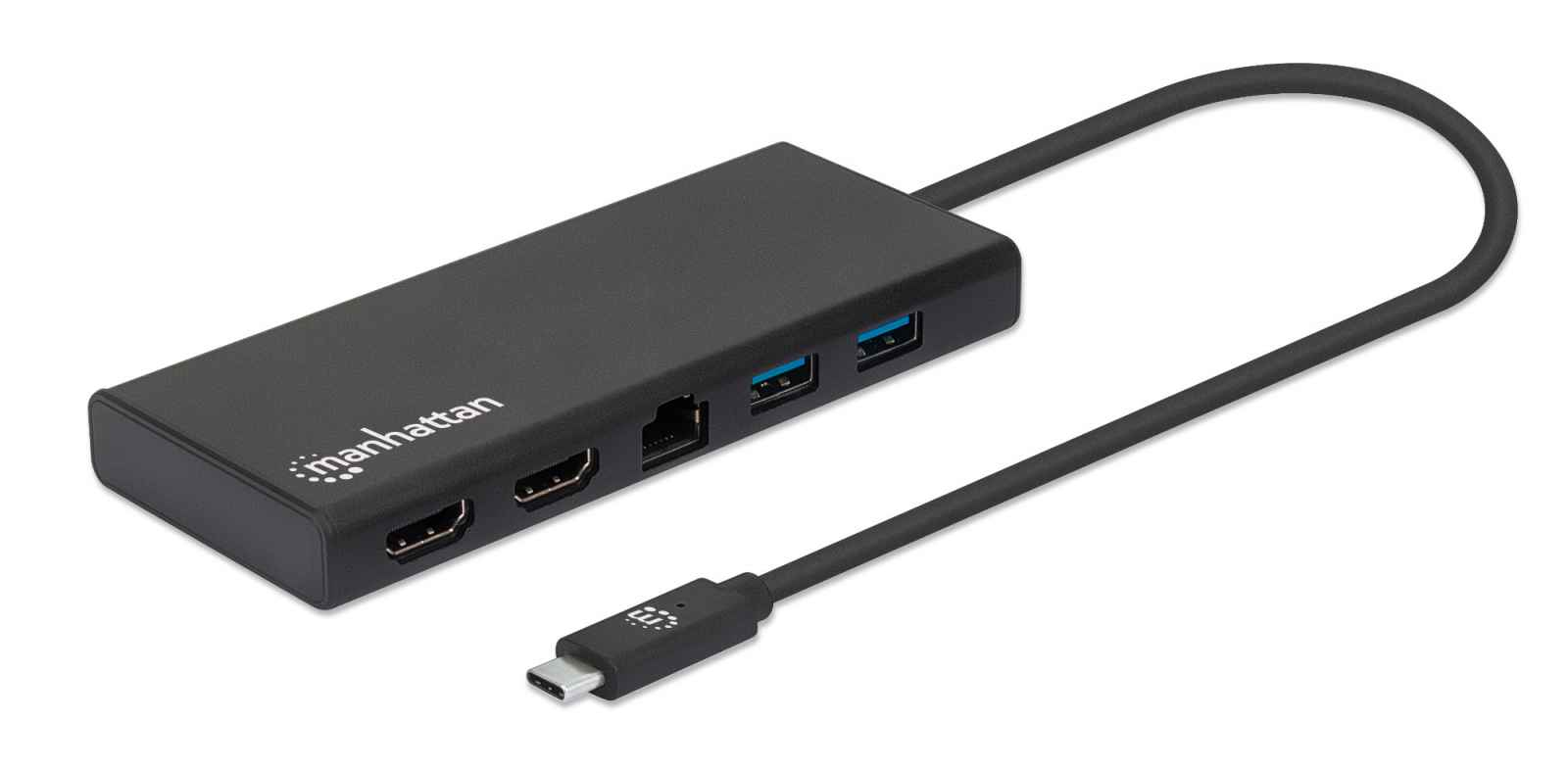

USB-C Dock/Hub, Ports (x6): Ethernet, HDMI (x2), USB-A (x2) and USB-C, With Power Delivery (60W) to USB-C Port (Note additional USB-C wall charger and
Model 152747EAN 766623152747
21 specifications
- Weight111.5 g
- ColourBlack
- Host interfaceUSB Type-C
- Ethernet LAN (RJ-45) ports1
- Power supply typeUSB
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 111.5 g
- Colour
- Black
- Host interface
- USB Type-C
- Ethernet LAN (RJ-45) ports
- 1
- Power supply type
- USB
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Manhattan
- Category
- Laptop Docks & Port Replicators
- Model
- 152747
- Part number
- 152747
- EAN / UPC
- 766623152747
- Also known as
- Manhattan USB-C Dock/Hub, Ports (x6): Ethernet, HDMI (x2), USB-A (x2) and USB-C, With Power Delivery (60W) to USB-C Port (Note additional USB-C wall charger and
Specifications
21 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Plug and Play | Yes |
| Certification | CE FCC RoHS2 WEEE |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
| Output current | 3 A |
| Output voltage | 20 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 15.2 mm |
| Depth | 54.5 mm |
| Height | 13.5 mm |
| Weight | 111.5 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
