Manhattan USB-C Dock/Hub, Ports (x4): HDMI, USB-A, USB-C and VGA, with Power Delivery (PD)
Manhattan

USB-C Dock/Hub, Ports (x4): HDMI, USB-A, USB-C and VGA, with Power Delivery (PD)

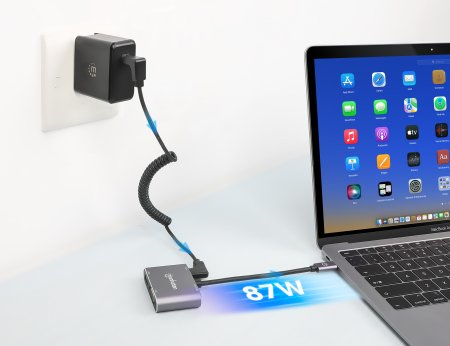

87W- requires external USB-C charger (not included). USB powered (no

Model 130691EAN 766623130691

38 specifications
  • ConnectivityWired
  • Weight42 g
  • ColourGrey
  • Ethernet LANNo
  • USB cable length0.15 m
  • Mac operating systems supportedYes
See all specifications

Overview

Connectivity
Wired
Weight
42 g
Colour
Grey
Ethernet LAN
No
USB cable length
0.15 m
Mac operating systems supported
Yes
Brand
Manhattan
Model
130691
Part number
130691
EAN / UPC
766623130691
Also known as
Manhattan USB-C Dock/Hub, Ports (x4): HDMI, USB-A, USB-C and VGA, with Power Delivery (PD) 87W- requires external USB-C charger (not included). USB powered (no

Specifications

38 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version1.4
VGA (D-Sub) ports quantity1
DisplayPort version1.2
Microphone inNo
DC-in jackNo
HDCPYes
HDCP version1.4

Network

Ethernet LANNo

Performance

Product colourGrey
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Housing materialAluminium
Plug and PlayYes
CertificationCE FCC RoHS REACH UKCA

Power

USB cable length0.15 m
Wireless chargingNo

Software

Windows operating systems supportedWindows 10, Windows 11, Windows 7, Windows 8.1
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedAndroid, ChromeOS

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width40 mm
Depth62 mm
Height15 mm
Weight42 g

Packaging data

Quantity per pack1 pc(s)
Package weight63 g

Packaging content

ManualYes

Technical details

Compliance certificatesCE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
