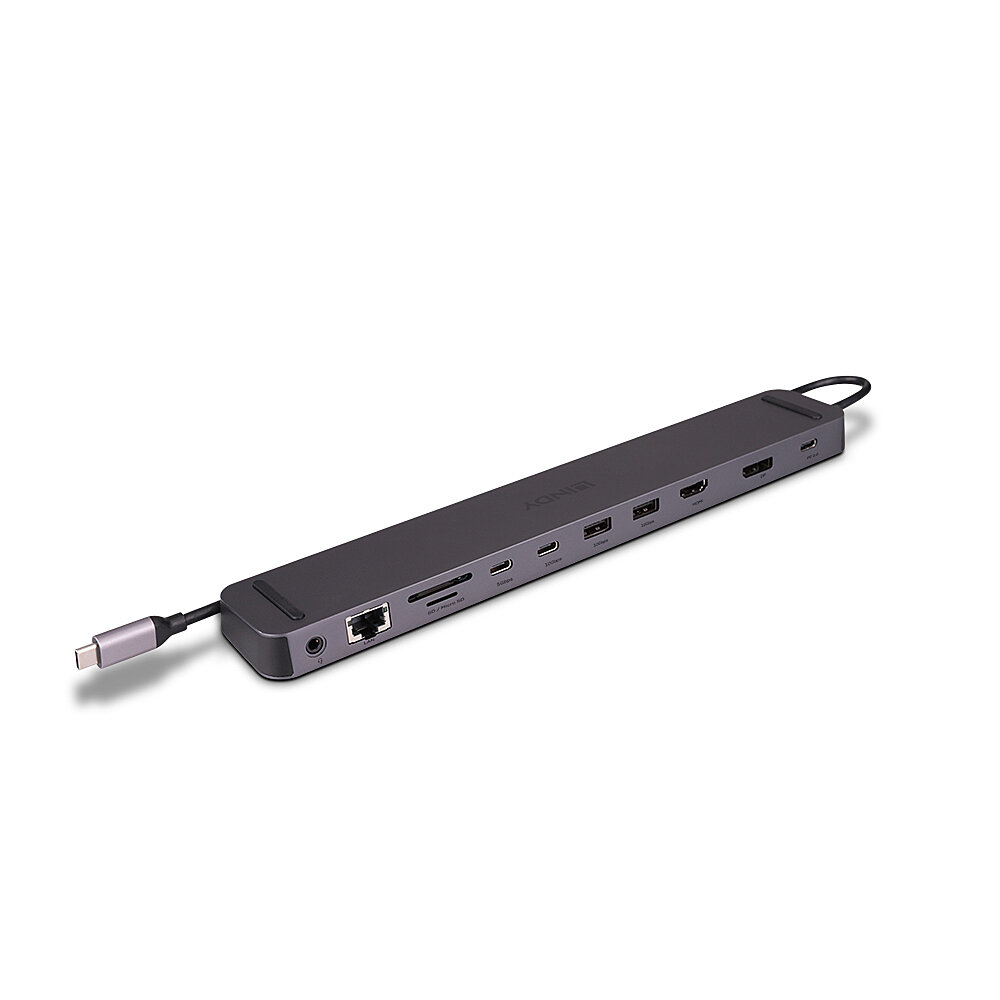

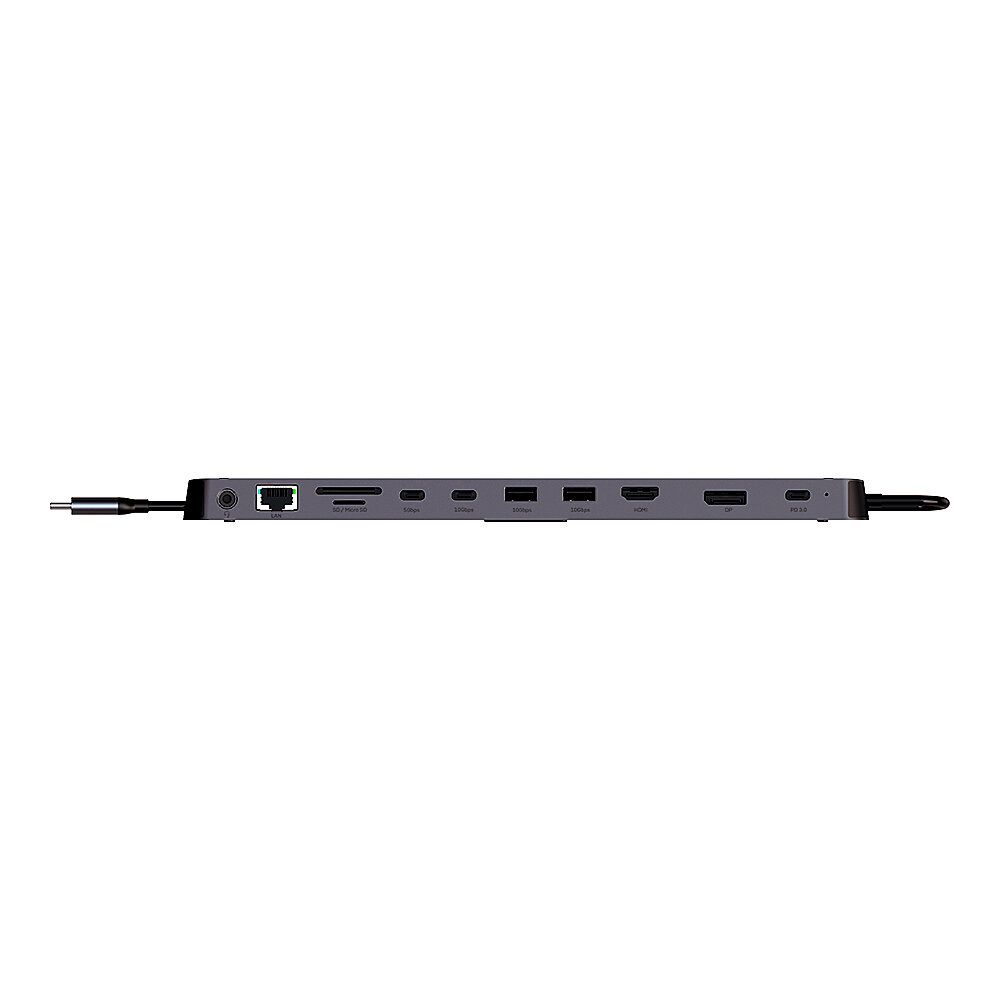

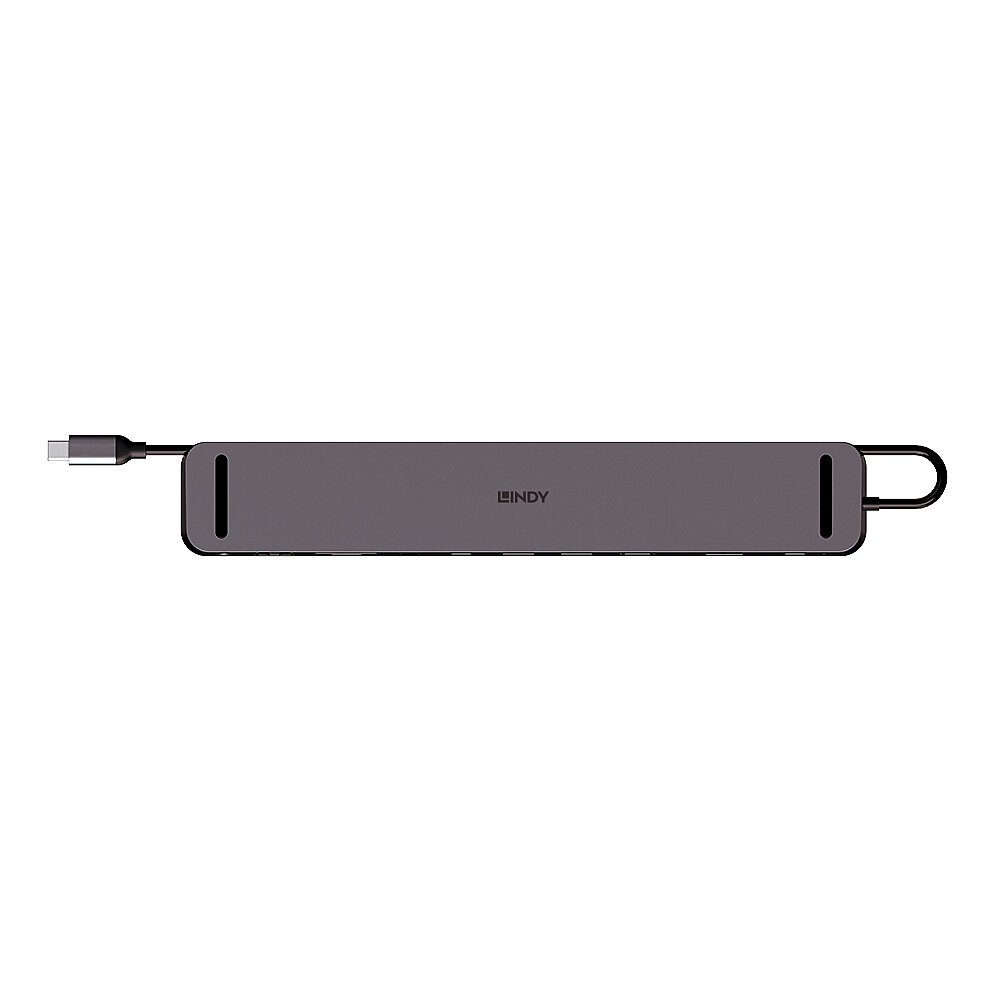

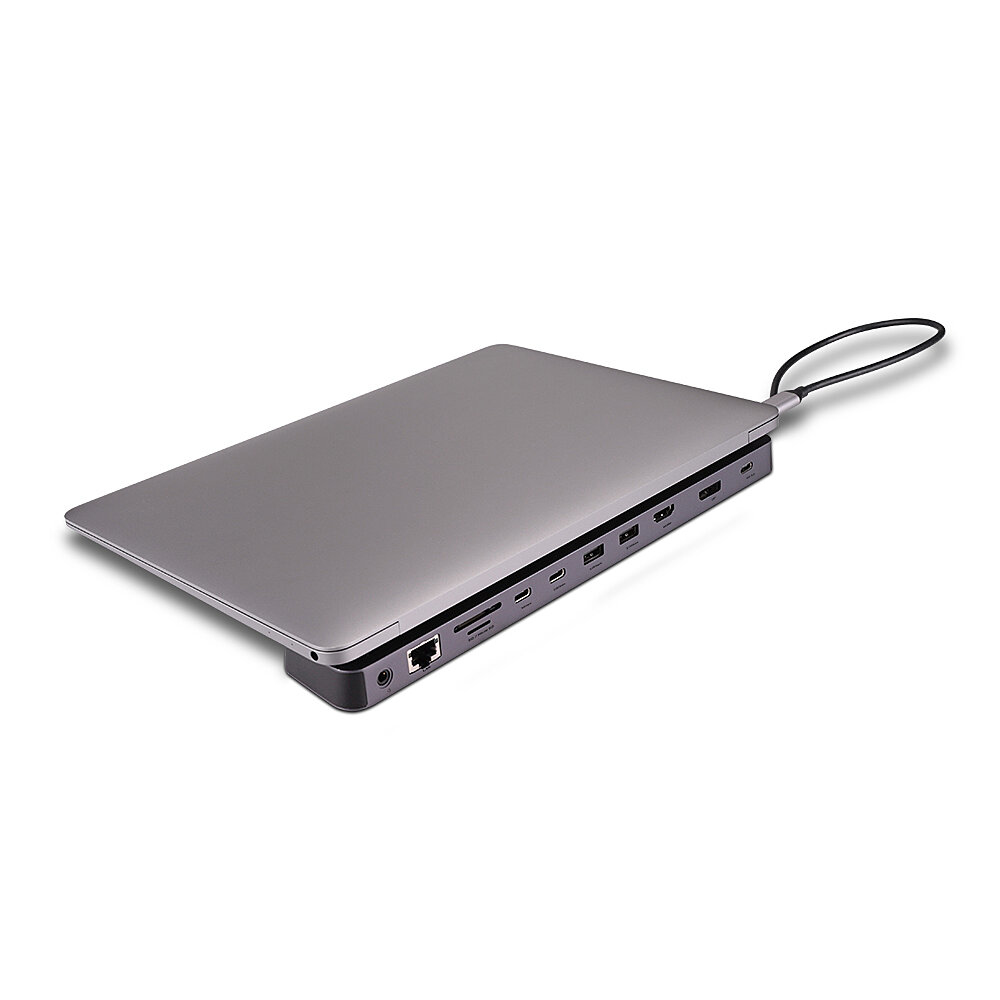

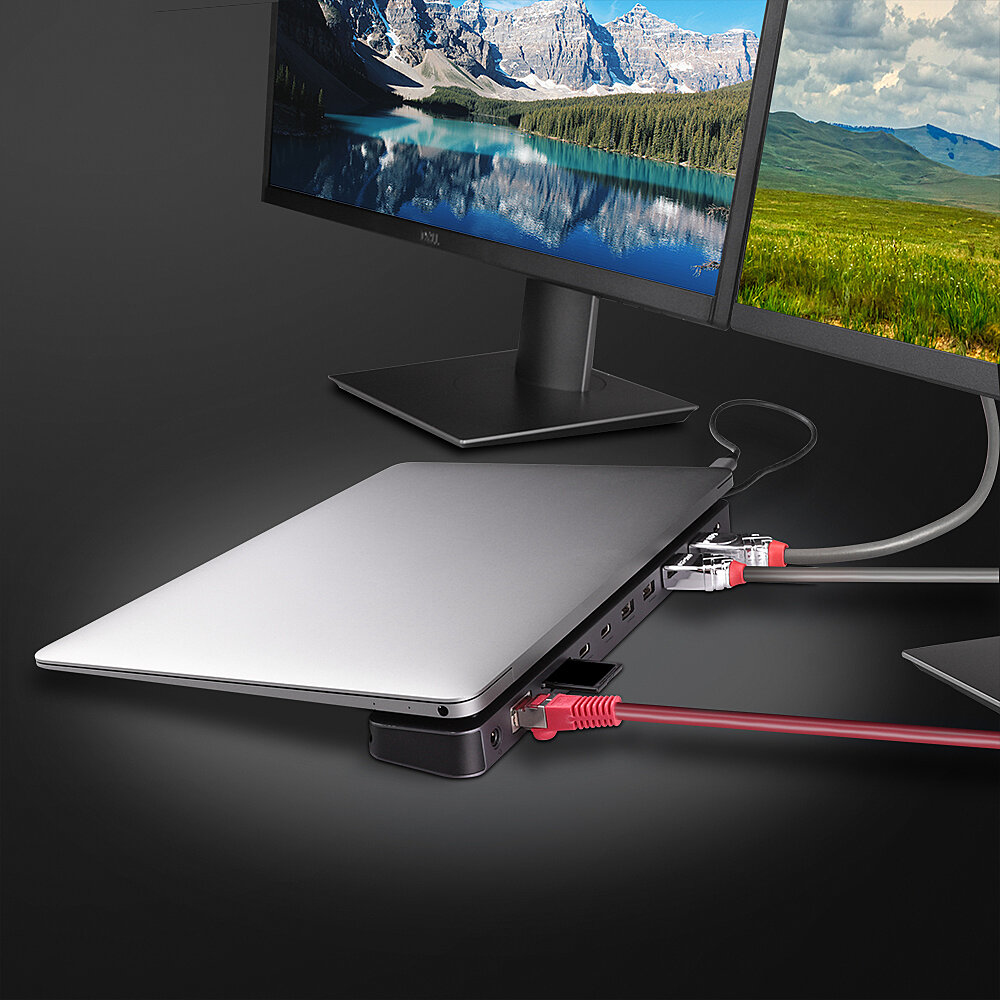

DST-Mini XT 810, USB-C Laptop Mini Docking Station with Single Display (8K) or Dual Display (4K60) and
100W Pass-Through Charging
Model 43392EAN 4002888433921
51 specifications
- ConnectivityDocking
- Weight224 g
- ColourAnthracite
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Docking
- Weight
- 224 g
- Colour
- Anthracite
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lindy
- Category
- Laptop Docks & Port Replicators
- Model
- 43392
- Part number
- 43392
- EAN / UPC
- 4002888433921
- Also known as
- Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station with Single Display (8K) or Dual Display (4K60) and 100W Pass-Through Charging
Specifications
51 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Anthracite |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 10 Gbit/s |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 120 Hz |
| Number of displays supported | 2 |
| Housing material | Aluminium |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH & RoHS, CP65 |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| Power supply | 15 W |
| USB cable length | 0.36 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 45 mm |
| Height | 16 mm |
| Weight | 224 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 365 mm |
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 330 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Warranty period | 2 year(s) |
