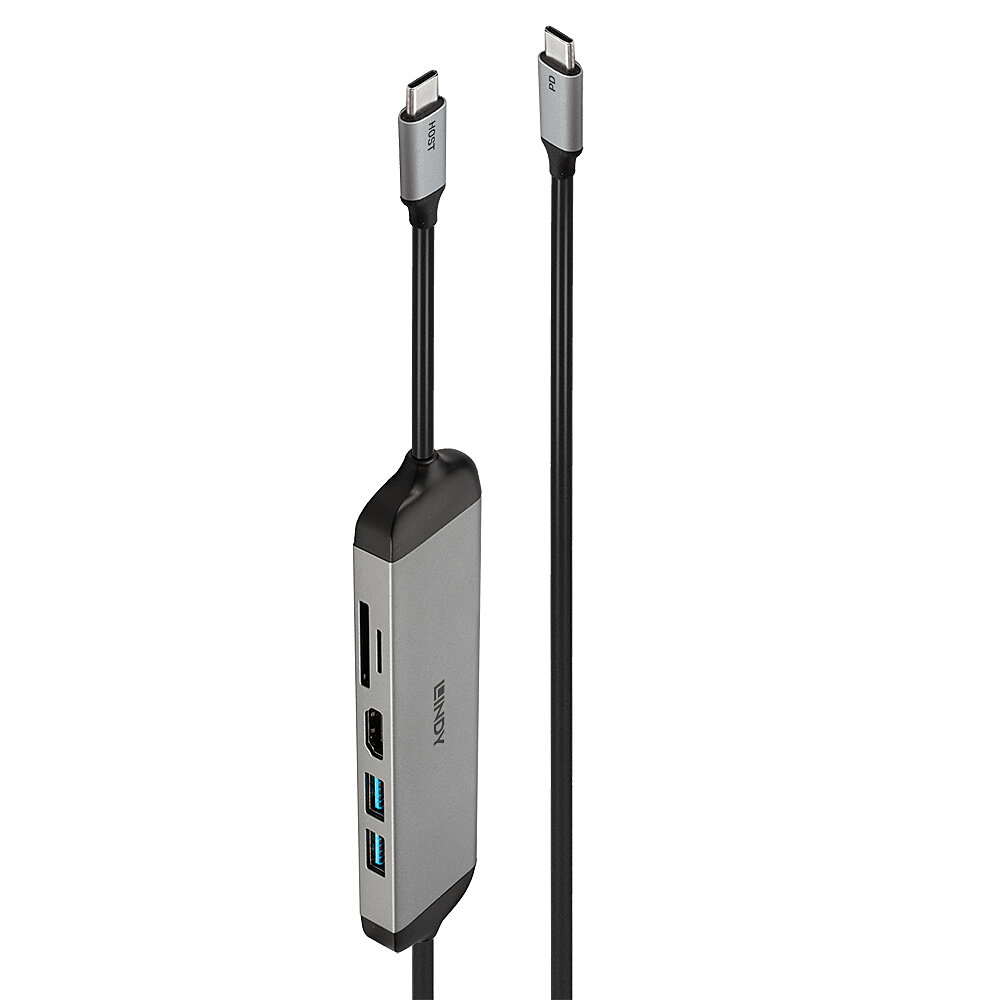

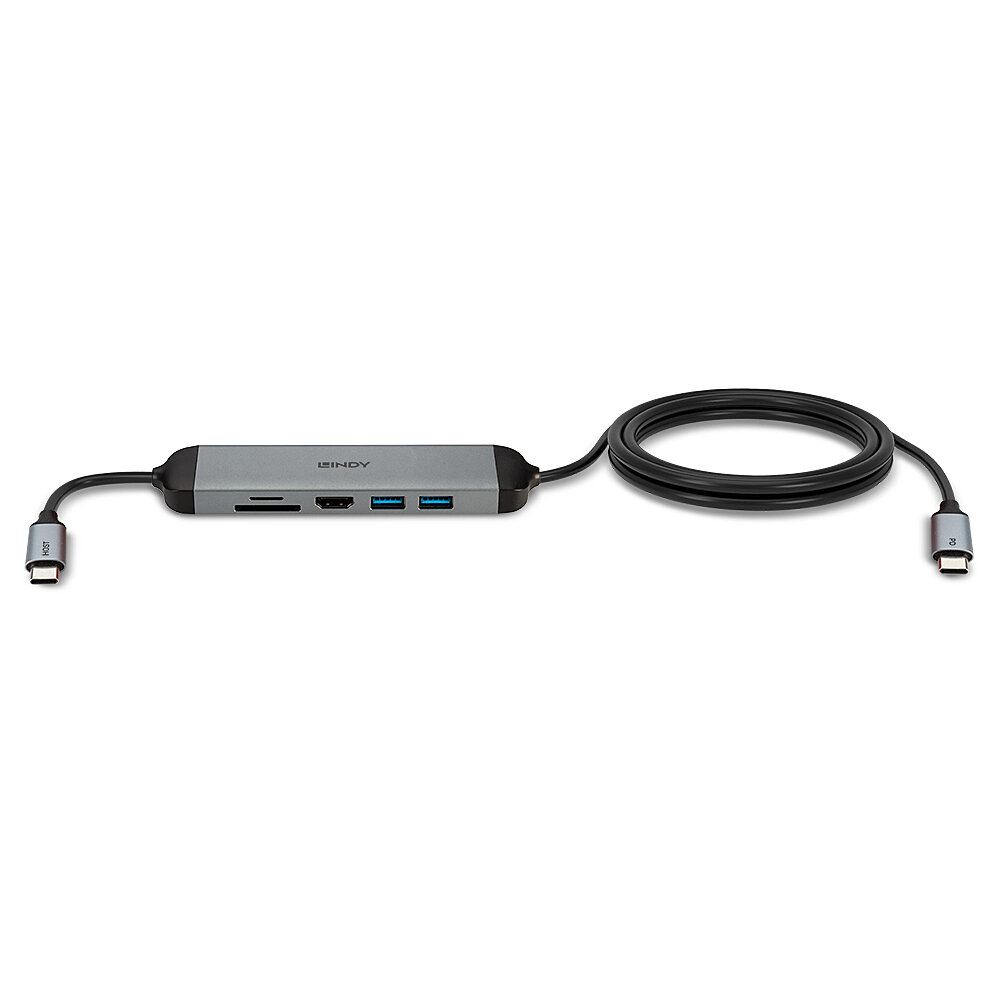

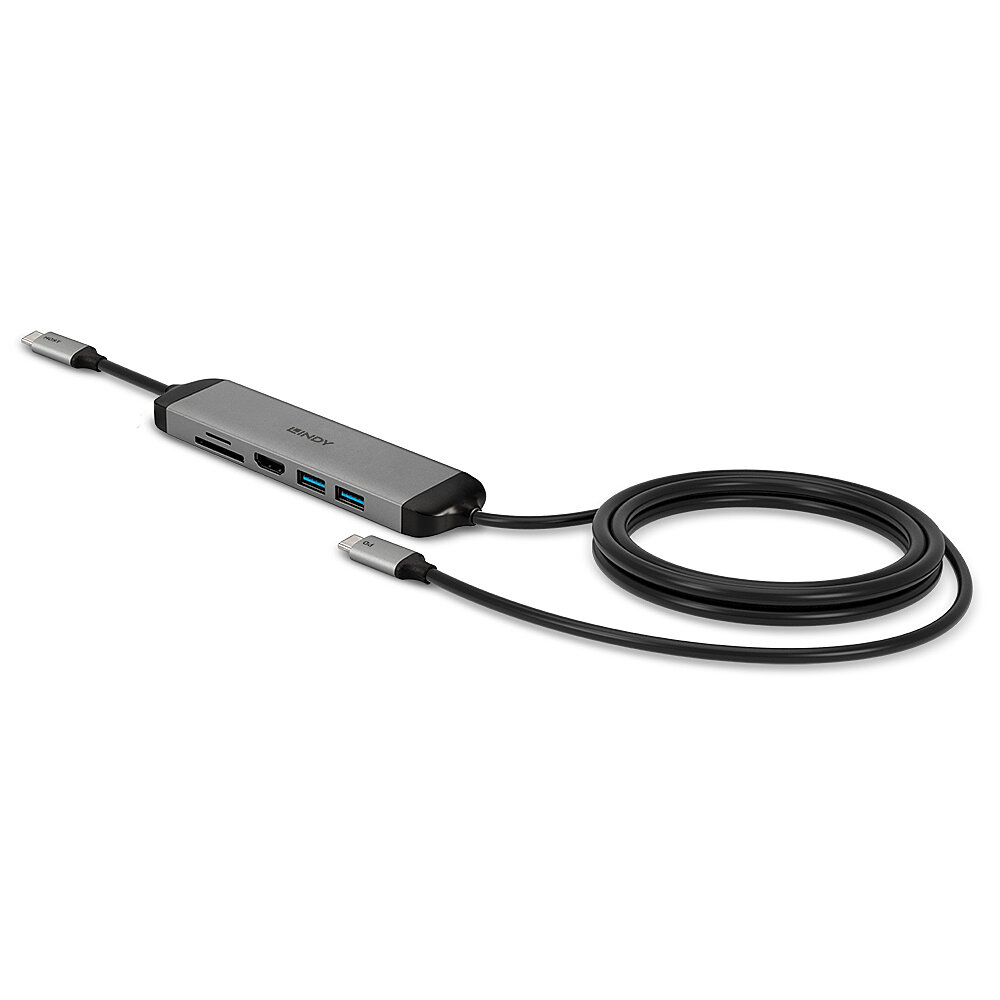

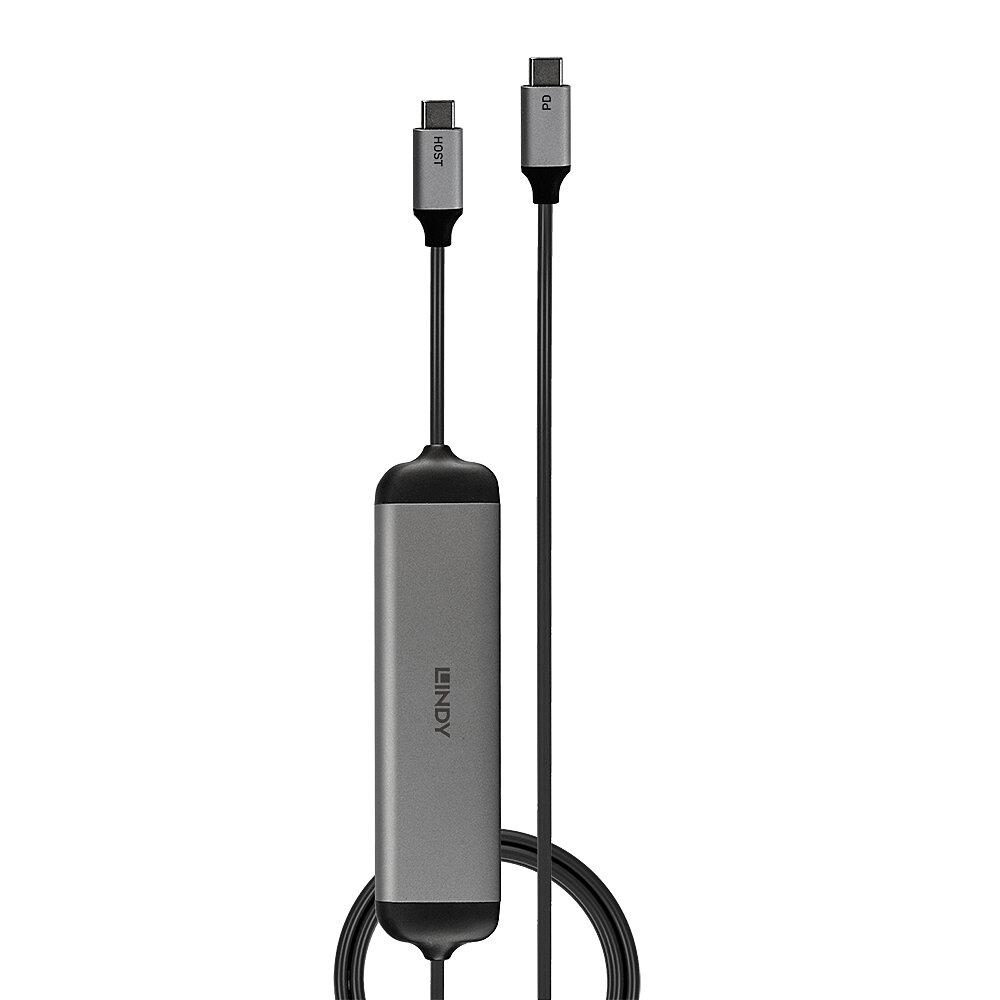

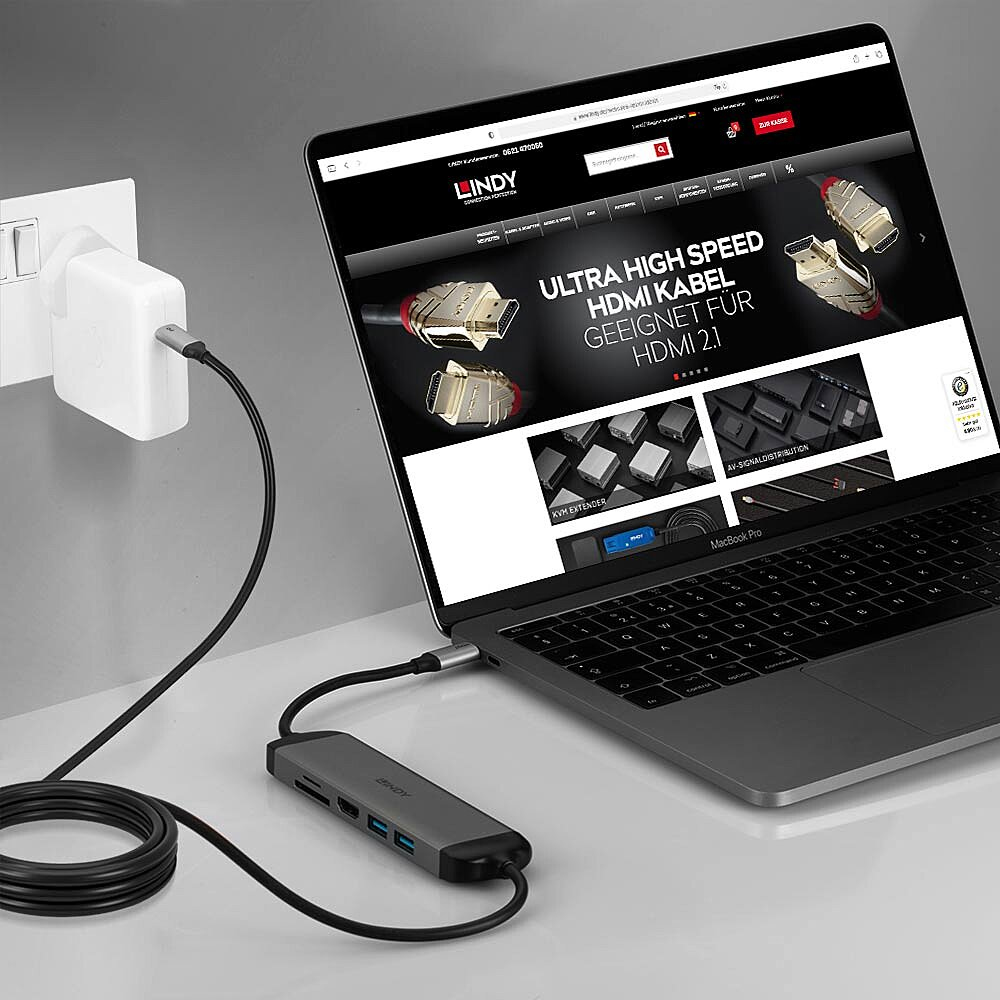

DST-Micro 140, USB-C Laptop Micro Docking Station with 4K Support and 1.4m
60W Charging Cable
Model 43326EAN 4002888433266
29 specifications
- ConnectivityWired
- Weight100 g
- ColourBlack, Grey
- Power source typeUSB
- Operating temperature (T-T)5 - 30 °C
- Width36 mm
Overview
- Connectivity
- Wired
- Weight
- 100 g
- Colour
- Black, Grey
- Power source type
- USB
- Operating temperature (T-T)
- 5 - 30 °C
- Width
- 36 mm
- Brand
- Lindy
- Category
- Laptop Docks & Port Replicators
- Model
- 43326
- Part number
- 43326
- EAN / UPC
- 4002888433266
- Also known as
- Lindy DST-Micro 140, USB-C Laptop Micro Docking Station with 4K Support and 1.4m 60W Charging Cable
Specifications
29 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDCP | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| Housing material | Aluminium, Plastic |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 30 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 25 - 65% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36 mm |
| Depth | 148 mm |
| Height | 13 mm |
| Weight | 100 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 174 mm |
| Package height | 194 mm |
| Package weight | 100 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
