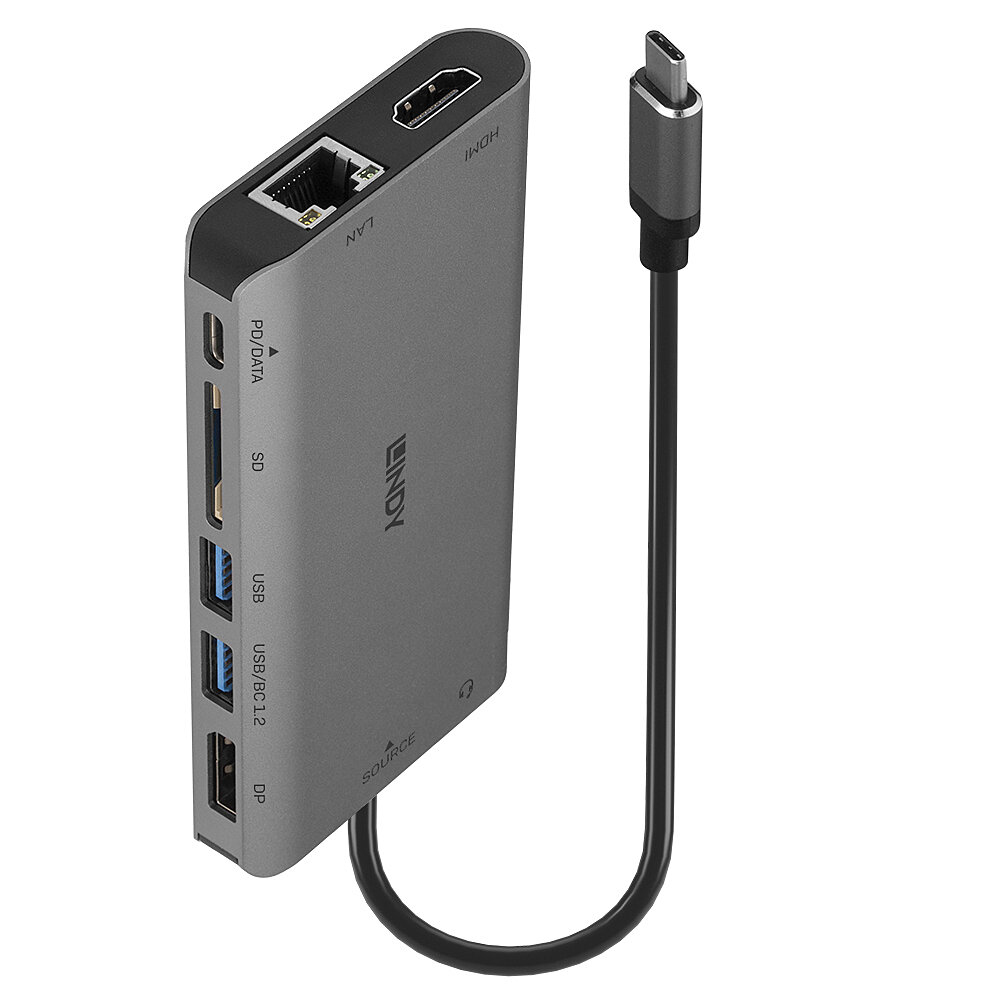

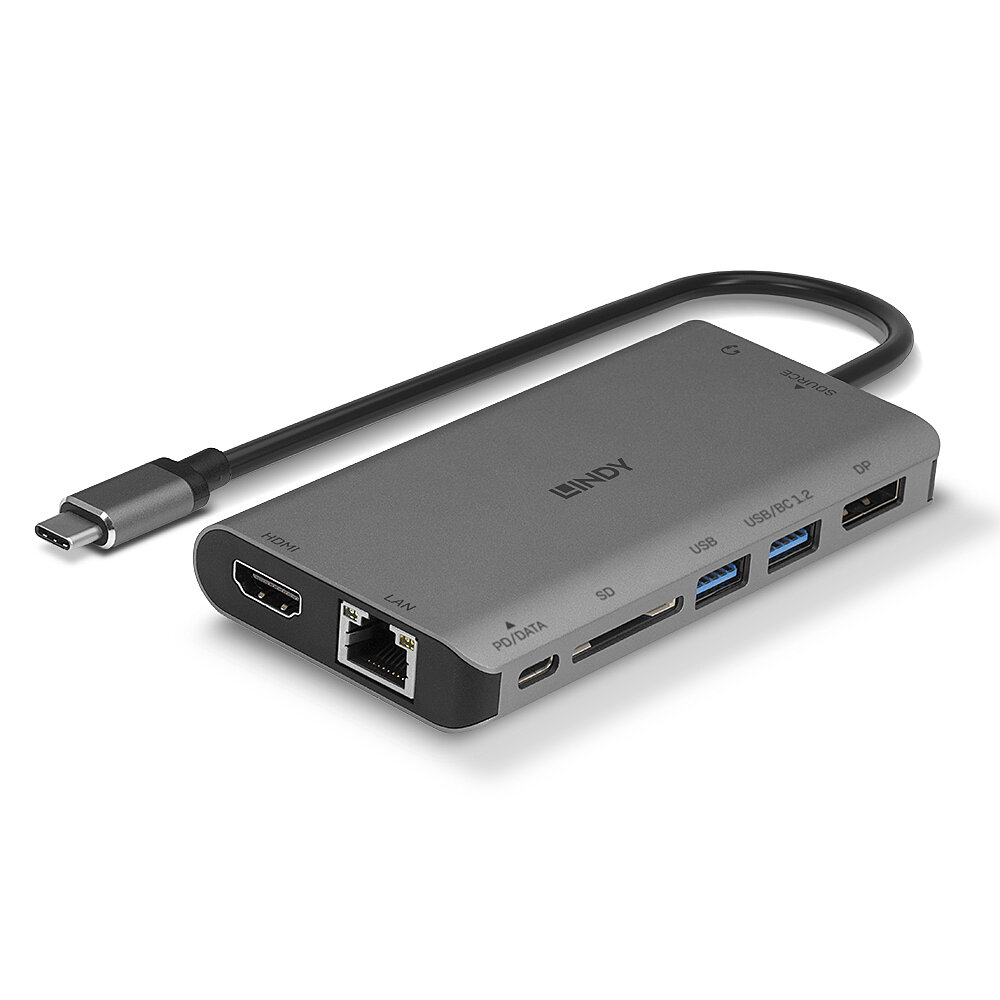

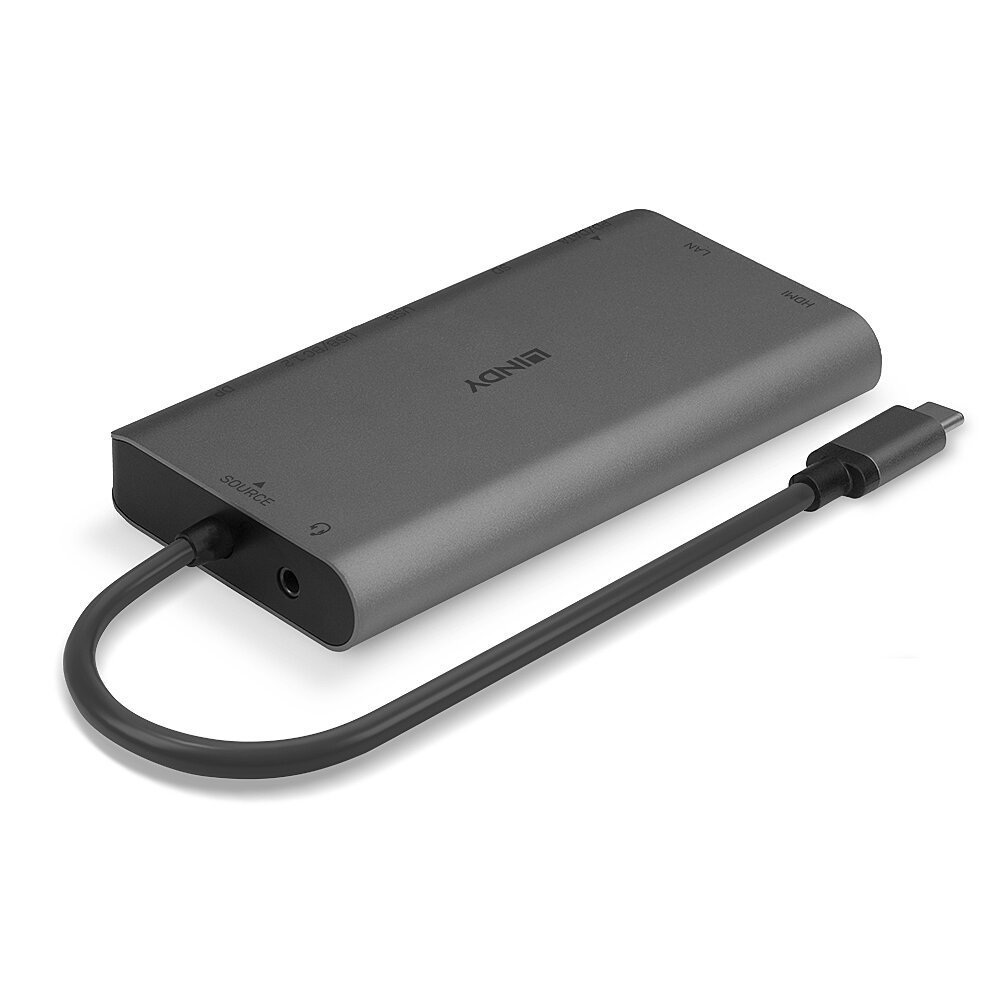

DST-Mini XT, USB-C Laptop Mini Docking Station with Single Display (4K) or Dual Display (Full HD) and
100W Pass-Through Charging
Model 43323EAN 4002888433235
45 specifications
- ConnectivityWired
- Weight115 g
- ColourBlack, Grey
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 55 °C
Overview
- Connectivity
- Wired
- Weight
- 115 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- Lindy
- Category
- Laptop Docks & Port Replicators
- Model
- 43323
- Part number
- 43323
- EAN / UPC
- 4002888433235
- Also known as
- Lindy DST-Mini XT, USB-C Laptop Mini Docking Station with Single Display (4K) or Dual Display (Full HD) and 100W Pass-Through Charging
Specifications
45 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| HDCP | Yes |
| HDCP version | 1.4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| Housing material | Aluminium |
| Certification | CE, UKCA, FCC, REACH & RoHS |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116.5 mm |
| Depth | 61 mm |
| Height | 16 mm |
| Weight | 115 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 150 mm |
| Package depth | 137 mm |
| Package height | 120 mm |
| Package weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
