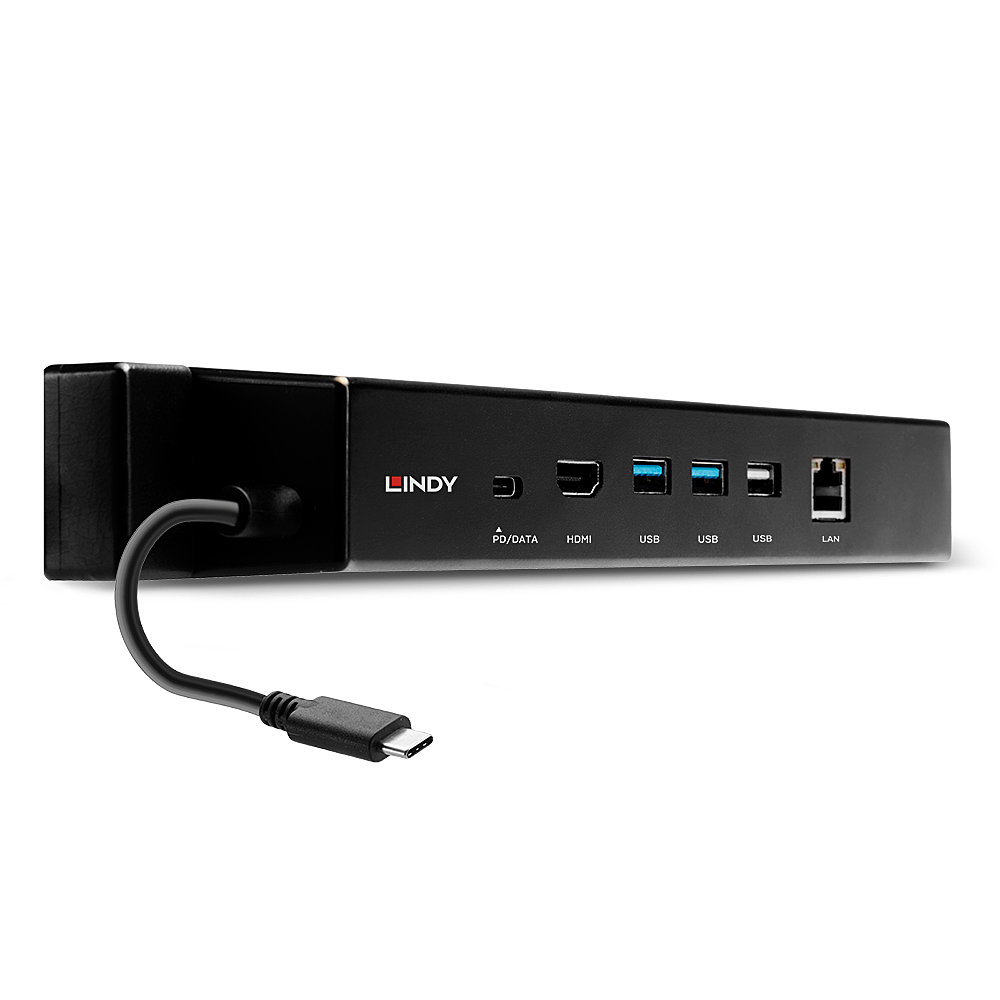

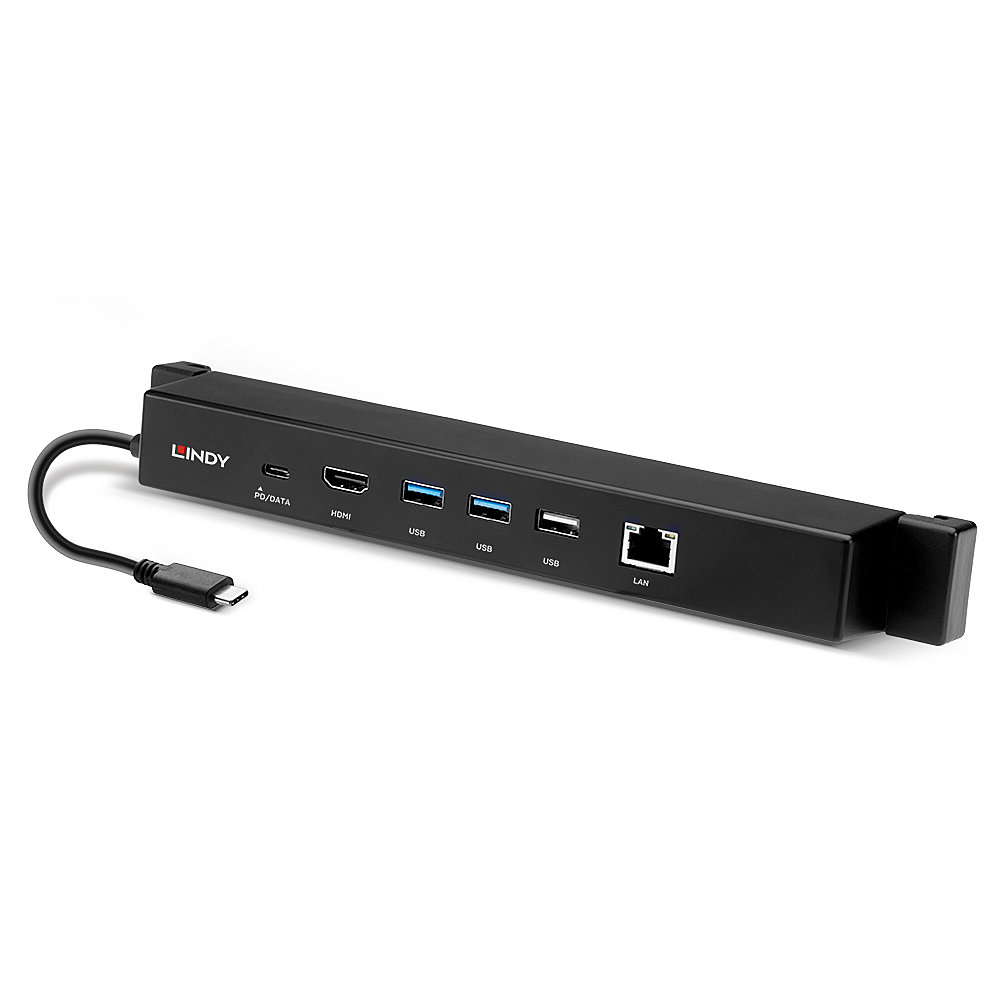

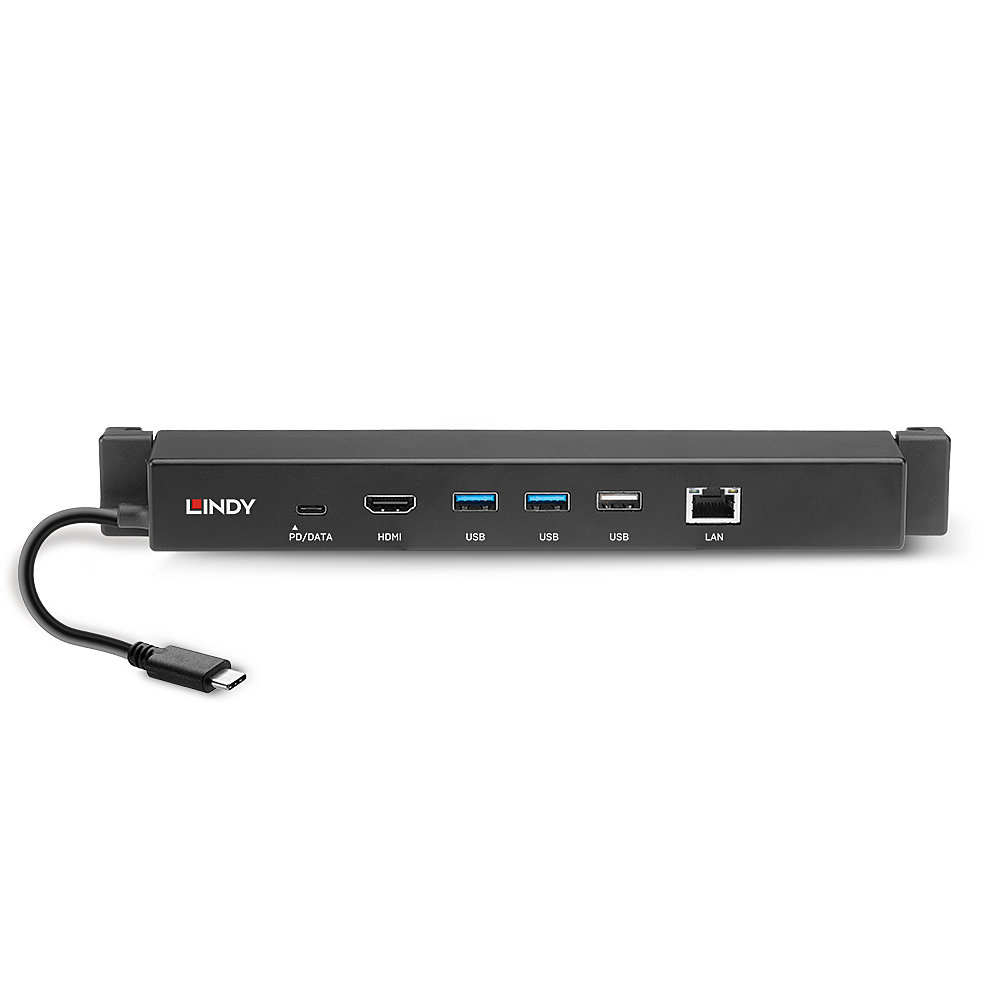

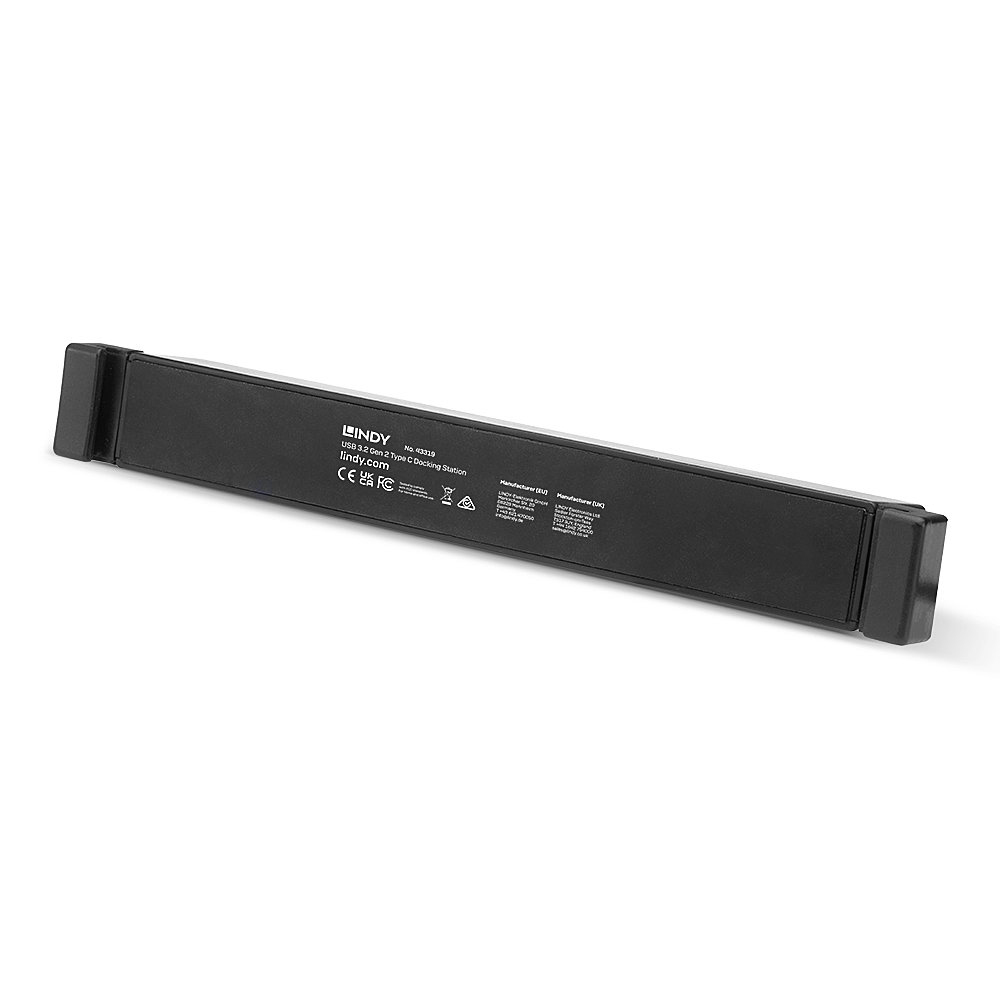

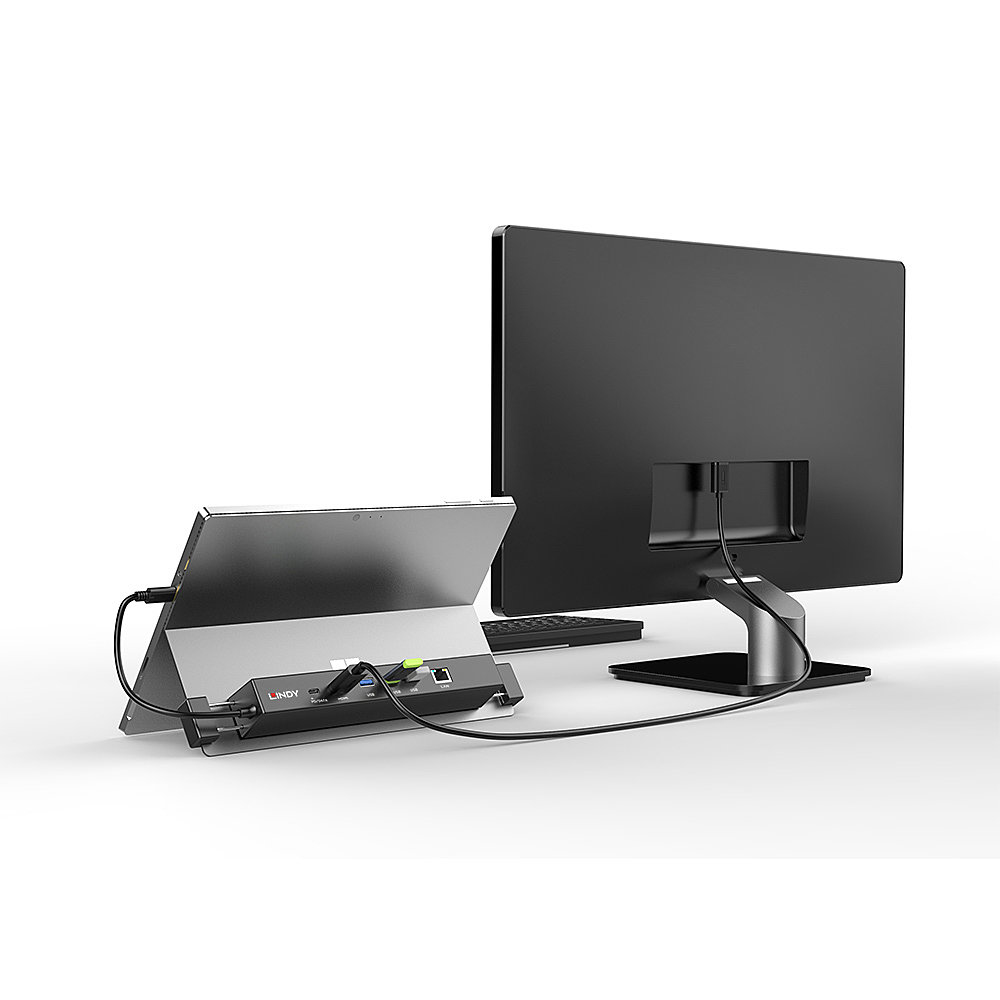

USB 3.2 Gen 2 Type C Docking Station
Model 43319EAN 4002888433198
35 specifications
- ConnectivityWired
- Weight160 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)-20 - 70 °C
Overview
- Connectivity
- Wired
- Weight
- 160 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- -20 - 70 °C
- Brand
- Lindy
- Category
- Laptop Docks & Port Replicators
- Model
- 43319
- Part number
- 43319
- EAN / UPC
- 4002888433198
- Also known as
- Lindy USB 3.2 Gen 2 Type C Docking Station
Specifications
35 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Data transfer rate | 0.48 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| Housing material | Plastic |
| Certification | CE, FCC, CP65 |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Output current | 5 A |
| Output voltage | 20 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 32 mm |
| Height | 33 mm |
| Weight | 160 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 280 mm |
| Package depth | 110 mm |
| Package height | 45 mm |
| Package weight | 250 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | REACH, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
