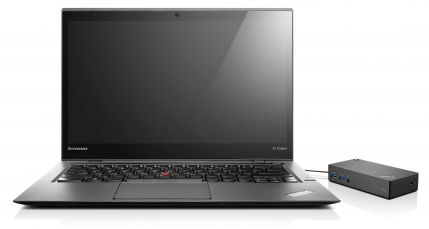

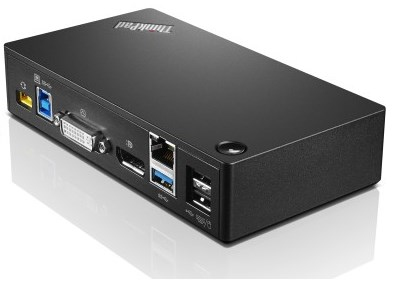

ThinkPad USB 3.0 Pro Dock
Model ThinkPad USB 3.0 Pro DockPart no. 40A70045EU-2EAN 889561429754
34 specifications
- ConnectivityWired
- Weight236 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Operating temperature (T-T)5 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 236 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- Lenovo
- Category
- Laptop Docks & Port Replicators
- Model
- ThinkPad USB 3.0 Pro Dock
- Part numbers
- 40A70045EU-2, 40A70045US, 40A70045EU, 40A70045UK, 40A70045SW, 40A70045DE +2 more
- EAN / UPC
- 889561429754, 889561429747, 889561429686, 4054842108338 +8 more
- Also known as
- Lenovo ThinkPad USB 3.0 Pro Dock Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-A Black
Specifications
34 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DVI-I ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI VCCI CB UL+cUL EAC TUV Mark Serbia Kvalitet South Africa SABS&LoA Israel SII Ukraine DoC |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 45 W |
| Compatible power plug types | US |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 80 mm |
| Height | 32 mm |
| Weight | 236 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 214 mm |
| Package depth | 182 mm |
| Package height | 64 mm |
| Package weight | 777 g |

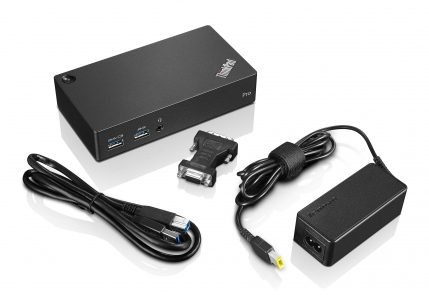

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB |
| Interface adapters included | DVI-I male - VGA female |
