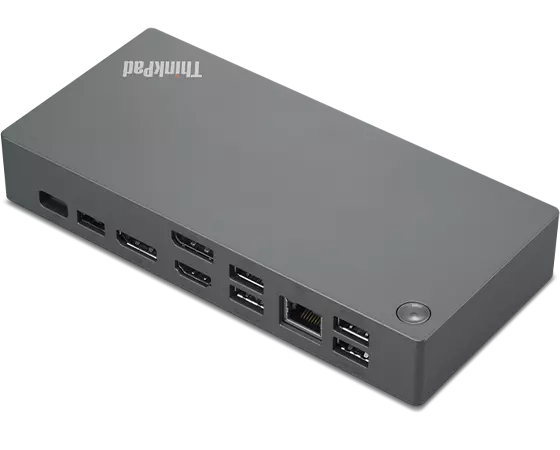

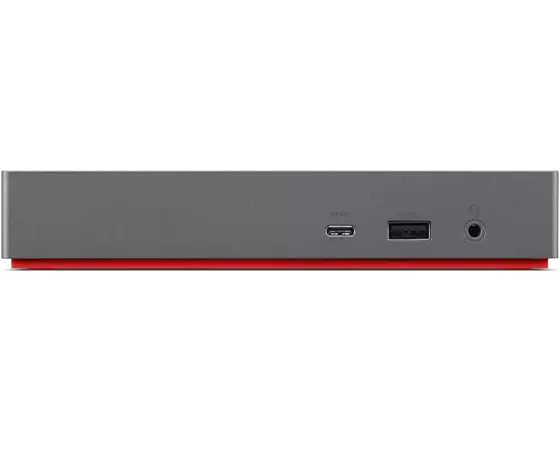

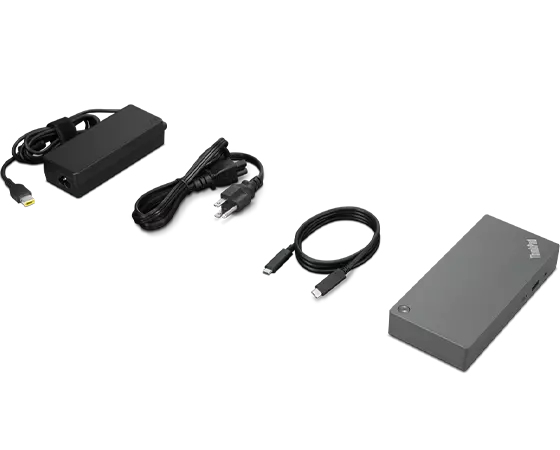

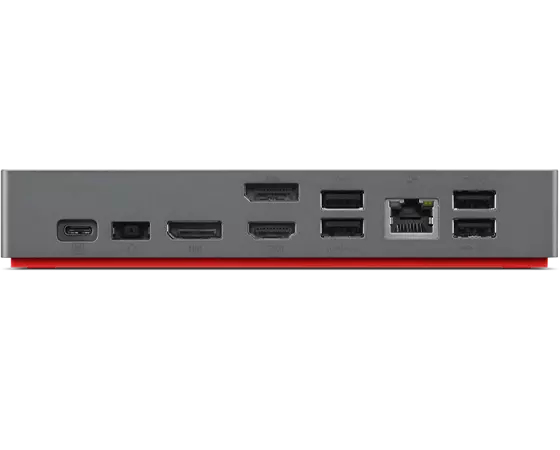

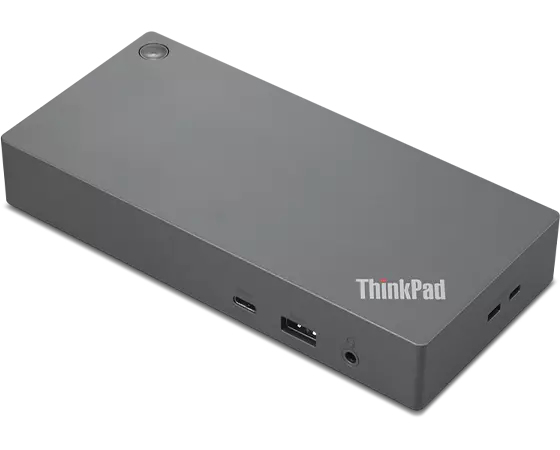

ThinkPad Universal USB-C Dock v2
Model ThinkPad Universal USB-C Dock v2Part no. 40B70090USEAN 195892068235
35 specifications
- ConnectivityWired
- Weight340 g
- ColourGrey
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 35 °C
Overview
- Connectivity
- Wired
- Weight
- 340 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 35 °C
- Brand
- Lenovo
- Category
- Laptop Docks & Port Replicators
- Model
- ThinkPad Universal USB-C Dock v2
- Part number
- 40B70090US
- EAN / UPC
- 195892068235
- Also known as
- Lenovo ThinkPad Universal USB-C Dock v2 Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
35 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Storm Grey |
| Card reader integrated | No |
| Plug and Play | Yes |
| Certification | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, LoA, Israel SII, Ukraine DoC, NOM |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 100 W |
| Power consumption (typical) | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171 mm |
| Depth | 80 mm |
| Height | 30.8 mm |
| Weight | 340 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 210 mm |
| Package depth | 158 mm |
| Package height | 75 mm |
| Package weight | 955 g |
