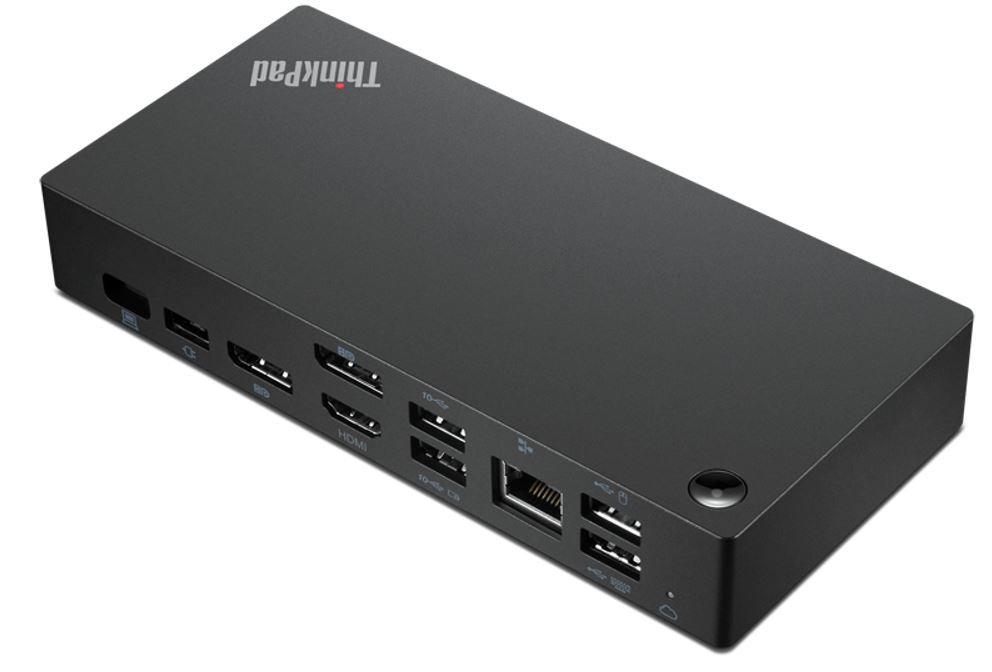

ThinkPad Universal Thunderbolt 4 Smart Dock
Model ThinkPad Universal Thunderbolt 4 Smart DockPart no. 40B10135ITEAN 5715063024782
36 specifications
- ConnectivityWired
- Weight460 g
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 460 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lenovo
- Category
- Laptop Docks & Port Replicators
- Model
- ThinkPad Universal Thunderbolt 4 Smart Dock
- Part numbers
- 40B10135IT, 40B10135EU, 40B10135CH, 40B10135US, 40B10135UK
- EAN / UPC
- 5715063024782, 195348677509, 1953486775094, 5707271582437 +5 more
- Also known as
- Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock Wired Black
Specifications
36 specifications in 10 groups

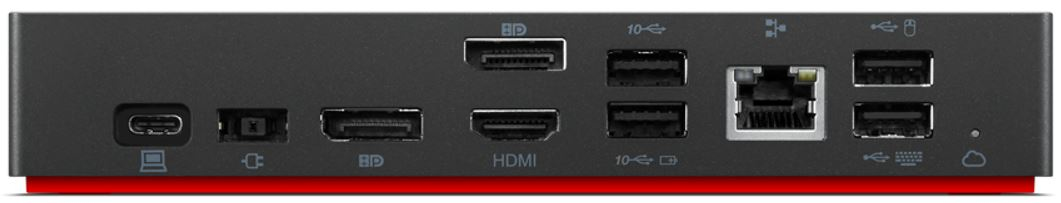

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Data transfer rate | 40 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 4 |
| Certification | cULus, FCC, ICES, NOM |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 6.75 A |
| Power consumption (max) | 100 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 460 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 195 mm |
| Package height | 85 mm |
| Package weight | 1.23 kg |
Packaging content
| Specification | Value |
|---|---|

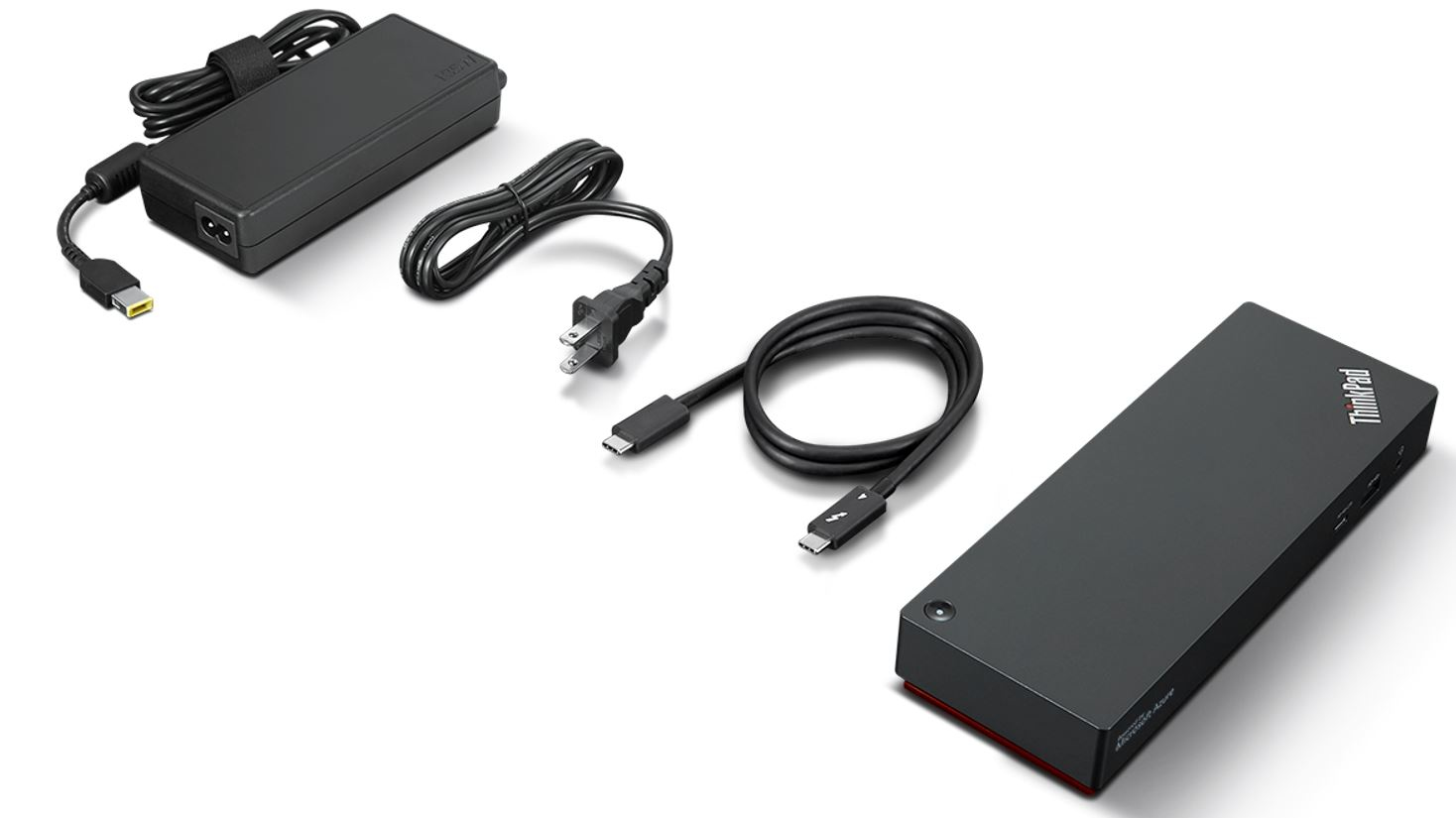

| AC adapter included | Yes |
| Cables included | AC, Thunderbolt |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
