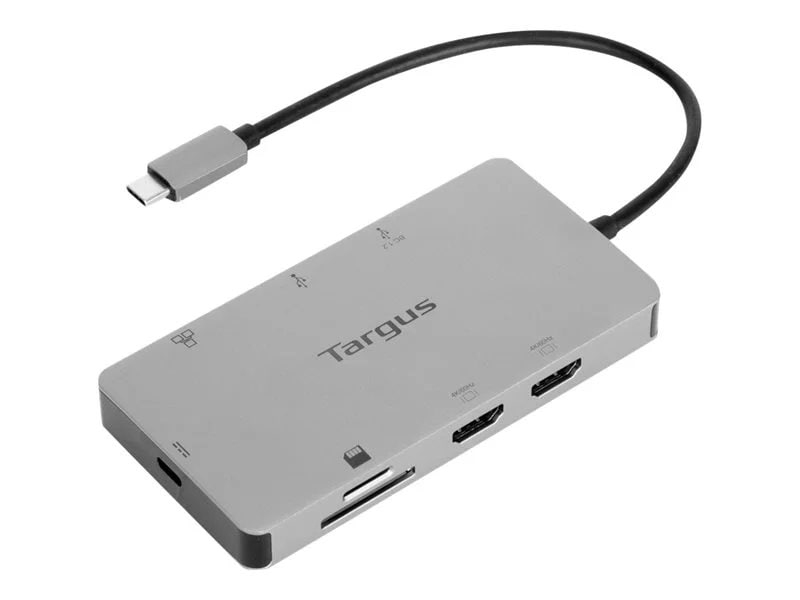

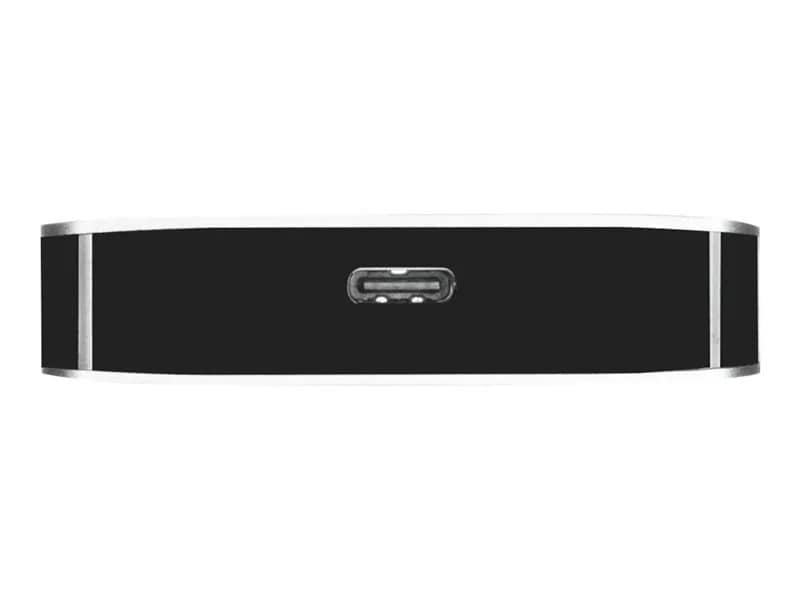

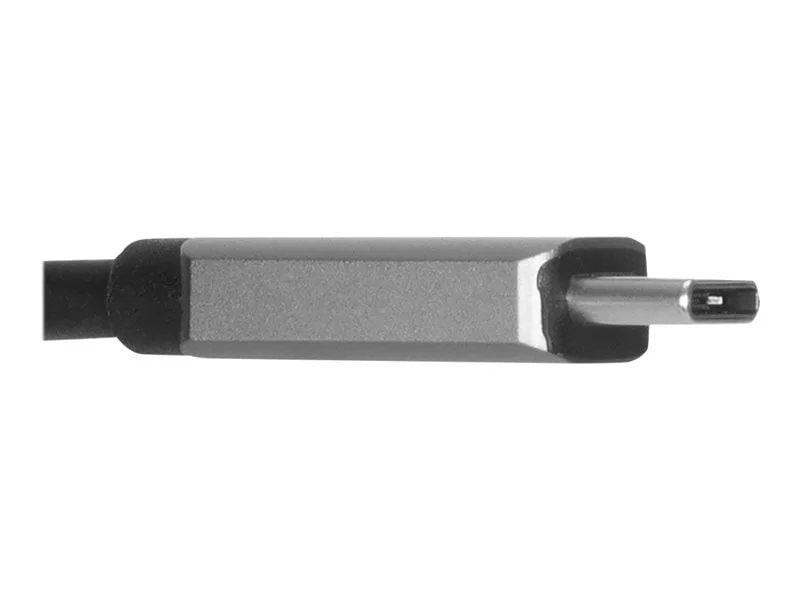

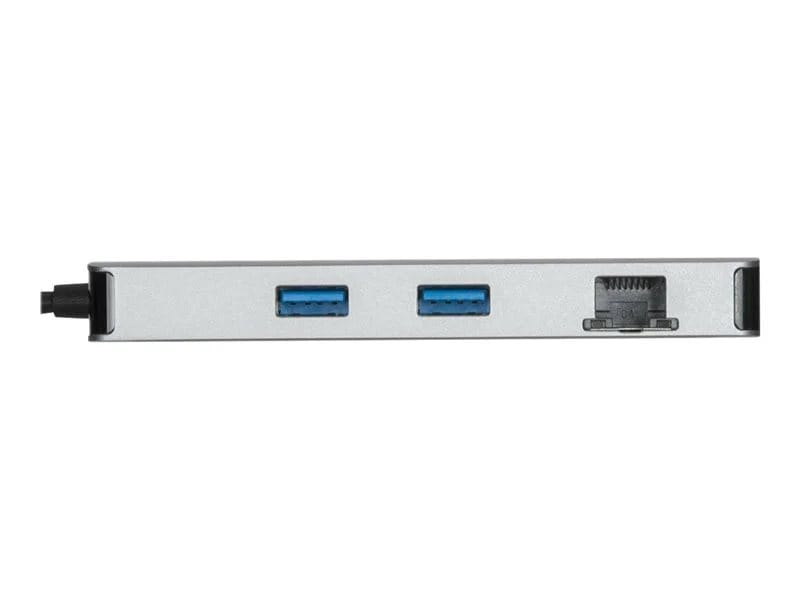

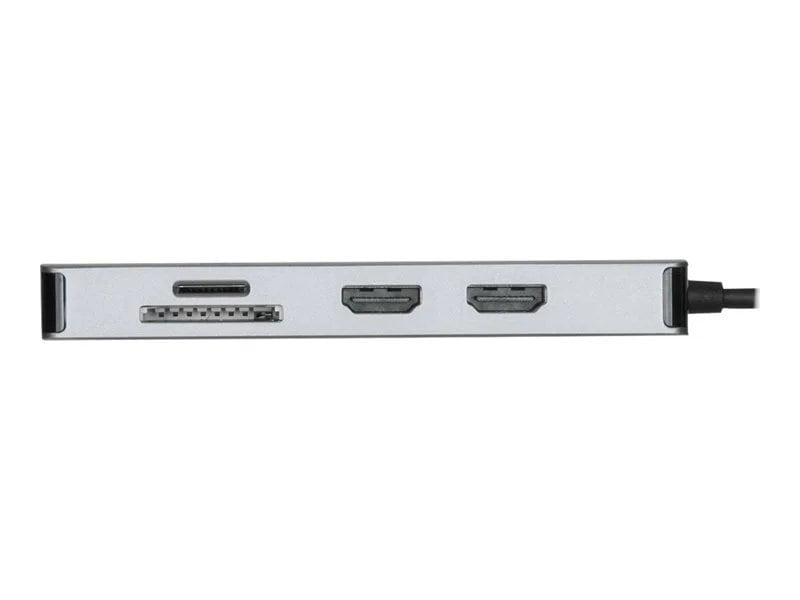

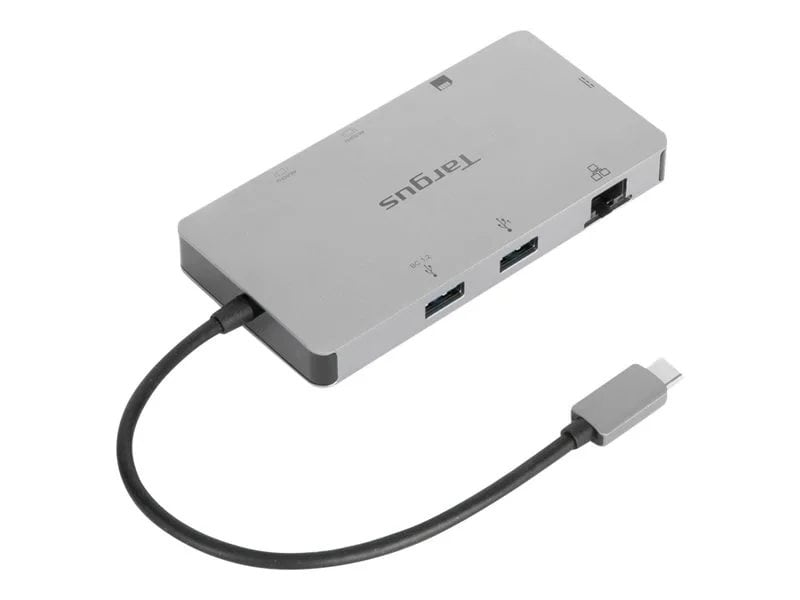

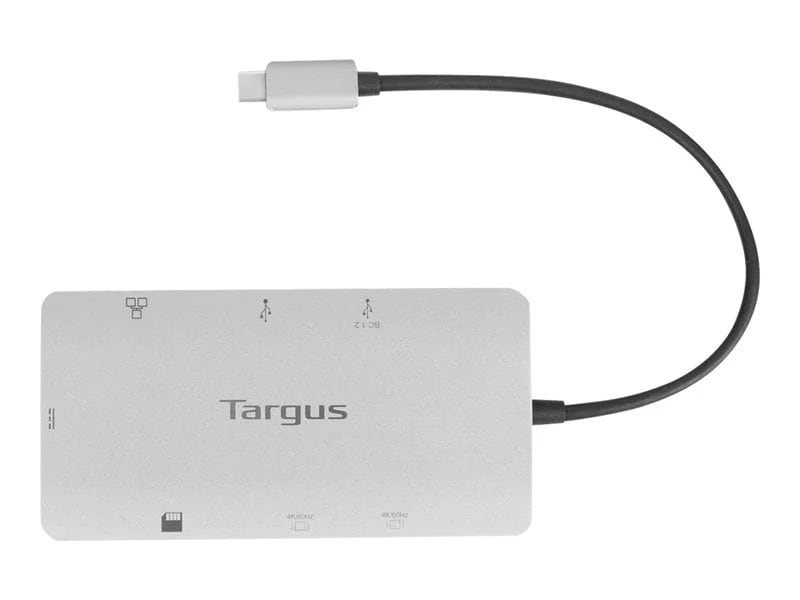

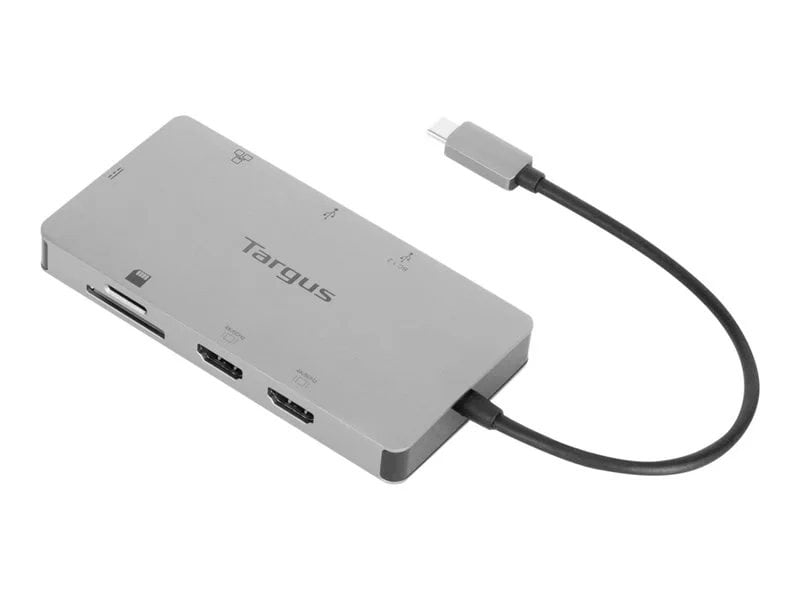

78455168 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Silver
Model 78455168
35 specifications
- ConnectivityWired
- Weight90.7 g
- ColourSilver
- Ethernet LANYes
- Output current5 A
- Width114 mm
Overview
- Connectivity
- Wired
- Weight
- 90.7 g
- Colour
- Silver
- Ethernet LAN
- Yes
- Output current
- 5 A
- Width
- 114 mm
- Brand
- Lenovo
- Category
- Laptop Docks & Port Replicators
- Model
- 78455168
- Part number
- 78455168
- Also known as
- Lenovo 78455168 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Silver
Specifications
35 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| High Dynamic Range (HDR) supported | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 5 A |
| Output voltage | 20 V |
| Power consumption (max) | 100 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | iPadOS |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 57.2 mm |
| Height | 12.7 mm |
| Weight | 90.7 g |
