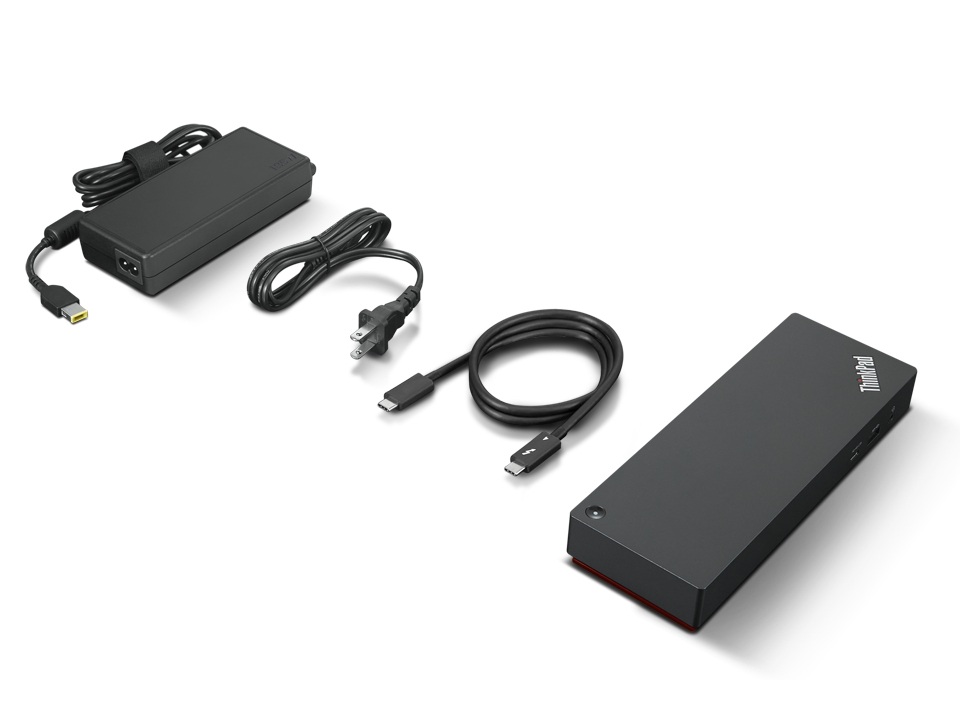

40B00135AR laptop dock/port replicator Wired Thunderbolt 4 Black, Red
Model 40B00135AREAN 195348677530
46 specifications
- ConnectivityWired
- Weight450 g
- ColourBlack, Red
- Ethernet LANYes
- AC input voltage20 V
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Connectivity
- Wired
- Weight
- 450 g
- Colour
- Black, Red
- Ethernet LAN
- Yes
- AC input voltage
- 20 V
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- Lenovo
- Category
- Laptop Docks & Port Replicators
- Model
- 40B00135AR
- Part number
- 40B00135AR
- EAN / UPC
- 195348677530
- Also known as
- Lenovo 40B00135AR laptop dock/port replicator Wired Thunderbolt 4 Black, Red
Specifications
46 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Card reader integrated | No |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 4 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Brand compatibility | Lenovo |
| Certification | cULus, FCC,ICES,NOM |
Power
| Specification | Value |
|---|---|
| AC input voltage | 20 V |
| Input current | 6.75 A |
| Power supply | 135 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 195 mm |
| Package height | 85 mm |
| Package weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | Thunderbolt |
