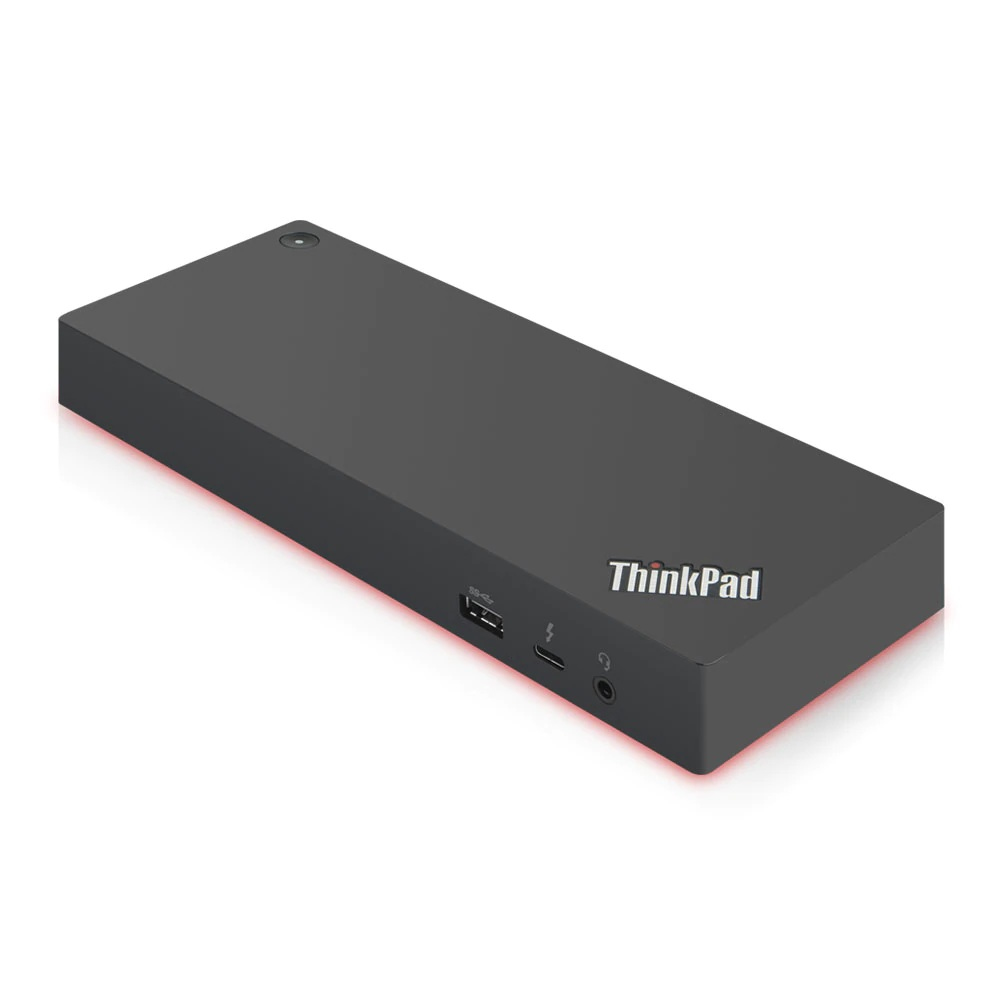

40AN0170IT laptop dock/port replicator Wired Thunderbolt 3 Black
Model 40AN0170IT
42 specifications
- ConnectivityWired
- Weight525 g
- ColourBlack
- Ethernet LANYes
- Power source typeAC
- Windows operating systems supportedWindows 10
Overview
- Connectivity
- Wired
- Weight
- 525 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- AC
- Windows operating systems supported
- Windows 10
- Brand
- Lenovo
- Category
- Laptop Docks & Port Replicators
- Model
- 40AN0170IT
- Part number
- 40AN0170IT
- Also known as
- Lenovo 40AN0170IT laptop dock/port replicator Wired Thunderbolt 3 Black
Specifications
42 specifications in 9 groups

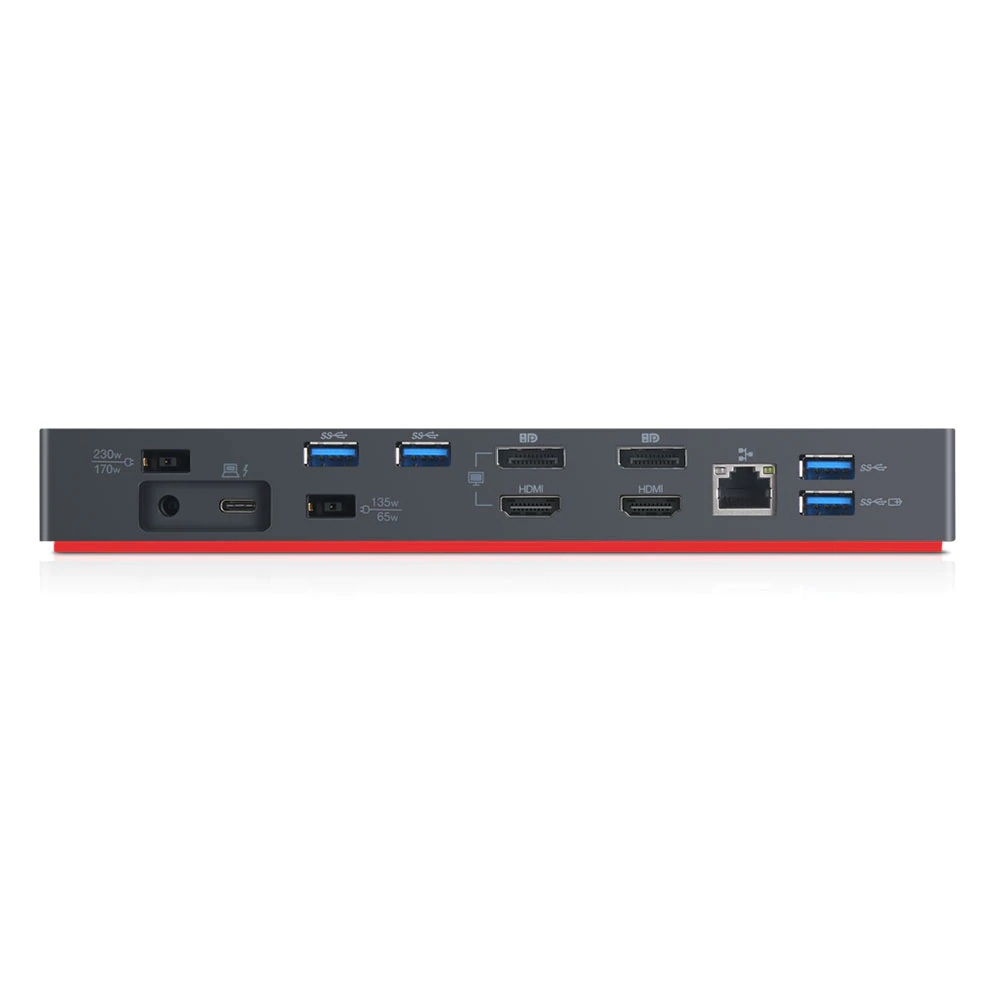

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Thunderbolt 3 ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| Charging function | Yes |
| Plug and Play | Yes |
| Brand compatibility | Lenovo |
| Certification | cULus, FCC, ICES, NOM |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply | 230 W |
| Power supply type | External |
| Power plug type | Type L |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 220 mm |
| Height | 30 mm |
| Weight | 525 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 172 mm |
| Package depth | 269 mm |
| Package height | 88 mm |
| Package weight | 1.85 kg |

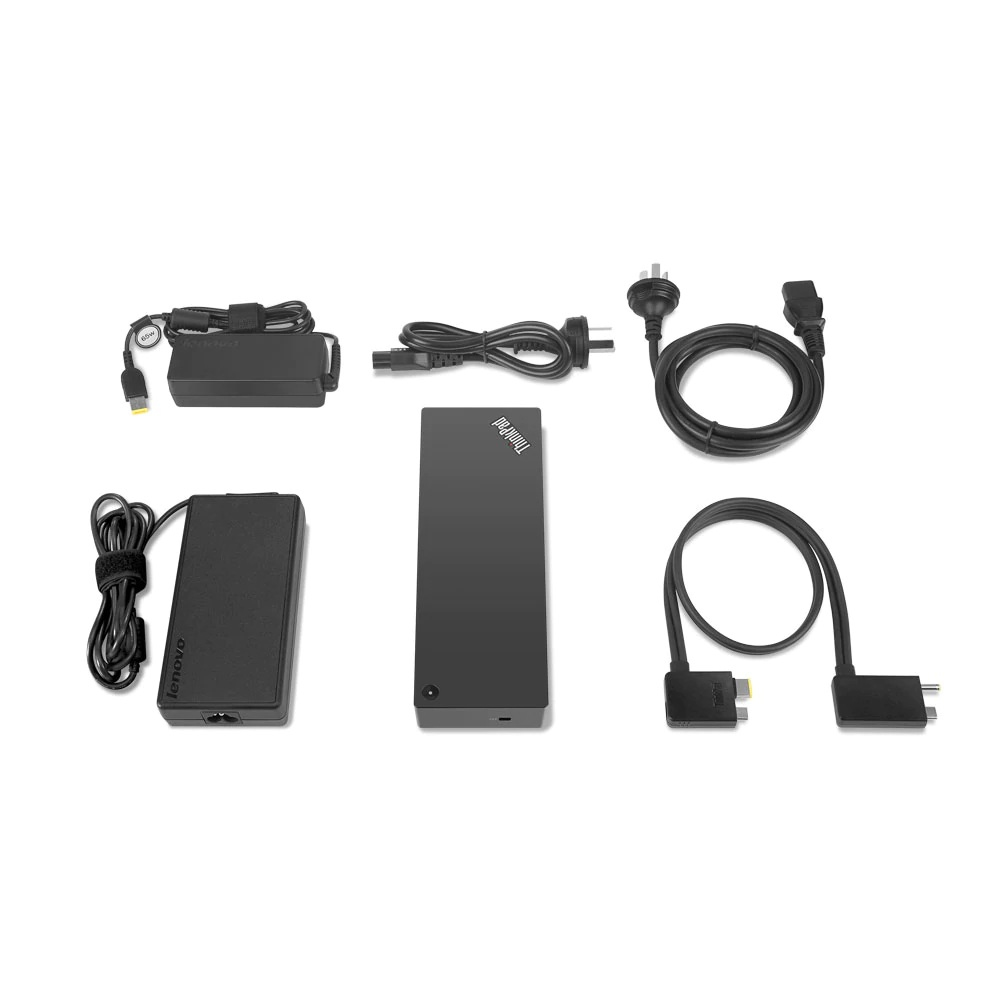

Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | AC, Thunderbolt |
| User guide | Yes |
