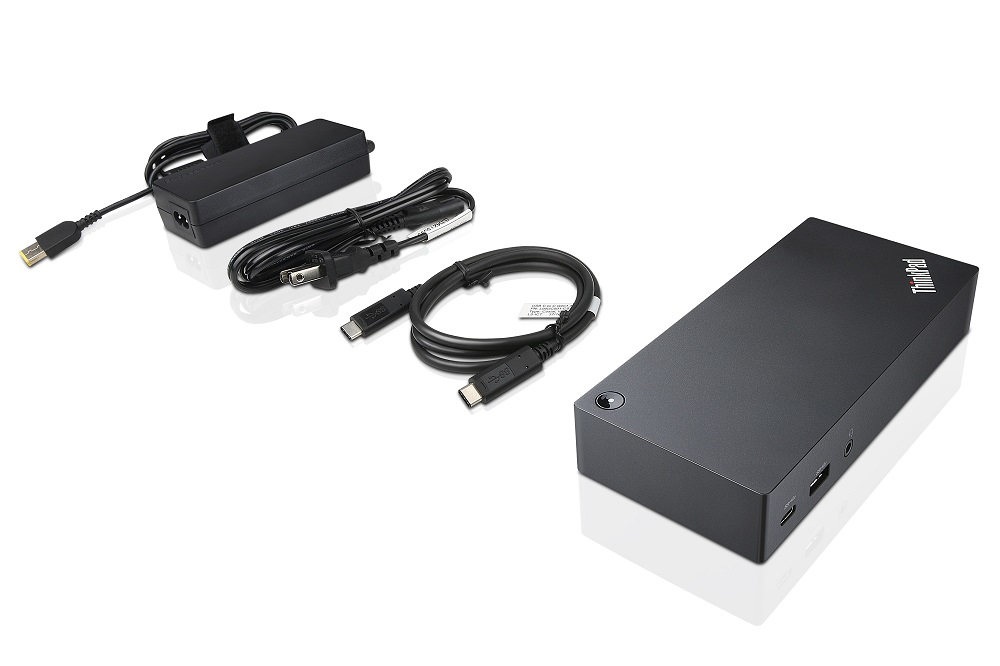

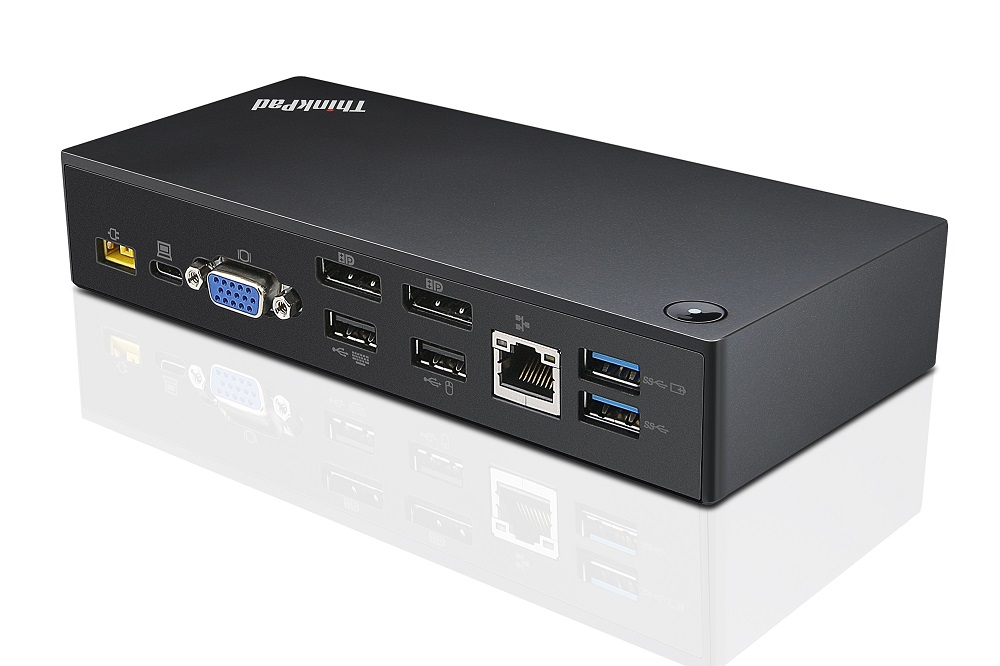

40A90090DK laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Model 40A90090DKEAN 190725799157
30 specifications
- ConnectivityWired
- Weight290 g
- ColourBlack
- Ethernet LANYes
- Compatible power plug typesEU
- Operating temperature (T-T)-5 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 290 g
- Colour
- Black
- Ethernet LAN
- Yes
- Compatible power plug types
- EU
- Operating temperature (T-T)
- -5 - 40 °C
- Brand
- Lenovo
- Category
- Laptop Docks & Port Replicators
- Model
- 40A90090DK
- Part numbers
- 40A90090DK, 40A90090AU
- EAN / UPC
- 190725799157, 190725798891
- Also known as
- Lenovo 40A90090DK laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Specifications
30 specifications in 7 groups

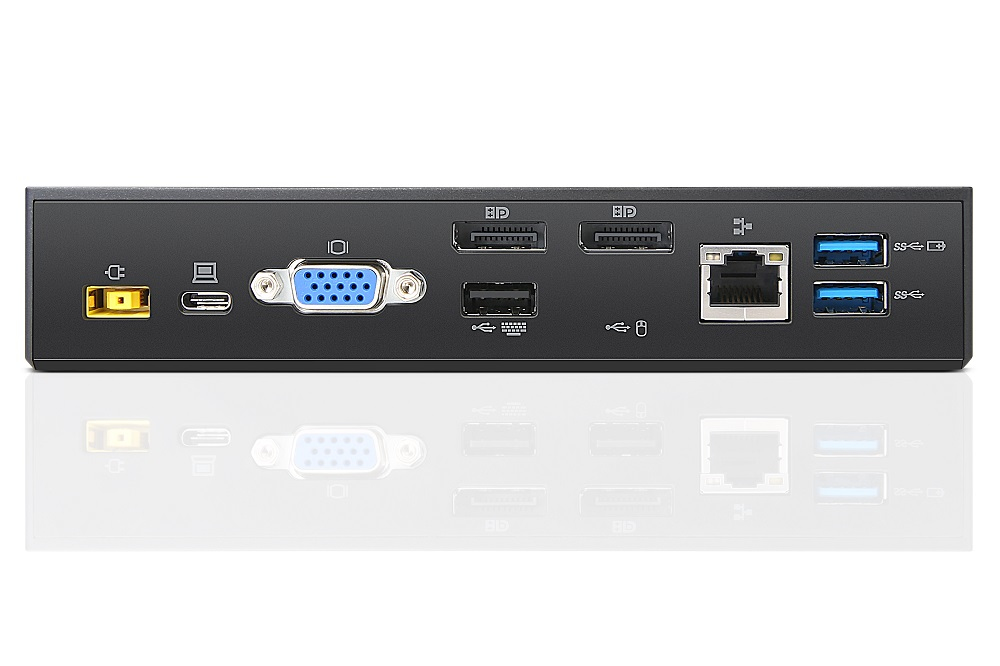

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| Charging function | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Compatible power plug types | EU |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171 mm |
| Depth | 80 mm |
| Height | 32.5 mm |
| Weight | 290 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, USB Type-C |
