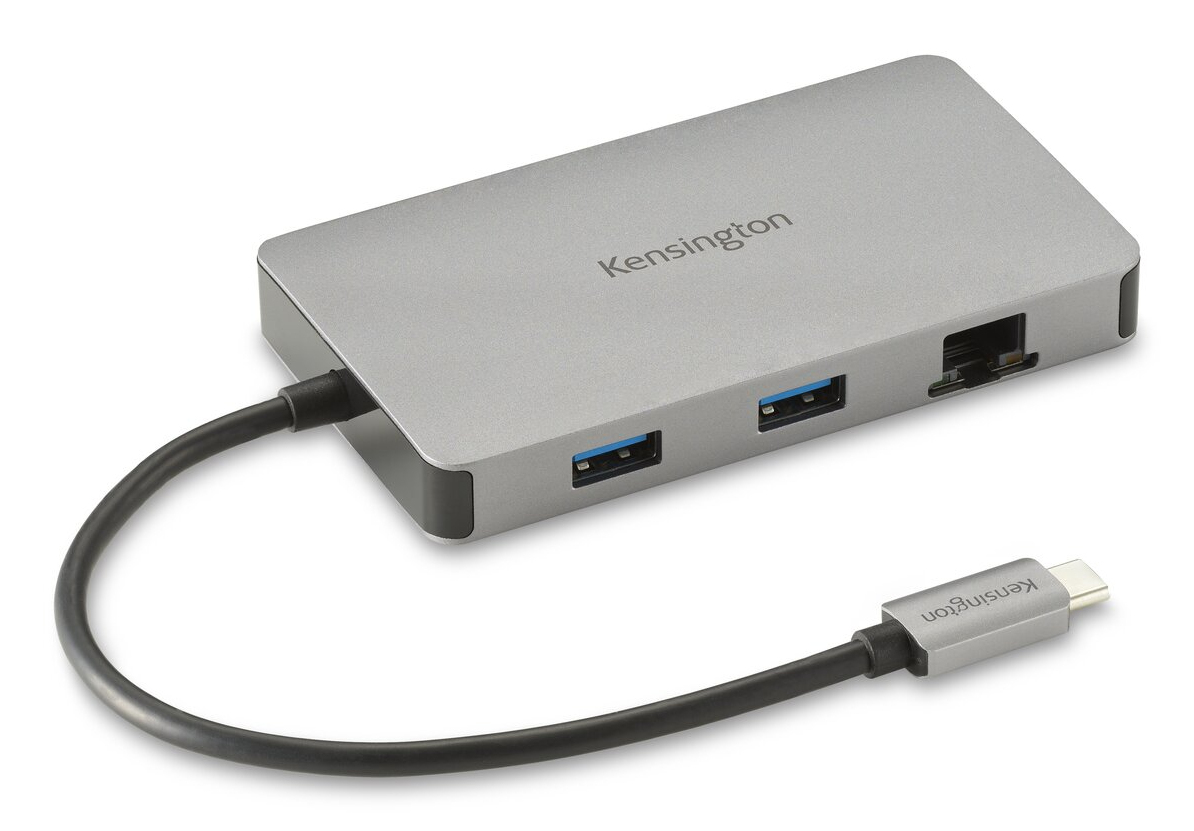

UH1450P USB-C
Model UH1450P USB-CPart no. K36900WWEAN 085896369004
53 specifications
- ConnectivityWired
- Weight100 g
- ColourGrey
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 100 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- UH1450P USB-C
- Part number
- K36900WW
- EAN / UPC
- 085896369004
- Also known as
- Kensington UH1450P USB-C Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Grey
Specifications
53 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 0 |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Space Gray |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | Vietnam |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| USB cable length | 0.17 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 59 mm |
| Height | 14 mm |
| Weight | 100 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 152 mm |
| Package depth | 97 mm |
| Package height | 25 mm |
| Package weight | 170 g |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| User guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Other features
| Specification | Value |
|---|---|
| Minimum system requirements | CPU: Intel Core i5 6th generation or above Memory: 8Gb or above GPU: Intel HD Graphics 620 or above |
| Voltage | 5V/ 9V/ 12V/ 15V/ 20V |
