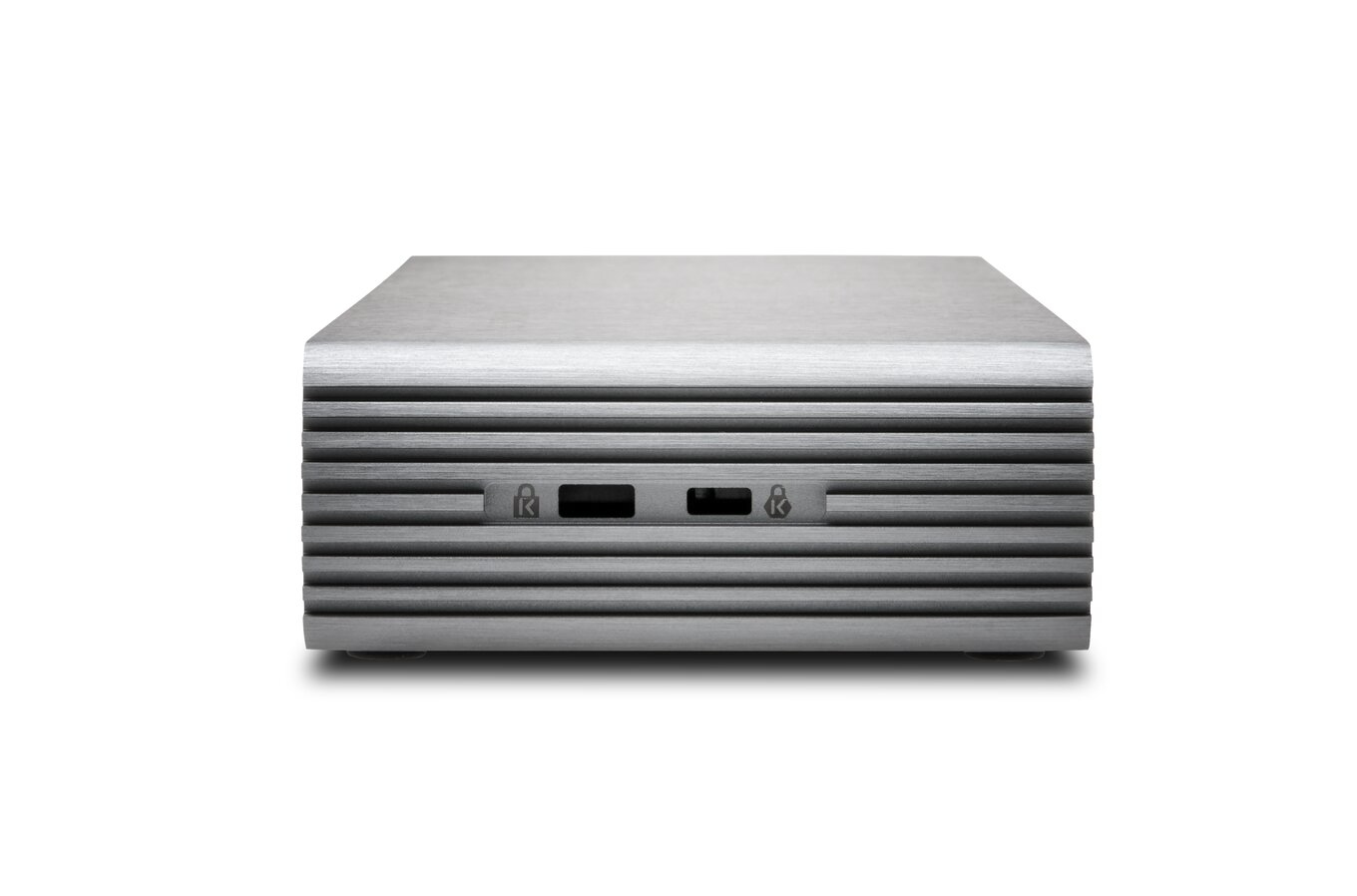

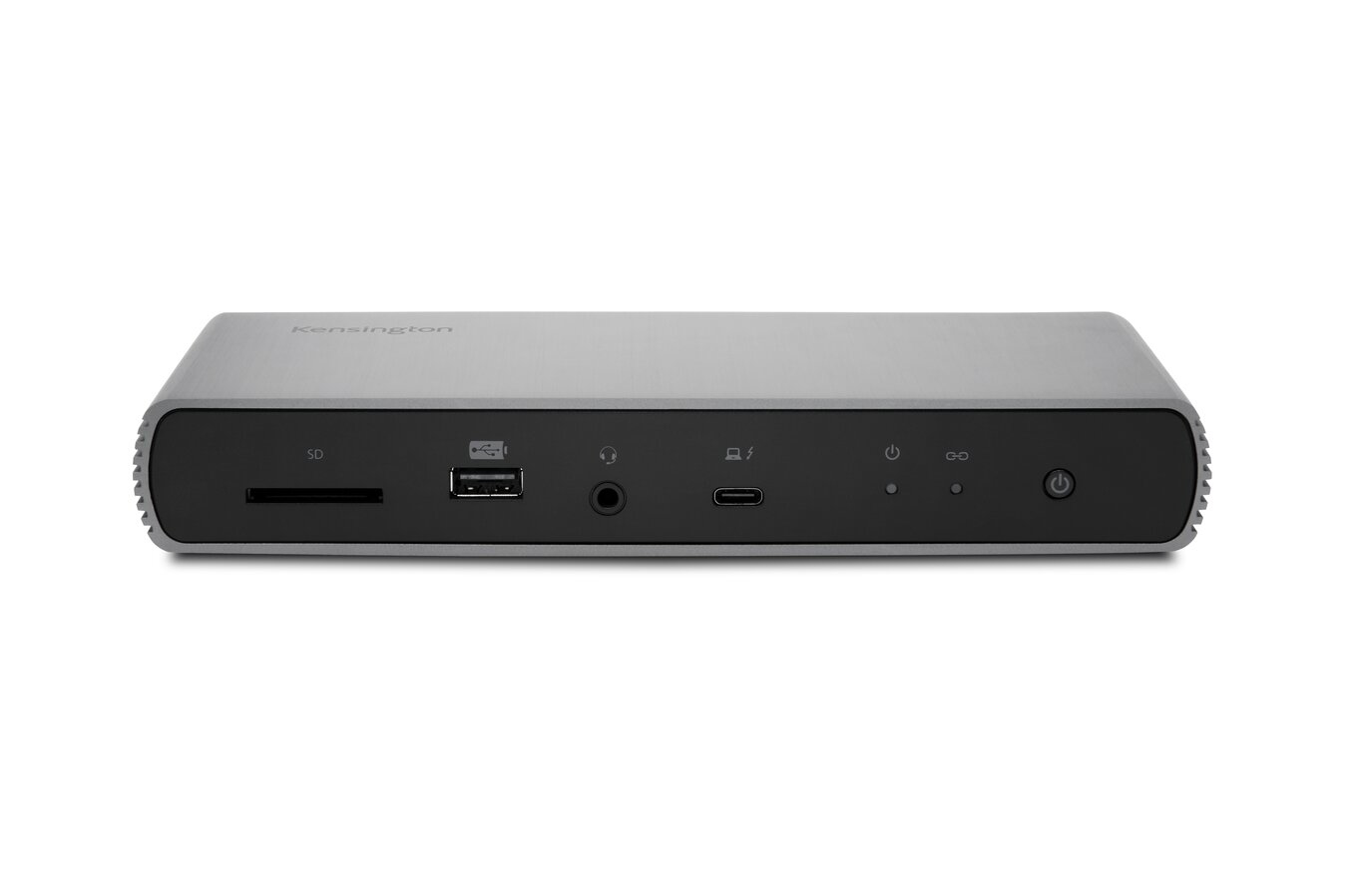

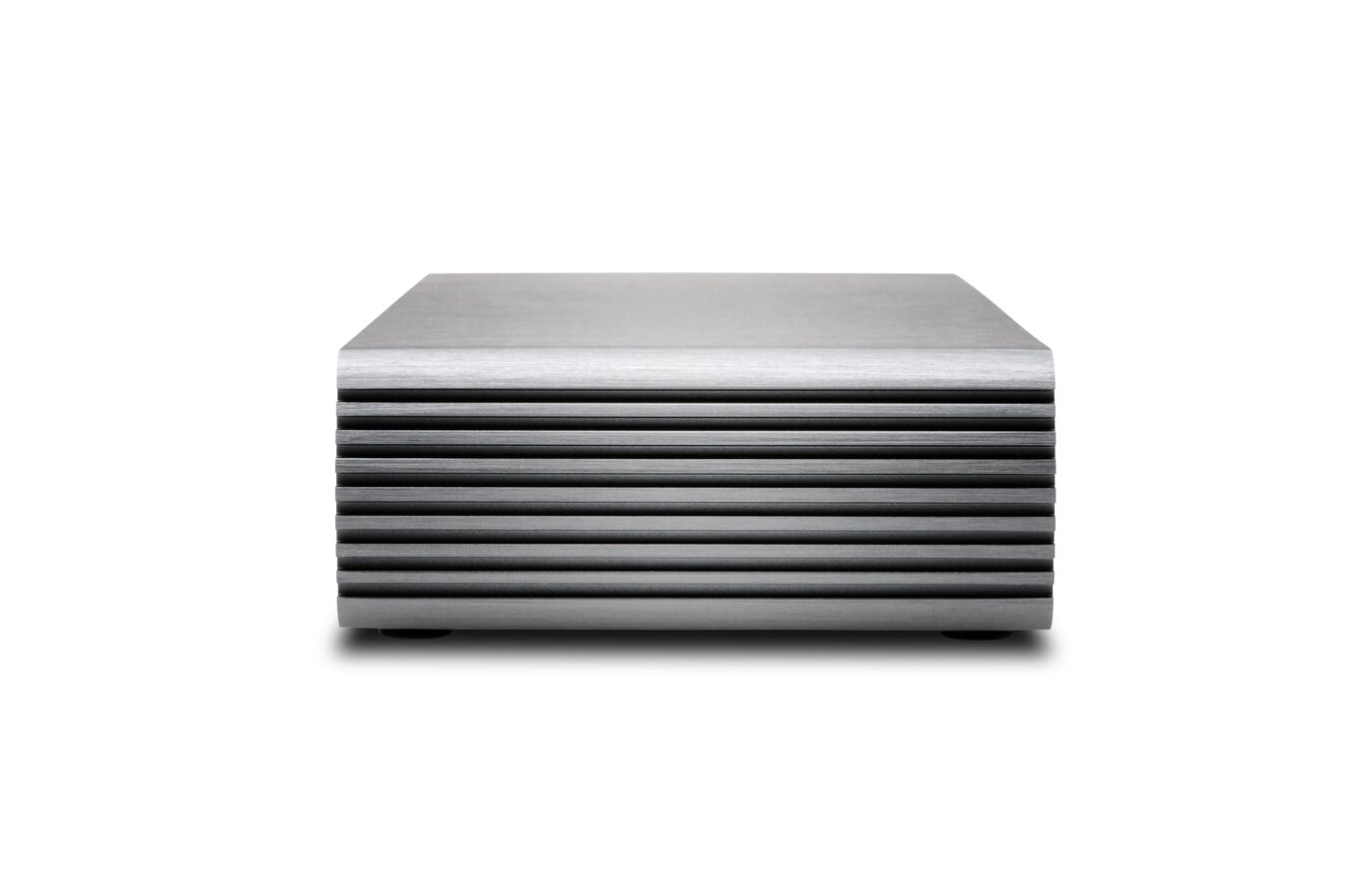

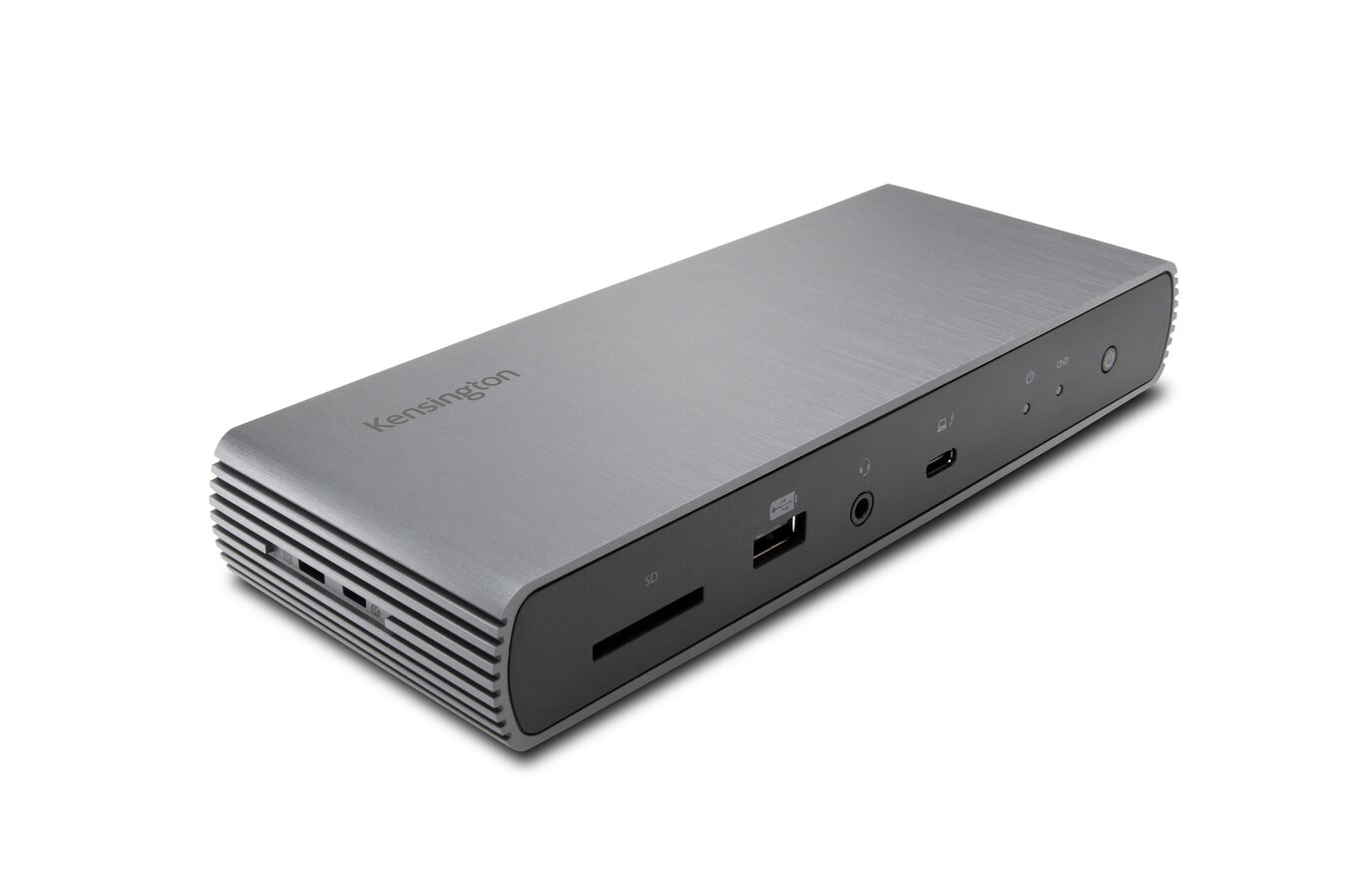

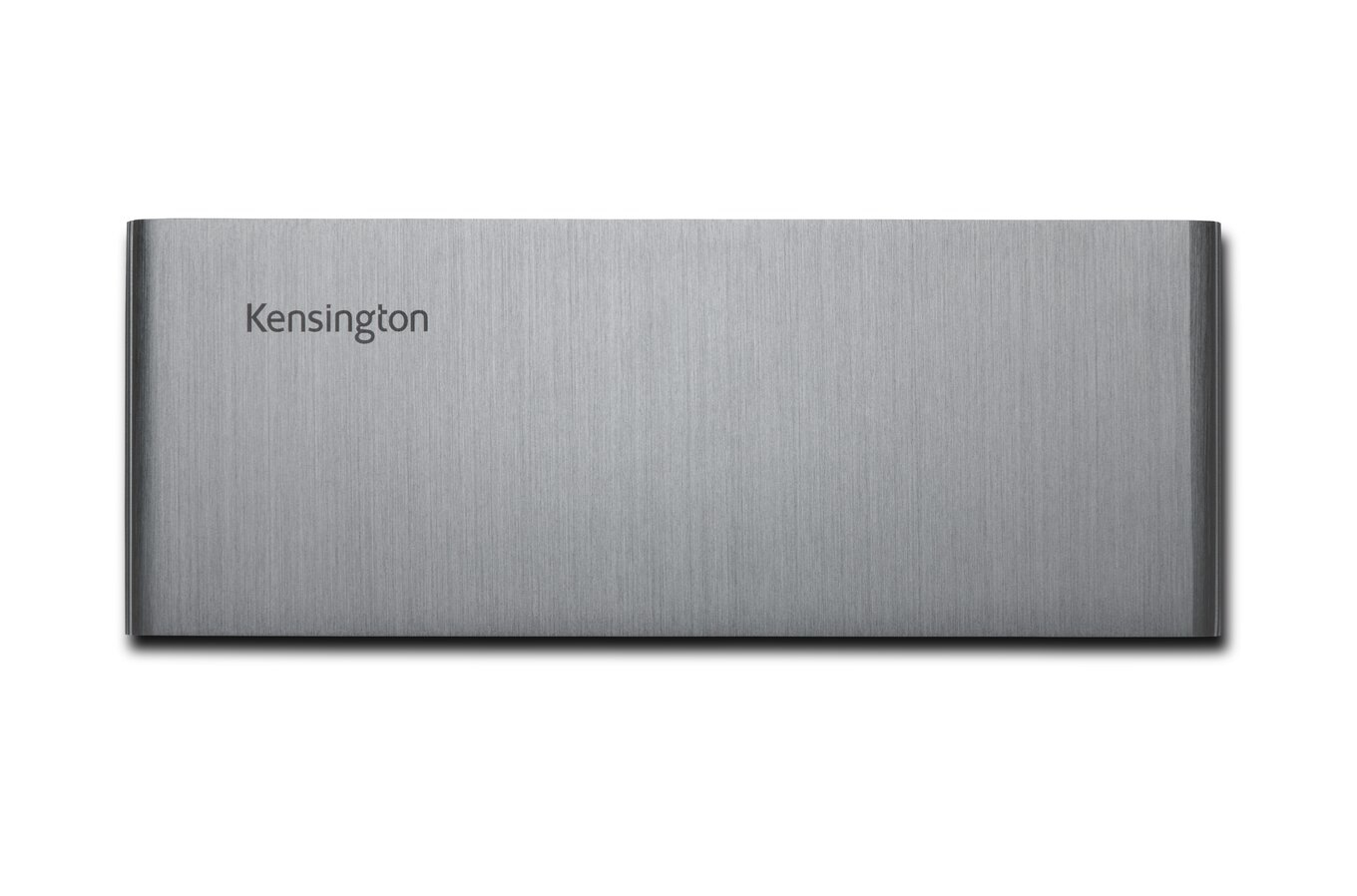

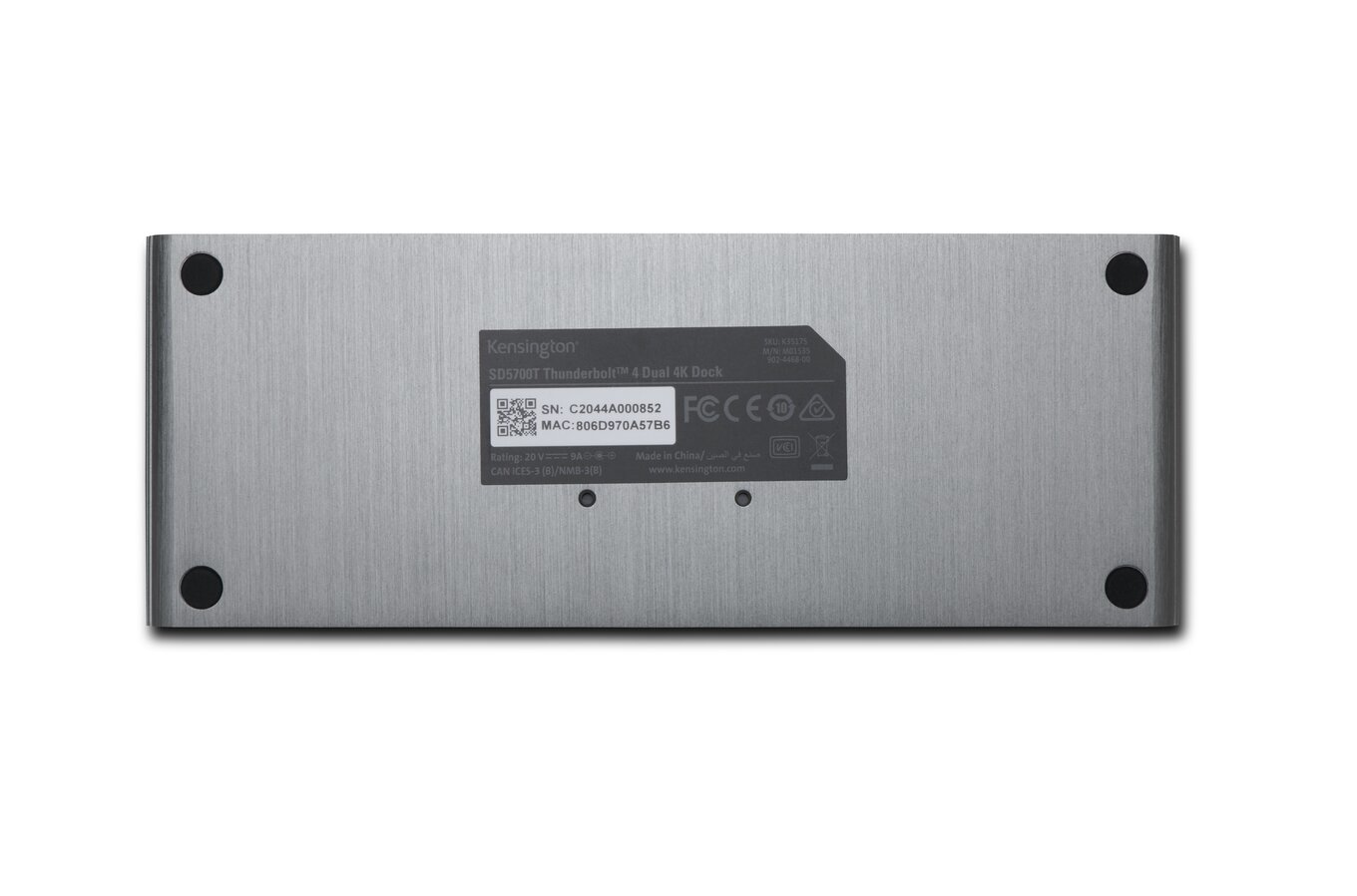

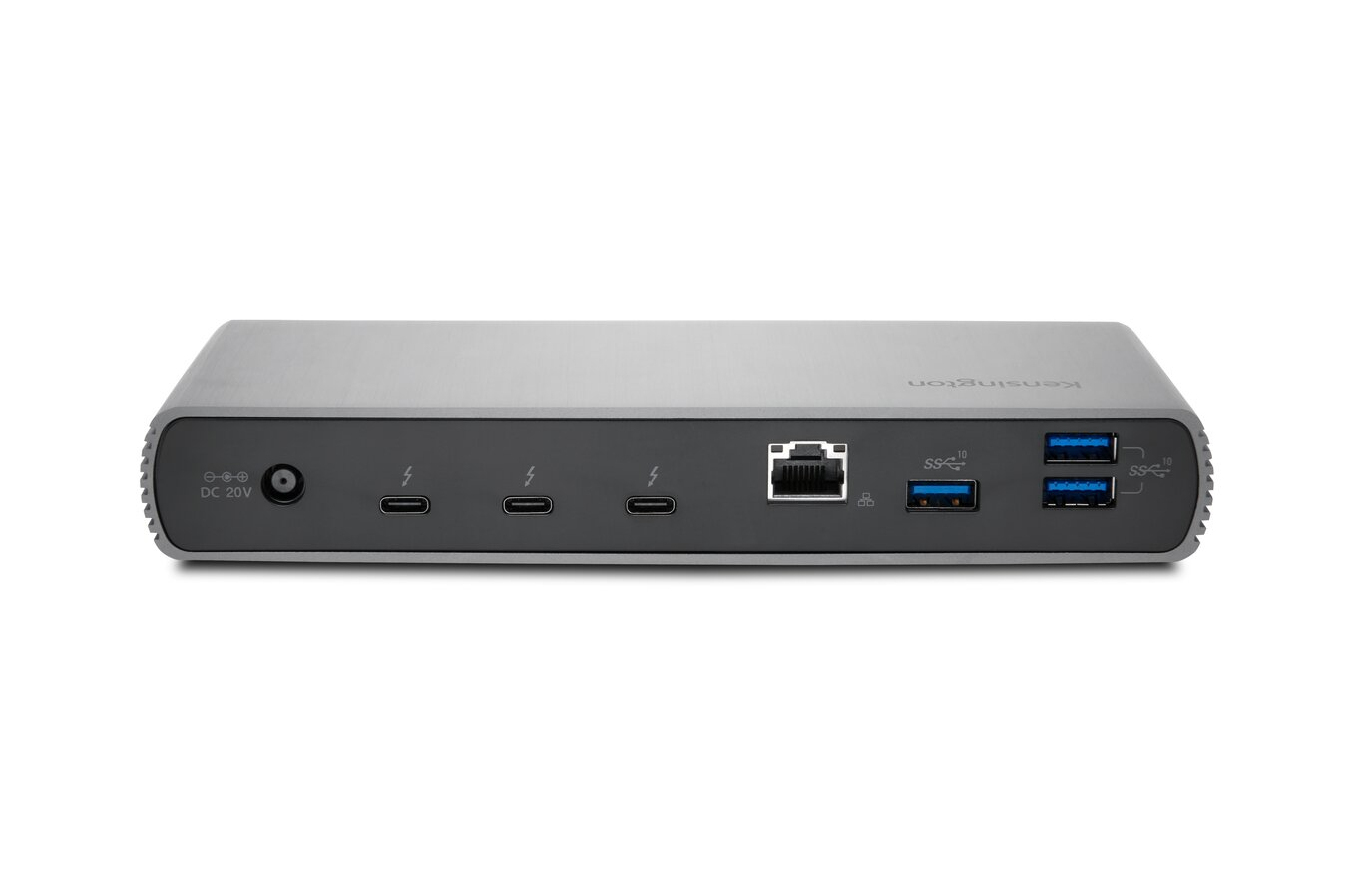

SD5700T Thunderbolt 4 Docking Station
Model SD5700TPart no. K35175EUEAN 5028252620239
55 specifications
- ConnectivityWired
- Weight435 g
- ColourGrey
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 435 g
- Colour
- Grey
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- SD5700T
- Part numbers
- K35175EU, K35175AP, K35175AP-65020
- EAN / UPC
- 5028252620239, 5028252620246
- Also known as
- Kensington SD5700T Thunderbolt 4 Docking Station
Specifications
55 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| HDMI ports quantity | 0 |
| Thunderbolt ports quantity | 4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Key lock | Yes |
| LED indicators | Link, Power |
| Plug and Play | Yes |
| Country of origin | China |
| Compatibility | Engineered for Intel® Evo™ Laptop Accessory Program |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 9 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 195 mm |
| Depth | 75 mm |
| Height | 30 mm |
| Weight | 435 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 215 mm |
| Package depth | 140 mm |
| Package height | 105 mm |
| Package weight | 1.7 kg |

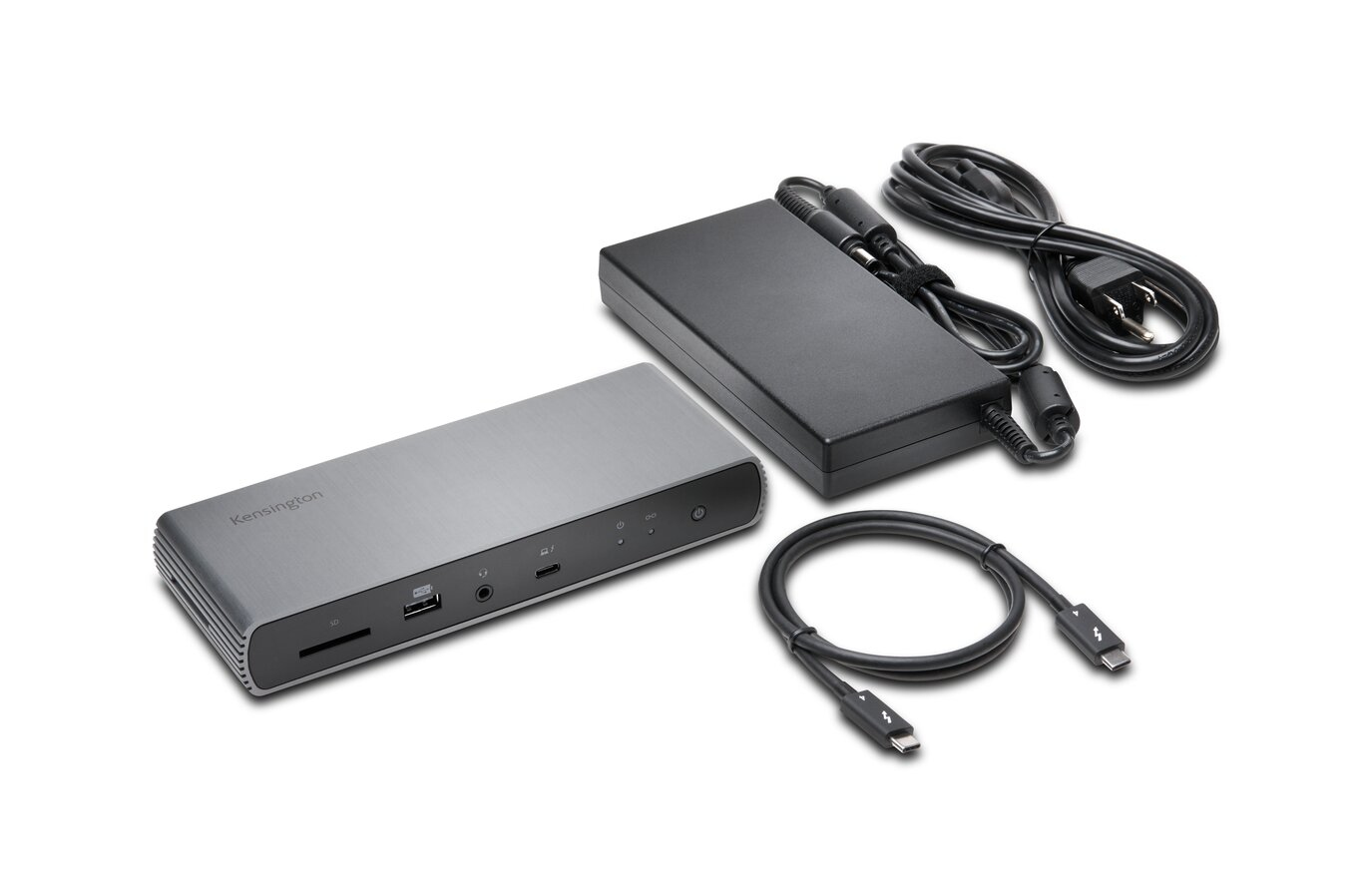

Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Chrome OS 91 or above; Windows 10 or above; macOS 11 or later |
| USB ports quantity | 4 |
