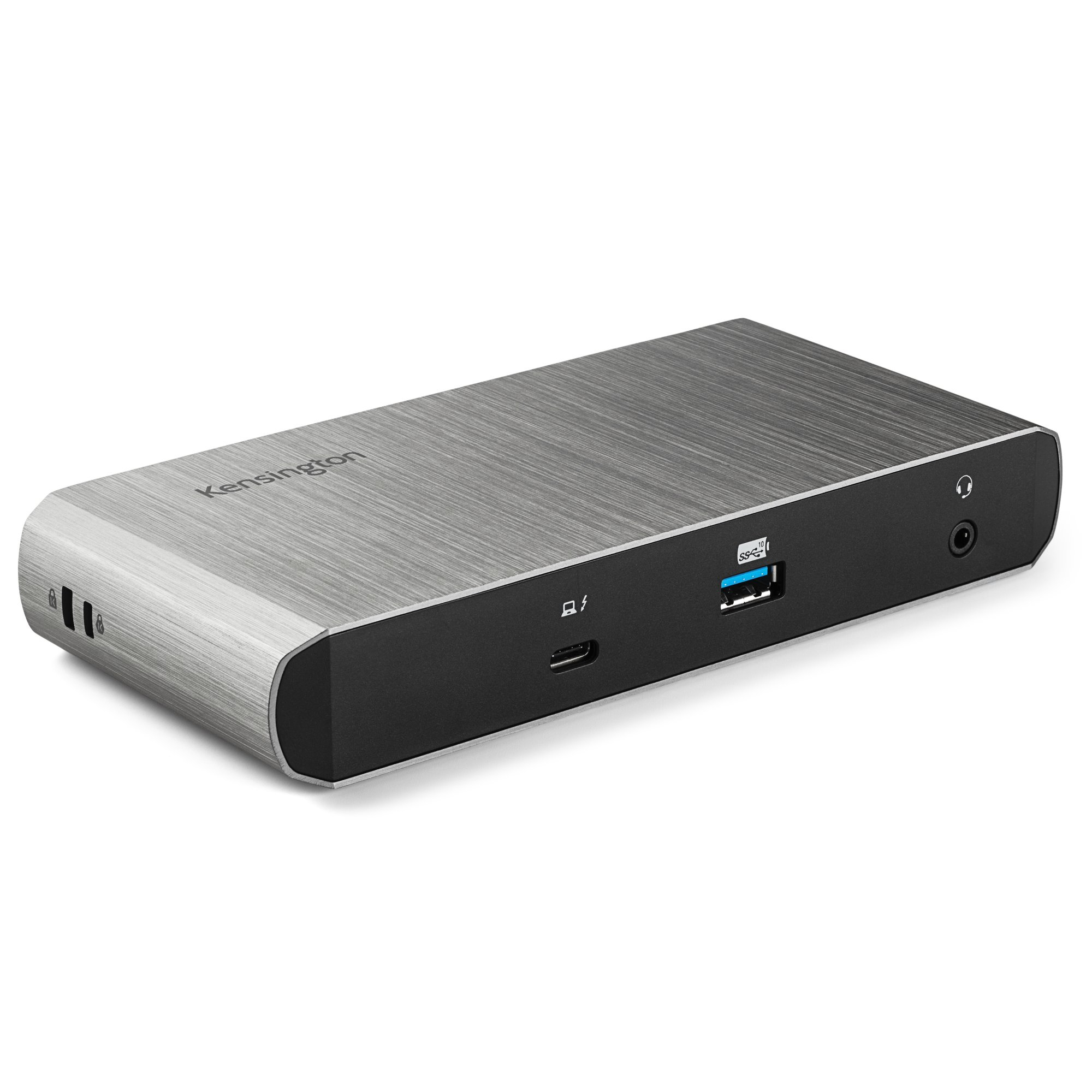

SD5500T Wired Thunderbolt 3 Silver, Black
Model SD5500TPart no. K38131NAEAN 085896381310
58 specifications
- ConnectivityWired
- Weight320 g
- ColourSilver, Black
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 320 g
- Colour
- Silver, Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- SD5500T
- Part numbers
- K38131NA, K38130US
- EAN / UPC
- 085896381310, 085896381303
- Also known as
- Kensington SD5500T Wired Thunderbolt 3 Silver, Black
Specifications
58 specifications in 10 groups

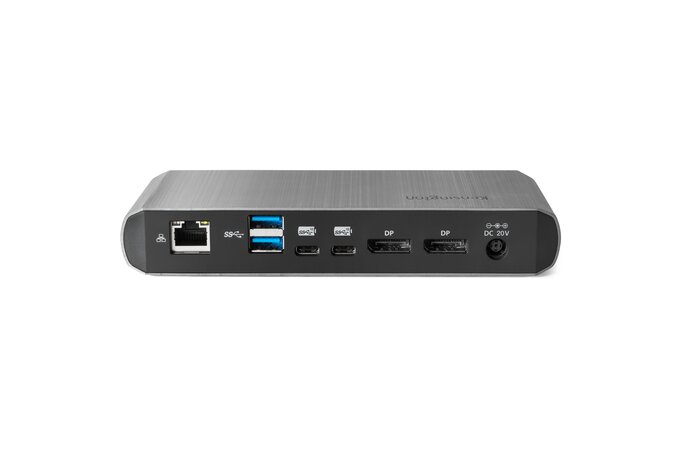

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| HDCP | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000,10,100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver, Black |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |

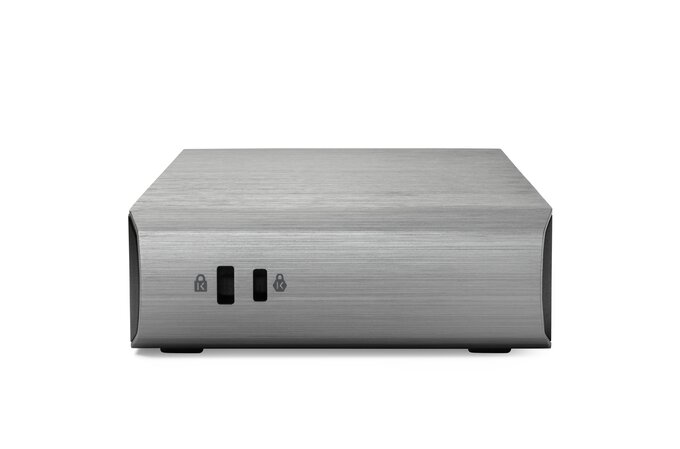

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Plug and Play | Yes |
| Country of origin | Thailand |
| Brand compatibility | Universal |
| Certification | CE, FCC, RCM, ERP, VCCI, CB, REACH, RoHS, Thunderbolt certification |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output current | 6.5 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 17 mm |
| Height | 27 mm |
| Weight | 320 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 307 mm |
| Package depth | 215 mm |
| Package height | 255 mm |
| Package weight | 1.2 kg |

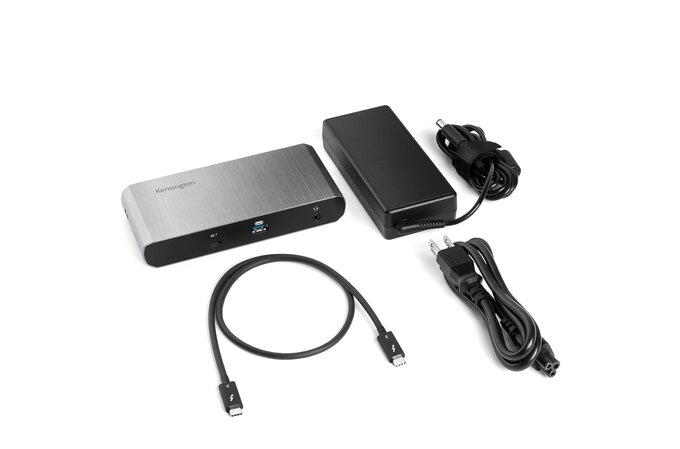

Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | AC |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | macOS 10.14 or above; Windows 10 or above |
| USB ports quantity | 5 |
