Kensington SD5200T Thunderbolt 3 40Gbps Dual 4K Docking Station with

Kensington SD5200T Thunderbolt 3 40Gbps Dual 4K Docking Station with

170W adapter - Windows and Mac

Model SD5200TPart no. K38300EUEAN 5028252521154

59 specifications
  • ConnectivityWired
  • ColourBlack, Silver
  • Ethernet LANYes
  • AC input voltage100 - 240 V
  • Operating temperature (T-T)0 - 40 °C
  • Width217.4 mm
See all specifications

Overview

Connectivity
Wired
Colour
Black, Silver
Ethernet LAN
Yes
AC input voltage
100 - 240 V
Operating temperature (T-T)
0 - 40 °C
Width
217.4 mm
Brand
Kensington
Model
SD5200T
Part numbers
K38300EU, K38300EU-AE
EAN / UPC
5028252521154, 5028252521161
Also known as
Kensington SD5200T Thunderbolt 3 40Gbps Dual 4K Docking Station with 170W adapter - Windows and Mac

Specifications

59 specifications in 12 groups

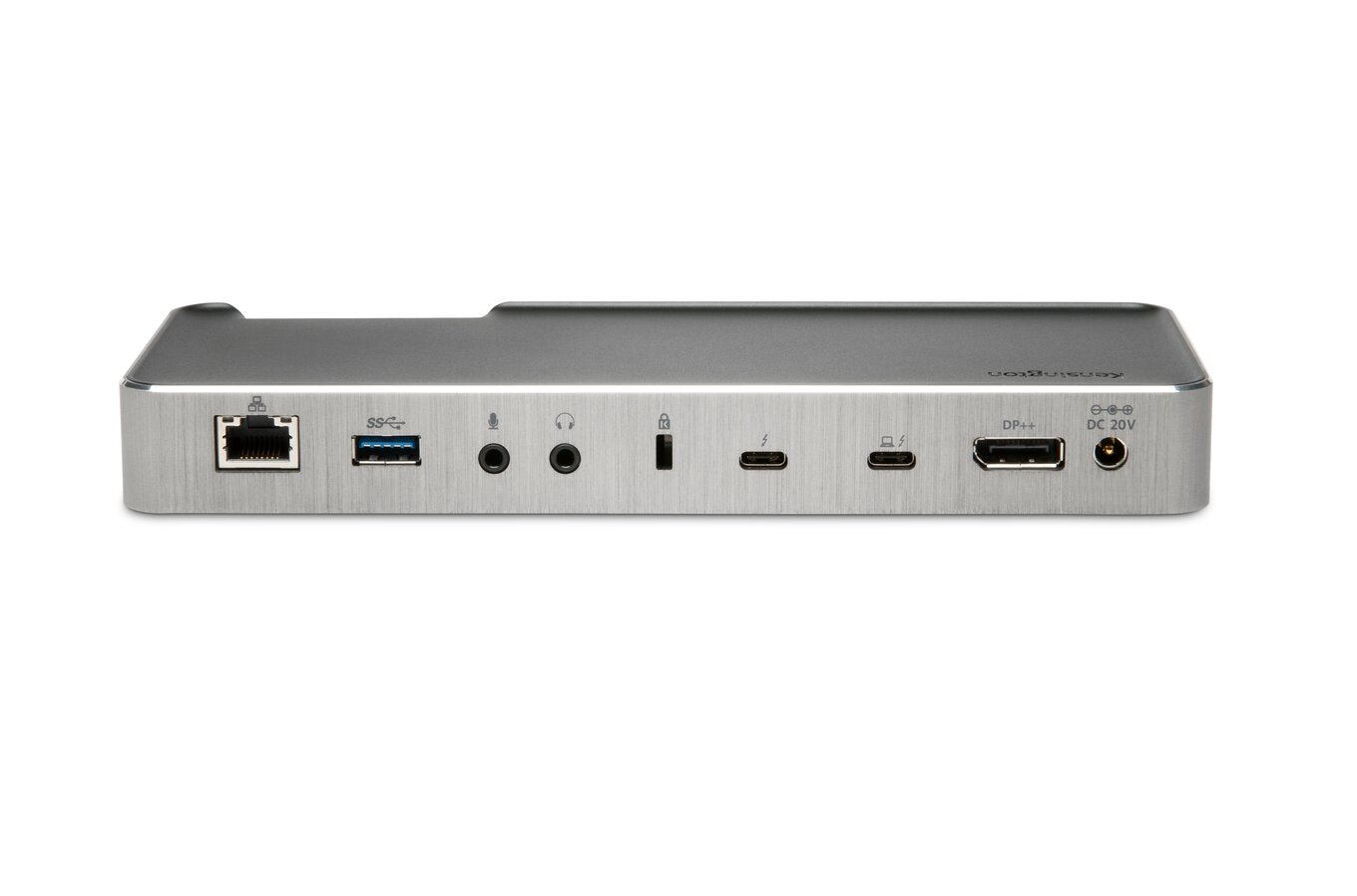

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Number of USB ports with PowerShare support2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision2.0
USB Power Delivery up to85 W
HDMI ports quantity0
DisplayPorts quantity1
Thunderbolt 3 ports quantity2
Microphone inYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate40 Gbit/s
HD type4K Ultra HD
Maximum digital resolution5120 x 2880 pixels
Number of displays supported2
Cable lock slotYes
Cable lock slot typeKensington

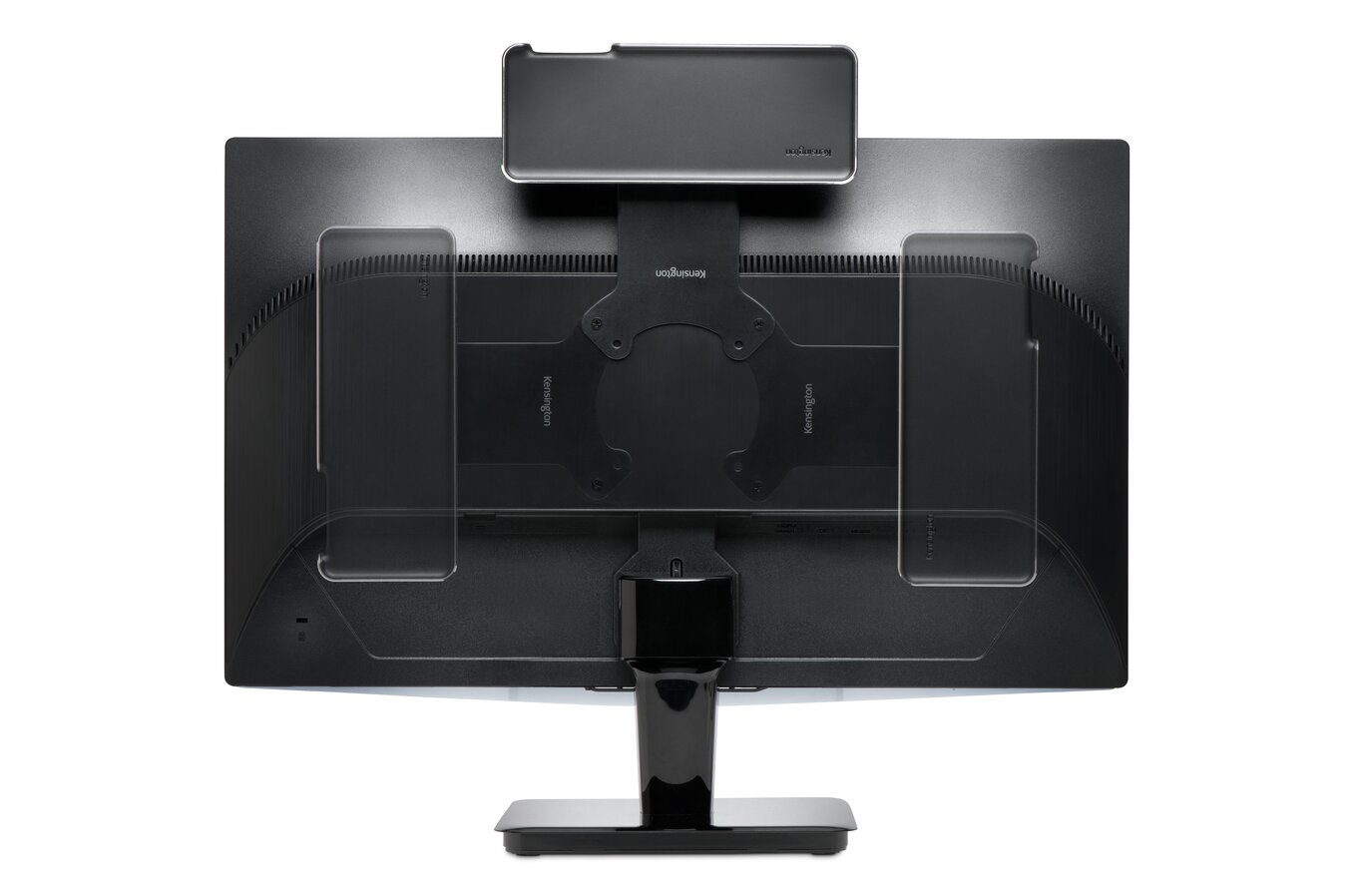

VESA mountingYes
Daisy chainYes
LED indicatorsYes
Plug and PlayYes
Country of originChina
CertificationCE, FCC, RCM, ERP, REACH

Power

AC input voltage100 - 240 V
Input current2.5 A
Output current8.5 A
Output voltage20 V
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width217.4 mm
Depth85.3 mm
Height25.7 mm

Packaging data

Quantity per pack1 pc(s)

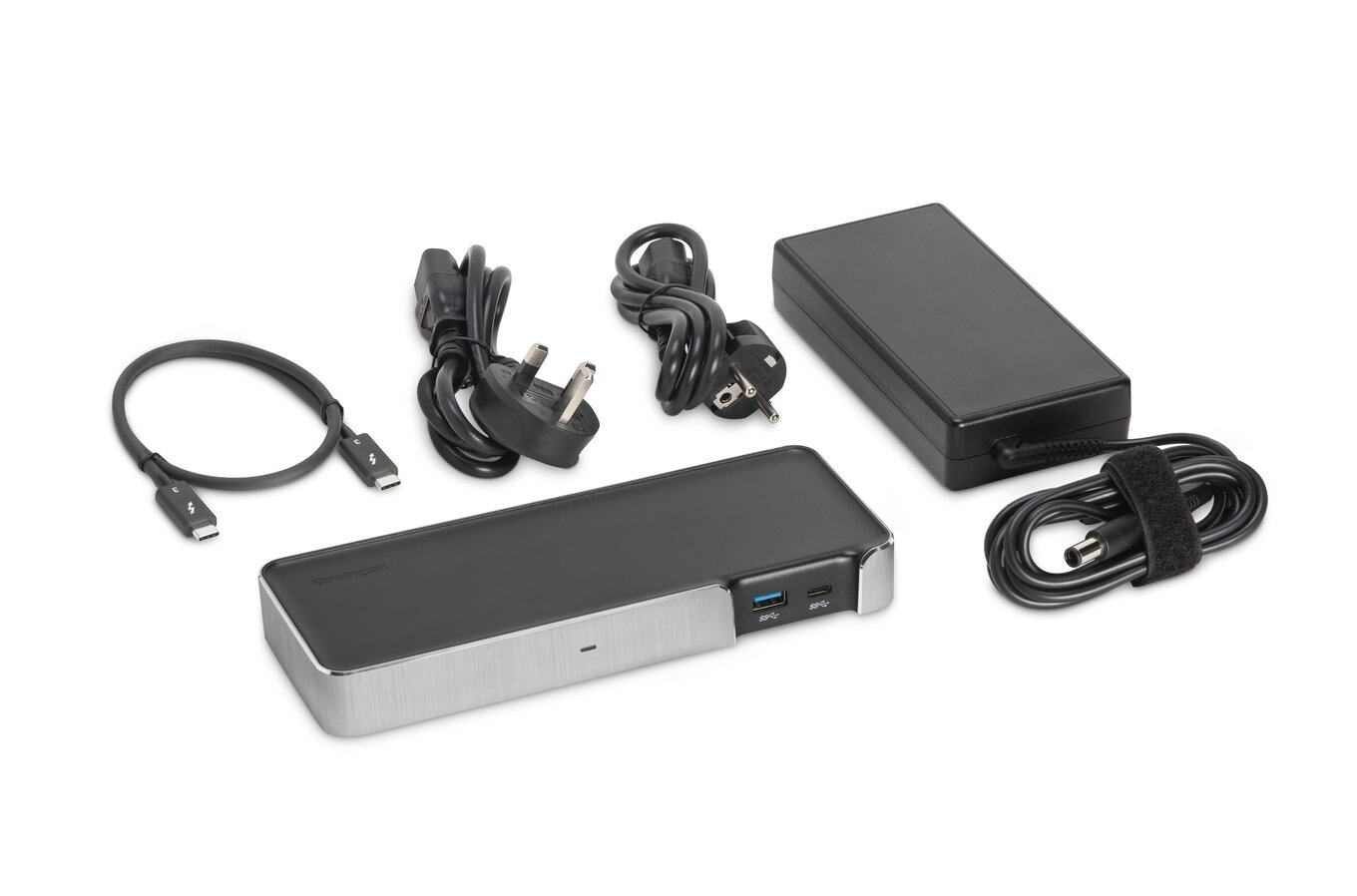

Packaging content

Warranty cardYes
AC adapter includedYes
Cables includedThunderbolt
Quick start guideYes

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case gross weight4.35 kg
Master (outer) case height267 mm
Master (outer) case length152 mm
Master (outer) case width368 mm
Products per master (outer) case4 pc(s)

Other features

Compatible operating systemsWindows 10; macOS 10.12 or above
USB ports quantity3
