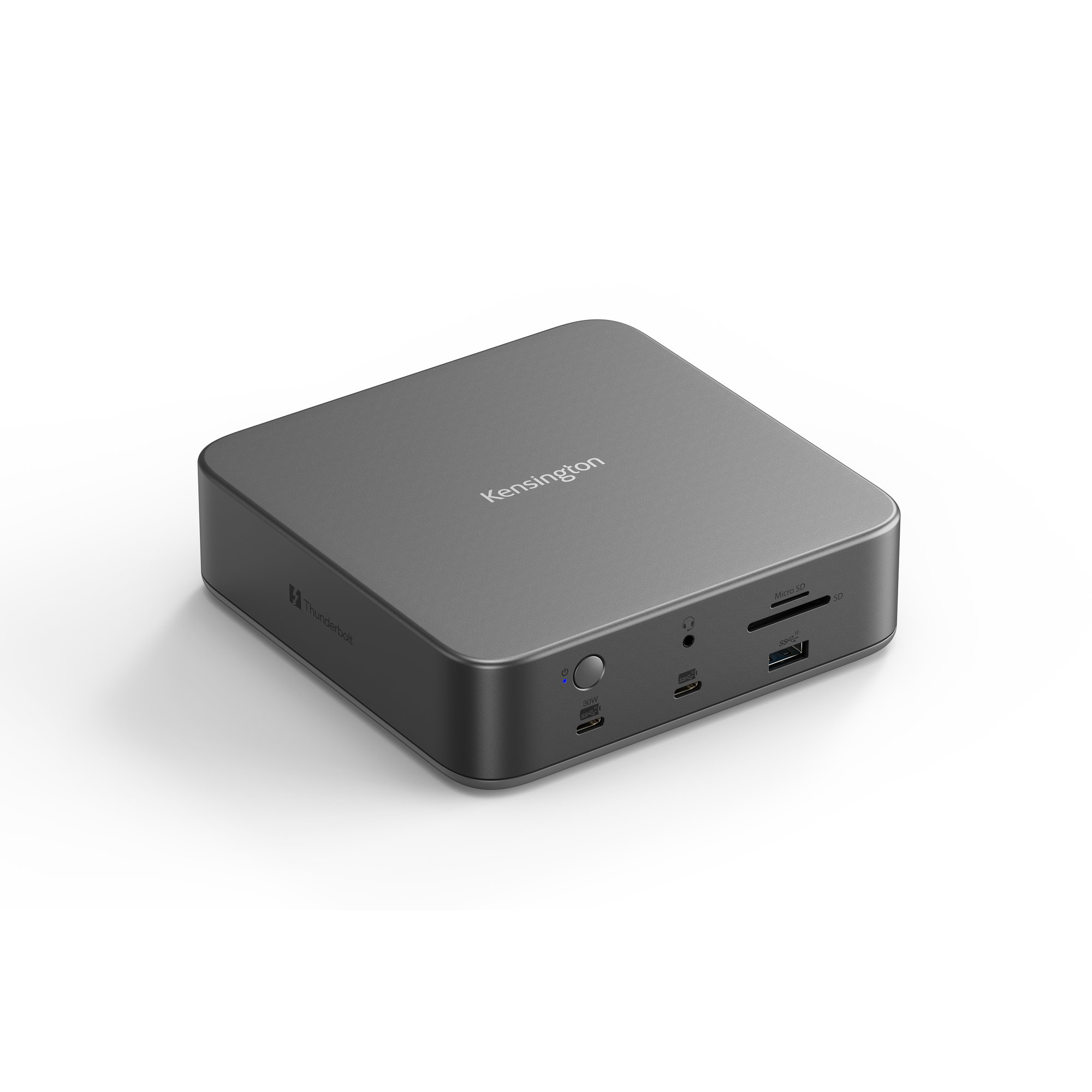

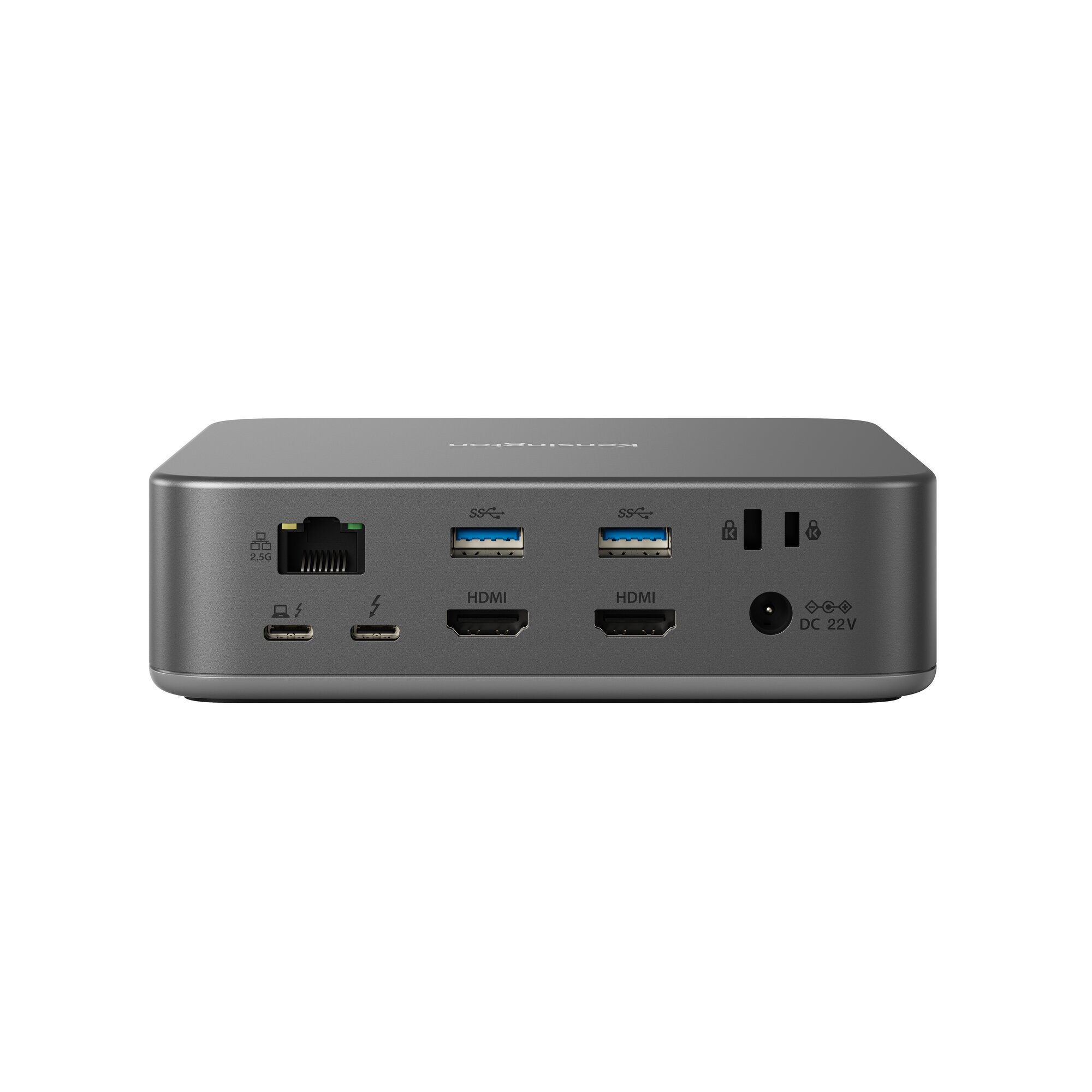

Kensington SD5010T5 EQ
Kensington

SD5010T5 EQ

Model SD5010T5 EQPart no. K35231EUEAN 5028252653992

61 specifications
  • ConnectivityWired
  • Weight890 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeAC
  • Operating temperature (T-T)0 - 35 °C
See all specifications

Overview

Connectivity
Wired
Weight
890 g
Colour
Grey
Ethernet LAN
Yes
Power source type
AC
Operating temperature (T-T)
0 - 35 °C
Brand
Kensington
Model
SD5010T5 EQ
Part number
K35231EU
EAN / UPC
5028252653992, 5028252654005
Also known as
Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station

Specifications

61 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 5
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.1
USB Power Delivery up to140 W
HDMI ports quantity2
HDMI version2.1
Thunderbolt 5 ports quantity2
Combo headphone/mic portYes
Headphone connectivity3.5 mm
DC-in jackYes
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,1000,2500 Mbit/s

Performance

Product colourGrey
Colour nameSpace Gray
Card reader integratedYes
Compatible memory cardsSD, MicroSD (TransFlash)
Data transfer rate80 Gbit/s
HD type8K Ultra HD
Maximum digital resolution7680 x 4320 pixels
Maximum refresh rate240 Hz
Number of displays supported3
Cable lock slotYes
Cable lock slot typeNano, Kensington
Housing materialAluminium, Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS)
LED indicatorsPower
Plug and PlayYes
Country of originVietnam

Power

Power source typeAC
AC input voltage100 - 240 V
Output current8.2 A
Output voltage22 V

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)0 - 70 °C

Weight & dimensions

Width140 mm
Depth140 mm
Height40 mm
Weight890 g

Packaging data

Quantity per pack1 pc(s)
Package width180 mm
Package depth190 mm
Package height110 mm
Package weight1.85 kg

Packaging content

Warranty cardYes
AC adapter includedYes
Cables includedThunderbolt, Power
Quick start guideYes

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), ICES, RCM, UKCA, CB, REACH, RoHS
Warranty period3 year(s)

Logistics data

Products per master (outer) case6 pc(s)

Other features

Compatible operating systemsmacOS 14.5 or above; Windows 11 (23H2 or later)
Special featuresEQ
USB ports quantity3
