SD5005T5 EQ
Model SD5005T5 EQPart no. K35202NAEAN 085896352020
26 specifications
- ConnectivityWired
- ColourWhite
- Ethernet LANYes
Overview
- Connectivity
- Wired
- Colour
- White
- Ethernet LAN
- Yes
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- SD5005T5 EQ
- Part number
- K35202NA
- EAN / UPC
- 085896352020
- Also known as
- Kensington SD5005T5 EQ Thunderbolt™ 5 Docking Station (DFS)
Specifications
26 specifications in 4 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 0 |
| Thunderbolt 5 ports quantity | 4 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,10,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Data transfer rate | 80 Gbit/s |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 144 Hz |
| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Plug and Play | Yes |

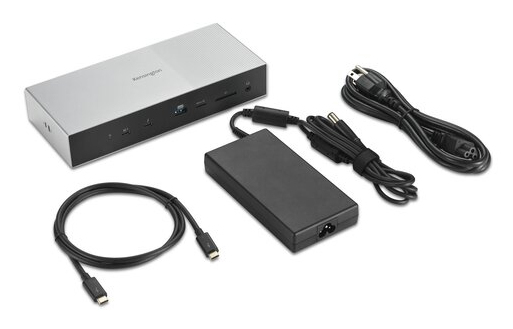

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
