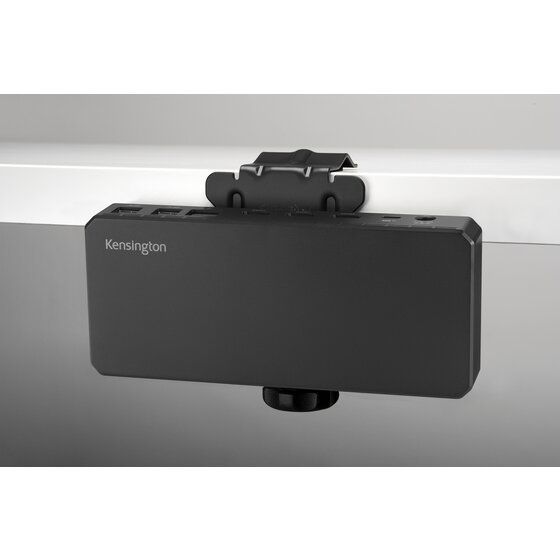

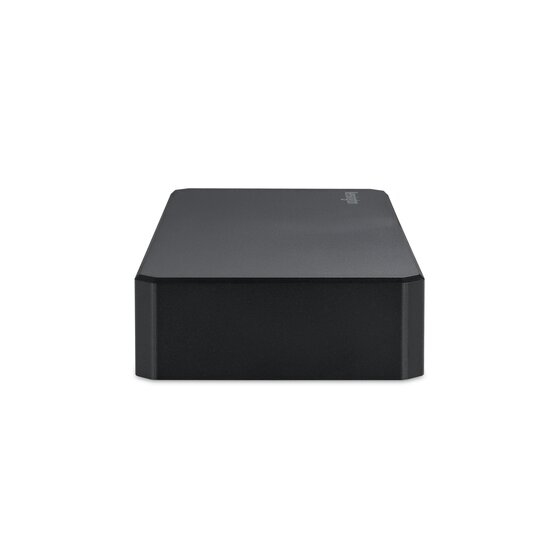

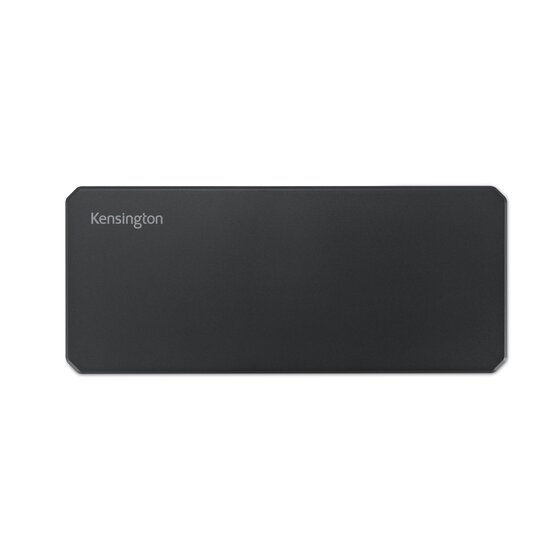

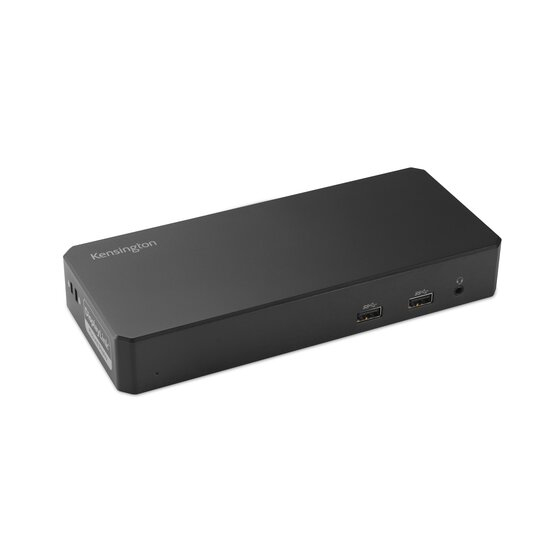

SD4760P USB-C® Triple Display Docking Station
100W PD - HDMI - Windows/macOS/Chrome
Model SD4760PPart no. K33622NAEAN 085896336228
34 specifications
- ConnectivityWired
- ColourBlack
- Ethernet LANNo
- Power source typeUSB
- Windows operating systems supportedYes
- Warranty period3 year(s)
Overview
- Connectivity
- Wired
- Colour
- Black
- Ethernet LAN
- No
- Power source type
- USB
- Windows operating systems supported
- Yes
- Warranty period
- 3 year(s)
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- SD4760P
- Part number
- K33622NA
- EAN / UPC
- 085896336228
- Also known as
- Kensington SD4760P USB-C® Triple Display Docking Station - 100W PD - HDMI - Windows/macOS/Chrome
Specifications
34 specifications in 6 groups

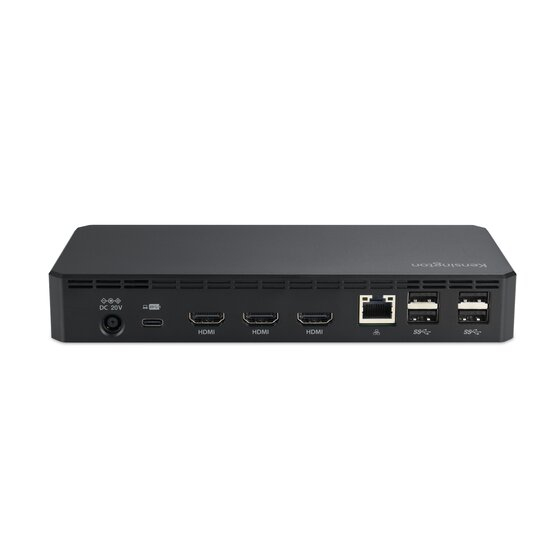

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Microphone in | No |

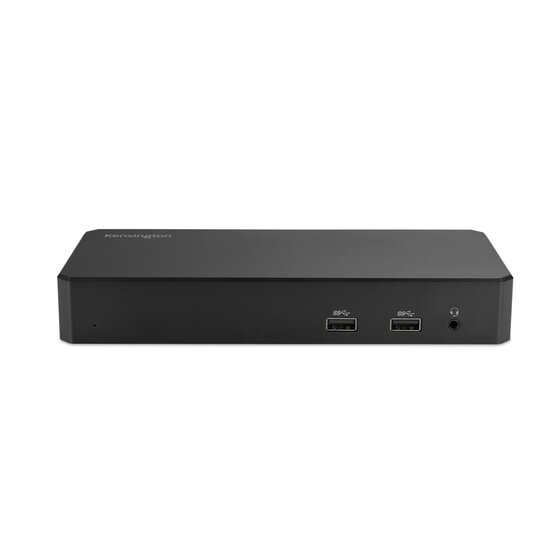

| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |

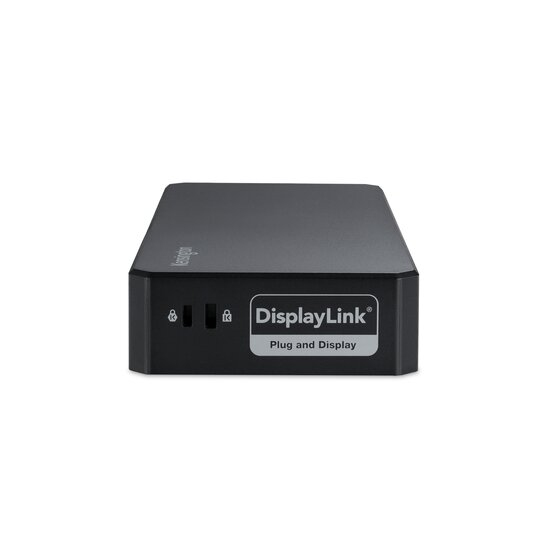

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

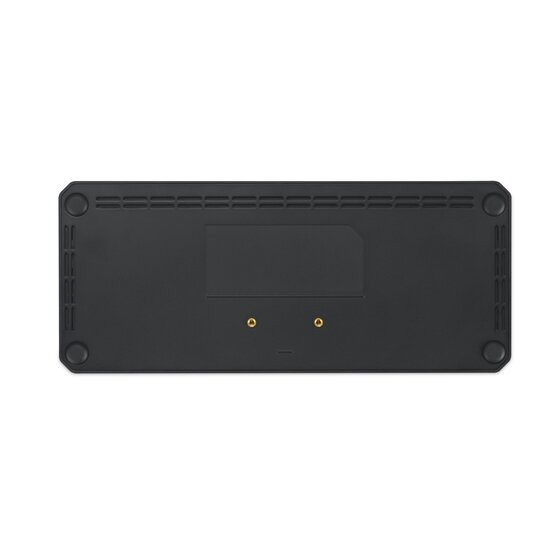

| VESA mounting | Yes |
| Plug and Play | Yes |
| Brand compatibility | Any brand |

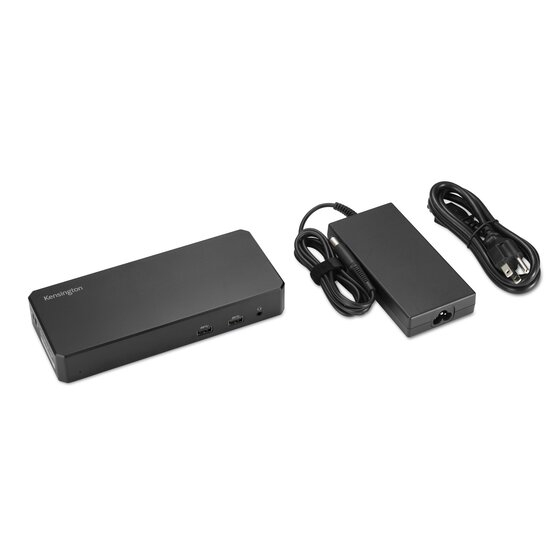

Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| Power consumption (typical) | 100 W |
| Power cable length | 1 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
