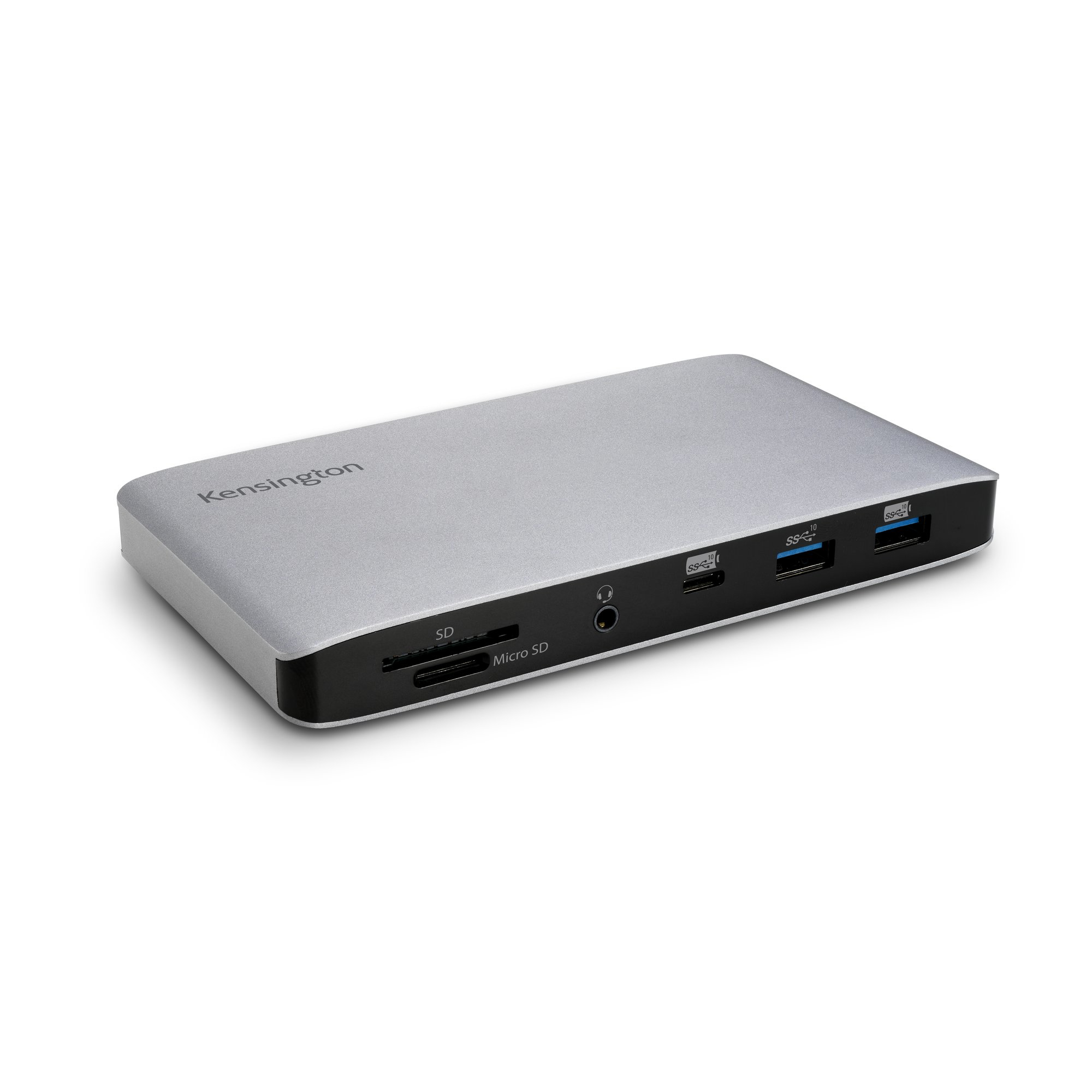

SD2500T Wired Thunderbolt 3 Black, Grey
Model SD2500TPart no. K36400NAEAN 085896364009
52 specifications
- ConnectivityWired
- Weight325 g
- ColourBlack, Grey
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 325 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- SD2500T
- Part number
- K36400NA
- EAN / UPC
- 085896364009
- Also known as
- Kensington SD2500T Wired Thunderbolt 3 Black, Grey
Specifications
52 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |
| Housing material | Aluminium, Plastic |
| Plug and Play | Yes |
| Country of origin | Vietnam |
| Compatibility | FCC, IC, CB, RoHS, ACCO RSL |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 3 A |
| Output current | 6 A |
| Output voltage | 20 V |
| Power consumption (max) | 120 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 0 - 55% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 148 mm |
| Depth | 80 mm |
| Height | 17.5 mm |
| Weight | 325 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 198 mm |
| Package depth | 120 mm |
| Package height | 73 mm |
| Package weight | 1.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | macOS 10.14 or above; Windows 10 |
| Minimum system requirements | CPU: Intel Core i5 6th generation or above Memory: 8GB or above GPU: Intel HD Graphics 620 or above |
| USB ports quantity | 4 |
