SD5900T EQ Thunderbolt 4 Quad 4K 40Gbps Dock with DisplayLink Technology – Midnight Blue
Model K35232NAEAN 085896352327
59 specifications
- ConnectivityWired
- Weight600 g
- ColourBlue
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 600 g
- Colour
- Blue
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- K35232NA
- Part number
- K35232NA
- EAN / UPC
- 085896352327
- Also known as
- Kensington SD5900T EQ Thunderbolt 4 Quad 4K 40Gbps Dock with DisplayLink Technology – Midnight Blue
Specifications
59 specifications in 11 groups

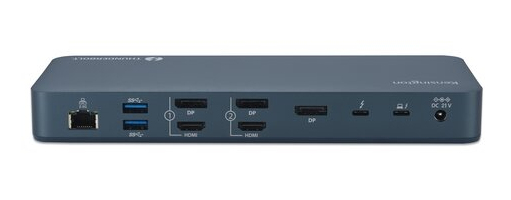

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Thunderbolt 4 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| HDCP | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Blue |
| Colour name | Midnight Blue |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 540 Hz |
| Number of displays supported | 3 |

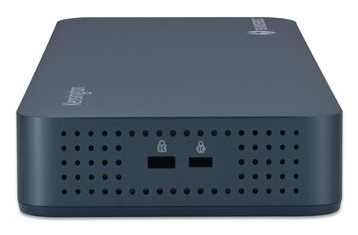

| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| Charging function | Yes |
| Housing material | Aluminium, Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | Vietnam |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Power supply | 149.1 W |
| Output current | 7.1 A |
| Output voltage | 21 V |
Software
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -18 - 60 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 85 mm |
| Height | 22 mm |
| Weight | 600 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 242 mm |
| Package depth | 108 mm |
| Package height | 100 mm |
| Package weight | 1.19 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |

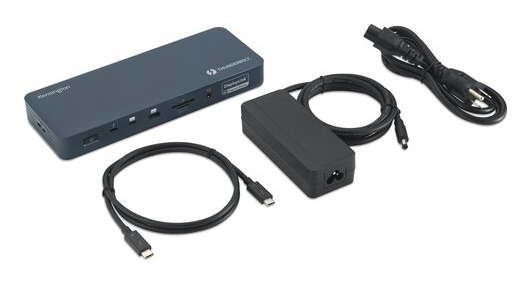

| Cables included | Power, Thunderbolt |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, CB, RoHS, UKCA, RCM |
| Warranty period | 3 year(s) |
