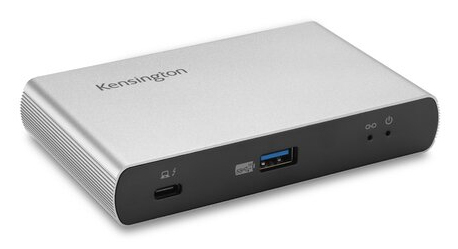

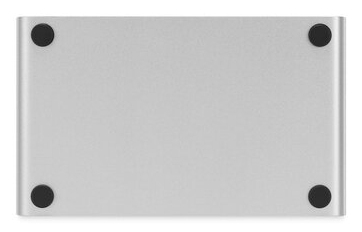

SD5900T EQ Thunderbolt 4 Quad 4K 40Gbps Dock with DisplayLink Technology – Midnight Blue
Model K34036NAEAN 085896340362
56 specifications
- ConnectivityWired
- Weight793 g
- ColourGrey
- Ethernet LANNo
- Power source typeDC
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Connectivity
- Wired
- Weight
- 793 g
- Colour
- Grey
- Ethernet LAN
- No
- Power source type
- DC
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- K34036NA
- Part number
- K34036NA
- EAN / UPC
- 085896340362
- Also known as
- Kensington SD5900T EQ Thunderbolt 4 Quad 4K 40Gbps Dock with DisplayLink Technology – Midnight Blue
Specifications
56 specifications in 11 groups

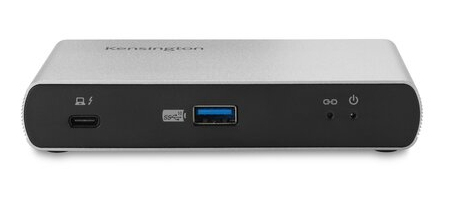

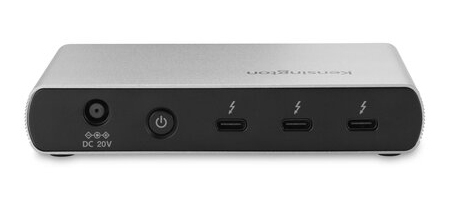

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 65 W |
| HDMI ports quantity | 0 |
| Thunderbolt 4 ports quantity | 3 |
| Microphone in | No |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Space Gray |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 240 Hz |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| Charging function | Yes |
| Housing material | Aluminium, Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| LED indicators | Link, Power |
| Plug and Play | Yes |
| Country of origin | Taiwan |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2 A |
| Power supply | 135 W |
| Output current | 6.75 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS X 13.0 Ventura, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 55% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 72 mm |
| Height | 21.6 mm |
| Weight | 793 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 213 mm |
| Package depth | 137 mm |
| Package height | 103.5 mm |
| Package weight | 1.01 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CB, RoHS |
| Warranty period | 3 year(s) |
