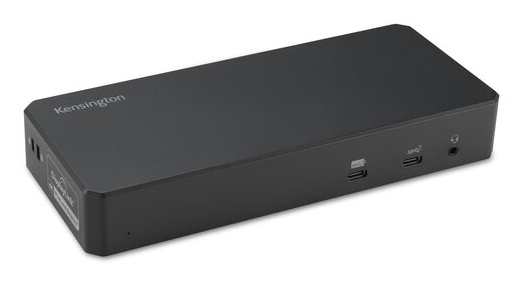

SD4790-MAC EQ USB-C Triple 4K Docking Station for MacBook
Model K33621NAEAN 085896336211
56 specifications
- ConnectivityWired
- Weight460 g
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 460 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Kensington
- Category
- Laptop Docks & Port Replicators
- Model
- K33621NA
- Part number
- K33621NA
- EAN / UPC
- 085896336211
- Also known as
- Kensington SD4790-MAC EQ USB-C Triple 4K Docking Station for MacBook
Specifications
56 specifications in 11 groups

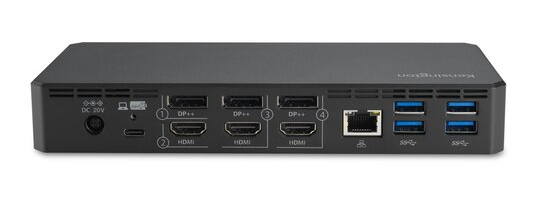

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 3 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Number of displays supported | 3 |

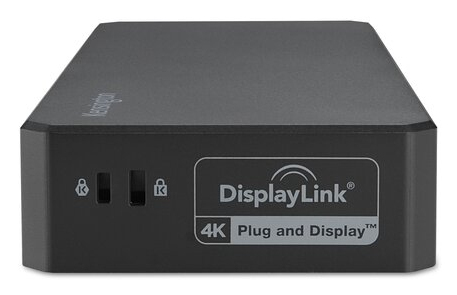

| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| Charging function | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | Thailand |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Power supply | 150 W |
| Output current | 7.5 A |
| Output voltage | 20 V |
Software
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 15.0 Sequoia, Mac OS X 14.0 Sonoma, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 55% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 85 mm |
| Height | 30 mm |
| Weight | 460 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 217 mm |
| Package depth | 108 mm |
| Package height | 102 mm |
| Package weight | 1.18 kg |
Packaging content
| Specification | Value |
|---|---|
| Warranty card | Yes |
| AC adapter included | Yes |

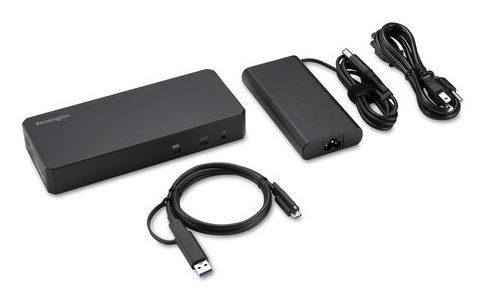

| Cables included | Power, USB |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, CB, RoHS, UKCA, RCM, VCCI |
| Warranty period | 3 year(s) |
