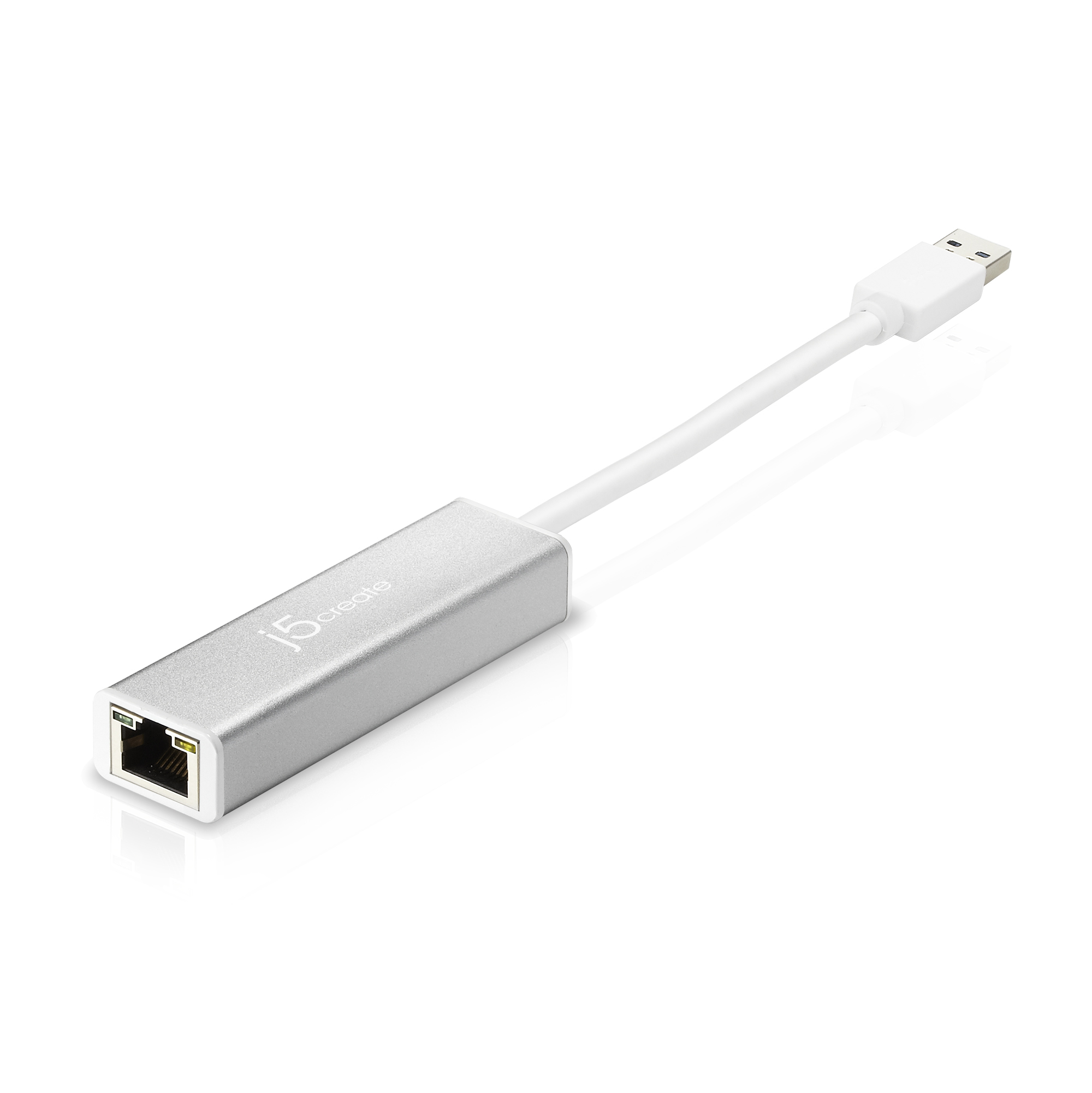

JUE130 USB™ 3.0 Gigabit Ethernet Adapter, Silver and White
Model JUE130Part no. JUE130-NEAN 847626000164
47 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight35 g
- ColourSilver, White
- Ethernet LANYes
- Output current0.2 A
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 35 g
- Colour
- Silver, White
- Ethernet LAN
- Yes
- Output current
- 0.2 A
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JUE130
- Part number
- JUE130-N
- EAN / UPC
- 847626000164, 24712795080241, 4712795080247, 8476260001644
- Also known as
- j5create JUE130 USB™ 3.0 Gigabit Ethernet Adapter, Silver and White
Specifications
47 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver, White |
| Data transfer rate | 5 Gbit/s |
| Housing material | Aluminium |
| LED indicators | Activity, Link |
| Country of origin | Taiwan |
| Compatibility | Backwards compatible with USB™ 3.0, 2.0, and 1.1 hosts and devices, Instant connection to a wired network over USB™ Devices include: Macbook™ Pro (Up to model year 2015) Macbook™ Air (Up to model year 2017) Surface Pro™ 7 Surfacebook™ |
Power
| Specification | Value |
|---|---|
| Output current | 0.2 A |
| Output voltage | 5 V |
| Power consumption (typical) | 1 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -42 - 82 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 14.5 mm |
| Height | 23 mm |
| Weight | 35 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 120 mm |
| Package depth | 97 mm |
| Package height | 25 mm |
| Package weight | 76.5 g |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | No |
| Packaging content | 1 x JUE130 USB 3.0 Gigabit Ethernet Adapter, 1 x Quick Installation Guide, 1 x Driver Installation CD |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795080241 |
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case gross weight | 2.17 kg |
| Master (outer) case height | 145 mm |
| Master (outer) case length | 210 mm |
| Master (outer) case width | 280 mm |
| Products per master (outer) case | 20 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.145 m |
| Cable type | USB 3.0 |
| Compatible operating systems | Windows, Mac, Linux |
| Interface | Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Contents | 1 x JUE130 USB™ 3.0 Gigabit Ethernet Adapter, 1 x Quick Installation Guide |
